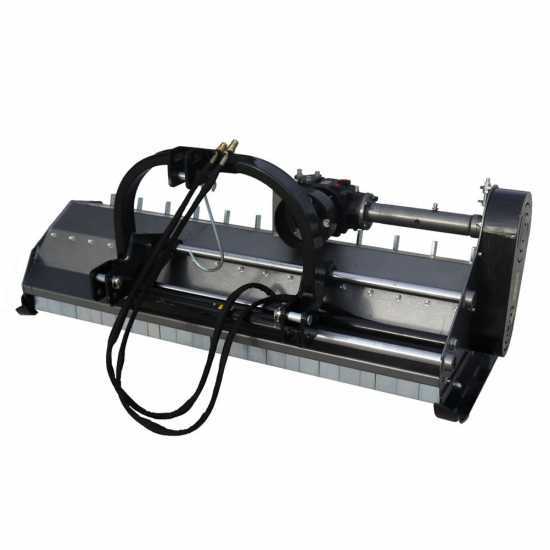

Blackstone BP 180 Hydro - Tractor-mounted Flail Mower - Medium-light Series - Hydraulic Shift

The Blackstone BP Hydro series horizontal axis tractor flail mower with hydraulic shift is the ideal product for shredding and cutting stalks, pruning residues, vine shoots and any other organic material present on the surface of the soil.

Medium series flail mower, mainly suitable for hobby use.

This flail mower model is equipped with hydraulic side shift, 3 drive belts and rear roller.

TECHNICAL SPECIFICATIONS (brief overview):

• Real working width: 180 cm
• Real width occupied (with side skids already mounted): 190 cm
• Weight: 400 kg
• Hydraulic side shift
• Type 1 Three-point hitch
• 3-belt drive

FREE ITEMS PROVIDED ON STANDARD EQUIPMENT (short overview):

• Hammer flails
• Adjustable rear support roller
• Adjustable skids
• Rear door flap
• Drive shaft
• Collection rods

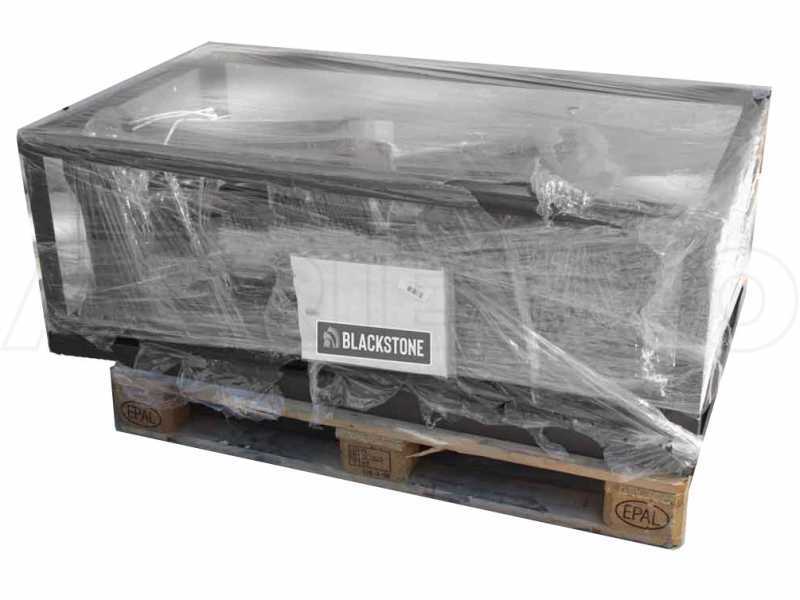

Note: the machinery is shipped ready to use. Once all parts have been assembled, check if the bolts are properly tightened.
Read the instruction manual carefully before use.

Rear collecting rods series (rakes) particularly suitable for shredding pruning or any other crop residues. It's a very important tool, as there is not a single shredder on the market that is truly capable of effectively grinding pruning without leaving medium to large fragments.

Any shredder is set at a working height of about 3/4 cm from the ground. This means that the flail mower tends to leave intact all the branches and residues lying on the ground, as the hammers often does not work close enough to the ground to be able to "grasp" them. Also, the tractor's wheels tend to crush or even bury these residues on the ground.

The clamps perform a real 'raking' action, extracting from the ground and lifting even those residues buried by the wheels, dragging them along. In this way, no branches or residue will remain on the ground. Each hammer flail rotates at a very close distance to a single brush rake, so, it picks up the branch lifted by the rakes and take it to the grinder; after that, the branch passes through the action of the counter-knives that shred it completely. At the end of the process, there will be hardly any pruning residue still intact throughout the area subjected to the work of this flail mower.

ASSEMBLY: the brush rakes must be adjusted to a height that allows them to work very close to the ground, placed in a "free" position. This means that they must be able to swing vertically, thus adapting to any roughness and unevenness of the ground, thanks to their inclination towards the rear of the machine.

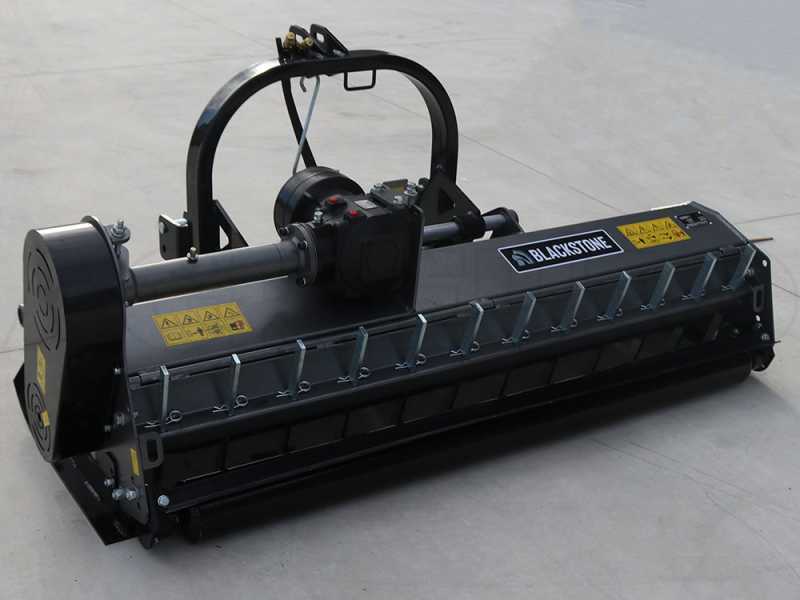

A distinctive feature of this flail mower is its rear opening.

This has a double function: it allows the rear discharge space to be adjusted using simple screws, and also simplifies maintenance by allowing the operator to perform checks in specific areas of the machine

The door can be opened by simply using bolts

No. of standard-supplied toothed hammers: 16

These are not the standard smooth hammers, but rather stronger and heavier hammers than the norm. They are able to work effectively on grass, straw and more, where there are solid bodies, such as wood and stones, thanks to its three sturdy "chisels" which tend to "break" and bore material more easily.

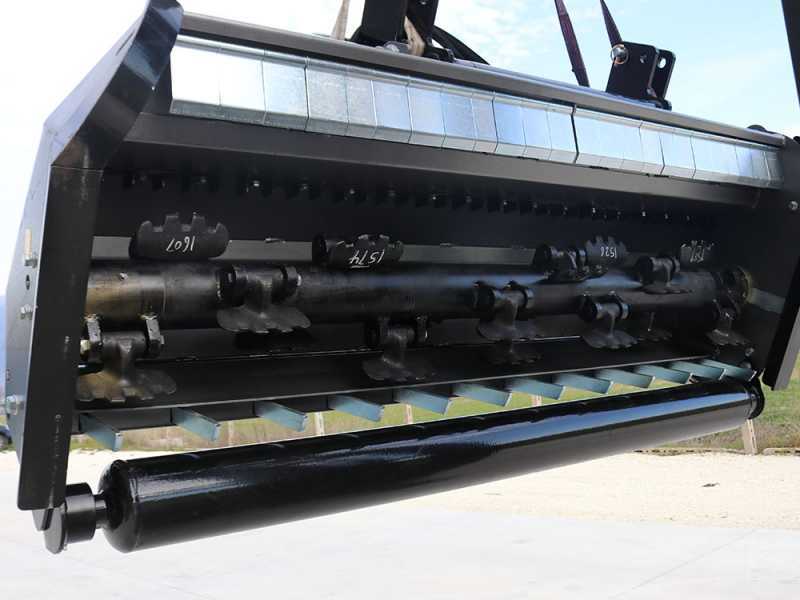

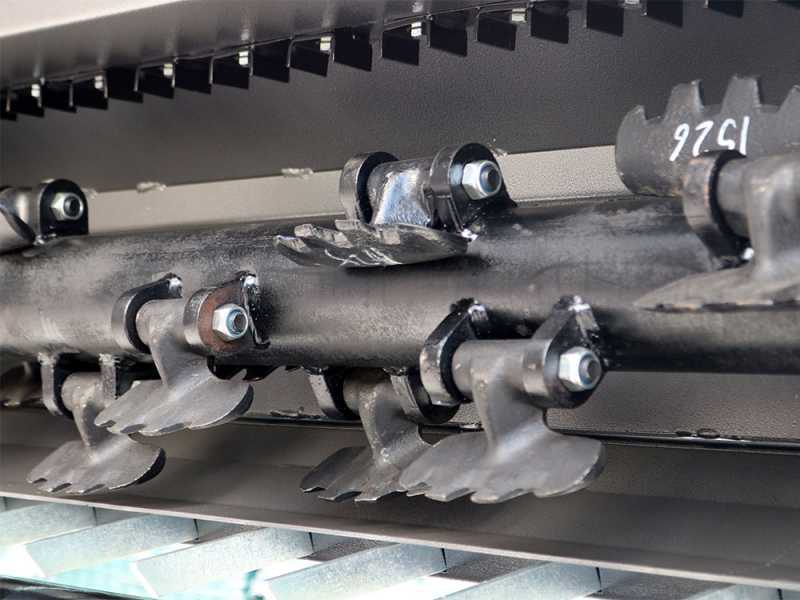

Focus on the toothed hammers already assembled on the rotating roller.

Hammer flail's hole diameter: 16mm

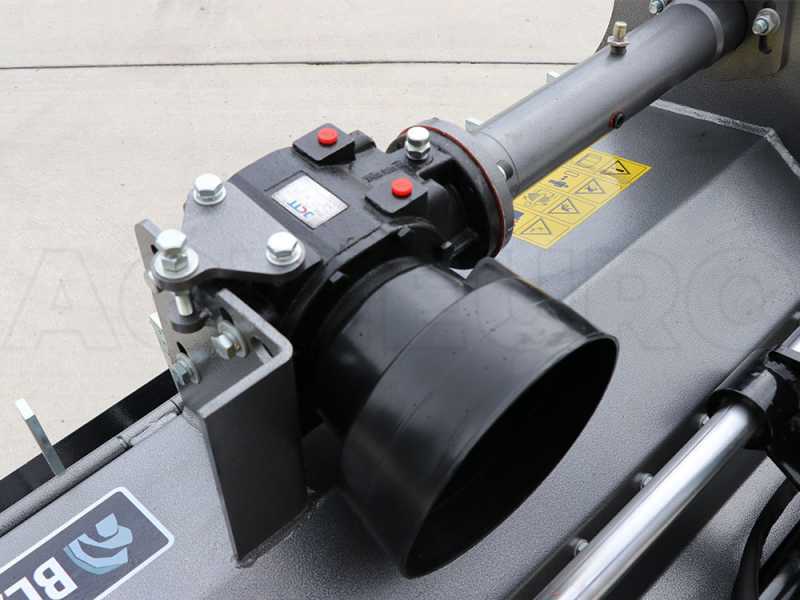

Gearbox in oil bath The external housing is made in fusion material while the internal gears are in hardened steel.

Equipped with lubricated extension.

3-belt side transmission

Belt protection side shield

The gearbox of this machinery can contain no more than 1 L of oil.

Read the instruction manual carefully before use.

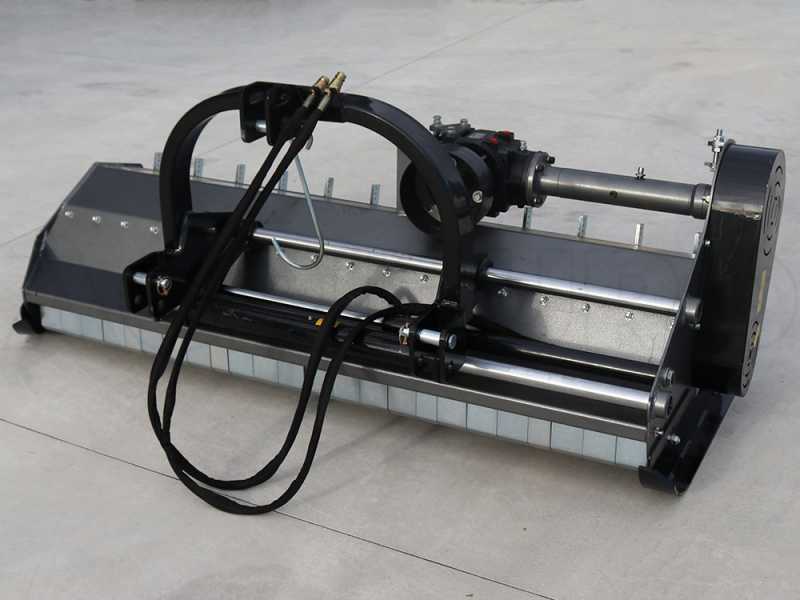

The flail mower is equipped with hydraulic shift.

The three-point linkage runs on a robust tubular mounted across the width of the mower.

Detail of the piston that control the flail mower hydraulic shift.

Universal standard PTO (1 3/8” Z6).

Universal-type hitches that can be adapted to all tractors on the market.

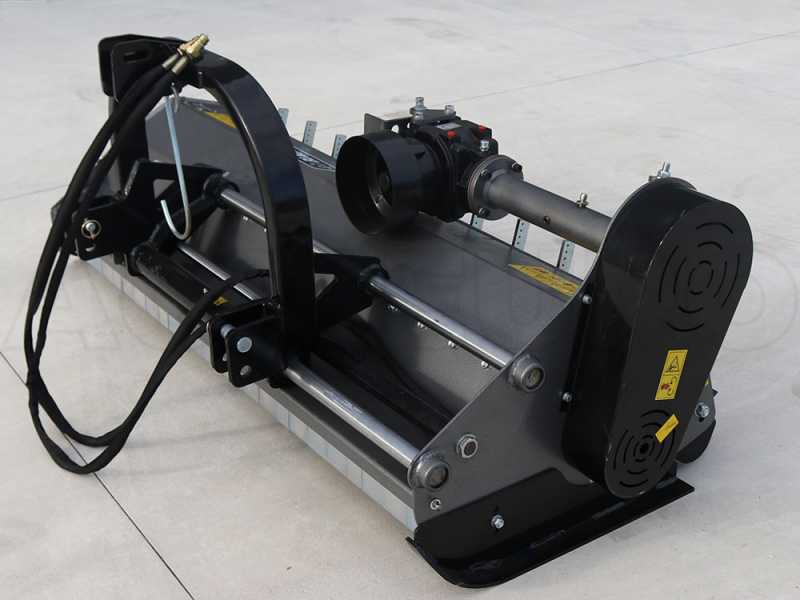

Detail of the sturdy type 1 three-point-hitch.

Detail of the side supporting device with internal locking bearing of the hammer rotor.

Detail of the external rotor anchorage system with central opening and greaser.

Thanks to the hammer flails you will get great cutting results while working on gardens, lawns and urban areas. The flail mower is fitted to the rear side of the tractor three-point linkage.

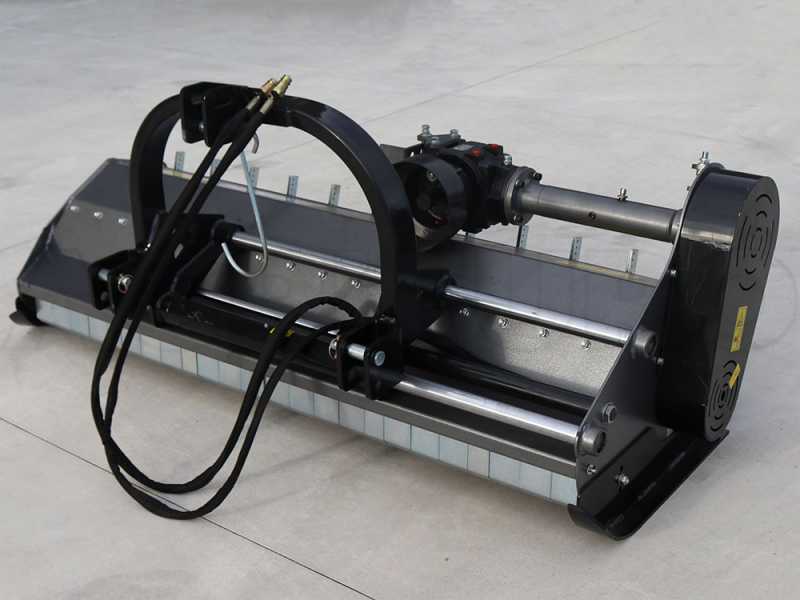

Rear adjustable support roller supplied as standard

Roller fixing bearing.

Side adjustable supporting skids provided on standard equipment.

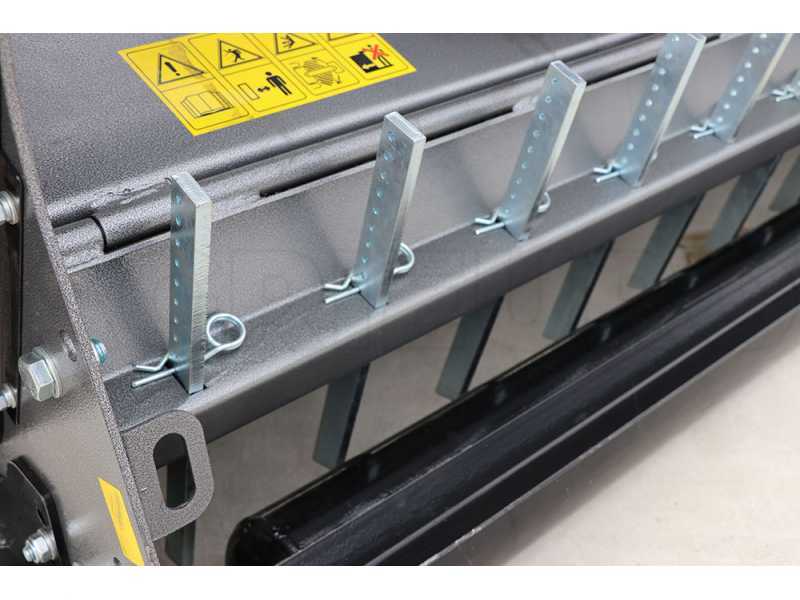

Set of rear clamps - collection rods, to be adjusted according to the terrain.

Heavy-duty series of front protection slaps made of shaped steel.
