Name: Blackstone BL 80 MSS - Tractor-mounted Flail Mower - Light Series - Manual Shift
Brand: BlackStone
SKU: 105370
Price: 1155.03 EUR
Availability: InStock
Rating: 4 (1 reviews)

Blackstone BL 80 MSS - Tractor-mounted Flail Mower - Light Series - Manual Shift

Description

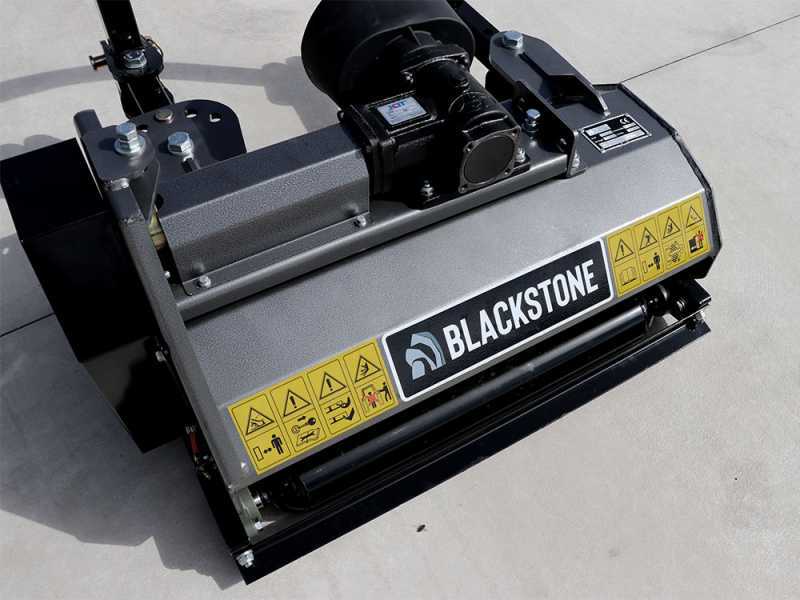

Blackstone BL 80 MSS tractor flail mower

The light size flail mower for tractor by Blackstone with manual parallelogram movement is ideal for tractors with small power. This machine allows to carry out work such as shredding and grinding stalks, pruning residues, sarments and any other organic material present on the soil surface.

It is equipped with manual side shift with 5 different modes.

TECHNICAL DETAILS (in summary):

Real working width: 80 cm
Real width occupied (with side skids assembled): 90 cm
Weight: 143 kg
Manual side shift
Suggested for tractors: from 15 to 25 HP
1° category 3 point linkage
2 belts transmission

STANDARD EQUIPMENT (in summary):

Hammer flails
Lay rear roller
Adjustable skids
Cardan shaft

ATTENTION:

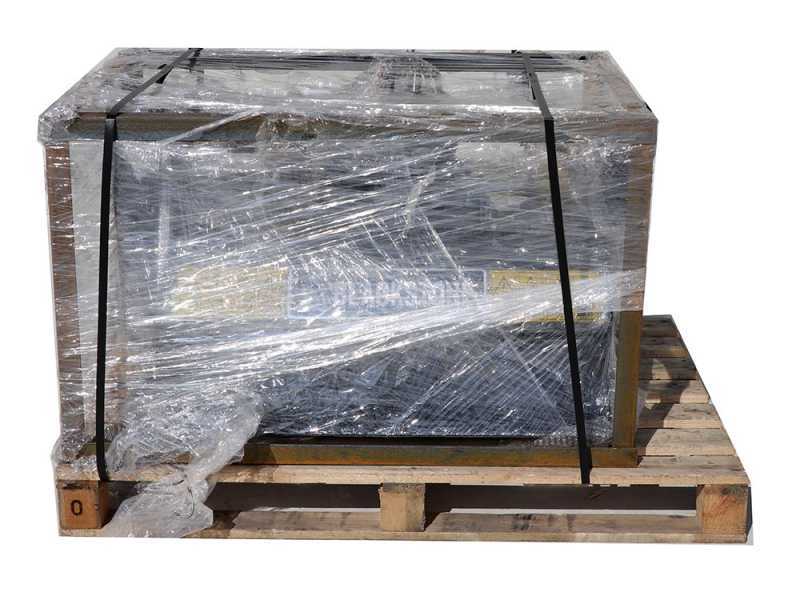

Attention: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.

Blackstone BL 80 MSS - Tractor-mounted Flail Mower - Light Series - Manual Shift

Cutting tools: hammer flails

Nr. of hammer flails on standard equipment: 12

Hammer flail's hole diameter: 12mm.

Focus on the drum's hammer flails.

It finely crushes grass and runners while rolling the lawn. Thanks to the high rotor's rotations and the high number of flails, it reduces the soil wave effect and have a perfect crushing function.

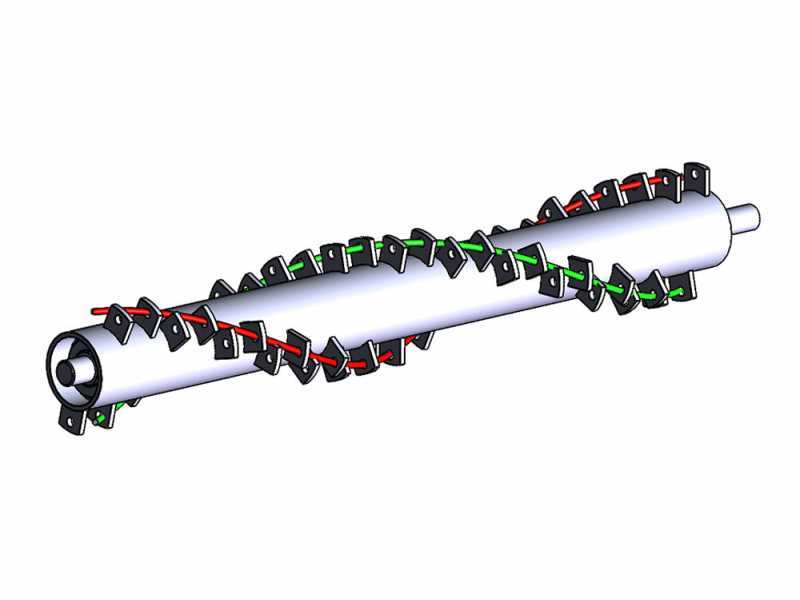

Figurative image of the double-spiral rotor.

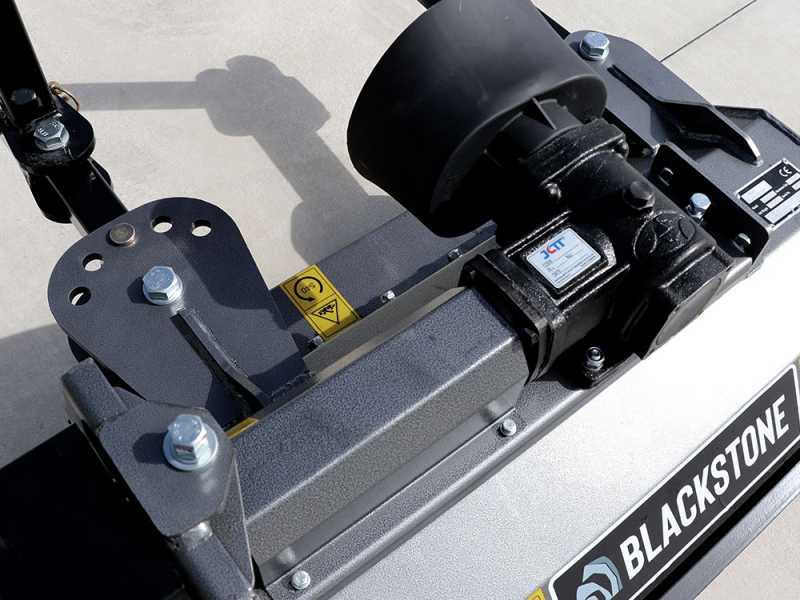

Side belt transmission and gearbox

Focus on the following components:

Gear reducer box in oil bath. The casing is made of cast, the internal gears are of tempered steel.
Lubricated extension
2-belts side transmission
Side belt protection carter

This machine's gearbox capacity is under 0.6 L oil.

Before using this product, please carefully read the instructions manual.

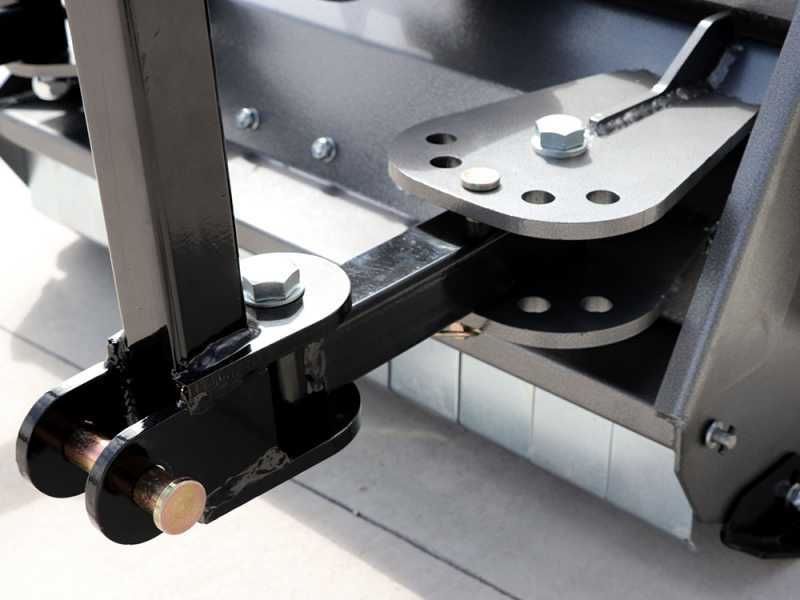

Manual side shift and 3 points hitch

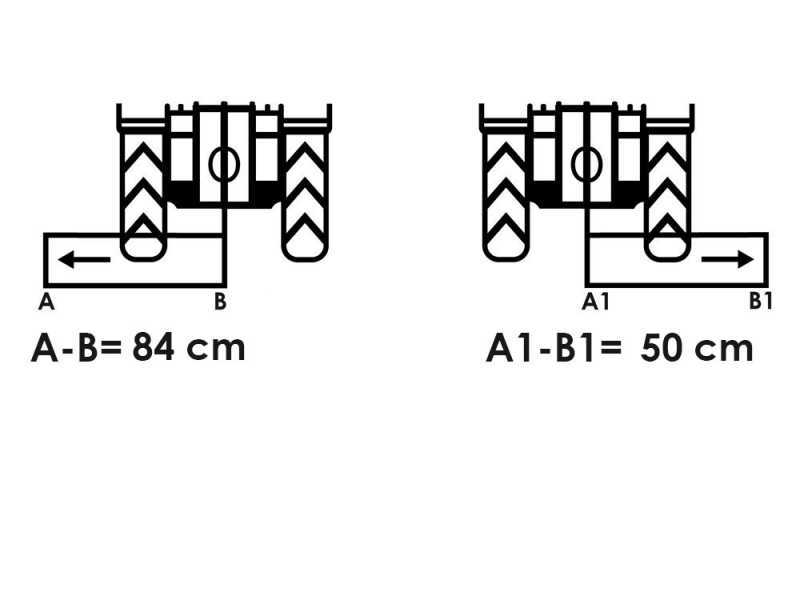

The flail mower is equipped with manual shift on 5 positions to make the harvesting operations in vineyards, orchards, hazelnut trees, etc. easier, or where it is necessary to work beyond the tractor's track and/or in an inclined position for cleaning ditches, banks, road edges, slopes, etc.

The 3 point hitch is adjusted by means of a simple trapezoidal movement.

Focus on the positioning holes.

Universal type PTO ( 1 3/8" Z6 )

Connections are universal type for all tractors on market.

Focus on the sturdy 3 points hitch of 1st category.
