Name: Blackstone BL 140 - Tractor-mounted Flail Mower - Light Series
Brand: BlackStone
SKU: 105378
Price: 1178.88 EUR
Availability: InStock
Rating: 4.4 (5 reviews)

Description

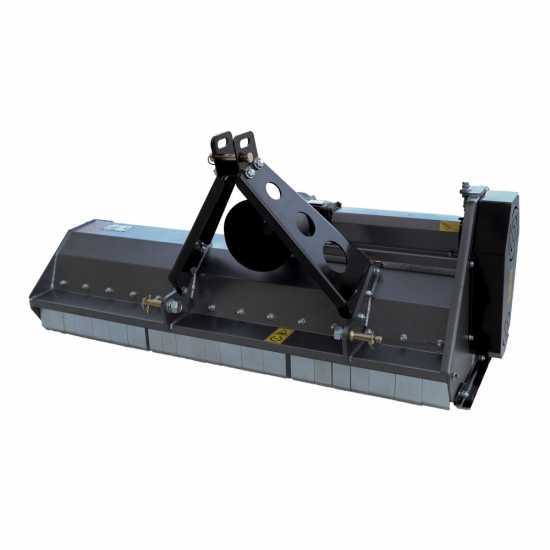

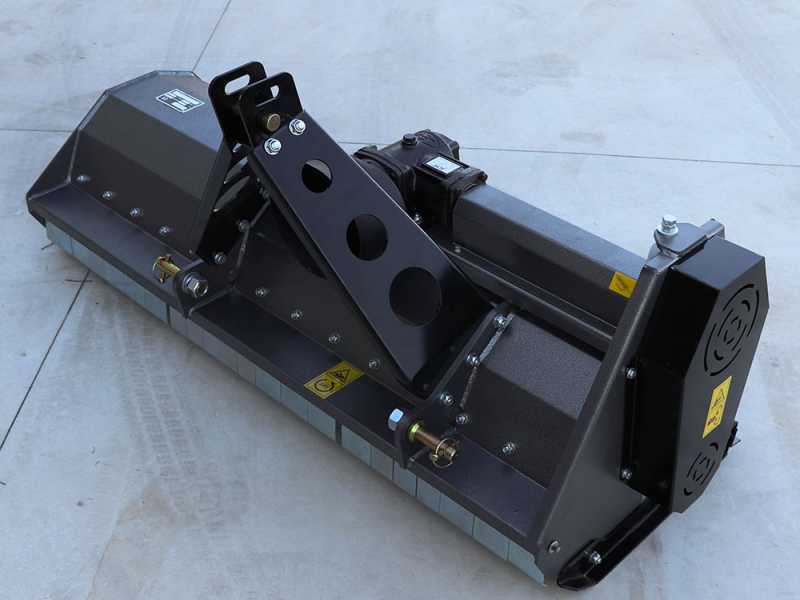

Blackstone BL 140 tractor flail mower

The Blackstone BL 140 flail mower features the fixed 3-point linkage to tractor. Suitable for the hobbyist who wants to take care of the green areas.

This type of model is especially suitable for shredding operations of crop residues, by reducing them in powder. In fact, these residues represent an excellent fertilizer.

It is provided with rear roller which allows the machine to remain adherent to the ground in any type of slope.

TECHNICAL DETAILS (in summary):

Real working width: 140 cm
Real width occupied (with side skids assembled): 150 cm
Weight: 164 kg
1° category 3 point linkage
3 belts transmission

STANDARD EQUIPMENT (in summary):

Hammer flails
Lay rear roller
Adjustable skids
Cardan shaft

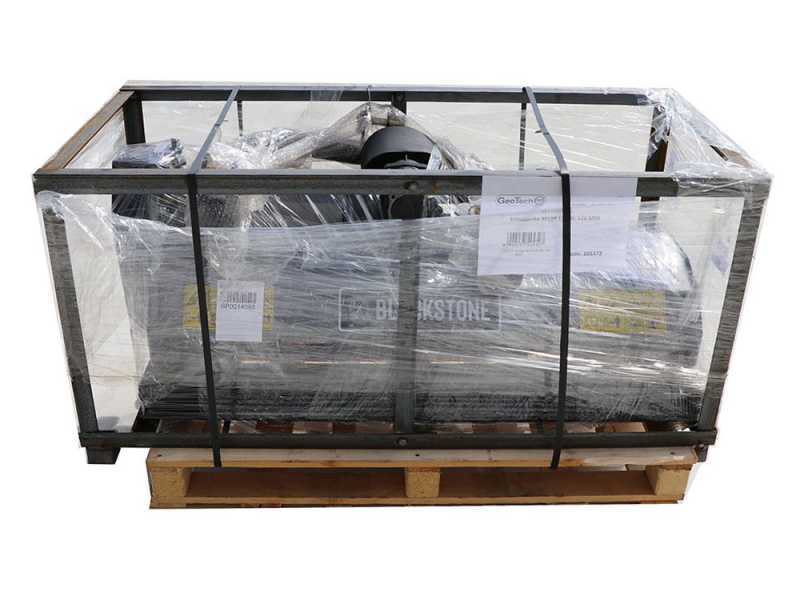

Attention: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.

Blackstone BL 140 - Tractor-mounted Flail Mower - Light Series

Cutting tools: hammer flails

No. of hammer flails on standard equipment: 22

Hammer flail's hole diameter: 12mm (lenght: 50mm).

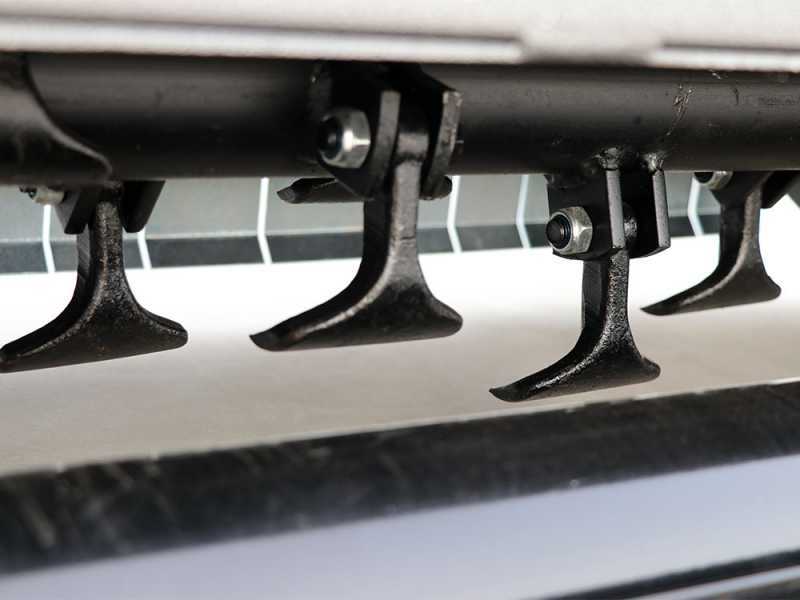

Focus on the drum's hammer flails.

It finely crushes grass and runners while rolling the lawn. Thanks to the high rotor's rotations and the high number of flails, it reduces the soil wave effect and have a perfect crushing function.

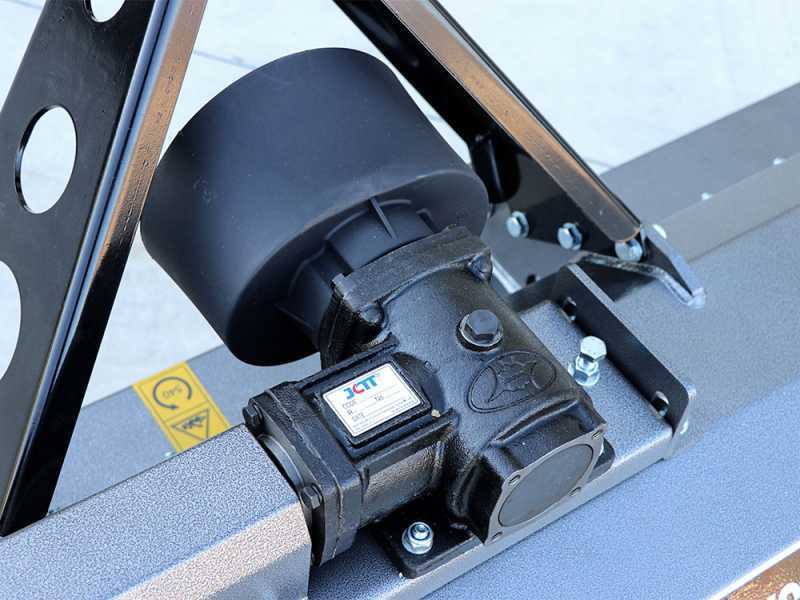

Side belt transmission and gearbox

Oil-bath gearbox. Monocoque shell, hardened steel inner gears.
Equipped with lubricated extension.
3 belts side transmission.
Focus on the side belt protection cover

This machine's gearbox capacity is under 0.6 L oil.

Before using this product, please carefully read the instructions manual.

Fixed 3 points hitch

Equipped with fixed 3 points hitch.

This enables to the flail mower very close to the tractor so eliminating the risk of damages to the operator due to the stones thrown by the machine. Moreover, there is no risk that the machine is lifted.

Despite its high weight, the rotovator can be linked even to medium-sized tractors.

Universal type PTO ( 1 3/8" Z6 )

Connections are universal type for all tractors on market.

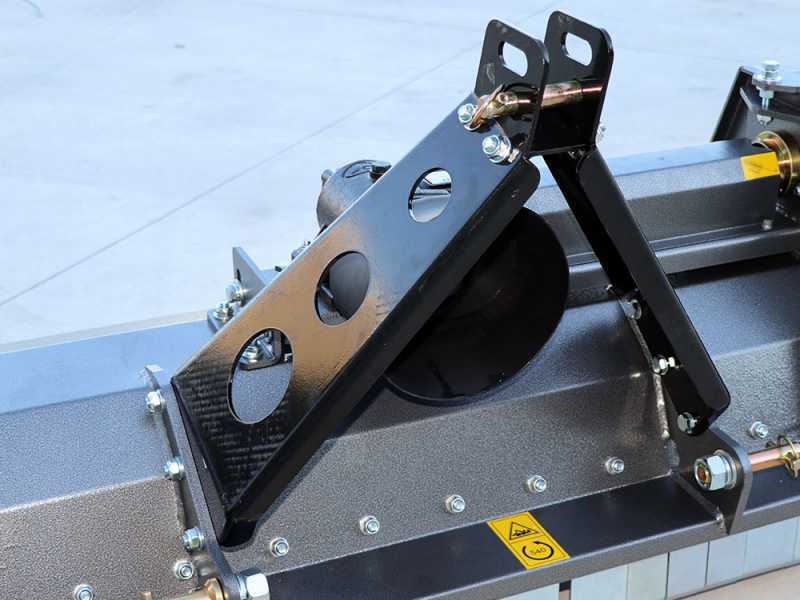

Focus on the sturdy 3 points hitch.

Rotor and side bearings

Focus on the side flail support and of the side drum's bearing.

Focus on the outer rotor's anchoring, with central greaser hole.

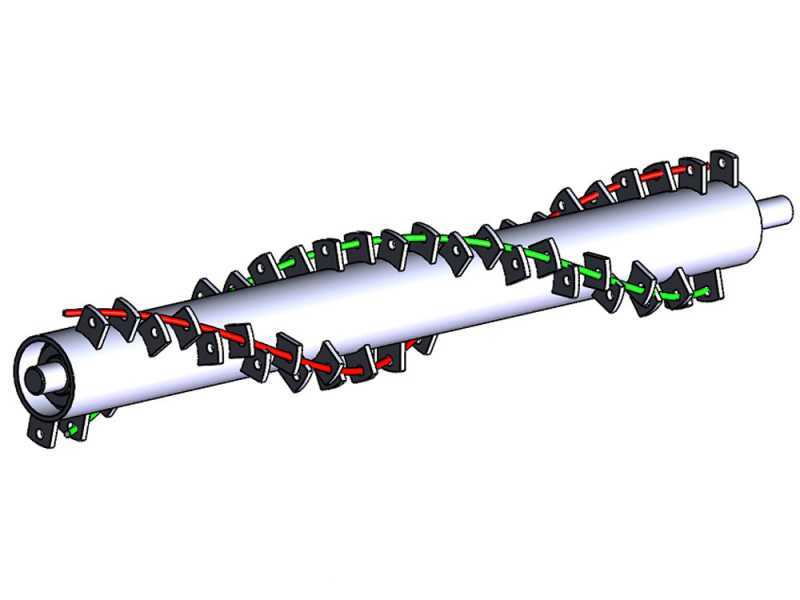

Figurative image of the double-spiral rotor.

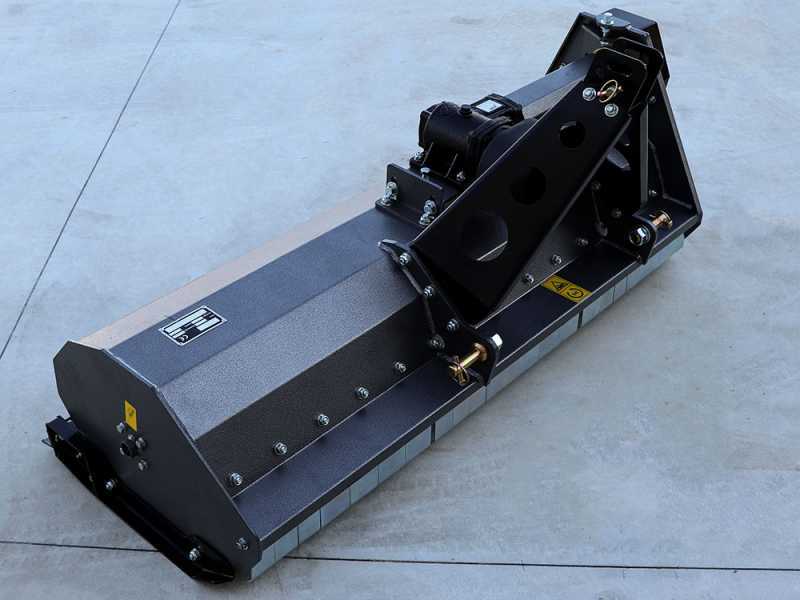

Stabilizer accessories - rear roller and side skids

Rear support height adjustable roller on standard equipment.

Focus on the bearing at the roller fixing.

Roller side supporting plate particular, with holes for the height adjustment. It is 6 positions adjustable.

Sturdy protective front flaps made of steel.
