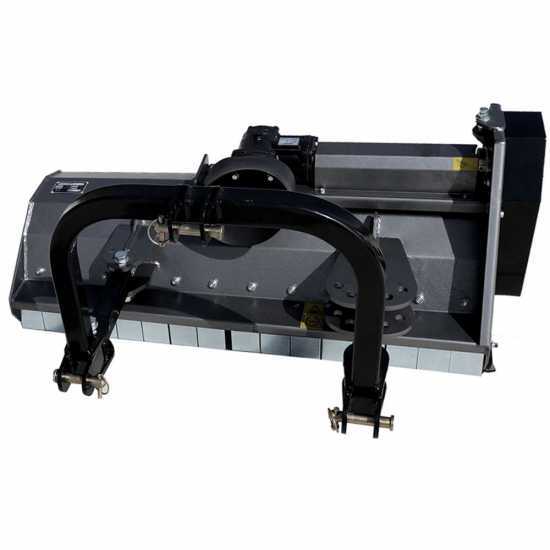

Name: Blackstone BL 140 MSS - Tractor-mounted Flail Mower - Light Series - Manual Shift
Brand: BlackStone
SKU: 105374
Price: 1367.09 EUR
Availability: InStock
Rating: 4.14 (7 reviews)

Description

Blackstone BL 140 MSS Tractor Flail Mower

The tractor flail mower Blackstone moved by a manual parallelogram arm represents the ideal machinery for low-powered tractors. This machine stands out for a number of working operations like shredding and grinding stalks, pruning residuals, sarments, as well as additional organic material present on the soil surface.

Equipped with manual side shift in 5 different modes.

TECHNICAL SPECIFICATIONS (short overview):

Real working width: 140 cm
Real required width (side skids already assembled): 150 cm
Weight: 185 kg
Manual side shift
First-category 3-point linkage
3-belt drive transmission

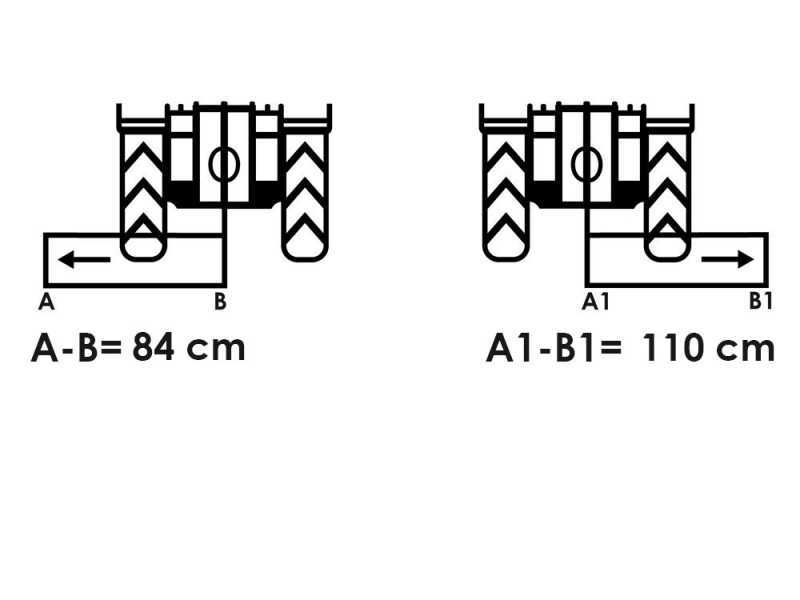

Max. left shift from the standard position: 84 cm
Max. right shift from the standard position: 110 cm

FREE ITEMS PROVIDED ON STANDARD EQUIPMENT (short overview):

Hammer flails
Adjustable rear supporting roller
Adjustable skids
Cardan shaft

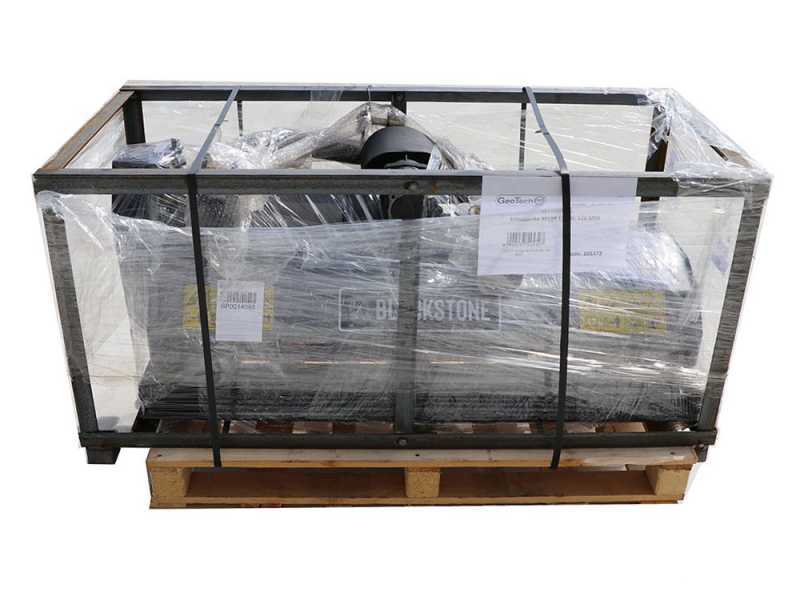

Note: the machinery is shipped ready to use. Ensure to check that all the bolts and nuts are properly tightened once assembled all the components
Carefully read the instructions manual before use.

Blackstone BL 140 MSS - Tractor-mounted Flail Mower - Light Series - Manual Shift

Hammer flail cutting system

No. of standard-supplied and assembled hammers 16

Hammer flail's hole diameter: 12mm

Focus on the hammer mounted on the rotating roller.

It is intended to finely shred grass and clippings, while rolling the grass cover and turf simultaneously. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

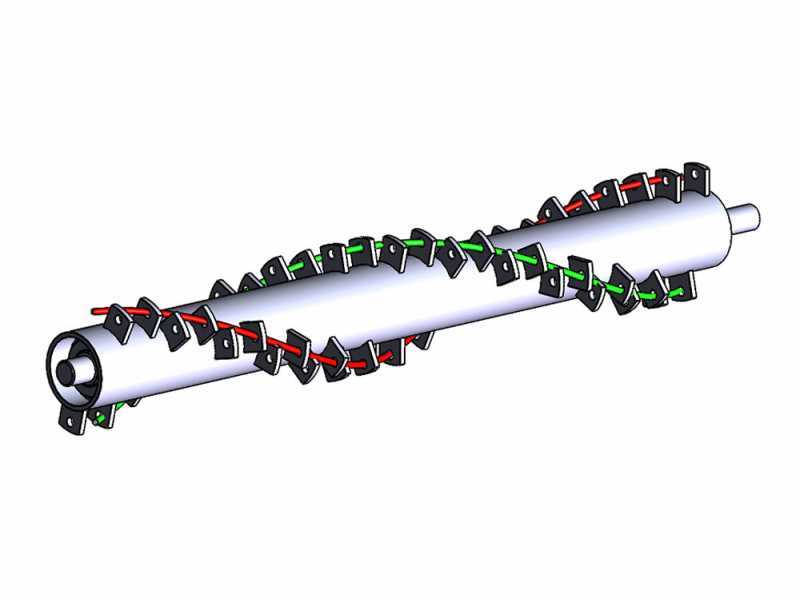

Figurative image of the double-spiral rotor.

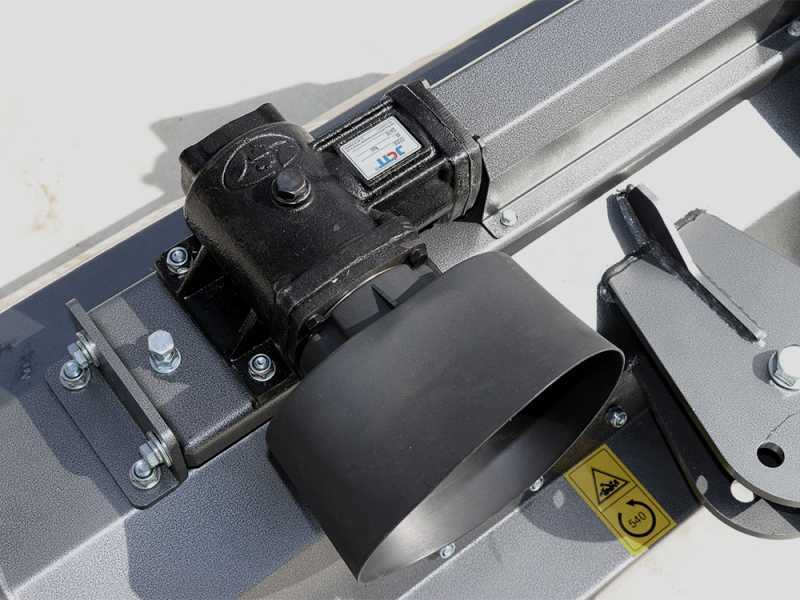

Side belt transmission and geared reducer

Main specifications and details:

Gearbox in oil bath The external housing is made in fusion material while the internal gears are in hardened steel.
Lubricated extension
3-Belt side transmission
Side belt protection cover

The gearbox assembled to this machinery may contain up to 0.6 L.

Carefully read the instruction manual before operating the unit.

Manual side shift and 3-point hitch

The flail mower is equipped with manual shift consisting of 5 modes, intended to enhance the harvesting operations in vineyards, orchards, hazelnut trees, as well as is specific areas where is still necessary to work beyond the track width of the tractor and / or in inclined positions for cleaning up ditches, embankments, roadsides, slopes and so on.

The tractor three-point hitch is adjustable by means of a simple movement.

Focus on the positioning holes.

Universal standard PTO (1 3/8 "Z6).

Universal-type hitches that can be fitted to all the tractors on the market.

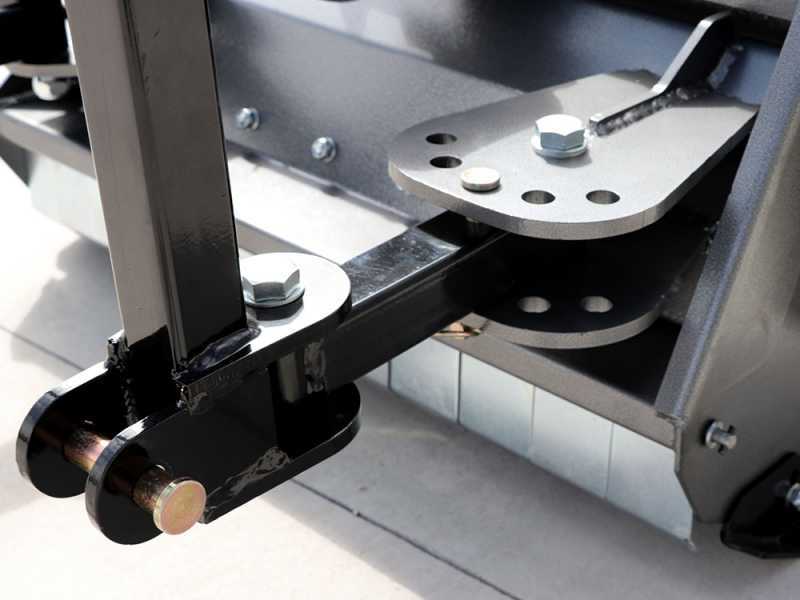

Focus on the first-category sturdy three-point hitch.

Rotor and side bearings

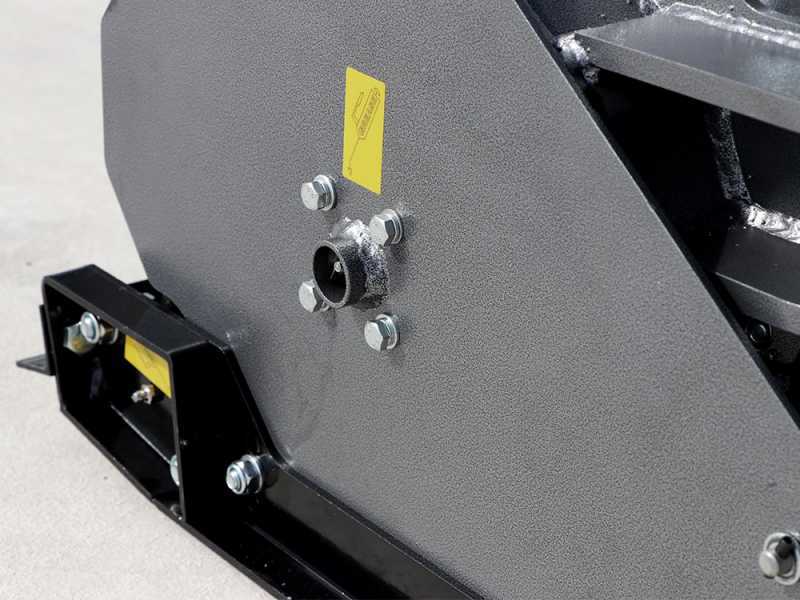

Focus on the side supporting device with internal locking bearing of the hammer rotor.

Focus on the external rotor anchorage system with central opening and greaser.

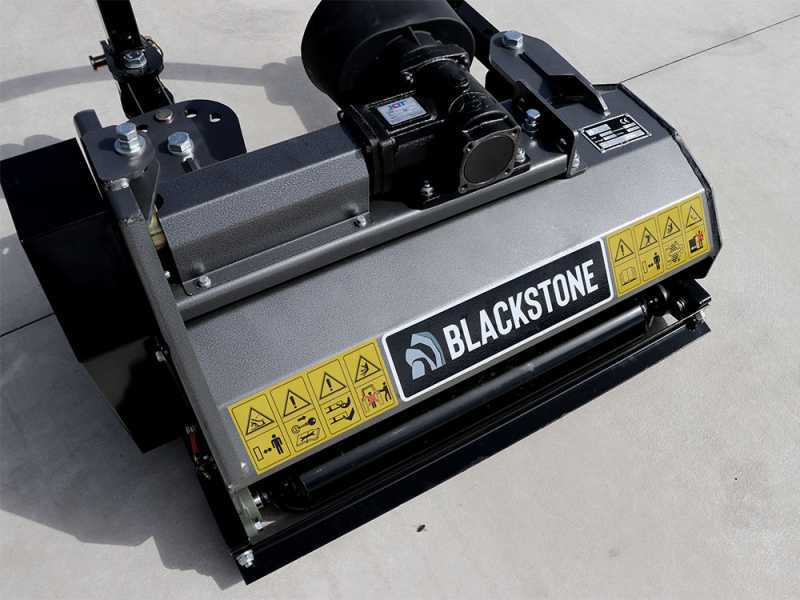

Supporting attachments - Rear roller and side skids

Standard-supplied rear height-adjustable supporting roller.

Focus on the roller locking bearing

Side adjustable supporting skids provided on standard equipment.

Heavy-duty Series of front protection slaps made of shaped steel.
