Name: Blackstone BL 120 MSS - Tractor-mounted Flail Mower - Light Series - Manual Shift
Brand: BlackStone
SKU: 105372
Price: 1281.05 EUR
Availability: InStock
Rating: 4.71 (7 reviews)

Description

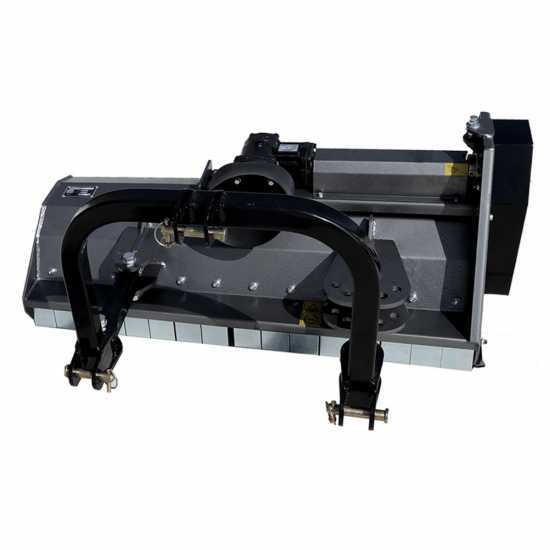

Blackstone BL 120 MSS tractor flail mower

The light size flail mower for tractor by Blackstone with manual parallelogram movement is ideal for tractors with small power. This machine allows to carry out work such as shredding and grinding stalks, pruning residues, sarment and any other organic material present on the soil surface.

It is equipped with manual side shift with 5 different modes.

TECHNICAL DETAILS (in summary):

Real working width: 120 cm
Real width occupied (with side skids assembled): 130 cm
Weight: 168 kg
Manual side shift
1° category 3 point linkage
3 belts transmission

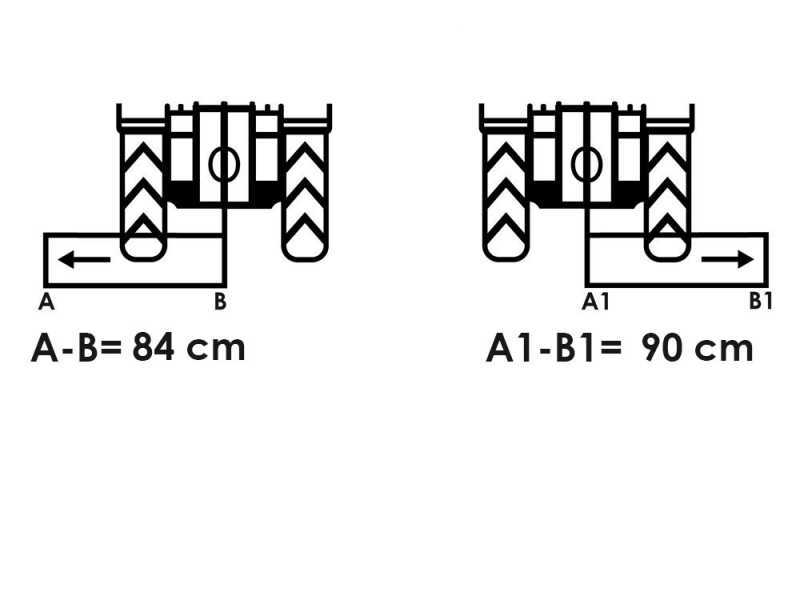

Max. left shift from the standard position: 84 cm
Max. right shift from the standard position: 90 cm

STANDARD EQUIPMENT (in summary):

Hammer flails

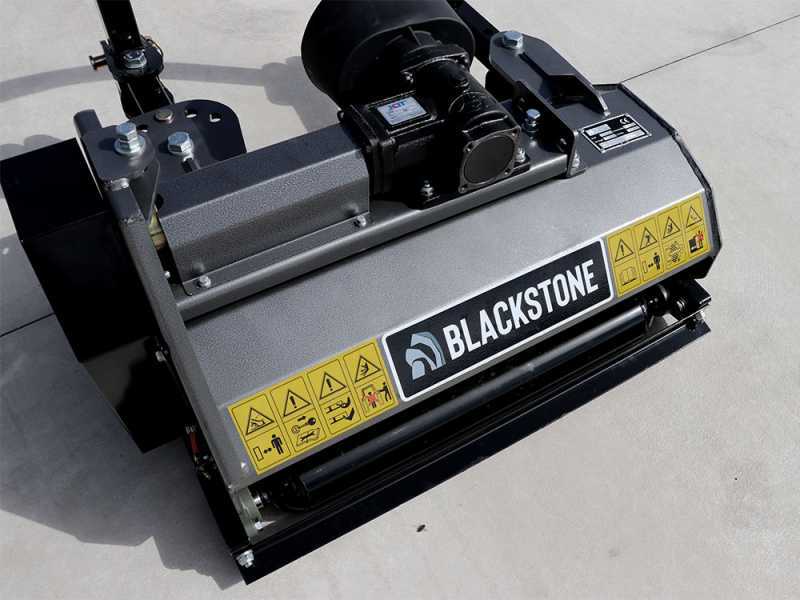

Lay rear roller
Adjustable skids
Cardan shaft

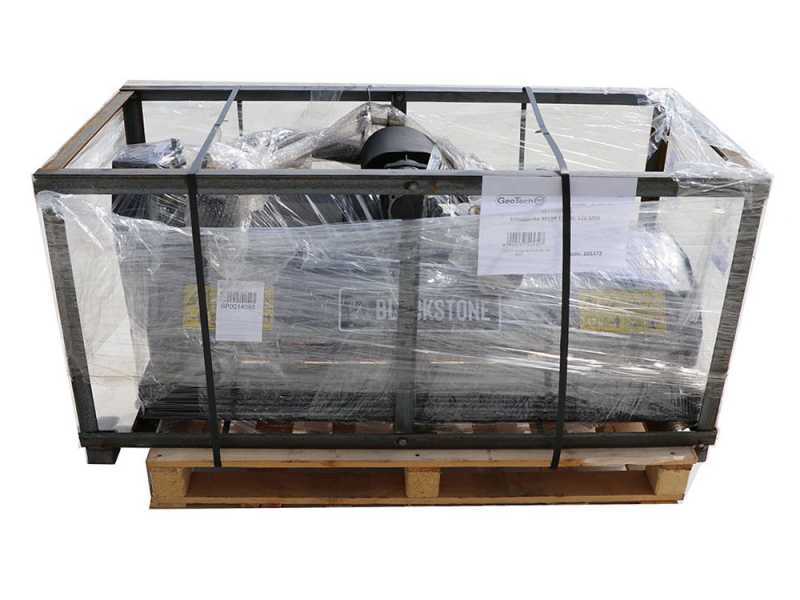

Note: the machinery is shipped ready to use. Ensure to check that all the bolts and nuts are properly tightened once assembled all the components
Carefully read the instructions manual before use.

Blackstone BL 120 MSS - Tractor-mounted Flail Mower - Light Series - Manual Shift

Hammer flail cutting system

No. of hammer flails on standard equipment: 18

Hammer flail's hole diameter: 12mm.

Focus on the drum hammer flails.

It finely crushes grass and runners while rolling the lawn. Thanks to the high rotor's rotations and the high number of flails, it reduces the soil wave impact and have a perfect crushing function.

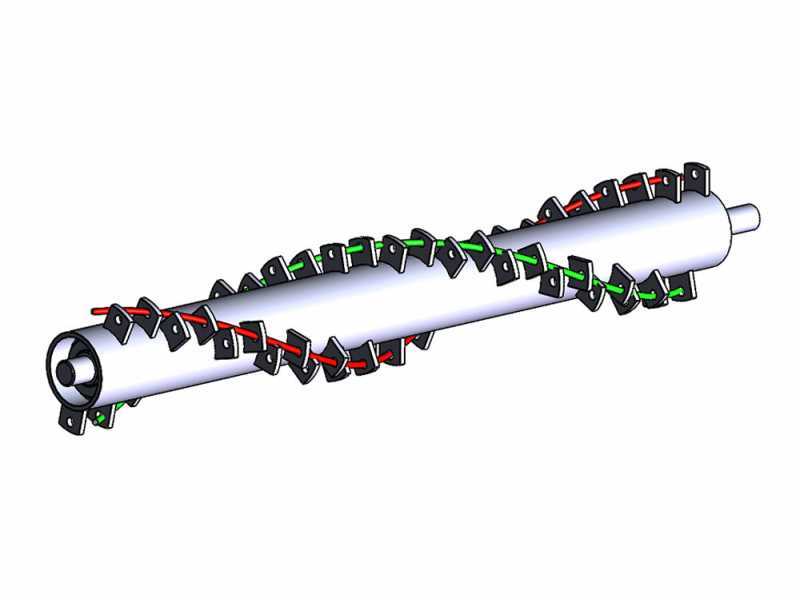

Figurative image of the double-spiral rotor.

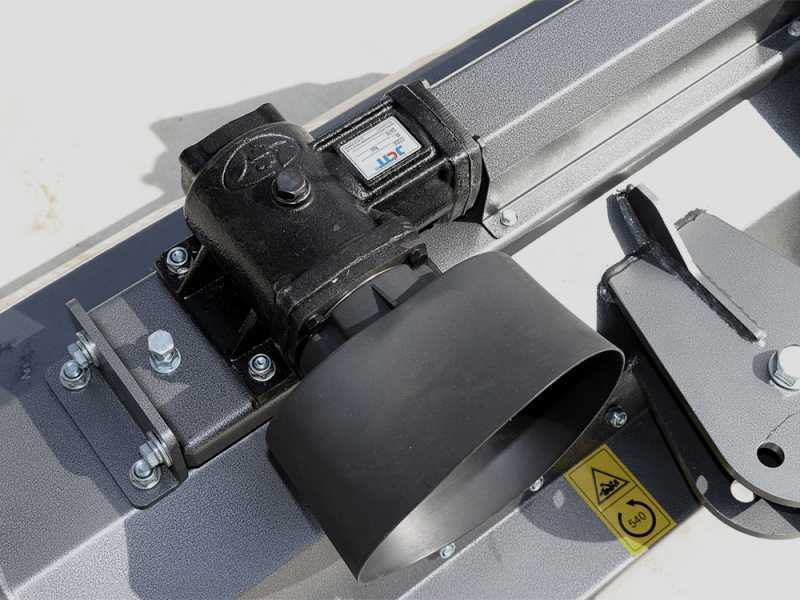

Side belt transmission and gearbox

Focus on the following components:

Gear reducer box in oil bath. The casing is made of cast, the internal gears are of tempered steel.
Lubricated extension
3-belt side transmission
Side belt protection carter

This gearbox capacity is under 0.6 L oil.

Before using this product, please carefully read the instructions manual.

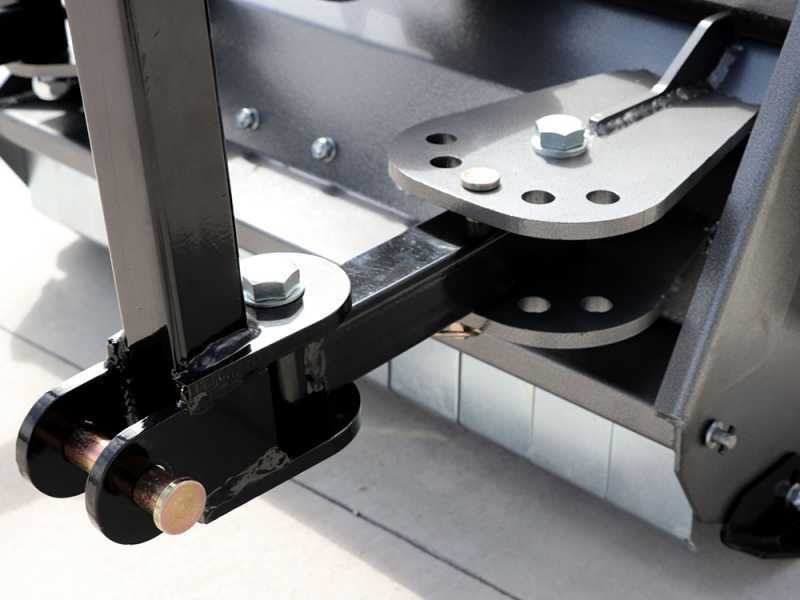

Manual side shift and 3-point hitch

The flail mower is equipped with manual shift on 5 positions to make the harvesting operations in vineyards, orchards, hazelnut trees, etc. easier, or where it is necessary to work beyond the tractor's track and/or in an inclined position for cleaning ditches, banks, road edges, slopes, etc.

The 3 point hitch is adjusted by means of a simple trapezoidal movement.

Focus on the positioning holes.

Universal type PTO ( 1 3/8" Z6 )

Connections are universal type for all tractors on market.

Focus on the sturdy 3 points hitch of 1st category.
