Description

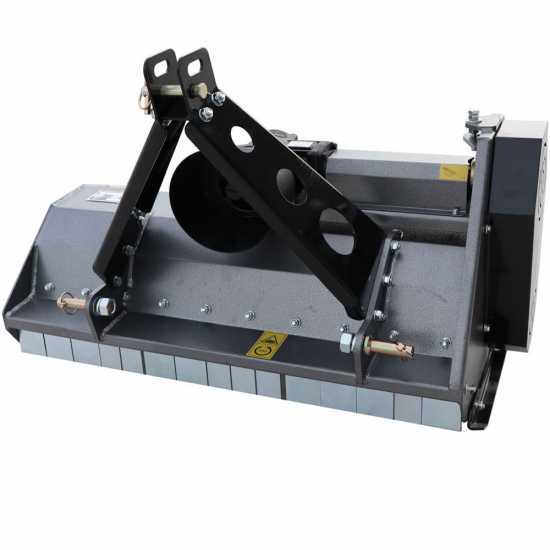

Blackstone BL 100 Tractor Flail Mower

The BL 100 Blackstone flail mower stands out for a specific feature of the fixed tractor three-point hitch. The hobby user is normally accustomed making use of the flail mower with fixed hitch for the green area maintenance as it is renowned to be an essential equipment for tidying operations on your outdoor areas.

This specific flail mower model is particularly suitable for shredding treatments of cropping residuals as it allows finely shredding them almost to powder. Indeed, these residuals represents excellent fertilizer for the same plant type from which they come from.

It is also provided with rear roller, which will ensure the continuous levelling of the machinery with any type of slopes.

TECHNICAL SPECIFICATIONS (short overview):

Real working width: 100 cm
Real required width (side skids already assembled): 110 cm
Weight: 136 kg
First-category three-point hitch
2-belt drive transmission

FREE ITEMS PROVIDED ON STANDARD EQUIPMENT (short overview):

Hammer flails
Adjustable rear supporting roller
Adjustable skids
Cardan shaft

Note: the machinery is shipped ready to use. Ensure to check that all the bolts and nuts are properly tightened once assembled all the components
Carefully read the instructions manual before use.

Blackstone BL 100 - Tractor-mounted Flail Mower - Light Series

Hammer flail cutting system

No. of standard-supplied and assembled hammers 14

Hammer flail's hole diameter: 12mm

Focus on the hammer mounted on the rotating roller.

It is intended to finely shred grass and clippings, while rolling the grass cover and turf simultaneously. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Figurative image of the double-spiral rotor.

Side belt transmission and geared reducer

Main specifications and details:

Gearbox in oil bath The external housing is made in fusion material while the internal gears are in hardened steel.
Lubricated extension
2-Belt side transmission
Side belt protection cover

The gearbox assembled to this machinery may contain up to 0.6 L.

Carefully read the Instructions Manual before using the machine.

Fixed three-point hitch

The flail mower is provided with fixed tractor three-point hitch.

This allows to keep the flail mower close to the tractor while working, resulting in the possibility to avoid throwing stones towards the Operator and eliminating possible issues related to the machine lifting.

This feature makes possible to also fit the equipment with smaller-sized tractors, despite its high weight.

Universal standard PTO (1 3/8 "Z6).

Universal-type hitches that can be fitted to all the tractors on the market.

Focus on the first-category sturdy three-point hitch.

Rotor and side bearings

Focus on the side supporting device with internal locking bearing of the hammer rotor.

Focus on the external rotor anchorage system with central opening and greaser.

Supporting attachments - Rear roller and side skids

Standard-supplied rear height-adjustable supporting roller.

Focus on the roller locking bearing

Side adjustable supporting skids provided on standard equipment.

Heavy-duty Series of front protection slaps made of shaped steel.
