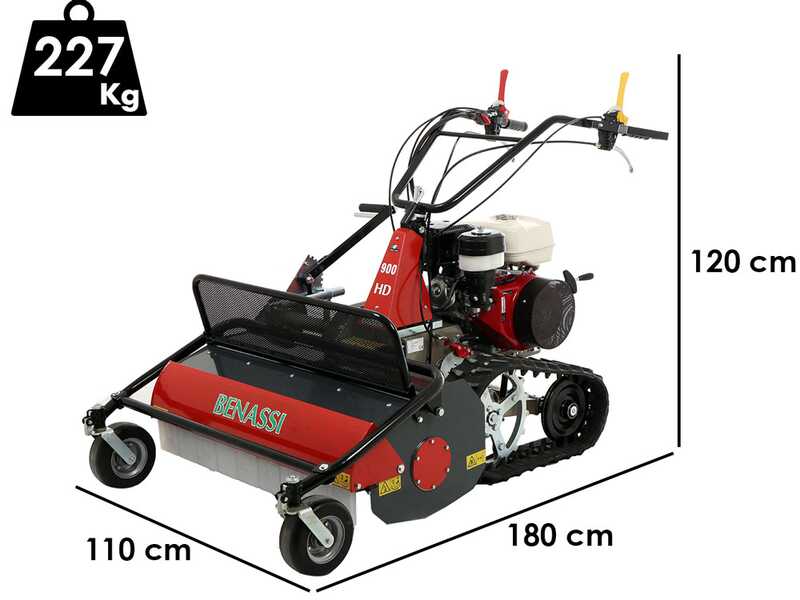

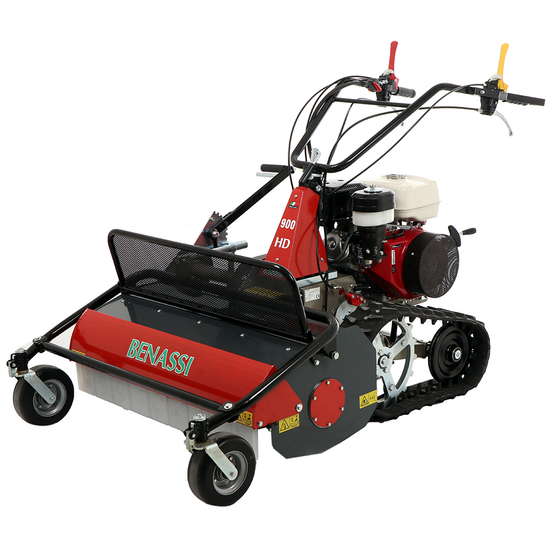

Benassi T900HD - Professional Tracked Hammer Rough Cut Mower - Honda GX390

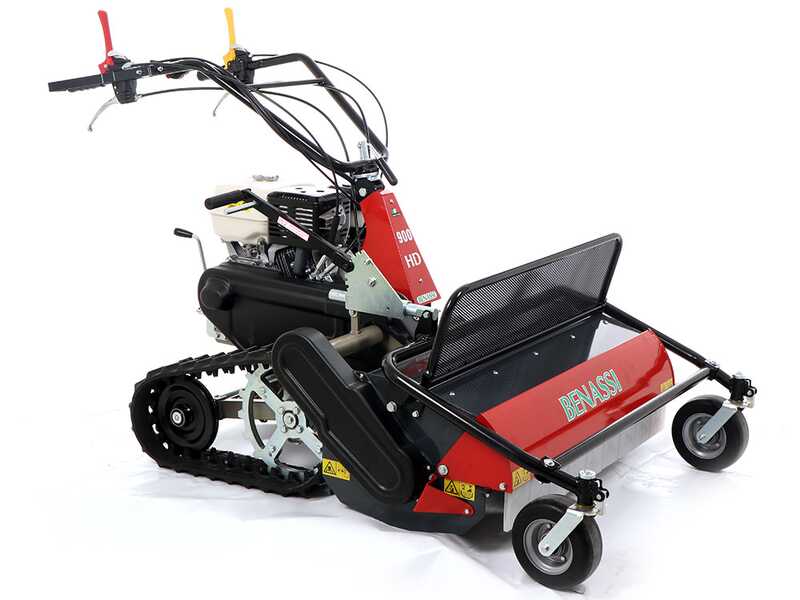

Benassi T900HD tracked hammer flail mower: a completely made in Italy product that guarantees high quality and performance.

This machine is equipped with a 13 HP Honda GX390 engine 389 cc.

This machine is provided with a 90 cm roller that allows large quantities of grass to be processed quickly.

The T900HD is equipped with tracks, meaning that it features improved climbing capabilities to work on steep and uneven surfaces.

The tracks also allow the machine to discharge the full power of the Honda engine efficiently to the ground, resulting in unrivalled stability while work. This will improve the ease and safety of mowing grass even on slopes that would otherwise be difficult to reach.

Equipped with excellent power, this Benassi flail mower model is intended to mow huge masses of all types of weeds of any diameter, height and size (up to 1.5 m high), shredding them finely thanks to its 48 Y-shaped blades.

Besides grass, it can also cut brushwood and brambles (up to 2.5 cm) in any condition, even in fairly inaccessible places (even on slopes, as long as they are not too steep).

Track structure: robust and over sized. Higher quality than those on the average rough cut mowers on the market of the same size. The perfect balance ensures load distribution and perfect adherence to the ground.

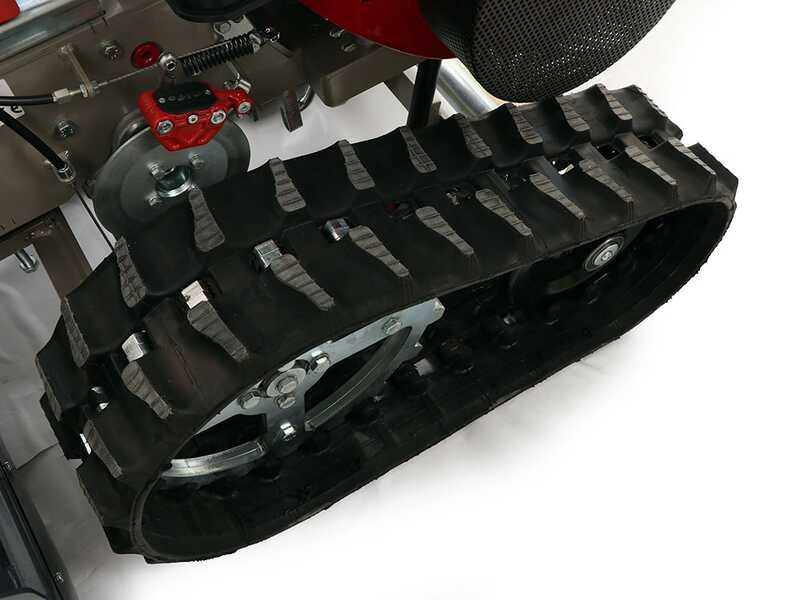

Tracks: this model is provided with tracks of the highest-quality. Thanks to their tread width and profile, they guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

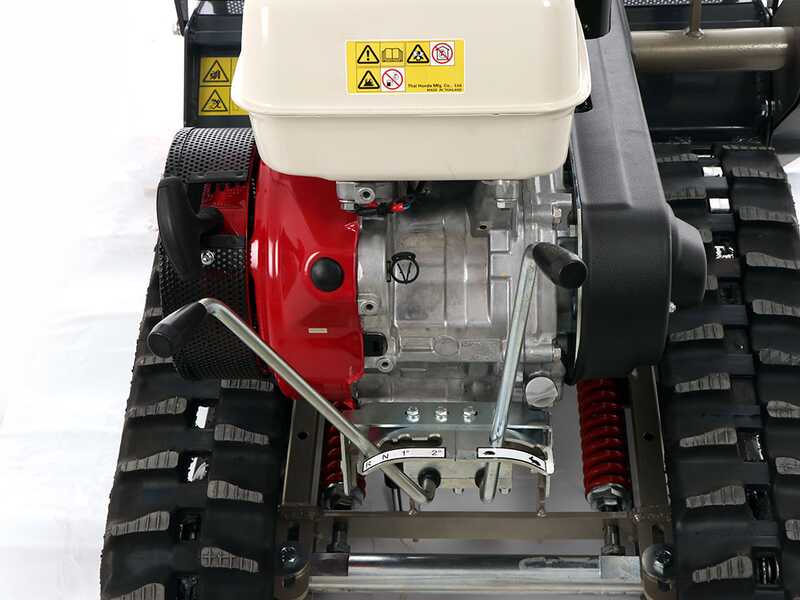

TRACK TRANSMISSION

With separate release systems and integrated brake

Tilting carriage with compensation springs

The Honda GX 390 engine is
powerful and professional, with the latest OHV overhead valve technology.

Features:

The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It’s characterized by great durability and reliability

The HONDA engines of the GX series stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

Nominal power: 13.0 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

Rated power: 9.40 HP

It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

6-Speed oil-bath gearbox: 4 forward and 2 reverse speed gears with reduction gear.

Particularly sturdy and reliable gearbox.

Final drive to the flail mower rotor by means of a drive belt protected by a sturdy casing.

All components are made in Italy.

This rough cut mower is equipped with a disc brake that prevents the machine from moving when the clutch is not engaged.

Rough cut mower made of exceptionally thick steel plate.

Sturdy rotor made of tempered steel, with 48 Y-shaped blades. They give this machine unparalleled effectiveness for any type of work (grass but also brushwood, brambles, pruning, up to 2.5 cm in diameter)

Working width: 90 cm

Focus on the cutting knives and their particularly sturdy supports

Cutting height adjustment by means of the lever

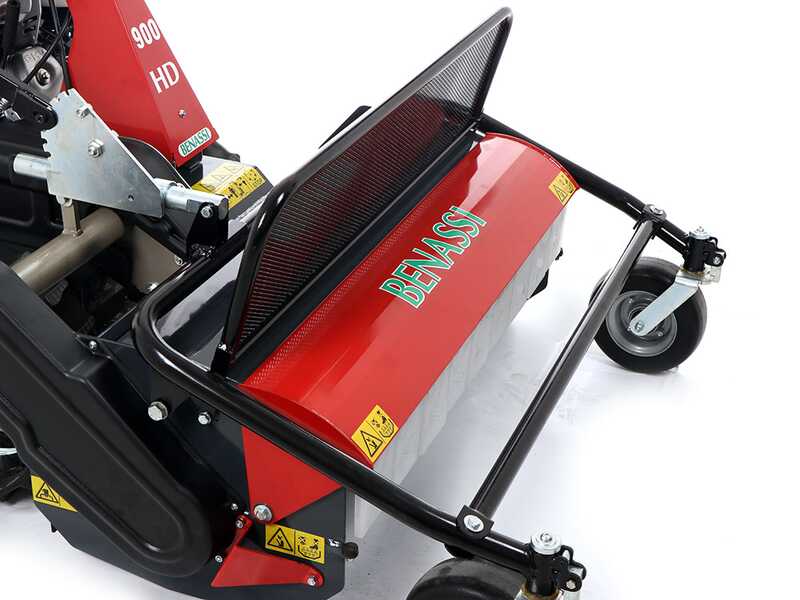

Focus on the sturdy front stone guards, mounted on a 90 cm swinging bar.

The cutter deck also has an additional user guard mounted on top of the deck. This accident-protection grating ensures maximum safety in use.

Focus on the toothed counter-blade for greater chopping effect.

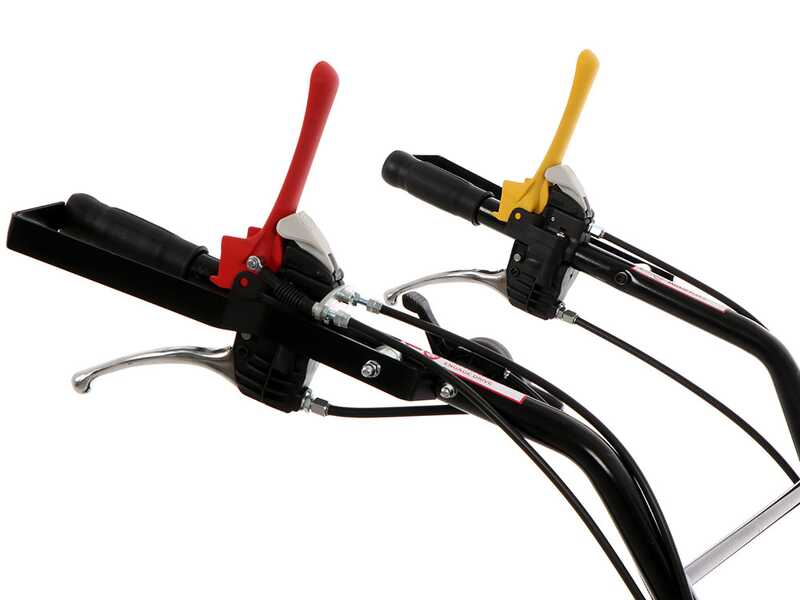

Right lever:

• the red lever at the top is the drive clutch, it activates and deactivates the drive, whatever speed is selected on the gearbox (both forward and reverse). By releasing this lever, the machine stops instantly, for safety reasons.
• The lever at the bottom allows you to put the corresponding wheel in neutral or brake to facilitate changing direction.

Left lever:

• the yellow lever on top activates and deactivates the knife rotor (i.e. the shredding function)
• The lever at the bottom allows you to put the corresponding wheel in neutral or brake to facilitate changing direction.

Gear selector

Adjustment of the handlebars

Front tilting steel casing. It automatically lifts if the machine is faced with large amounts of particularly tall and thick grass, so the blades can easily reach and cut the grass.

Front swivel castors, locked by a lock above the wheel

Large rubber tracks measuring 160x60x28 cm
