Benassi MC2300C - Petrol Two-wheel Tractor - 1Hwasdan H170 - 5.5HP

Questions & Answers (2)
ID: K503302

EAN: 8023329606526

MPN: 8985601

8,1/10
After-sales assistance & Spare parts
Benassi MC2300C - Petrol Two-wheel Tractor - 1Hwasdan H170 - 5.5HP
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement sprak plugReplacement sprak plug
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Foam air filterFoam air filter
Foam air filterFoam air filter
Technical data
Standard milling cutter width
48 cm
Recommended operating area
400 s.q. m.
Motor type
4-stroke
Motor brand
Producer-manufactured
Motor Model
H170F
Cubic capacity
170 cm³
Nominal power
5.5 HP
Nominal power (W)
4 W
Transmission type
Gears in oil-bath
Gears
1+1
Soil consistency
Soft
Power take-off quick coupling
Yes
Manufacturing country
Italy
Product Features
Model
MC 2300C Reverso
Type
With gears in oil bath
Conversion via other accessories
Yes
Operating mode
Spark ignition
Recommended operating area
400 s.q. m.
Soil consistency
Soft
Soft soil
Starting mode
Recoil
Manufacturing country
Italy
Motor data
Motor brand
Hwasdan
Motor Model
H170F
Motor type
4-stroke
Cubic capacity
170 cm³
No. of cylinders
Single-cylinder
Nominal power
5.5 HP
Rated power (HP)
4.5 HP
Nominal power (W)
4 W
Fuel
Petrol
Power supply
Overhead valve OHV
Engine lubrication system
Oil bath
Decompression system
Automatic
Tank capacity
2 L
Manufacturing country
China
Transmission data
Transmission type
Gears in oil-bath
No. of forward speeds
1
No. of reverse speeds
1
Gears
1+1
Operating mode
Lever on the handlebar
Cutting data
Standard milling cutter width
48 cm
Narrow milling cutter width
34 cm
Milling cutter diameter
26 cm
No. of blade holders
4
No. of blades
16
Blade engagement
Lever on the handlebar
Equipment
Milling cutter accessory
Included as standard
Sickle bar accessory
On request
Furrower accessory
On request
CE Accident prevention system
Yes
Safety lever for reverse gear
Yes
Adjustable stake
Yes
Clutch
Cone clutch in oil bath
Power take-off
1
Power take-off quick coupling
Yes
Recoil start system (with rope)
Yes
Rear wheels size
13.500.6''
Height-adjustable handle
Yes
Side-adjustable handle
Yes
Reversible steering handles
Yes
Rubber-coated soft grip
Yes
Folding/removable handle/s
Yes
Free gifts/extra features
Engine oil bottle for free
2
Maintenance tool kit
Yes
Instructions manual
Yes
Dimensions and logistics

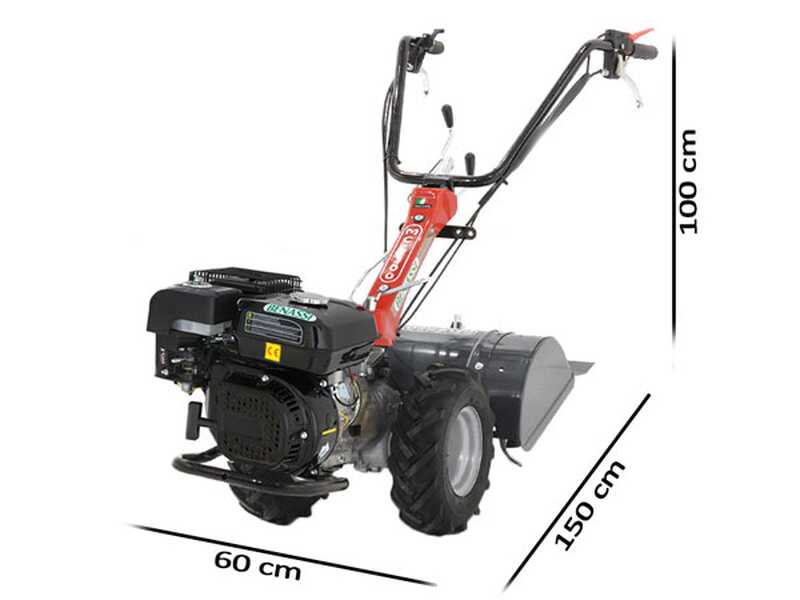

Product dimensions in cm (L x W x H)
60 x 150 x 100 cm
Net weight
78 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
48 x 90 x 66 cm
Weight including packaging
85 Kg
Assembly time
15 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 08/08/2025 - 12/08/2025
Suggested price:
€ 1.944,81
€ 1.847,57
Vat included

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

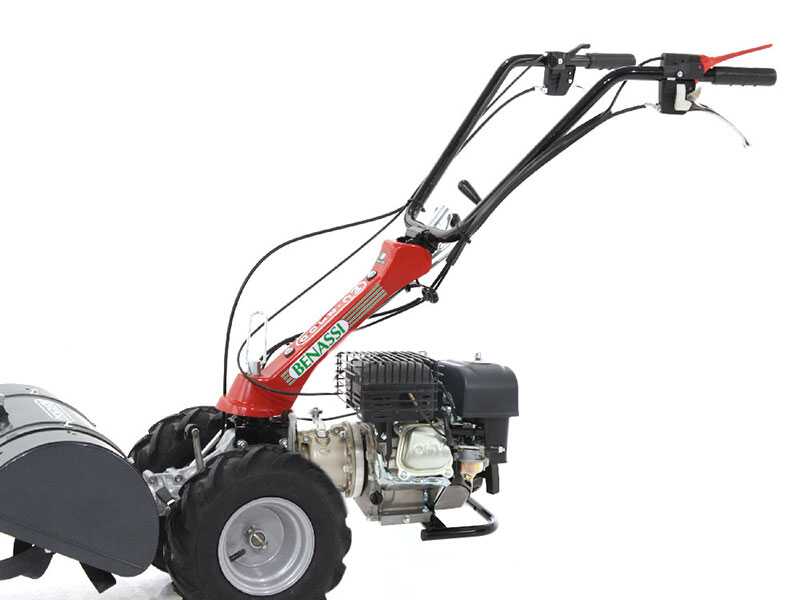

Benassi MC 2300C REVERSO Two-wheel Tractor with Petrol Engine

Self-propelled two wheel tractor powered by a 4-stroke engine and driven by large treaded tractor wheels. The wheels are attached to an gear transmission with gears in oil bath.

The 48 cm tiller accessory (supplied as standard) is equipped with 4 elements with 4 hoes each (16 hoes in total).

The two-wheel tractor is driven by a 2-gear gearbox (1 forward + 1 reverse).

Multi tool machine with quick hitch and reversible steering handles, that provides for the possible application of other accessories on request to exploit the full potential of the machine.

BENASSI two-wheel tractors are Made in Italy products, a guarantee of reliability, quality of construction and materials.

Two-wheel tractors are intended for the processing of soft not-stony soils. They do not dig very deep into the ground, but have the ability to break up the soil very finely, more than any garden tiller. For this reason, they are specifically designed for working in vegetable gardens in all types of crops, or, in any case, on soft soils that have already been ploughed and frequently tilled.

On the other hand, in case of particularly hard (or even never worked) or fairly stony ground, or with sloping terrain, we recommend to move towards a garden tiller, which is better suited to working in these conditions.

New improved tiller

The machine has been upgraded with a new, even more sturdy tiller!

Thanks to the new construction profile, the machine structure is even more resistant.

All accessories suitable for MC 2300C REVERSO to be purchased separately

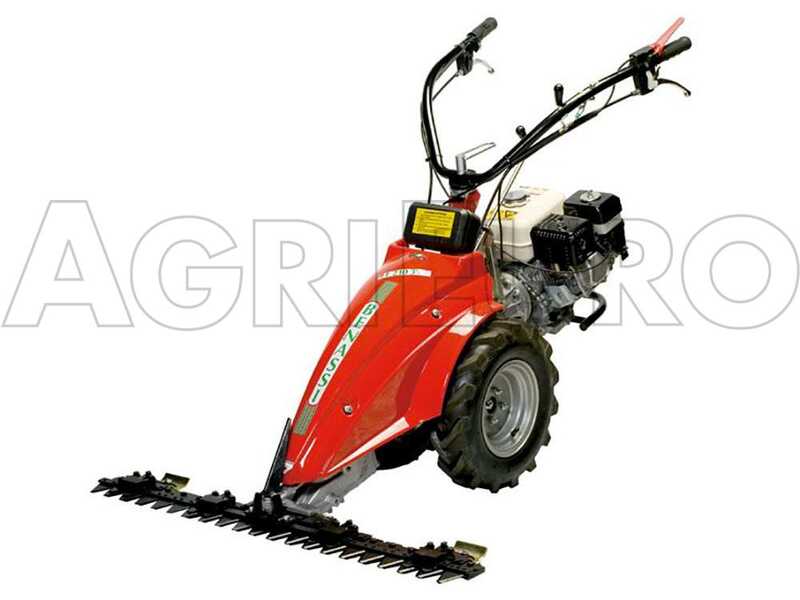

Sickle bar with dual-blade action which allows removing overgrown grass and weeds.

Adjustable back furrower

170 cc engine

New generation 4-stroke engine with overhead valve "OHV” technology.

Petrol engine that is specifically designed to ensure high performances and it is suitable for works that require high reliability and durability, thanks to its remarkable 170 cc of cubic capacity.


Main features:

Engine type:
4-stroke, single cylinder
Cylinder type:
Aluminium
Cubic capacity:
170 cm³
Power supply:
Petrol
Max. rpm:
3600 rpm
Start-up:
Manual






Focus on the recoil start.

Focus on the air filter



WARNING.
The engine is provided without oil. Bring the oil to the right level before first ignition.

Remember that it is always a good idea to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

2-gear gearbox (1+1) and gear transmission in oil bath

The two-wheel tractor is driven by a 2-gear gearbox (1 forward + 1 reverse).

They can be engaged by means of the lever placed under the steering handles.

The gearbox and transmission are among the parts most prone to failure and wear.

This is why in this machine these components are entirely made of gears in oil bath and not equipped with drive belt, thus giving the equipment very high strength and durability.

Very sturdy and reliable.

Steering handles and controls

Focus on the steering handles where all the main controls are placed.

Focus on the

  • gearbox and power take-off engagement levers.
  • Silver lever: wheels unlocking lever
  • Red lever: engine stop lever
  • Silver lever: Clutch lever

Focus on the height adjustment of the steering handles.

Reversible or side-adjustable steering handles .

Focus on the fixing and rotation system of the steering handles support by means of the special locking lever.

Throttle lever

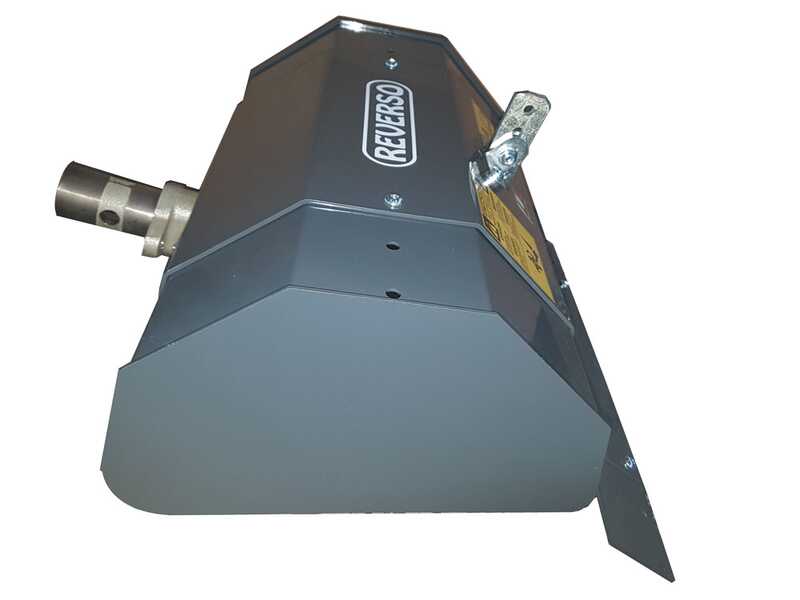

48 cm tiller with quick hitch

Tiller working width: 48 cm

External hood made of sheet steel.

Tiller equipped with 4 elements, each with 4 hoes

Tiller diameter: 26 cm

The stake can be adjusted in various positions, thus determining the working depth of the tiller(remember that all the two-wheel tractors on the market tend to grind the soil very finely, but they carry out fairly superficial work, i.e. they feature a medium-low working depth in the soil).

Focus of the quick hitch between the tiller and the machine body.

The tiller engagement and disengagement lever (red lever at the top) enables the transmission to be activated and deactivated only when necessary. This allows to move the machine using self-propulsion with the tiller stationary.

Treaded drive wheels

Heavy-duty large-sized treaded pneumatic wheels 13.5.00-6"

Equipped with locking/unlocking system on the steering handles. In this way, the wheels go into neutral or regain traction.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Free items included

The machine is shipped in its original packaging. Instructions manual included.

Complimentary: two oil bottles specific for 4-stroke engines.

Tilling unit 38/48 included with the machine

WARNING.
The engine is supplied without oil. Bring the oil to the right level before first ignition.
