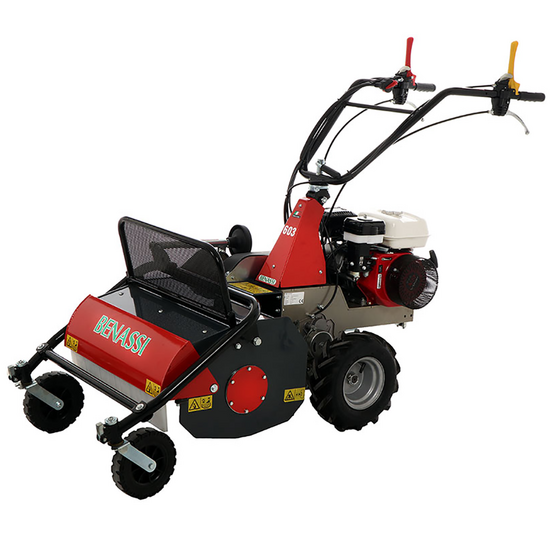

Name: Benassi T 603 - Professional Hammer Rough Cut Mower - Honda GX200
Brand: Benassi
SKU: K603713
Price: 3266.7 EUR
Availability: InStock

Description

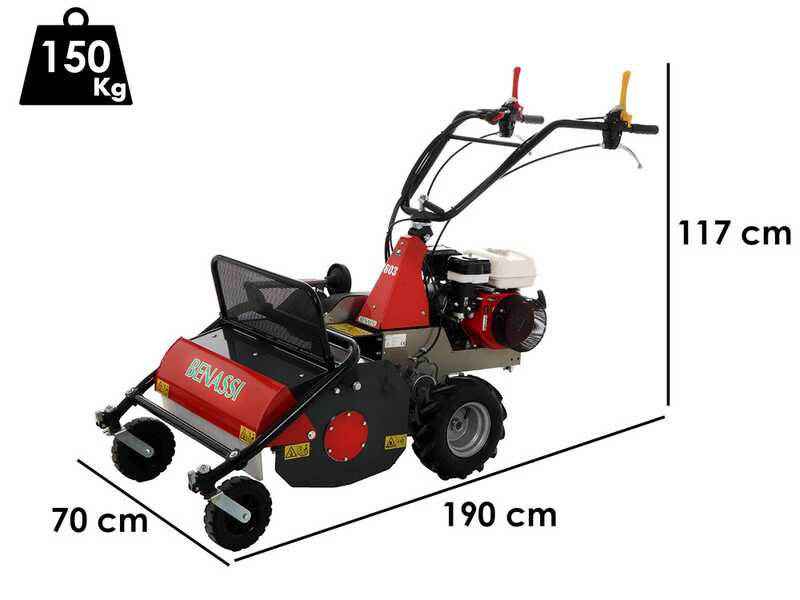

Benassi T 603 Self-propelled hammer flail mower

Benassi T 603 self-propelled hammer flail mower A lightweight and compact machine, suitable for mowing all types of weeds, even very tall grass.

Thanks to the powerful Honda GX200 196 cc (6.5 HP) engine and the traction transmitted to the ground by two large tractor wheels, this machine can complete work on very large areas shortly.

Besides grass, it can also cut brushwood and brambles (up to 2.5 cm) in any condition, even in fairly inaccessible places (even on slopes, as long as they are not too steep).

The high quality of the rough cut mower is guaranteed by the completely Made in Italy manufacturing.

The machine rotor is equipped with 24 knives and has a working width of 60 cm.

In addition, the machine is equipped with a parking drum brake that is activated when the red lever (clutch) is released, preventing the machine from moving forward on a slope.

The machine is equipped with a handwheel on the cutting deck that allows the working height to be adjusted quickly and cleanly, without the need for tools.

Benassi T 603 - Professional Hammer Rough Cut Mower - Honda GX200

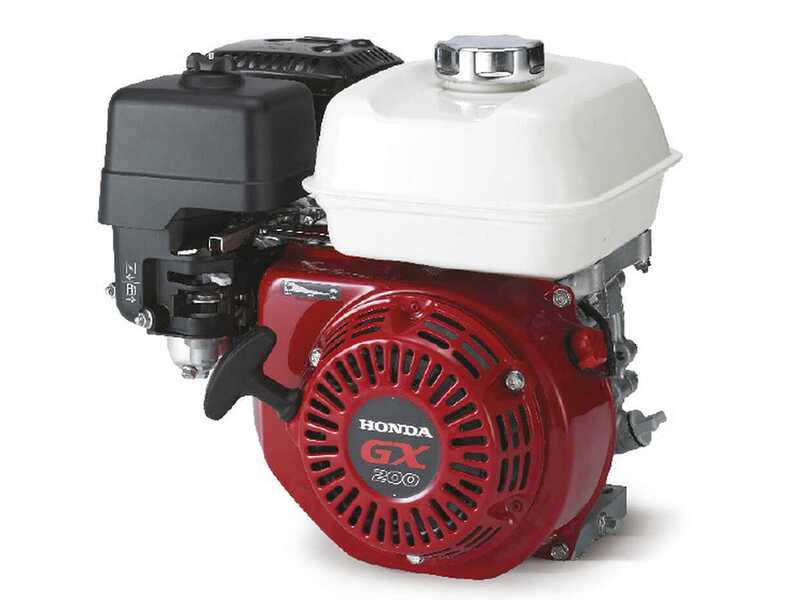

Honda engine GX 200

The Honda GX 200 engine is professional, powerful and with the latest generation technology in valve head.

Features:

Engine type

4-Stroke, single cylinder 4 stroke - OHV

Cylinder type:

Aluminium

Cubic Capacity:

196 cmÂ³

Compression ratio

8.5: 1

Max. rpm

3600 rpm

Torque value

12.4 Nm / 1.26 kgfm / 2500 rpm

Fuel tank capacity:

3.1 L

Consumption:

1.7 L/h 3600 rpm

The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It’s characterized by great durability and reliability

Before starting the engine, carefully read the instructions manual.

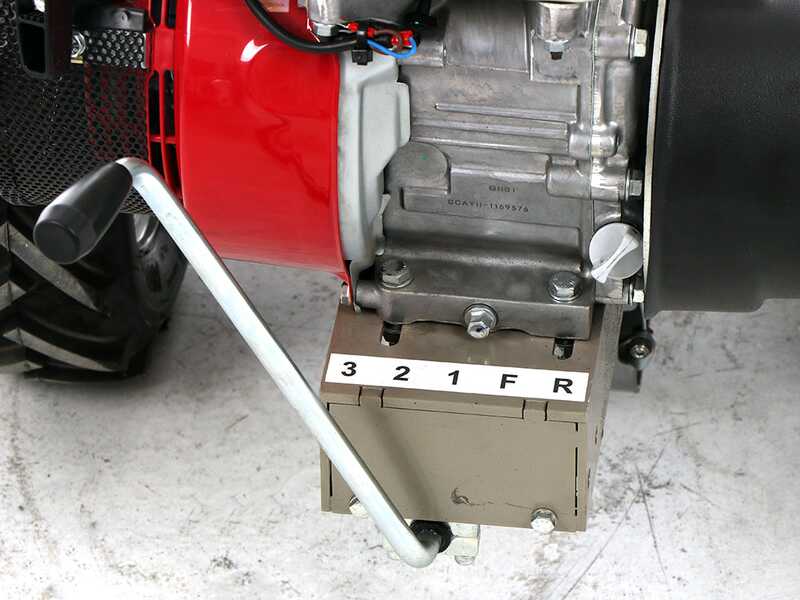

Gear shifting system and transmission

4-Speed oil-bath gearbox: 3 forward gears with reverse and neutral.

Particularly sturdy and reliable gearbox.

Final drive to the flail mower rotor by means of a drive belt protected by a sturdy casing.

All components are made in Italy.

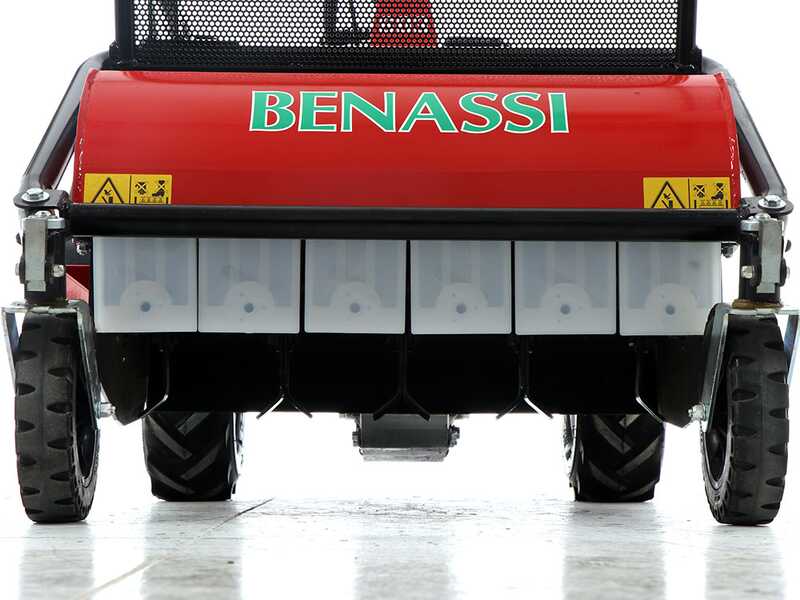

Cutting deck

Rough cut mower made of exceptionally thick steel plate.

Sturdy rotor made of tempered steel, with 24 Y-shaped blades. They give this machine unparalleled effectiveness for any type of work (grass but also brushwood, brambles, pruning, up to 2.5 cm in diameter)

Working width: 60 cm

Focus on the cutting knives and their particularly sturdy supports

Cutting height adjustment through the handwheel

Focus on the sturdy front protection straps

The cutter deck also has an additional Operator’s guard mounted on top of the deck. This accident-protection grating ensures maximum safety in use.

Focus on the toothed counter-blade for greater chopping effect.

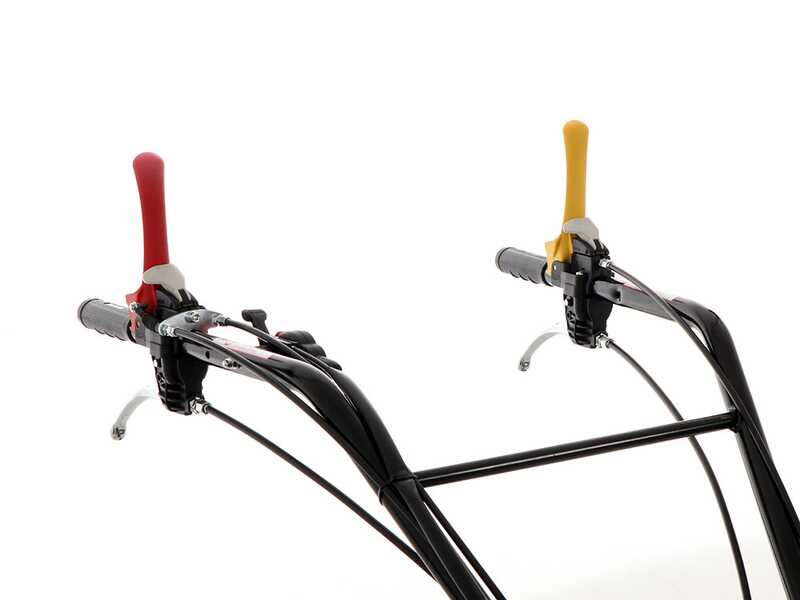

Controls and settings

Red lever: this is the clutch lever, it activates and deactivates the feed, whatever the speed selected on the gearbox (both forward and reverse). Releasing this lever stops the machine instantly, for safety reasons.is connected to the drum parking brake that stops the machine if released.

Yellow lever: it activates and deactivates the knife rotor (i.e. the shredding function)

Gear selector

Throttle lever

Adjustment of the control handlebars by means of a lever: adjustable in different heights and laterally

Cutting height adjustment: rotate the lever to raise or lower the cutting deck.

- Example of cutting height adjustment

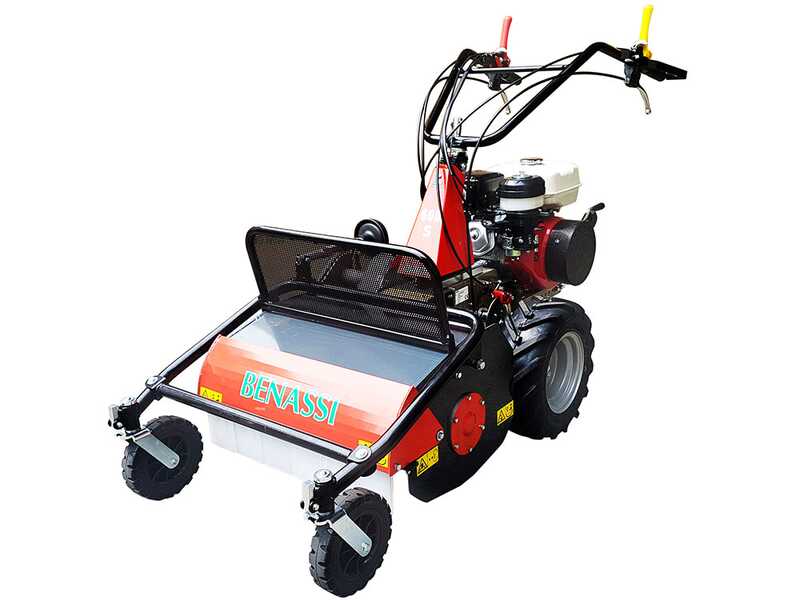

Additional specifications

Tilting front wheels.

TRACTOR pneumatic wheels for large areas: 13/500 6

Handlebars: height and side adjustable

Stone guard protecting the mower deck

Belt drive

Blade motor drive belt

Locked wheels

Covered wheel hub

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.
