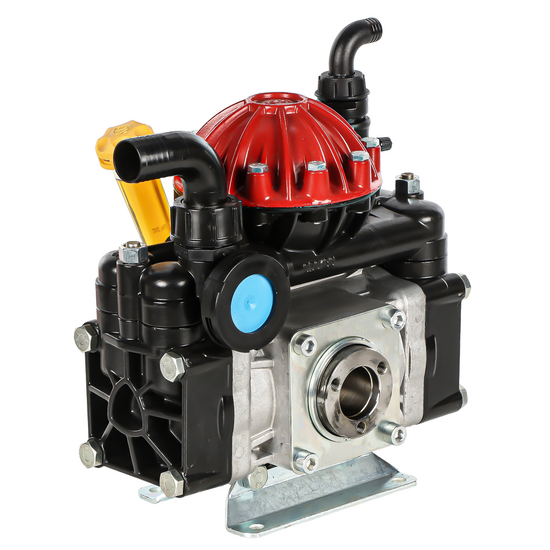

The two hydraulic diaphragm pump model AR Code 32097 is a high-performance solution for semi-professional applications in the agricultural sector. Thanks to its 5.2 HP power and a maximum flow rate of 65.8 L/min (17.4 gpm), this pump is ideal for use on gardening trolleys, small sprayers and treatment equipment in the garden, greenhouse, orchard or vineyard, especially for medium-pressure applications of plant protection products.
The pump is designed to work with electric motors or internal combustion engines, ensuring reliability and durability even under severe conditions of use. The BlueFlexâ„¢ diaphragms and NBR seals ensure long life and resistance to chemicals, while the parts in contact with the pumped liquids are made of plasticised aluminium (Rilsan) and AISI 303/304, materials that guarantee resistance to corrosion.

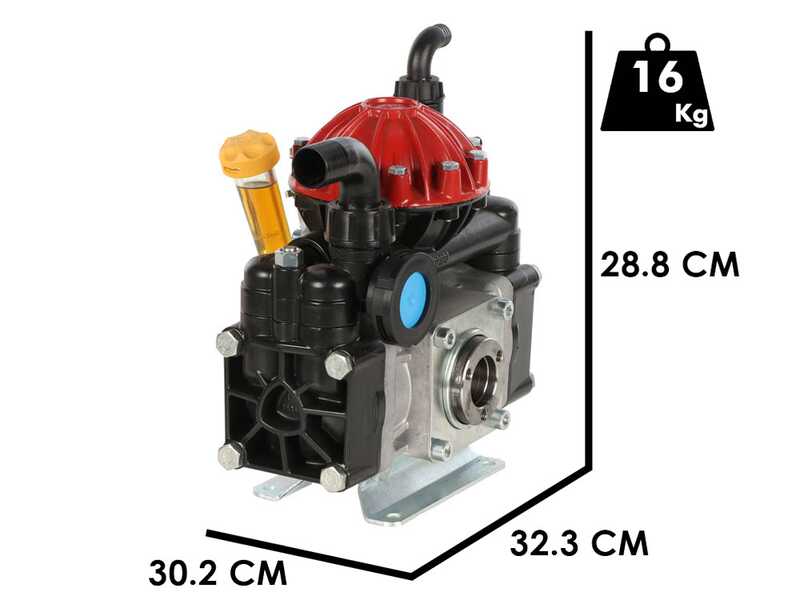

The compact dimensions of the pump, with a length of 302 mm, a height of 288 mm and a width of 323.5 mm, make it easy to integrate into larger systems. The net weight of 16 kg ensures good manoeuvrability, while the transparent plastic tank allows easy visual control of the liquid level. In addition, the pump is equipped with a hydro-pneumatic damper, which improves smoothness of operation and reduces pulsation in the delivery circuit, offering optimal efficiency.
For even greater protection, the system is equipped with a die-cast casing with oil bath mechanics, as well as a diaphragm blocking system that prevents tearing even in heavy-duty situations. Spherical sector valves reduce resistance to the passage of liquid, improving volumetric efficiency.

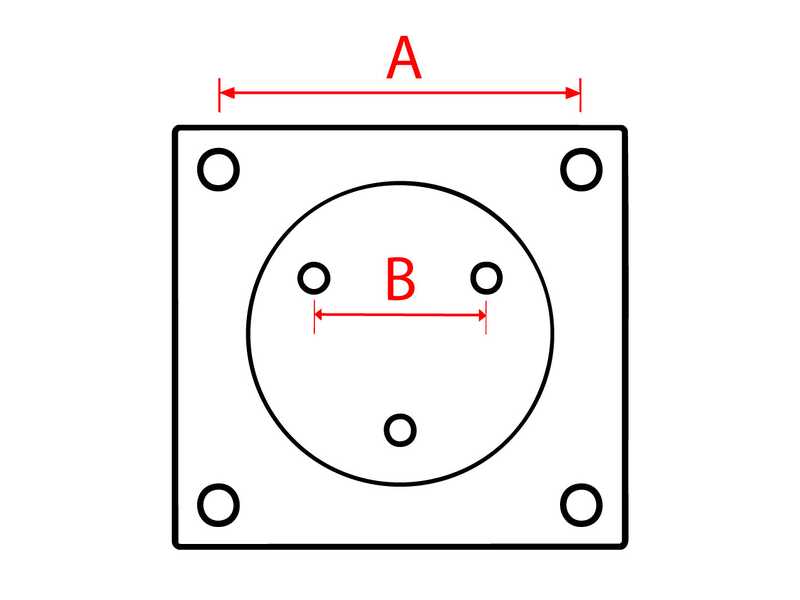

Finally, the pump is complete with a pressure relief valve with reset and cardan protection, with galvanic zinc-plated hardware to ensure long life and resistance to external agents. It is available with gearboxes for electric motors or internal combustion engines, flanges for hydraulic motors and speed increasers, offering a wide range of options to meet different operating requirements.
With a maximum pressure of 40 bar (580 psi) and a maximum temperature of 60°C, this pump is the ideal choice for those seeking efficiency and robustness in semi-professional agricultural applications.
PLEASE NOTE:
If products containing minerals such as Kaolin; Zeolite; Basalt etc. are used, the pump should be used. In order to avoid compromising the internal components of the pump in the long term, it is advisable to carry out washings at the end of each treatment and at the end of each season to disassemble certain parts of the pump such as valves, to clean any residues that may have accumulated from minerals..
These procedures will ensure a long life of the pump even if the above minerals are used.
