Annovi & Reverberi AR 1475 - Pressure washer - 280 bar - 960 L/h - Loncin G390F petrol engine

Questions & Answers (14)
ID: K502172

EAN: 8016287263252

MPN: 26325

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi AR 1475 - Pressure washer - 280 bar - 960 L/h - Loncin G390F petrol engine
+500 sold
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Foam air filterFoam air filter
Foam air filterFoam air filter
Free water supply connection kitFree water supply connection kit
Technical data
Linear Pump
Yes
Pump head material
Brass
Maximum hourly pump flow rate
960 L/h
Max. pressure
280 bar
Engine speed
3400 RPM
Cubic capacity
389 cm³
Nominal power
11 HP
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G390F
Pressure regulator
Yes
Automatic gas
Sì
Wheeled
Sì
Type
Trolley
Detergent tank
Sì
Self-priming pump
Sì
Weight
65 Kg
Product Features
Model
AR 1475
Wheeled
Sì
Type
Trolley
Operating mode
Spark ignition
Operation mode
Petrol
Detergent delivery
Low-pressure
Manufacturing country
China
Motor data
Motor brand
Loncin
Motor Model
G390F
Motor type
4-stroke
Cubic capacity
389 cm³
No. of cylinders
1
Nominal power
11 HP
Motor speed
3400 RPM
Automatic gas
Sì
Fuel
Petrol
Power supply
Overhead valve OHV
Engine lubrication system
Oil bath
Decompression system
Automatic
Manufacturing country
China
Pump data
Pump brand
Annovi & Reverberi
Pump type
Inline-three cylinders
Linear Pump
Sì
Linear Pump
Yes
Self-priming pump
Sì
Pistons material
Ceramic
Pump head material
Brass
Brass pump head
Sì
Engine speed
3400 RPM
Flow rate
13.8 L/min
Max flow rate per minute
16 L/min
Maximum hourly pump flow rate
960 L/h
Operating pressure
230 bar
Max. pressure
280 bar
Pressure regulator
Yes
Pressure regulator
Sì
Safety valve
Yes
Manufacturing country
China
Equipment
Integrated detergent tank
Yes
Detergent tank
Sì
External detergent suction hose
Yes
Type of attachment
M22 - Screw
Hose holder
Yes
Rubber-coated soft grip
Yes
Tool holder
Yes
Free gifts/extra features
Engine oil bottle for free
2
Connecting hose kit
Yes
Maintenance tool kit
Yes
Spray gun
Yes
Heavy-duty spray gun
Yes
Quick-connect nozzle lance
Yes
Hose length
10 m
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
80 x 60 x 90 cm
Net weight
65 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
80 x 60 x 90 cm
Weight including packaging
71 Kg
Assembly time
5 minutes
Prompt Delivery
34 items in stock
Free Shipping
Estimated delivery: 26/09/2025 - 30/09/2025
Suggested price:
€ 1.108,29
€ 997,46
Vat included

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

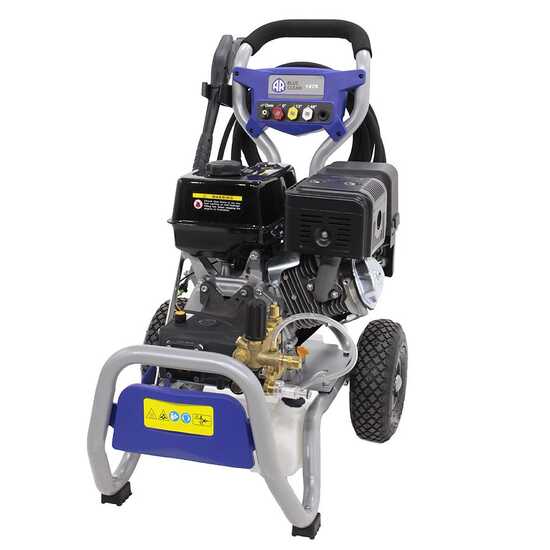

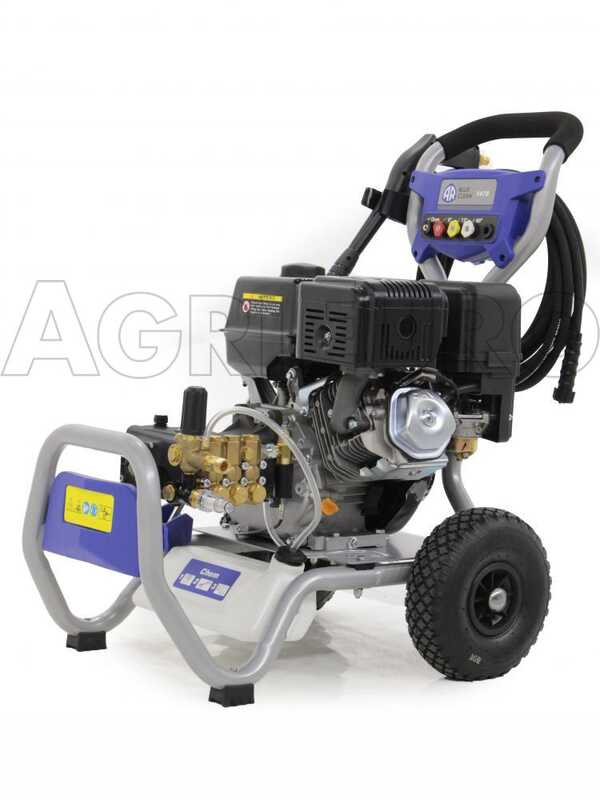

Annovi & Reverberi AR 1475 petrol pressure washer

The Annovi & Reverberi AR 1475 pressure washer is a professional tool ideal for demanding hobbyists looking to purchase a product that combines excellent performance with a competitive price.

The piston pump with high-performance connecting rod system is manufactured to an excellent standard.

The construction of the pump with in-line pistons and brass head ensures reliability and durability superior to normal aluminium pumps and axial pumps.

The Loncin G390F engine, recognised as one of the best on the market in terms of value for money, delivers up to 11 HP, guaranteeing a flow rate of 16 litres per minute and a maximum pressure of 280 bar.

The recoil start is easy and light, thanks also to an efficient decompression system.

The sturdy metal trolley with two 28 cm diameter pneumatic wheels is complete with a removable handle and ensures safe forward movement despite its weight of 64 kg.

Machine equipped with "Automatic Gas" function: advanced machine engine speed management system. It acts as an automatic adjustment mechanism that allows for significant fuel savings. In particular, the system automatically reduces the engine speed to the minimum necessary when the machine is turned on but not in operation, i.e. when "the lance is not pressed".

Three-piston pump with connecting rod system

The pump unit with connecting rod system is equipped with 3 high corrosion resistance pistons, inserted inside the head.

Head made entirely of brass.

  • Aluminium alloy casing.
  • Pressure regulator
  • Automatic bypass valve

The piston pump, with brass head and 3 ceramic pistons, is designed for very intensive and heavy-duty use.

The construction of the pump with pistons and brass head ensures greater reliability and durability than normal aluminium pumps and axial pumps.

  • Pump flow rate: 16 L/min ( 960 L/hour). The flow rate is the most important factor in a pressure washer because it identifies the real power of the machine even before the pressure. It is important that the inlet flow rate is not less than 16 L/min.
  • Operating pressure: 280 bar

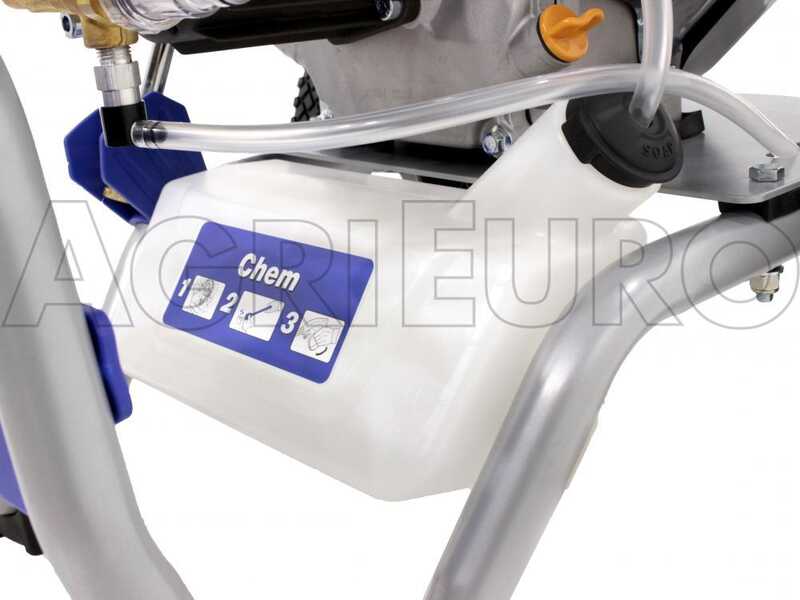

Integrated detergent suction with 2 L internal tank (suction tube supplied). Most petrol pressure washers are not equipped with this practical integrated tank.


The engine is SUPPLIED WITHOUT OIL.

Oil will be supplied with the machine to bring the oil level up to the correct level.

Before starting the machine, carefully read the instruction manual.

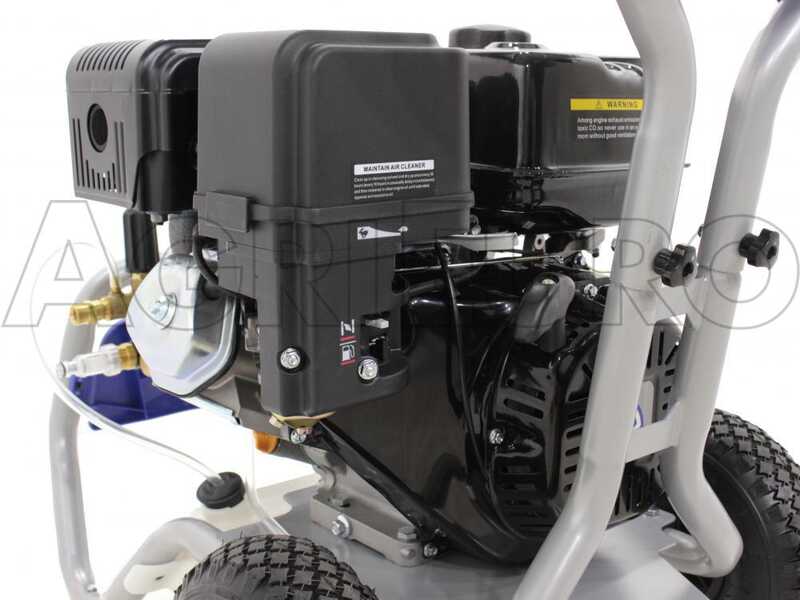

Loncin G390F Engine

Features:

Engine model and brand:
Loncin G390F
Engine type
Single cylinder 4-stroke - OHV
Cylinder type
Aluminium
Displacement
389 cm³
Power
11 HP
Starting type
recoil

Loncin engines are appreciated for their excellent value for money and are designed for hobby use and semi-professional applications


The engine is SUPPLIED WITHOUT OIL.

Oil will be supplied with the machine to bring the oil level up to the correct level.

Read the instruction manual carefully before starting the machine.

Lance and Nozzles Included

The pressure washer is equipped with a lance with 4 interchangeable quick-connect nozzles.

  • Red 0°: for maximum cleaning power in a very small radius
  • Yellow 15°: for good cleaning power in a small radius
  • White 40°: for moderate cleaning power over a wide radius
  • Black SOAP: to be used together with detergent

The lance is professional with quick coupling, equipped with extension and safety device

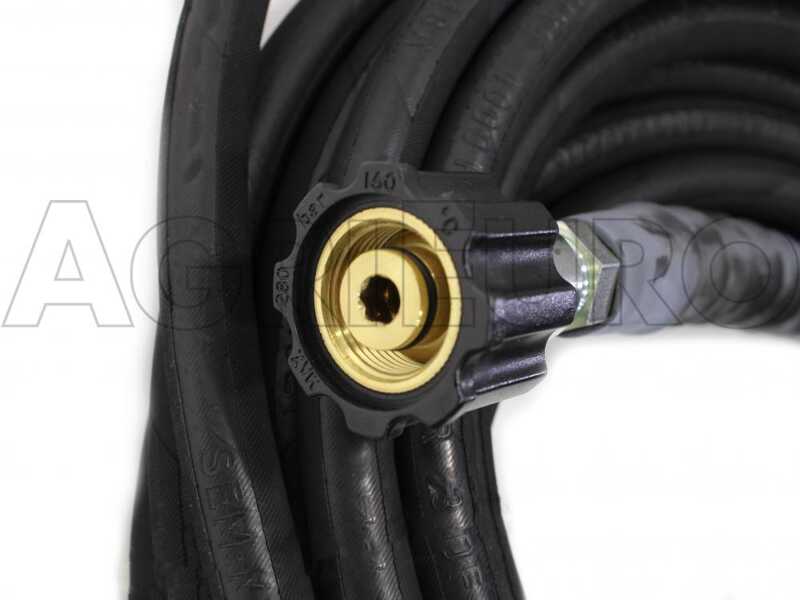

The 10 m reinforced high-pressure hose supplied is quick-connect.

Also included is an inspectable water inlet filter with quick coupling.

Other Features

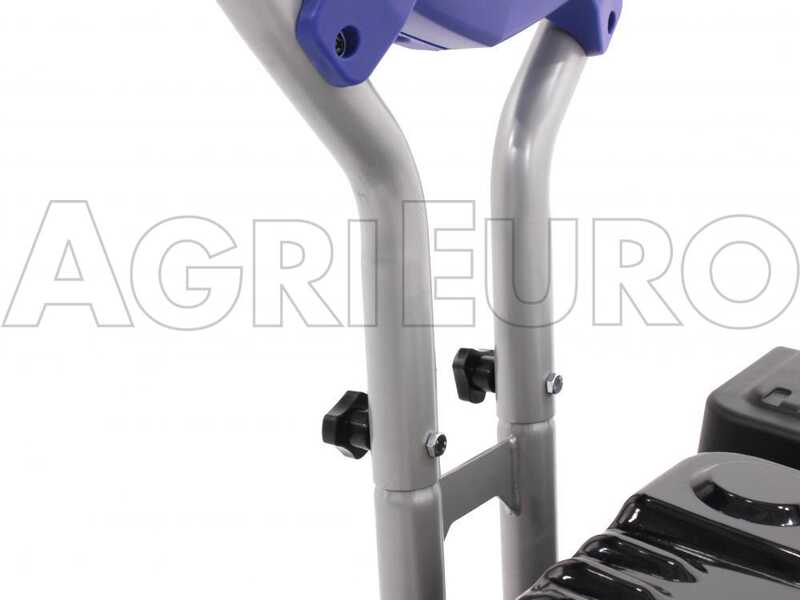

The pressure washer is mounted on a steel trolley with slots for easy maintenance and a removable handle.

The machine is also equipped with:

  • Hose holder and lance holder.
  • Nozzle support
  • Pneumatic wheels with a good diameter to make movement practical, even on surfaces that are not perfectly smooth.
  • Front anti-slip rubber pads

DIMENSIONS: 60 x 80 x 95 cm

WEIGHT: 65 kg

Free items & Standard equipment

COMPLIMENTARY: Spare parts and accessories kit for engine maintenance

Spare parts set and accessories for the maintenance of the following engines.

  • HONDA GX 330
  • HONDA GX 390
  • Loncin 330 cc
  • Loncin 390 cc
  • Axo 330 cc
  • Axo 390 cc

The set includes:

1 GeoTech spark plug

1 key professional jointed candle to use specifically for tractor engines, grass cutters and mowers professional mover

1 air filter elliptical and in sponge for the engine

WARNING: This kit can’t be used for other brands or models on market. We don’t provide different kit from the ones offered on our website. We do not guarantee the adaptability of products not purchased from our site.

COMPLIMENTARY: 1 lt Oil Bottles

COMPLIMENTARY: two 1 lt 10W 40 oil bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 HP. Good cleansing and dispersion.

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with ACQUASTOP (to be applied to the end of the irrigation pipe). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Free Items Included

The Annovi & Reverberi petrol pressure washer is supplied in its original packaging and shipped on a pallet. Fully assembled except for the lance and wheels.

  • 10 m high pressure hose

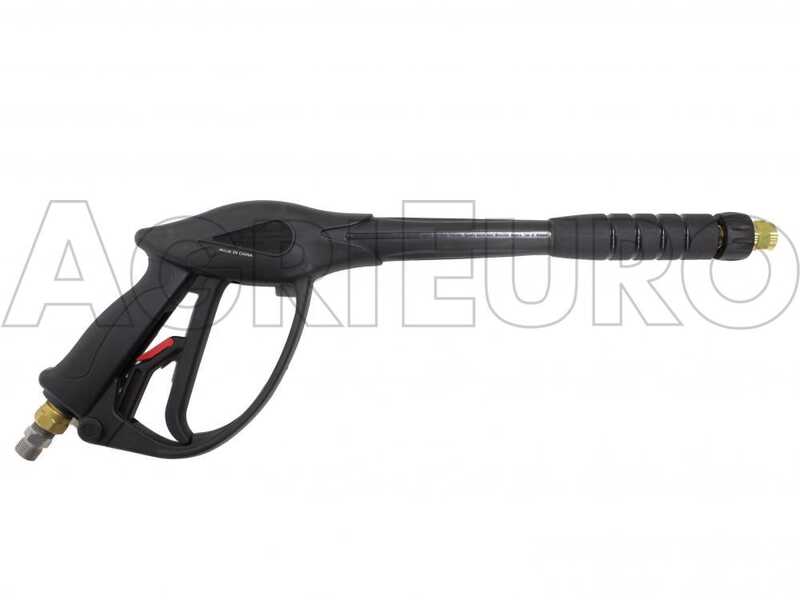

  • Quick-connect gun with extension
  • 4 nozzles supplied
  • Pressure washer operating and maintenance instructions
