Annovi & Reverberi AR 1475 Petrol Pressure Washer with Loncin G390F Engine

Questions & Answers (10)
ID: K502172

EAN: 8016287263252

MPN: 26325

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi AR 1475 Petrol Pressure Washer with Loncin G390F Engine
+400 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Foam air filterFoam air filter
Foam air filterFoam air filter
Free water supply connection kitFree water supply connection kit
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
960 L/h
Max. pressure
280 bar
Cubic capacity
389 cm³
Nominal power
11 HP
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G390F
Pressure regulator
Yes
Automatic gas
Wheeled
Type
Trolley
Detergent tank
Self-priming pump
Weight
65 Kg
Product Features
Model:
AR 1475
Wheeled:
Type:
Trolley
Operating mode:
Spark ignition
Operation mode:
Petrol
Detergent delivery:
Low-pressure
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G390F
Motor type:
4-stroke
Cubic capacity:
389 cm³
No. of cylinders:
1
Nominal power:
11 HP
Motor speed:
3400 RPM
Automatic gas:
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Pump data
Pump brand:
Annovi & Reverberi
Pump type:
Inline-three cylinders
Heavy-duty linear pump:
Self-priming pump:
Pistons material:
Ceramic
Pump head material:
Brass
Brass pump head:
Flow rate:
13.8 L/min
Max flow rate per minute:
16 L/min
Max. flow rate per hour:
960 L/h
Operating pressure:
230 bar
Max. pressure:
280 bar
Pressure regulator:
Yes
Pressure regulator:
Safety valve:
Yes
Manufacturing country:
China
Equipment
Integrated detergent tank:
Yes
Detergent tank:
External detergent suction hose:
Yes
Type of attachment:
M22 - Screw
Hose holder:
Yes
Rubber-coated soft grip:
Yes
Tool holder:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Connecting hose kit:
Yes
Maintenance tool kit:
Yes
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Quick-connect nozzle lance:
Yes
Hose length:
10 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
80 x 60 x 90 cm
Net weight:
65 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
80 x 60 x 90 cm
Gross weight (packaging included) :
71 Kg
Assembly time:
5 minutes
Prompt Delivery
31 items in stock
Free Shipping
Estimated delivery: 22/10/2024 - 24/10/2024
Suggested price:
€ 1.073,13
€ 965,82
VAT Included

You're viewing:
Customers also viewed:
Description

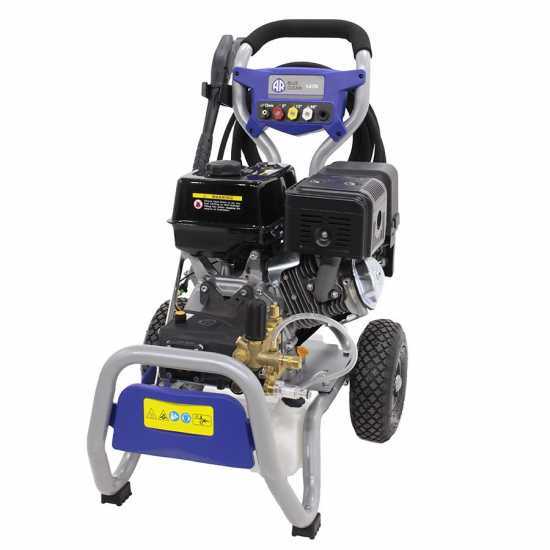

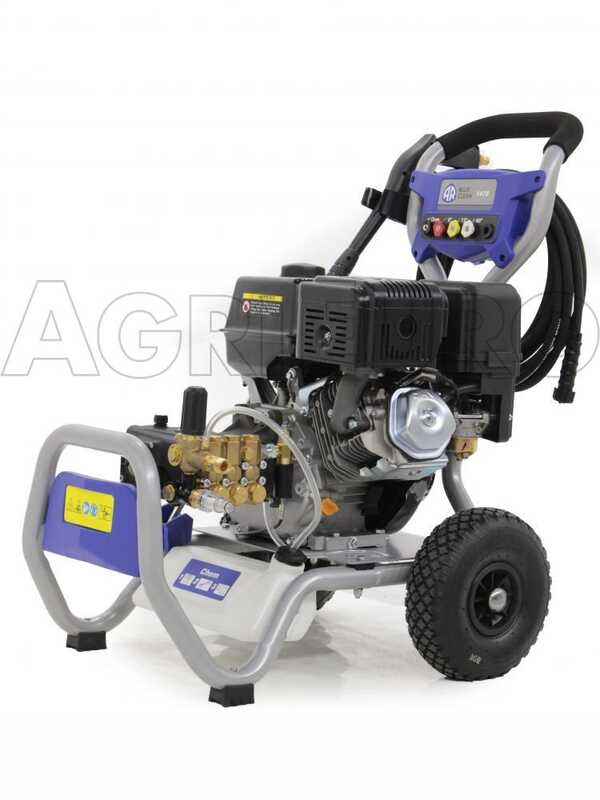

Annovi & Reverberi AR 1475 Petrol Pressure Washer

The Annovi & Reverberi AR 1475 pressure washer is a semi-professional petrol pressure washer ideal for demanding amateurs who seek a product that combines excellent performance and competitive price.

The piston pump with high-performance rod-crank system features excellent manufacturing quality.

The structure of the pump with its in-line pistons and brass head ensures superior reliability and durability compared to standard aluminium and axial pumps.

The Loncin G390F engine, renowned as one of the best on the market for its value for money, delivers up to 11 Hp, which guarantees a maximum flow rate of 16 L per minute and a maximum pressure of 280 bar.

Easy and comfortable recoil start system, which is also ensured thanks to the efficient decompression system.

The sturdy metal trolley with two pneumatic wheels with 28 cm diameter features a removable handle and ensures safe movements despite its weight of 64 kg.

Machine equipped with "automatic Gas" function: an advanced system for managing the machine's engine speed. It acts as an automatic regulation mechanism that allows significant fuel savings. In particular, the system automatically reduces engine revs to the lowest possible engine speed when the machine is switched on but not in operation, i.e. when "not pressing the lance"

Three-piston pump with rod-crank system

The pump unit with a connecting rod-crank system is equipped with 3 high-strength pistons resistant to corrosion, placed inside the head.

The head is completely made of brass.

  • Aluminium alloy frame.
  • Pressure regulator
  • Automatic bypass valve

The piston pump with brass head with 3 ceramic-coated pistons is intended for demanding and intensive use.

The structure of the pump with pistons and brass head unit ensures higher levels of reliability and durability compared to the regular aluminium and axial pumps.

  • Pump flow rate: 16 L/min max (960 L/h max), the flow rate is the most important technical data of a pressure washer, even more than pressure, as it shows the real power of the machine.
  • Working pressure: 280 bar

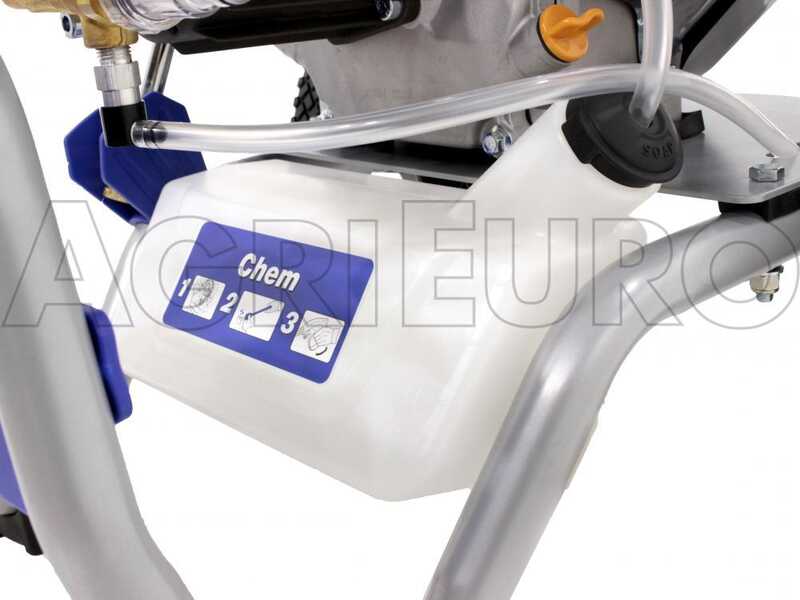

Integrated detergent suction with 2 L built-in tank (supplied suction tube). Most of the petrol pressure washers is not equipped with this handy built-in tank.




The engine is PROVIDED WITHOUT OIL.

The machine is provided with oil.

Read the instruction manual carefully before using the machine.

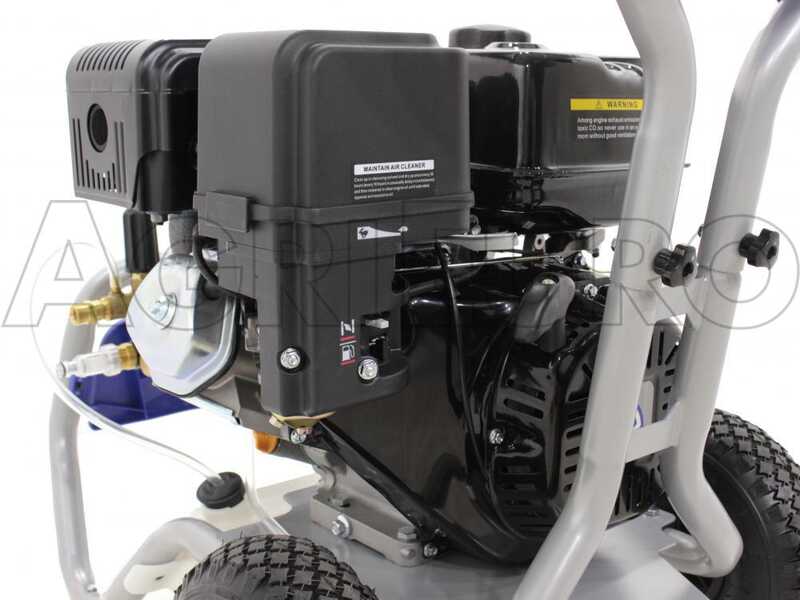

Loncin G390F Engine

Main features:

Engine brand and model:
Loncin G390F
Engine type
4-stroke, single-cylinder - OHV
Cylinder type:
aluminium
Cubic capacity:
389 cm³
Power
11 Hp
Starting
recoil start system

Loncin engines are appreciated for their excellent value for money, developed for amateur and semi-professional use


The engine is PROVIDED WITHOUT OIL.

The machine is provided with oil.

Read the instruction manual carefully before using the machine.

Lance and Nozzles Included

The pressure washer features a lance with 4 interchangeable nozzles with quick coupling.

  • Red 0°: to obtain a jet with maximum cleaning power in a small range
  • Yellow 15°: for good cleaning power in a small range
  • White 40°: for good cleaning power in a wide range
  • Black SOAP: to use with the detergent

The professional lance features quick coupling, it is equipped with extension and safety device

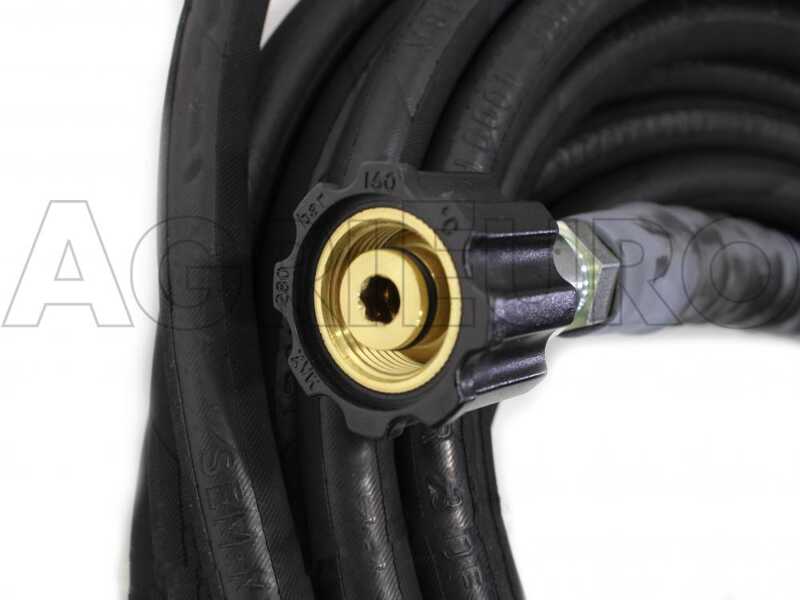

The 10 m high-pressure hose supplied features quick coupling.

Included also the easily accessible water filter equipped with quick coupling.

Other Features

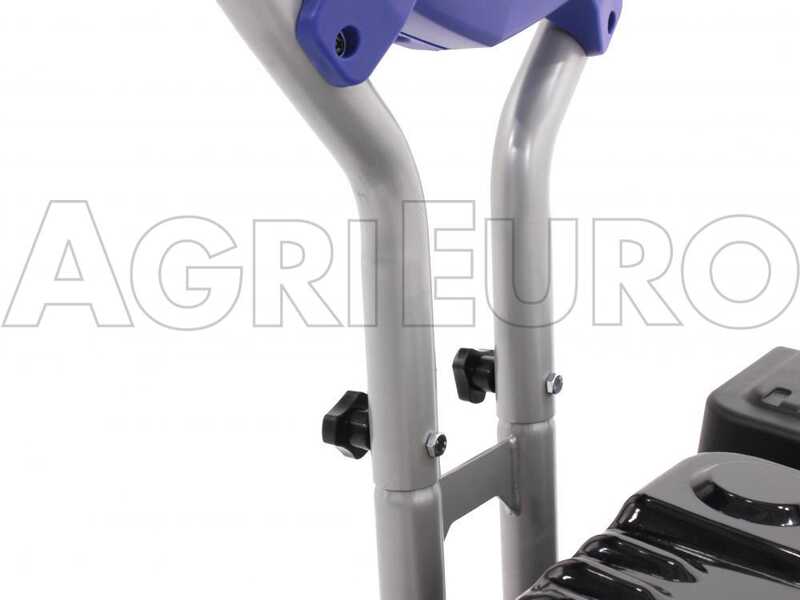

The pressure washer is mounted on a steel trolley with slots for easier maintenance and removable handle.

The machine is equipped with:

  • hose reel and lance holder.
  • nozzle holder
  • large rubber wheels to easily move the pressure washer on surfaces that are not perfectly even.
  • anti-slip front rubbers

DIMENSIONS: 60 x 80 x 95 cm

WEIGHT: 65 kg

Free items & Standard equipment

COMPLIMENTARY: Spare parts and accessories kit for engine maintenance

Spare parts set and accessories for the maintenance of the following engines.

  • HONDA GX 330
  • HONDA GX 390
  • Loncin 330 cc
  • Loncin 390 cc
  • Axo 330 cc
  • Axo 390 cc

The set includes:

1 GeoTech spark plug

1 key professional jointed candle to use specifically for tractor engines, grass cutters and mowers professional mover

1 air filter elliptical and in sponge for the engine

WARNING: This kit can’t be used for other brands or models on market. We don’t provide different kit from the ones offered on our website. We do not guarantee the adaptability of products not purchased from our site.

COMPLIMENTARY: 1 lt Oil Bottles

COMPLIMENTARY: two 1 lt 10W 40 oil bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 HP. Good cleansing and dispersion.

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

Free Items Included

The Annovi & Reverberi petrol pressure washer is shipped in its original packaging on a pallet. You only need to assemble the lance and the wheels.

  • 10 m high-pressure hose

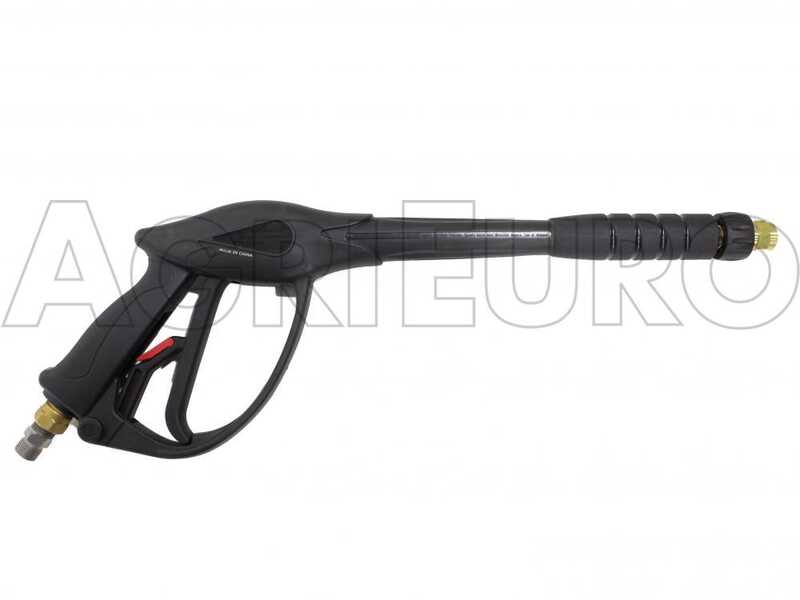

  • Spray gun provided with quick connection system
  • 4 nozzles included
  • Instructions and maintenance manual of the pressure washer
