Description

Annovi & Reverberi petrol pressure washer AR 1435

The Annovi & Reverberi AR 1435 high pressure washer is a semi-professional tool, perfect for the demanding hobbyist looking for high performance at a competitive price.

The axial piston pump, driven by the swash plate, is constructed from high quality materials. The construction includes steel pistons and an aluminium head, ensuring superior reliability and durability compared to standard pumps.

The Loncin G200F engine, renowned for its excellent value for money, delivers up to 6.5 Hp.

This motor allows a maximum flow rate of 9.3 litres per minute and a maximum pressure of 200 bar.

The recoil starter is easy and light, thanks to an efficient decompression system.

The robust construction of the AR 1435 includes a two-wheel metal trolley with a diameter of 28 cm and a detachable handle, ensuring safe travel despite its weight of 31 kg.

The steel construction is corrosion-resistant and equipped with convenient holders for nozzles, gun and lance.

Other distinguishing features include:

Built-in 2.1 litre detergent tank.
Anti-vibration feet reduce vibration and noise.
Rubber-coated treads for extra grip and stability.

Annovi & Reverberi AR 1435 - petrol pressure washer - 200 bar - 660 l/h - Loncin G200F petrol engine

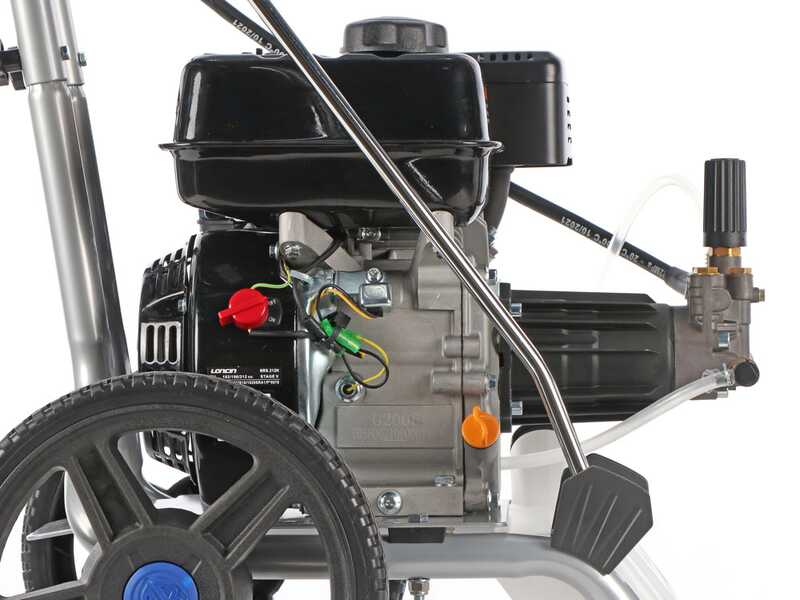

Three-piston pump driven by the swing plate

The swashplate-driven pump unit is equipped with three high-strength, corrosion-resistant pistons housed inside the cylinder head.

Fully constructed aluminium header.

Aluminium alloy casing.
Pressure regulator
Automatic bypass valve

The aluminium-headed piston pump is equipped with 3 steel pistons.

Pump flow rate: 11 litres/min max (660 litres/hour max), the flow rate is the most important figure in a pressure washer, because it identifies, even before pressure, the real power of the machine.
Working pressure: 200 bar

Integrated detergent suction with 2.1 L internal tank (suction tube included). Most petrol-powered high-pressure cleaners are not equipped with this practical integrated tank.

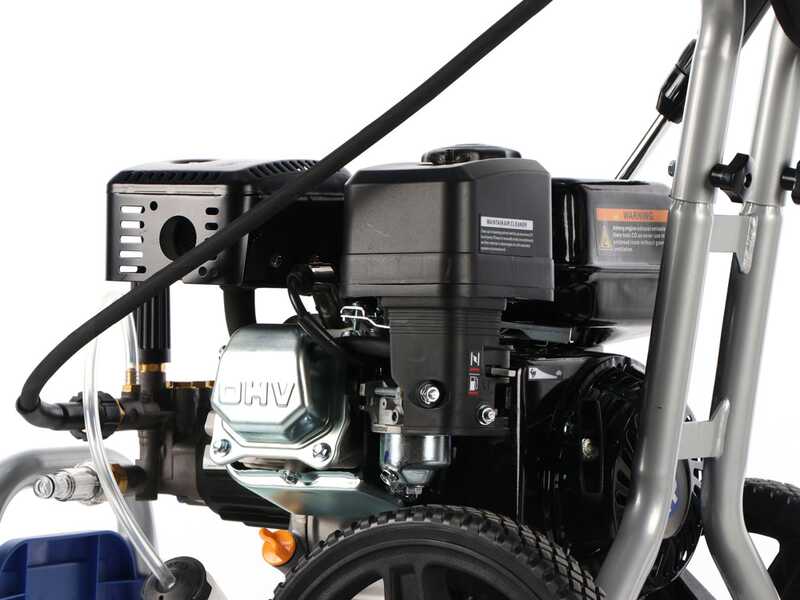

Loncin G200F Engine

Features:

Engine model and brand:

Loncin G200F

Engine type:

4-Stroke, single cylinder - OHV

Cylinder type:

Aluminium

Displacement

196 cm³

Power

6.5 Hp

Type of start-upr

Recoil start

Loncin motors are appreciated for their excellent value for money, developed for hobby and semi-professional work

The engine is SUPPLIED WITHOUT OIL.

Oil will be supplied with the machine.

Read the instruction manual carefully before starting the machine.

Nominal Power: 6.5 HP

* Also known as 'Commercial' Power, we mean the classic power definition standard that was also officially used until a few years ago by all well-known engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.5 HP

* Corresponds to the actual power output of the pump during operation. This is the power indicated as official in the engine instructions manual.

Lance and Nozzles Included

The high-pressure cleaner is equipped with a lance with 4 interchangeable quick-connect nozzles .

Red 0°: for a jet with maximum cleaning power in a very small radius
Yellow 15°: for good cleaning power in a small radius
White 40°: for discreet cleaning power in a wide radius
Black SOAP: to be used together with the detergent

The lance is of the professional type with quick coupling , equipped with an extension andsafety catch

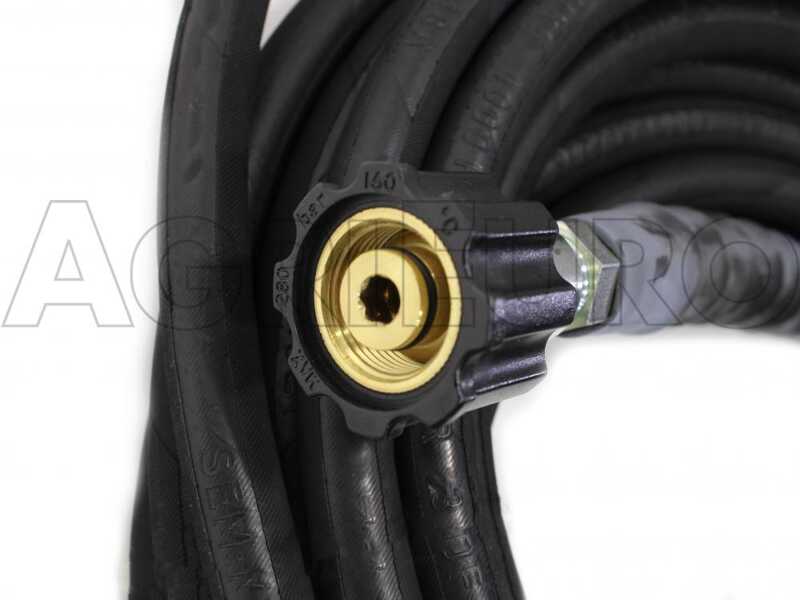

The supplied 8 m high-pressure hose is quick-connect.

Also included is an inspectable water inlet filter with quick coupling.

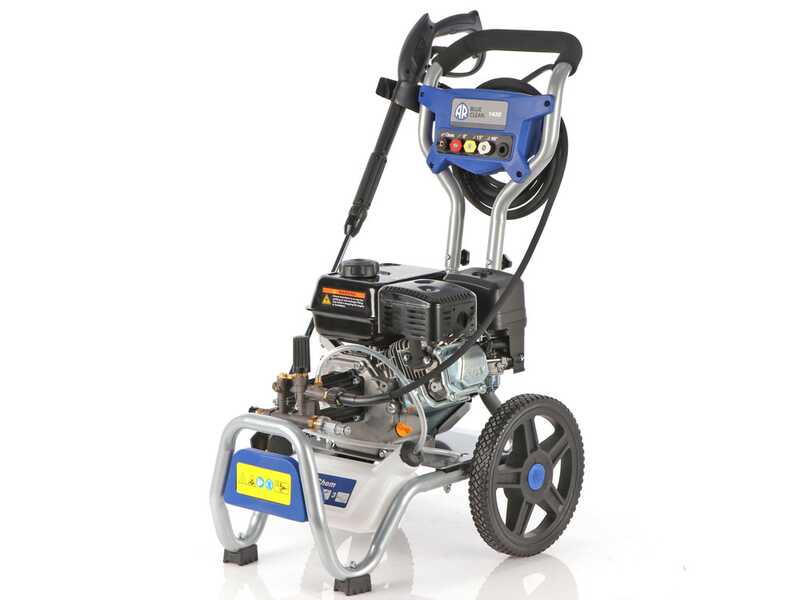

Other Features

The high-pressure cleaner is mounted on a steel trolley with eyelets for easy maintenance and a removable handle.

The machine is also equipped with:

Pipe and lance holder.
Nozzle support
Rubber wheels with a good diameter to make it easy to move even on surfaces that are not perfectly smooth.
Anti-slip front rubber pads

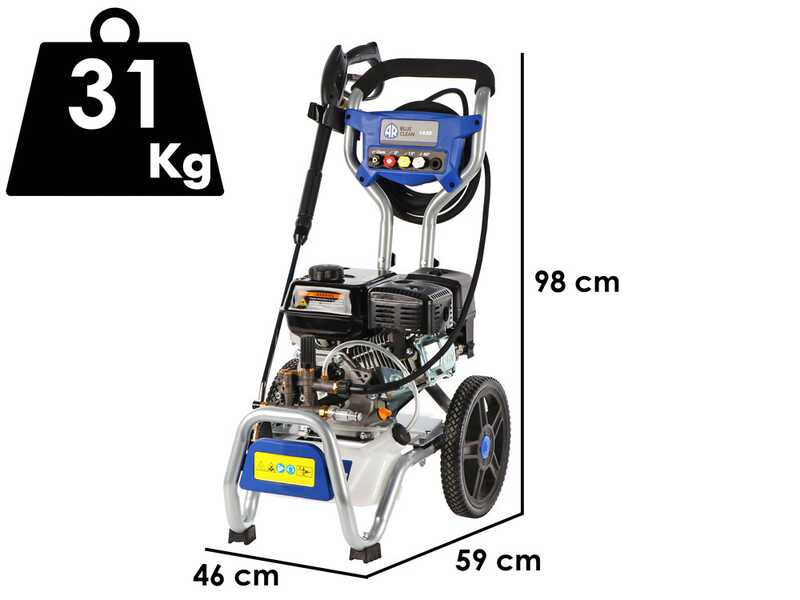

DIMENSIONS: 46 x 59 x 98 cm

WEIGHT: 31 kg

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

Ø 15 mm yellow hose, 15 m long
Male quick connector for tap connection (size of the standard thread: 3/4“)
Standard female quick connector (to insert the hose into the male quick connector for tap connection)
Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.
Adjustable plastic lance with male quick connector.

It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Free Items Included

The Annovi & Reverberi petrol-powered high-pressure cleaner is supplied in its original box and shipped with pallet. Completely assembled apart from the lance and wheels.

8 m high-pressure hose

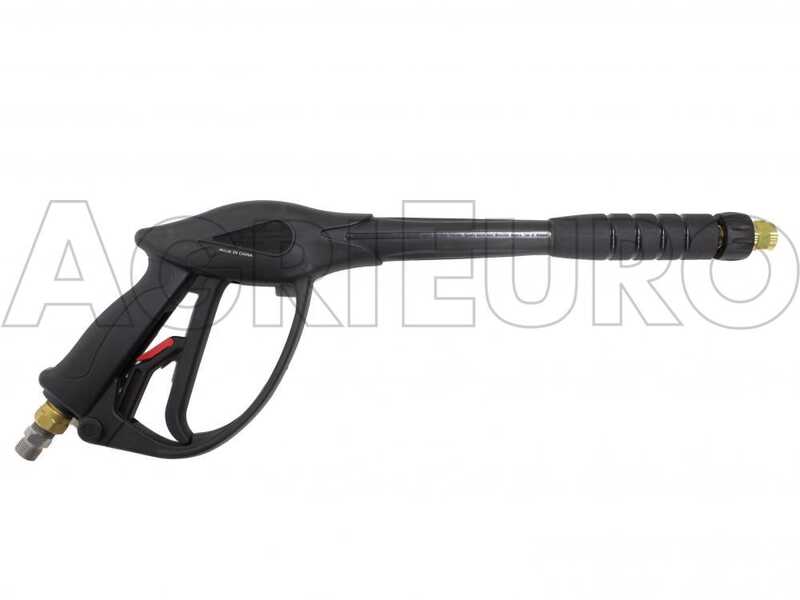

Quick-action coupling gun with extension
4 nozzles supplied
Pressure washer operating and maintenance instructions
