Annovi & Reverberi AR 1425 Petrol Pressure Washer with 6 HP RATO EHRV170 Engine

Questions & Answers (1)
ID: K503403

EAN: 8016287262156

MPN: 26215

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi AR 1425 Petrol Pressure Washer with 6 HP RATO EHRV170 Engine
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Foam air filterFoam air filter
Foam air filterFoam air filter
Free water supply connection kitFree water supply connection kit
Axial pump
Pump head material
Aluminium
Max. flow rate per hour
480 L/h
Max. pressure
160 bar
Nominal power (W)
3000 W
Cubic capacity
175 cm³
Nominal power
6 HP
Motor type
4-stroke
Motor brand
Producer-manufactured
Motor Model
EHRV175
Pressure regulator
Yes
Wheeled
Type
Trolley
Detergent tank
Self-priming pump
Weight
29.5 Kg
Product Features
Model:
AR 1425
Wheeled:
Type:
Trolley
Operating mode:
Spark ignition
Operation mode:
Petrol
Detergent delivery:
Low-pressure
Manufacturing country:
China
Motor data
Motor brand:
Rato
Motor Model:
EHRV175
Motor type:
4-stroke
Cubic capacity:
175 cm³
No. of cylinders:
1
Nominal power:
6 HP
Nominal power (W):
3000 W
Motor speed:
3600 RPM
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Pump data
Pump brand:
Annovi & Reverberi
Pump type:
3 axial cylinders
Axial pump:
Self-priming pump:
Pistons material:
Steel
Pump head material:
Aluminium
Aluminium pump head:
Max flow rate per minute:
8 L/min
Max. flow rate per hour:
480 L/h
Operating pressure:
160 bar
Max. pressure:
160 bar
Pressure regulator:
Yes
Pressure regulator:
Safety valve:
Yes
Manufacturing country:
China
Equipment
Integrated detergent tank:
Yes
Detergent tank:
External detergent suction hose:
Yes
Type of attachment:
M22 - Screw
Hose holder:
Yes
Rubber-coated soft grip:
Yes
Tool holder:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Connecting hose kit:
Yes
Maintenance tool kit:
Yes
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Lance with adjustable nozzle:
Yes
Quick-connect nozzle lance:
Yes
Hose length:
8 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
46 x 51 x 93 cm
Net weight:
29.5 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
60 x 52 x 57 cm
Gross weight (packaging included) :
30 Kg
Assembly time:
5 minutes
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 21/10/2024 - 23/10/2024
€ 496,67
VAT Included

You're viewing:
Customers also viewed:
Description

Annovi & Reverberi AR 1425 Petrol Pressure Washer

The Annovi & Reverberi AR 1425 is a semi-professional petrol pressure washer ideal for demanding amateurs who seek a product that combines excellent performance to a competitive price.

These pressure washers are studied to provide the best results in the most extreme and difficult conditions, thanks to the powerful engines and the 100% AR pistons. Perfect when electricity is not available, as the petrol engine ensures continuous operation.

The sturdy metal frame also ensures optimum protection of the mechanical parts at the same time ensuring a perfect balance of the machine as a good absorption of the vibrations.

The alternative displacement pump with three steel pistons, with die-cast aluminium body and aluminium head.

The AR 1425 pressure washer is ideal for cleaning operations in homes and agriculture, it is renowned for its high performance and reduced weight and size. This pressure washer is also suitable for semi-professional use

The RATO EHRV175 engine features one of the best value for money on the market, very powerful thanks to its 6 Hp. Reliable and innovative engine, produced by RATO which is widely present in Italy. RATO engine with horizontal shaft. Ensures performance improvements in power level, fuel consumption, emissions and noise. Low weight.

The AR 1425 is a highly performing and effective pressure washer which provides a maximum flow rate of 8 L per minute and a maximum pressure of 160 bar.

The robust metal trolley with two wheels and a diameter of 28 cmis complete with removable handle and ensures a safe advancement despite the weight of 25.9 Kg.

Performance and convenience in a single pressure washer model.

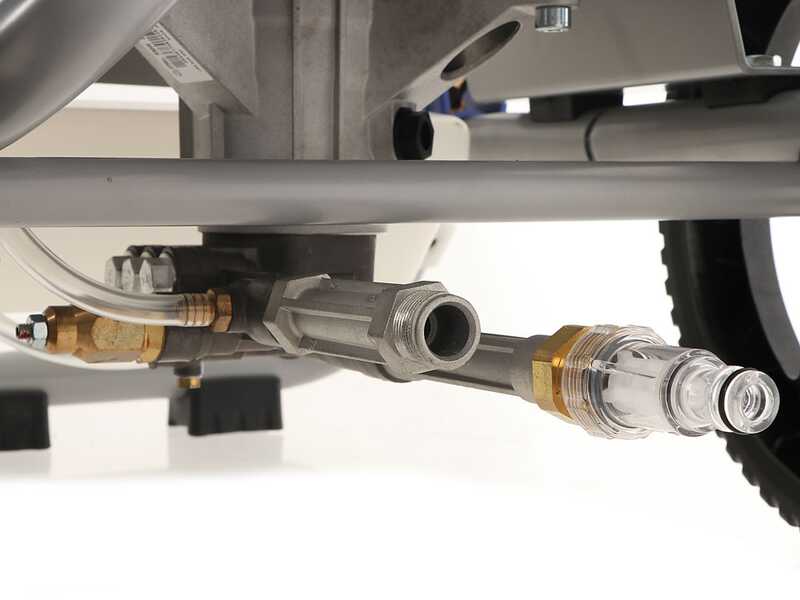

Three-piston pump with aluminium head

Positive displacement pump alternative to three pistons for use of washing groups. Pump body in die-cast aluminium alloy and aluminium head.

Pistons in tempered steel driven by a swash plate system.

Thermal protection of the gaskets.

  • Pump flow rate: 8 L/min max (480 L/h max), the flow rate is the most important technical data of a pressure washer, even more than pressure, as it shows the real power of the machine.
  • Working pressure: 160 bar max.

Integrated detergent suction with internal tank of 2.1 L. Most of the combustion pressure washers is not equipped with this handy built-in reservoir.




The engine is PROVIDED WITHOUT OIL.

The machine is provided with oil.

Read the instruction manual carefully before using the machine.

RATO EHRV175 Petrol Engine

The RATO EHRV175 is
semi - professional, very POWERFUL, latest-generation and with OHV technology.


Main features:

Engine type
4-stroke, single-cylinder - OHV
Cylinder type:
aluminium
Cubic capacity:
175 cm³
Max. rpm
3600

Equipped with a steel protection plate under the engine to protect it from shocks.

Focus on the recoil start system

Focus on the engine filter

Focus on the power button

Power primer




The engine is PROVIDED WITHOUT OIL.

The machine is provided with oil.

Read the instruction manual carefully before using the machine.

Lance and Nozzles Included

The pressure washer features a lance with 4 interchangeable nozzles with quick coupling.

  • Red 0°: to obtain a jet with maximum cleaning power in a small range
  • Yellow 15°: for good cleaning power in a small range
  • White 40°: for good cleaning power in a wide range
  • Black SOAP: to use with the detergent

The professional lance with quick coupling is equipped with extension and safety device.

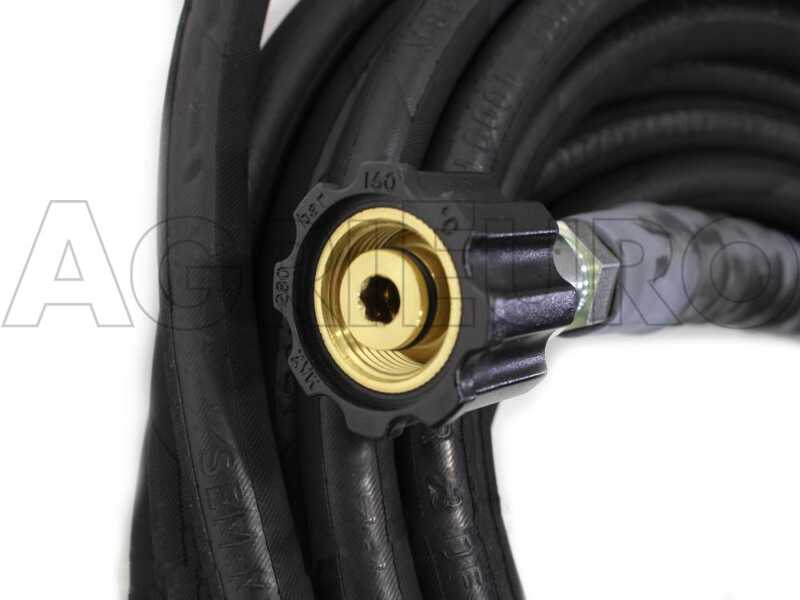

The 8 m high-pressure hose supplied features quick coupling.

Included also the easily accessible water filter equipped with quick coupling.

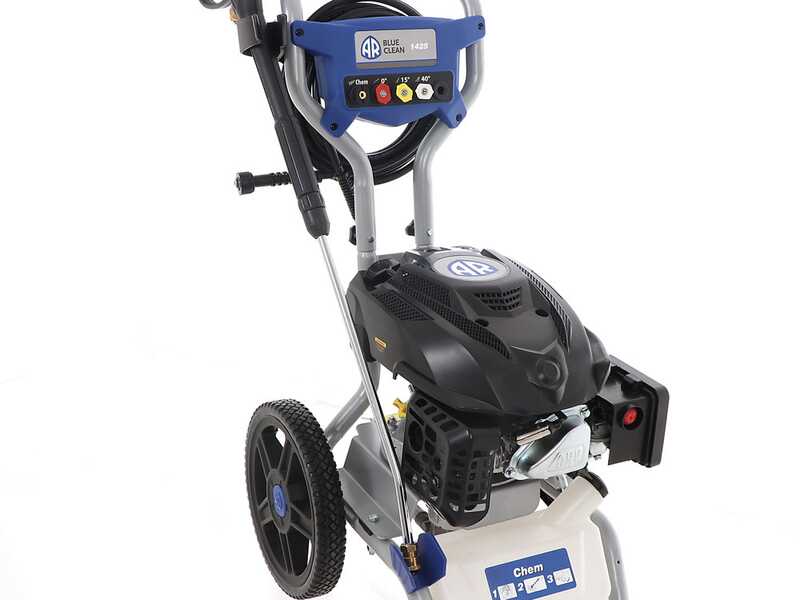

Additional Features

The pressure washer is mounted on a steel trolley with slots for easier maintenance and removable handle.

The machine is equipped with:

  • hose reel and lance holder.
  • nozzle holder
  • large rubber wheels to easily move the pressure washer even on surfaces that are not perfectly even.
  • anti-slip front rubbers

Compact Size

WEIGHT: 25.9 kg

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

Free Items Included

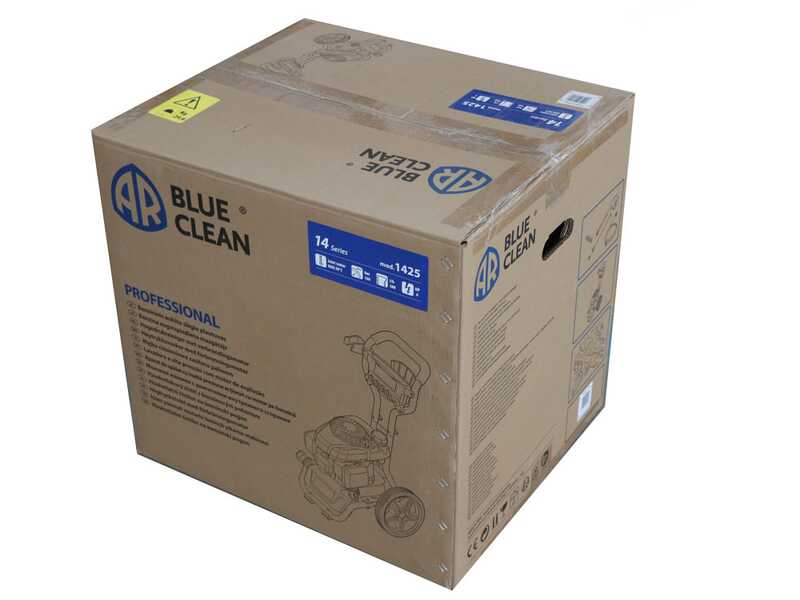

The Annovi & Reverberi petrol pressure washer is shipped in its original packaging on a pallet. You only need to assemble the lance and the wheels.

  • 8 m high-pressure hose
  • Spray gun provided with quick connection system
  • 4 nozzles included
  • Instructions and maintenance manual of the pressure washer
