Annovi & Reverberi 6970 - Hot Water Pressure Washer - 230 Bar - 900 L/h

Add a question
ID: K608560

EAN: 8016287252768

MPN: 25276-V

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi 6970 - Hot Water Pressure Washer - 230 Bar - 900 L/h
FREE
Gral detergent bottleGral detergent bottle
For Free: Oil & Smog Clean detergent bottleFor Free: Oil & Smog Clean detergent bottle
Mold & Moss Clean detergent bottleMold & Moss Clean detergent bottle
Free water supply connection kitFree water supply connection kit
Protection and storage tarp coverProtection and storage tarp cover
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
900 L/h
Max. pressure
230 bar
Engine speed
1450 RPM
Engine
Induction
Delayed Total Stop
Yes
Operating mode
Three-phase 400 V
Thermostat
Yes
Wheeled
Type
Trolley
Detergent tank
Self-priming pump
Weight
115 Kg
Manufacturing country
Italy
Product Features
Model:
6970
Wheeled:
Type:
Trolley
Operating mode:
Three-phase 400 V
Operation mode:
Hot water
Max. outlet temperature:
110 °
Delta T - water temperature change:
60 °
Thermostat:
Yes
Detergent delivery:
Low-pressure
Diesel tank:
14 L
Separated boiler ventilation unit:
Yes
Manufacturing country:
Italy
Motor data
Motor brand:
Annovi & Reverberi
Motor type:
Electric three-phase
Engine:
Induction
Motor speed:
1450 RPM
Max. power absorption:
7.4 Kw
Power supply:
400 V electric
Manufacturing country:
Italy
Pump data
Pump brand:
Annovi & Reverberi
Pump type:
Inline-three cylinders
Heavy-duty linear pump:
Self-priming pump:
Pistons material:
Steel
Pump head material:
Brass
Brass pump head:
Engine speed:
1450 RPM
Flow rate:
15 L/min. (900L/h.)
Max flow rate per minute:
15 L/min
Max. flow rate per hour:
900 L/h
Operating pressure:
150 bar
Max. pressure:
230 bar
Safety valve:
Yes
Manufacturing country:
Italy
Equipment
Integrated detergent tank:
Yes
Detergent tank:
Type of attachment:
M22 - Screw
On wheeled frame (with wheels and handles):
Yes
Delayed Total Stop:
Yes
Burner:
Yes
Tool holder:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Heavy-duty spray gun:
Yes
Heavy-duty lance:
Yes
High-pressure hose for spray gun:
10 mt
Instructions manual:
Yes

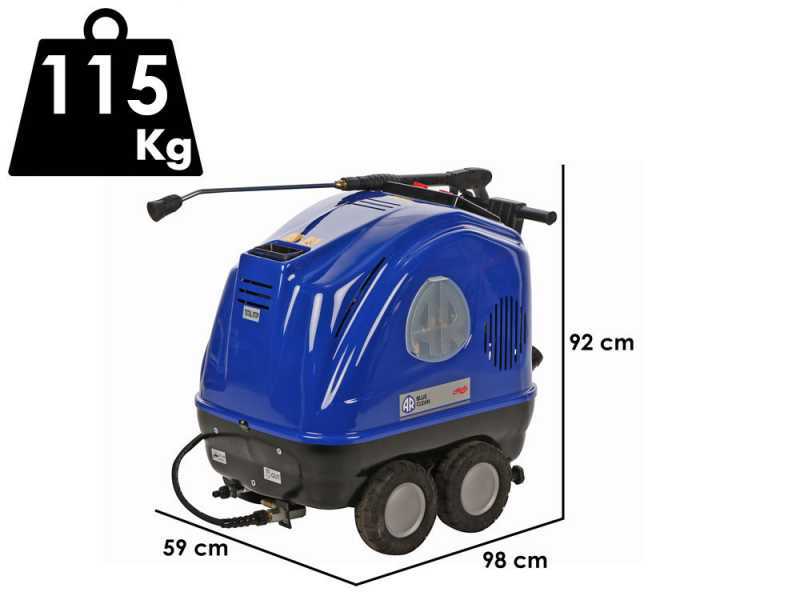

Dimensions and logistics
Product dimensions in cm (L x W x H):
59x98x92 cm
Net weight:
115 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
74x114x110 cm
Gross weight (packaging included) :
120 Kg
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 27/02/2025 - 03/03/2025
€ 2.271,20
Vat included

You're viewing:
Customers also viewed:
Description

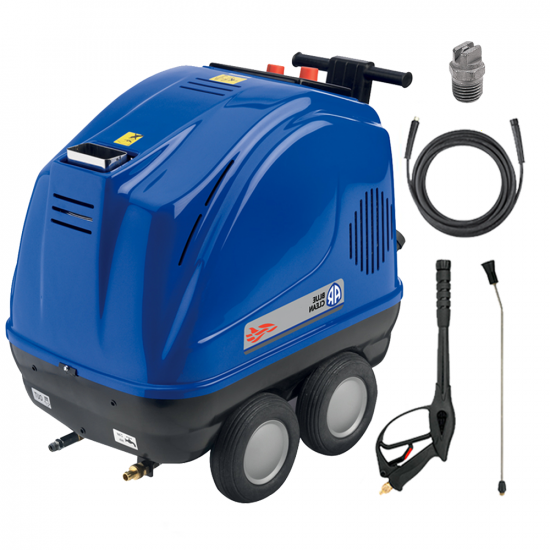

Annovi & Reverberi 6970 Hot Water Pressure Washer

The 6970 professional hot water pressure washer is designed for high performance. Equipped with a wide range of professional accessories, it guarantees versatility and efficiency, making it ideal for multiple applications.

Thanks to its ability to generate hot water, the 6970 pressure washer is extremely effective in removing stubborn dirt, such as oil and grease, that often stands up to traditional cleaning methods. The internal pump features a brass head and 3 ceramic pistons with a connecting rod-crank system.

An automatic by-pass valve allows the pressure in the pump head to be zeroed, while the three-phase induction electric motor is thermally protected.

Equipped with removable transparent inspection window to see the pump.

Water intake from tank with self-priming function.

The vertical stainless steel boiler, with spiral burner cooling and driven by an independent electric motor, has a double coil and a refractory cement bottom.

Fed by a 14-litre diesel tank, it can reach an output water temperature of up to 110°C if all requirements are met.

A safety pressure switch automatically switches off the boiler in case of water shortage. On the control panel, several lights indicate the voltage, diesel level, flame and the thermostat for water temperature regulation.

The TST system – Total Stop System Timed allows the machine to activate in by-pass mode for a 20-second window when the gun lever is released, ensuring a timely restart within that period. This reduces wear on the pump-motor unit and limits energy consumption. After 20 seconds, the machine goes into Total Stop mode, ideal for situations with frequent interruptions and restarts.

Why choose a hot water pressure washer? It is mostly required the use of a hot water pressure washer whenever there is the necessity to remove oily or particularly stubborn dirt in the shortest time. The hot water washing performing levels turn out to be considerably higher than the ones reached by cold water (up to 50% higher in some cases), because the heat favours the dirt dissolution. Thus, the heat on a surface results in a quick-drying. Using a hot-water high-pressure cleaner therefore involves less washing time (for the same amount of dirt), better breakdown of non-water-soluble dirt, less drying time and less detergent; in short, lower fixed cleaning costs.

Main Features

Vertical boiler with high-efficiency stainless steel double coil.

Auxiliary motor for boiler unit ventilation.

Removable inspection window.

Large boiler outlet.

Thermal boiler protection.

Simple pump design, very few moving parts.

Total Stop device that allows the machine to be activated or stopped completely by operating the gun lever.

Professional spray gun.

Safety valve

MOTOR: three-phase electric (400 V).

- Built-in diesel tank (14 L)

FLOW RATE:

  • Max. flow rate: 900 L/h (15 L/min) The flow rate is the most important technical data of a pressure washer, because it indicates, even more than the pressure, the real power of the machine.

OPERATING PRESSURE:

  • Max. 230 bar

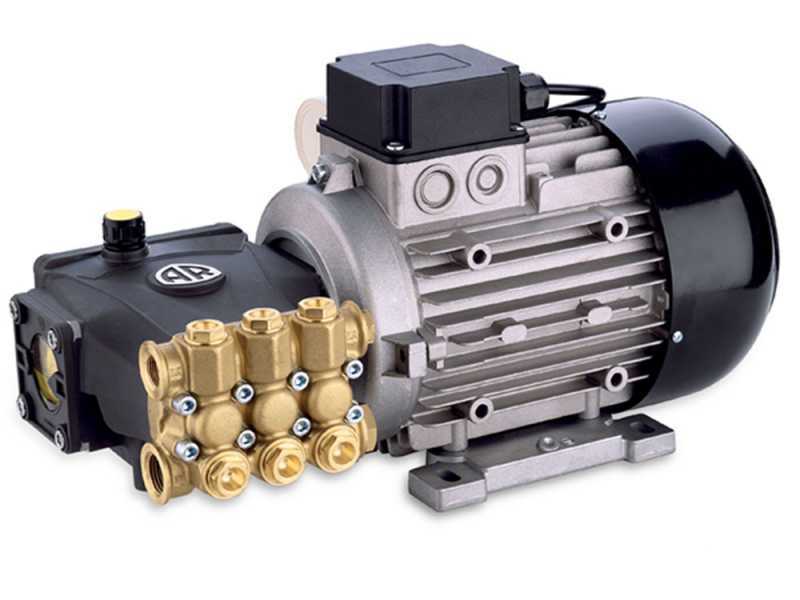

The Pump

Linear pump, brass head with three high-strength steel pistons.

FLOW RATE:

  • Max. flow rate: 900 L/h (15 L/min) The flow rate is the most important technical data of a pressure washer, because it identifies, more than the pressure, the real power of the machine

OPERATING PRESSURE:

  • Max 230 bar, among the highest levels of its category.

Specifications:

  • Auxiliary motor for boiler ventilation.
  • Vertical boiler with steel high-thermal efficiency coil.

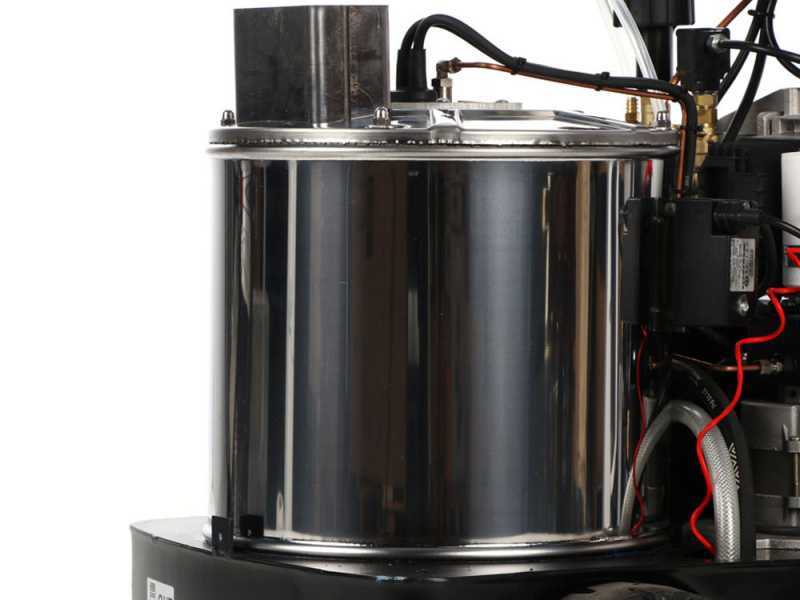

The Boiler

To increase the water temperature to a maximum of 110°C, the pressure washer in question employs a vertical boiler equipped with a spiral burner cooling system driven by an independent electric motor with a double coil and refractory material bottom.

This boiler is fed straight from the 14-litre diesel tank, which ensures efficient combustion for water heating.

A key safety element is the safety pressure switch, designed to automatically switch the boiler off in case of water shortage, thus preventing overheating.

The pressure washer is also equipped with an inspectable water inlet filter and a diesel intake filter, both of which are crucial to maintain optimum performance over time by reducing wear and tear on internal components.

On the side of the pressure washer is a rotary switch that allows the user to choose between hot or cold operation.

It is important to point out that there is no water temperature control once the desired option has been selected; this feature makes the pressure washer particularly suitable for applications where specific water temperature is not adjustable but needs to be constant, as in many industrial and professional applications.

Other Features

Simple and immediate controls for a rapid use of the unit.

Professional spray gun

Detail of the wheels which allow easy and convenient handling of the pressure washer.

Easy connection system of your home mains.

Detergent tank access.

Details of the handle.

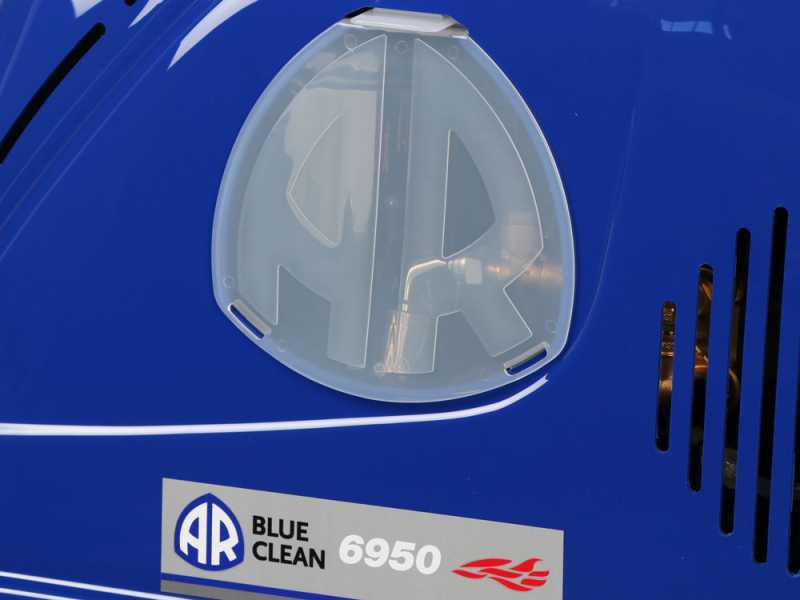

Removable transparent inspection window.

Mechanism for locking the wheels.

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

COMPLIMENTARY: large protection and storage cover

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

It is easy to fold and store in its box without taking up space!

(The pictures are for illustrative purposes only)

FOR FREE: AgriEuro Detergents Kit for Outdoor Cleaning - 3 Bottles 1 L

This AgriEuro Outdoor Detergents set includes three different 1 L bottles with different features that are essential for the cleaning of outdoor areas.

The set includes:

  • Gral: Gentle, highly effective antistatic cleaner for removing streaks and greasy dirt deposits from various types of surfaces: glass, ceramics, metal, lacquered wood, leather, plastic, etc.
  • Oil & Smog Clean: This alkaline detergent was designed for degreasing equipment, machinery, concrete and tiles effectively.
  • Recommended for removing smog from the front of houses, outdoor staircases and sidewalks.
  • Mold & Moss Clean: This chlorine acid detergent was designed to clean and sanitise at the same time. This product is essential when it comes to removing mold and moss from dark areas and environments where humidity is high. Particularly suitable for removing bad odours. Its high sanitising efficiency eliminates bacteria which cause unpleasant odour through fermentation.

Standard Equipment

The Annovi hot water pressure washer is shipped in its original packaging.

The packaging includes:

    • GH 251 gun with guard,
    • Angled lance with guard,
    • Outlet rubber hose kit,
    • Instructions manual.
    • 1/4 MEG nozzle,
