Description

Annovi & Reverberi 6670 hot water pressure washer

The 6670 professional hot water pressure washer is an excellent model from the AR Blue Clean line, designed to offer high-level performance. This device includes a series of professional accessories that increase its versatility and efficiency, making it suitable for a wide range of applications.

Thanks to its ability to generate hot water, this pressure washer is particularly effective at removing stubborn dirt, such as oil and grease, which often resist traditional cleaning methods.

The pump with a brass head and 3 ceramic pistons with a connecting rod-crank system is a key component. Other features include:

Automatic bypass valve with pressure reset in the pump head.
Three-phase induction electric motor with thermal protection.

The vertical stainless steel boiler with double coil and refractory bottom, fed directly from the 22-litre diesel tank, allows the outlet water temperature to reach up to 110°C. A safety pressure switch automatically shuts down the boiler in the event of water failure, while the thermostat on the machine body allows the outlet water temperature to be selected. Other boiler specifications include:

Powered by a 22-litre diesel tank.
Integrated safety pressure switch.
Thermostat for selecting the water temperature.

Equipped with the TST (Total Stop System Timed) system, this machine activates in bypass mode for a period of 20 seconds when the gun lever is released, ensuring a prompt restart within that period. After 20 seconds, the machine switches to Total Stop. The features of the TST system include:

Activation in bypass mode for 20 seconds.
Reduced wear on the pump-motor unit.
Limited energy consumption.

The ergonomic handle and pivoting front wheel allow for easy movement on different types of terrain.

Why use a hot water pressure washer? A hot water pressure washer is necessary when you need to break down oily or particularly stubborn dirt in the shortest possible time. Hot water is significantly more effective than cold water (up to 50% more effective on certain types of residue), as heat helps to dissolve dirt and also facilitates rapid drying. Using a hot water pressure washer therefore means: shorter washing time (for the same amount of dirt), better breakdown of non-water-soluble dirt, shorter drying time and less detergent; in short, lower fixed cleaning costs.

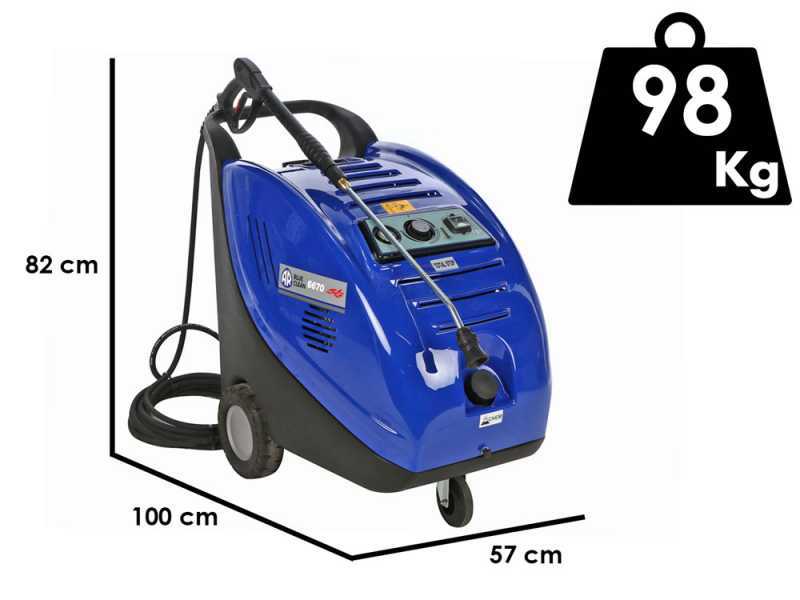

Annovi & Reverberi 6670 - Hot water pressure washer - 190 bar - 780 L/h

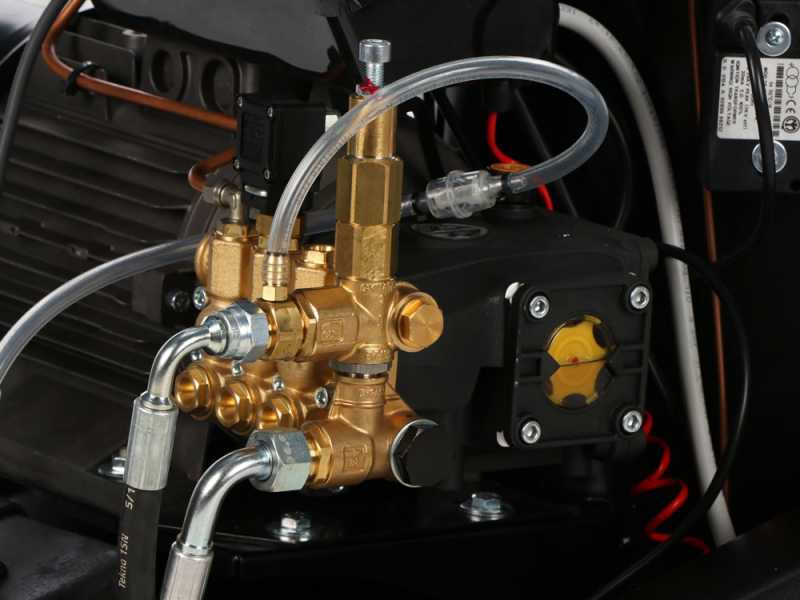

Main Features

Vertical boiler with high-performance double stainless steel coil.

Auxiliary motor for boiler unit ventilation.

Large boiler drain.

Thermal protection for the boiler.

Linear pump with simple construction, there are few moving parts.

TotalStop device that allows the machine to be activated or stopped completely by operating the gun lever.

Professional gun.

Safety valve.

MOTOR: three-phase electric (400 V).

- Integrated diesel tank (22 l).

FLOW RATE:

Max flow rate: 780 L/h (13 L/min). The flow rate is the most important data for a pressure washer, because it identifies the real power of the machine, even more so than the pressure.

OPERATING PRESSURE:

190 bar max.

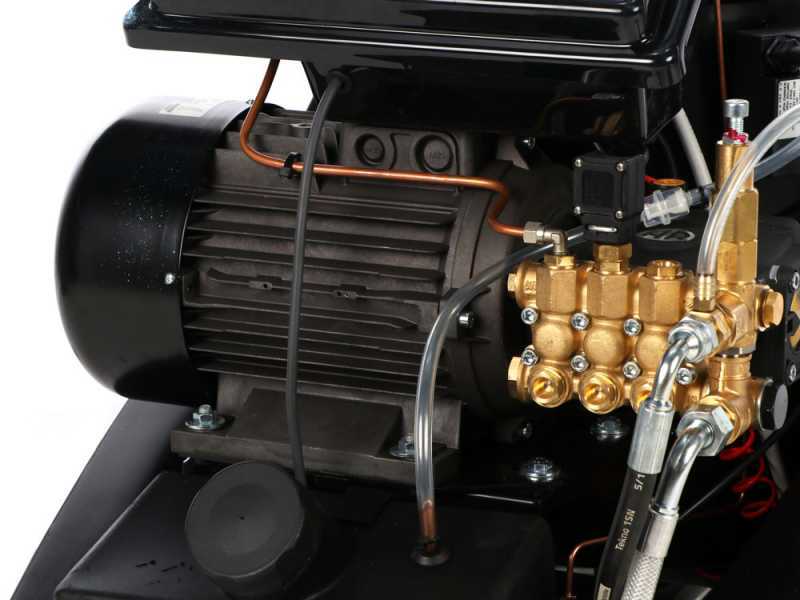

The Pump

Axial pump, brass head with three-piston high-strength steel.

FLOW RATE:

Max flow rate: 780 L/h (13 L/min). (The minimum inlet flow rate must be at least 13 L/min)

OPERATING PRESSURE:

190 bar max, among the highest in its category.

Details:

Auxiliary motor for boiler ventilation.
Vertical boiler with high-efficiency steel coil.

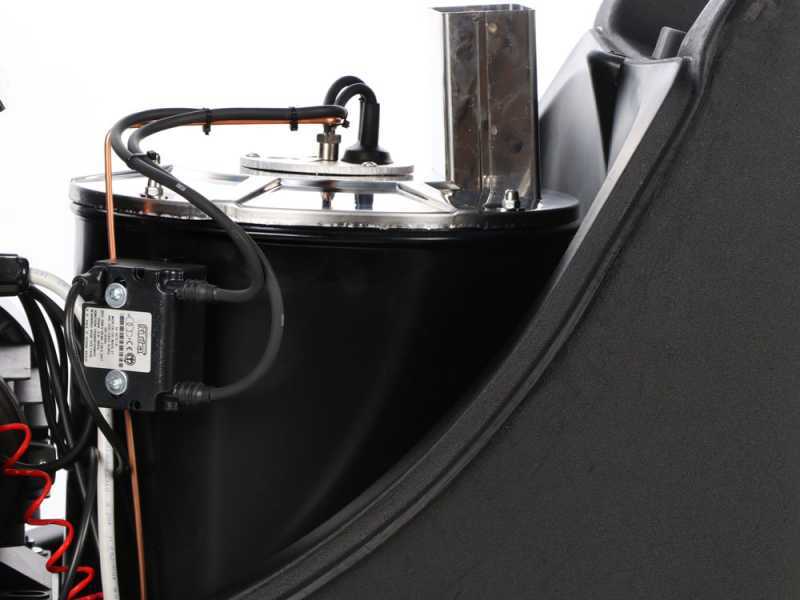

The Boiler

To increase the water temperature to a maximum of 110°C, this pressure washer uses a vertical boiler with double coil and a refractory bottom.

This boiler is fed directly from the 22-litre diesel tank, which ensures efficient combustion for water heating.

A key safety feature is the safety pressure switch, designed to automatically shut down the boiler in the event of a lack of water, thus preventing overheating.

The pressure washer is also equipped with an inspectable water inlet filter and a diesel suction filter, both crucial for maintaining optimal performance over time by reducing wear on internal components.

On the side of the pressure washer, there is a rotary selector switch that allows you to choose between hot or cold operation.

It is important to note that the water temperature cannot be adjusted once the desired option has been selected; this feature makes the pressure washer particularly suitable for uses where the specific water temperature is not variable but needs to be constant, as in many industrial and professional applications.

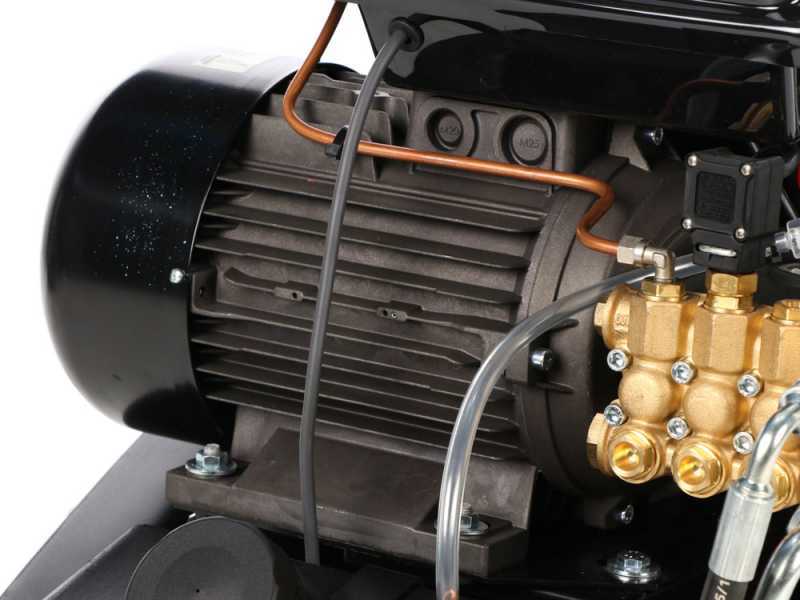

Other Features

The controls are simple and intuitive, allowing for quick use of the machine.

Professional gun.

Detail of the pivoting wheel that allows for convenient and easy movement of the pressure washer.

Easy connection system to the water supply.

Access to the detergent tank.

Detail of the handle.

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

Ø 15 mm yellow hose, 15 m long
Male quick connector for tap connection (size of the standard thread: 3/4“)
Standard female quick connector (to insert the hose into the male quick connector for tap connection)
Female quick connector with ACQUASTOP (to be applied to the end of the irrigation pipe). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.
Adjustable plastic lance with male quick connector.

It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

COMPLIMENTARY: large protection and storage cover

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

It is easy to fold and store in its box without taking up space!

(The pictures are for illustrative purposes only)

FOR FREE: AgriEuro Detergents Kit for Outdoor Cleaning - 3 Bottles 1 L

This AgriEuro Outdoor Detergents set includes three different 1 L bottles with different features that are essential for the cleaning of outdoor areas.

The set includes:

Gral: Gentle, highly effective antistatic cleaner for removing streaks and greasy dirt deposits from various types of surfaces: glass, ceramics, metal, lacquered wood, leather, plastic, etc.

Oil & Smog Clean: This alkaline detergent was designed for degreasing equipment, machinery, concrete and tiles effectively.

Mold & Moss Clean: This chlorine acid detergent was designed to clean and sanitise at the same time. This product is essential when it comes to removing mold and moss from dark areas and environments where humidity is high. Particularly suitable for removing bad odours. Its high sanitising efficiency eliminates bacteria which cause unpleasant odour through fermentation.
