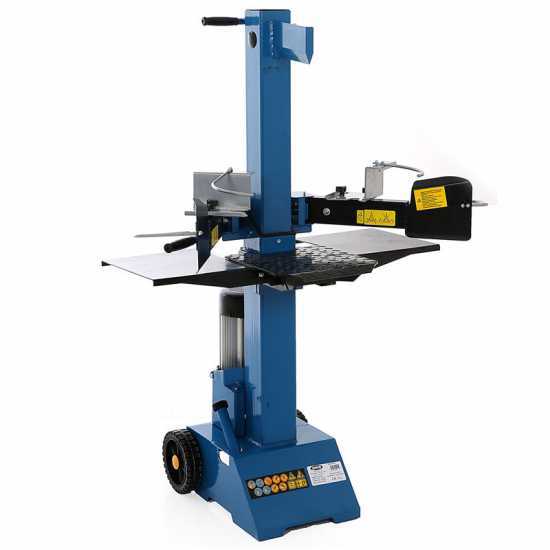

AMA RHINO Electric Vertical Log Splitter with 3000W Single-phase Motor - 8 Tons

Questions & Answers (10)
ID: 103523

EAN: 9999237541381

MPN: 92302

7,3/10
After-sales assistance & Spare parts
AMA RHINO Electric Vertical Log Splitter with 3000W Single-phase Motor - 8 Tons
+400 sold
Max. trunk diameter
30 cm
Piston stroke
50 cm
Operating mode
Single-phase 230 V
Nominal power
4 HP
Engine
Induction
Nominal power (W)
3000 W
Nominal splitting force
8 t
Product Features
Model:
RHINO
Type:
Vertical
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
8 t
Piston stroke:
50 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
55 cm
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
4 HP
Nominal power (W):
3000 W
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Manufacturing country:
China
Cutting data
Max. trunk length:
55 cm
Max. trunk diameter:
30 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
No
Retaining side arms:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Stump Support Shelf:
Yes
Tractor three-point hitch:
No
Replaceable wedge guides:
No
Cartridge oil filter :
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
20 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
84x91,5x149,5 cm
Net weight:
110 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
56x40x115 cm
Gross weight (packaging included) :
117 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
51 items in stock
Free Shipping
Estimated delivery: 24/07/2024 - 26/07/2024
€ 799,74
VAT Included
You're viewing:
Customers also viewed:
Description

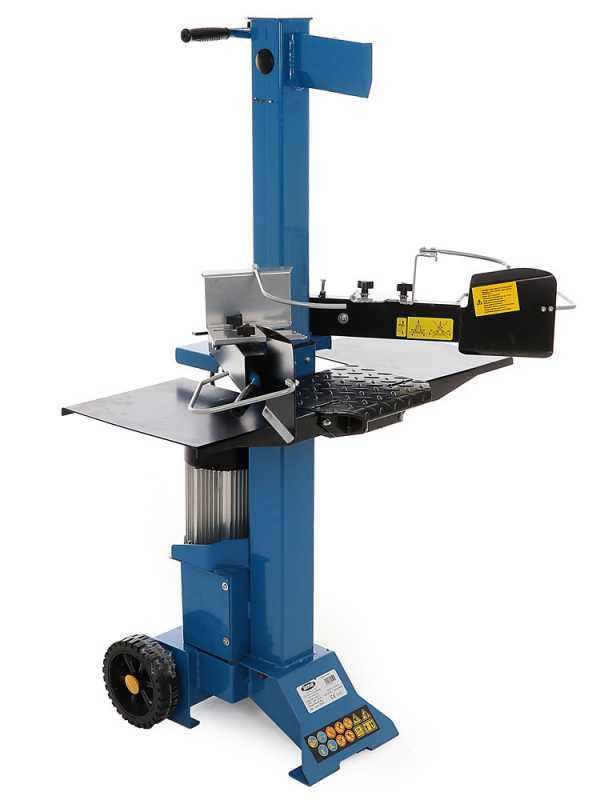

AMA RHINO 8 tons log splitter

AMA log splitters are reliable, heavy-duty and safe machines.

The AMA RHINO 8T log splitter meets the needs of a wide range of users, thanks to its high build quality complying to the most restrictive European safety standards. This machine is one of the most convenient and high performing log splitter on the market. It is equipped with wheels and a sturdy and safe handle for transport, essential and very important features for all private users.

With its 8 tons splitting force, this machine allows you to split logs efficiently, effortlessly and safely.

This log splitter is powered by a powerful 4 Hp (3000 Kw) electric motor

Splitting force: 8 tons

Log diameter: from 8 to 30 cm

Logs height: from 10 to 55 cm

Forward stroke: 3.6 cm/sec

Return stroke: 16.5 cm/sec

Overall dimensions: 84 x 91.5 x 149.5 cm

Weight: 109.9 kg

Highly convenient and efficient machine that combines ease of use and high performance.


WARNING:

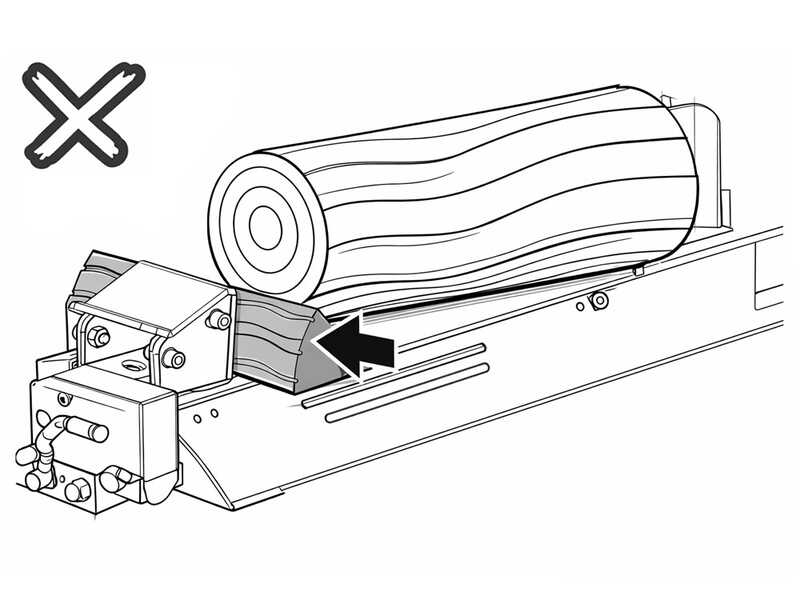

The log splitters included in this category are not suitable for processing wood with particularly twisted fibres such as poplar or pine, large-diameter logs and wood types with frequent knots in the wood. In this case it is advisable to use heavy-duty models intended for a professional use. Furthermore, the logs should only be split once dried, not green; when the wood is green, it has less tendency to split and open and is therefore less suitable to be split with the log splitter. Once dried, however, it can be split and becomes ready for use in fireplaces, stoves, ovens, etc.

Electric motor

4 Hp (3000W) electric motor that ensures a 8 tons splitting force.

The oil tank is placed at the base of the machine frame. Focus on the oil tank cap that must be unscrewed to ensure that air escapes from the system during use.

Oil tank capacity: 4 L.

On/Off switches

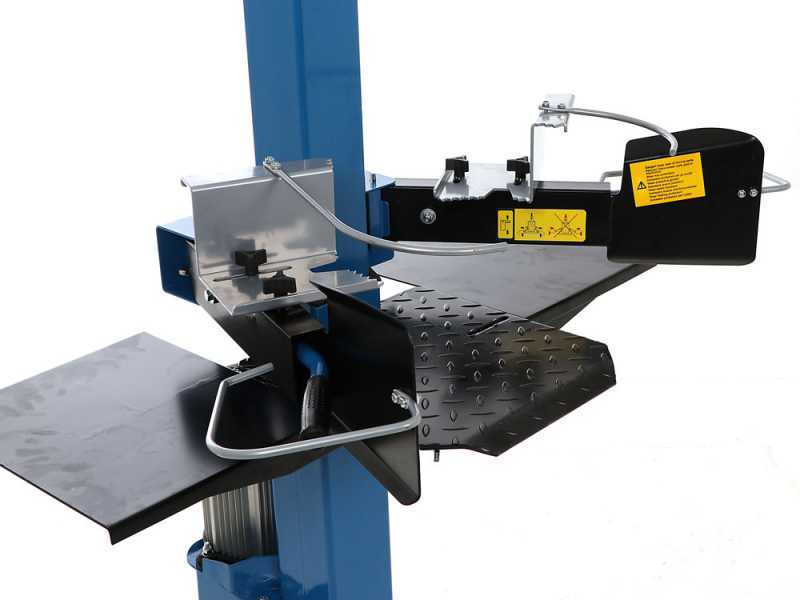

Distinctive features

Oil tank mounted on frame base of the log splitter.

CE-compliant On/Off switch.

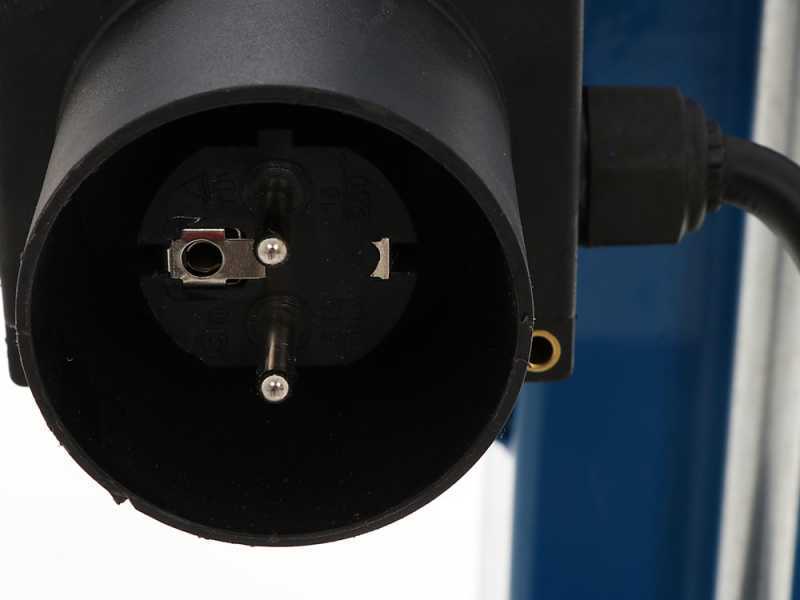

Schuko plug in the plug housing.

Focus on the operating handles with proper hand guards in compliance with the CE standards.

Log side support integrated in the handle arms and laterally adjustable by means of the adjustment knob.

Focus on the wedge and rear handle for tilting and transporting the log splitter, thanks to the lower wheels

Focus on the wheels mounted at the base of the log splitter.

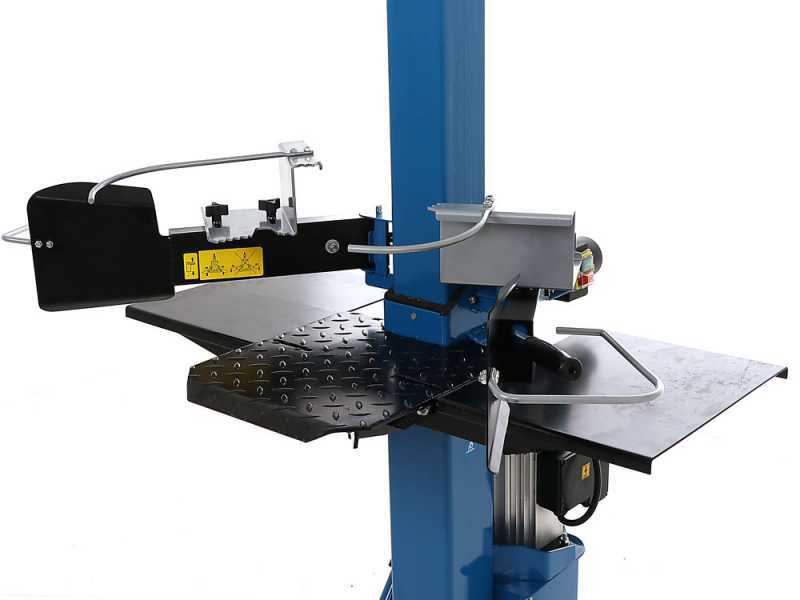

Other features

Focus on the cutting plate

Focus on the operating levers

Levers operating device

Wedge end-of-stroke millimetric adjustment by means adjusting rod thought the rear iron rod (it can be reduced when splitting shorter trunks, further reducing working time)

Focus on the support base.

Holes for entering the hooks for lifting or moving the machine.

Free items & Standard equipment

Standard equipment

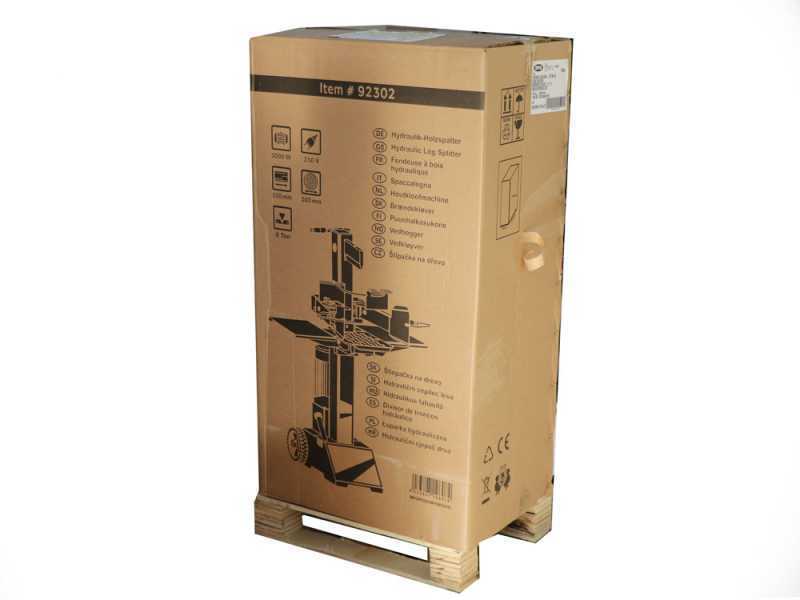

The log splitter is shipped in its original packaging on pallet.

Instructions manual included in the package.
