Description

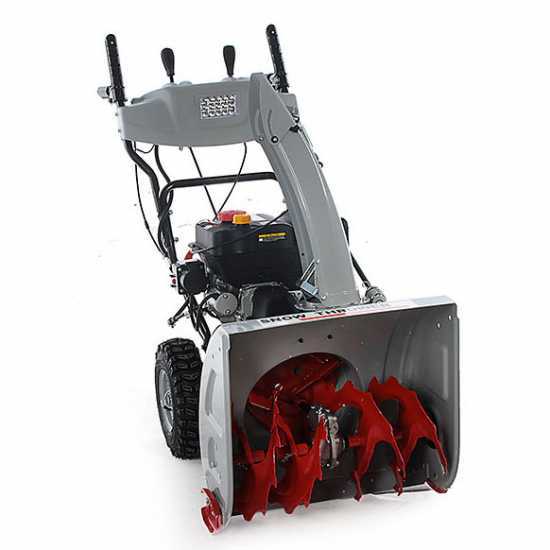

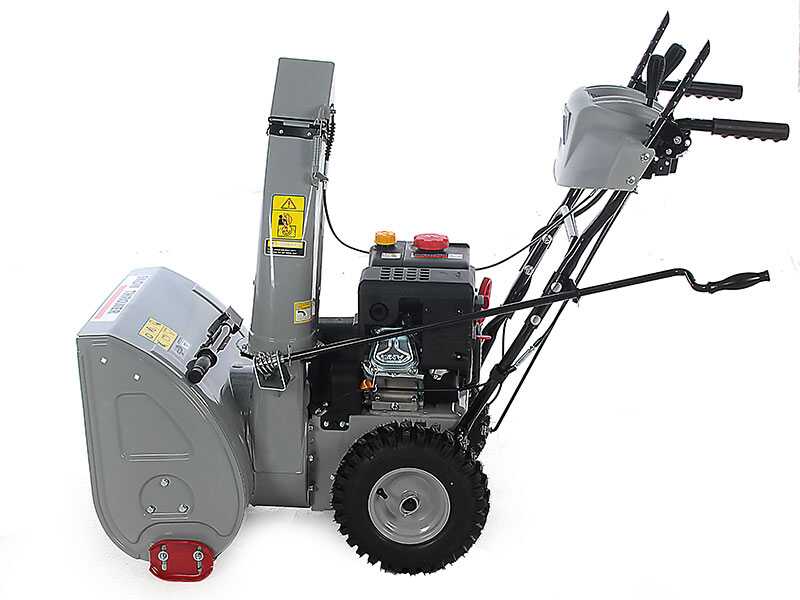

NPS 756 Ama snow blower

The Ama NPS 756 snow blower is designed to work in the most severe weather conditions.

It is suitable for intense working sessions on medium and small-sized areas where the grip on the terrain is fundamental for a good result.

The engine has been especially designed to be mounted on snow blowers for demanding tasks in extreme weather conditions (for example with very low temperatures). The electric start eases the ignition of the snow blower.

Tractor wheels enable an excellent grip and traction ability on the ground.

Transmission is based on large wheels and enables simple movements with 6 forward and 2 reverse speeds. Moreover, snow chains can be fitted on wheels if necessary to move on frozen areas.

Ama NPS 756 - Petrol Snowplough - Loncin G210

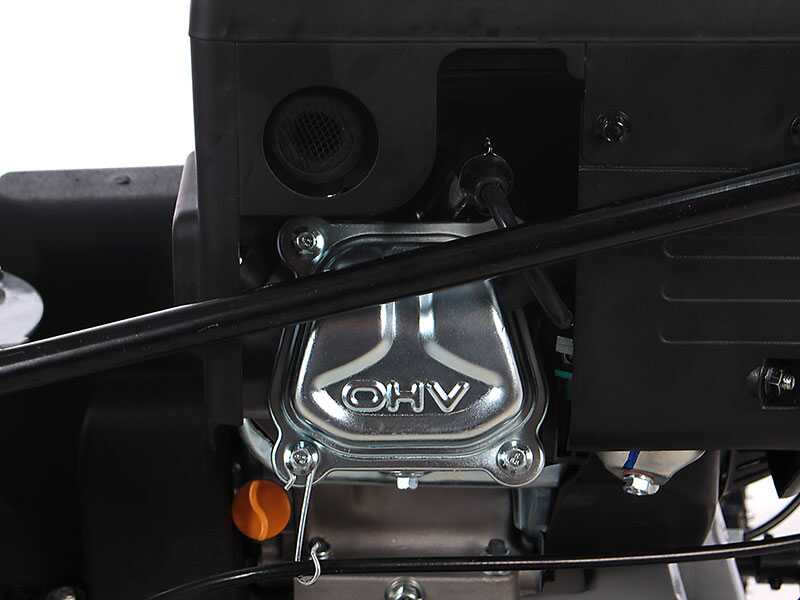

Loncin 212 cc OHV 7 HP engine

Engine type: Single-cylinder 4-stroke, OHV

Cylinder type: Aluminum

Displacement: 212 cm³

Power source: Petrol

Rated output: 7 HP

Starting system: Manual-electric

With heavy-duty OHV and metal tank.

Air is regulated by means of specific lever. (necessary for the ignition)

Electric start: connect to an electric socket and start the engine by pressing a botton. No need of batteries since they would empty continuously due to the cold temperature. Winterized engines like this one aren't provided with air filter as, working in environments with low temperatures and snow, this last can create humidity that could freeze damaging the air filter and causing problems to the machine.

Also during ignition, the use of the primer pump (red pump) could be necessary. Just push it maximum twice before starting.

Vent screw for a correct stowing during summer, large starting handle, automatic internal decompressor that guarantees very easy and smooth startings without recoils.

ATTENTION!

Motor NOT PROVIDED WITH OIL.
Read the instructions manual carefully before using.

Auger housing: 56 cm

Auger screw housing width of 56 cm and height of 55 cm.

The professional auger unit provided has an advanced and toothed steel auger unit. This structure is best suited to churn up even the thickest snow.

The shear bolts protect the auger gearbox.

Therefore, they react to stones or other obstacles by automatically unhooked from the gearbox.

The machine is provided with a two-stage system

The snow is fed into the housing by the ribbon auger and is then discharged away through the discharge chute by a high-speed fan impeller.

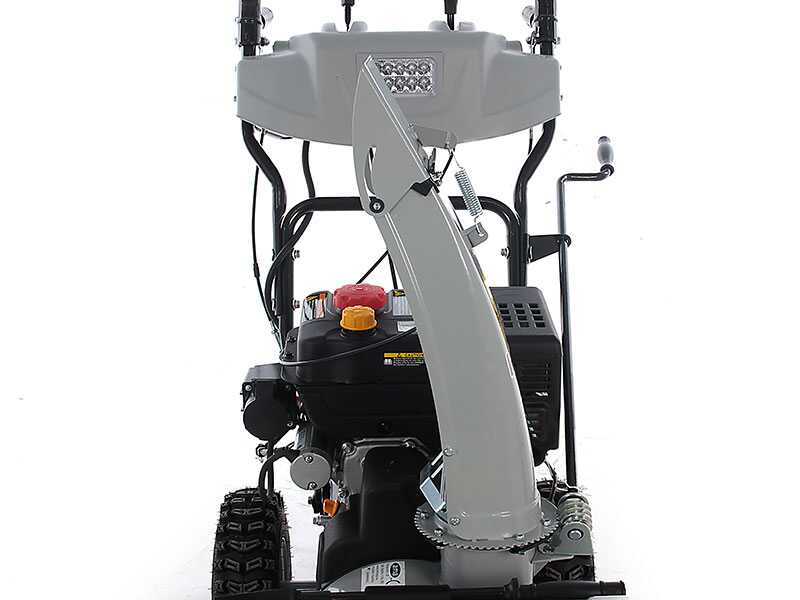

Adjustable discharge chute

The discharge chute is adjustable by means of a spiral connected to a lever located next to the main controls. Just turn the lever to rotate the chute towards the desired position.

Left-oriented discharge chute

Right-oriented discharge chute

Deflector located completely at the top for the maximum expulsion distance

The discharge chute is equipped with safety grid.

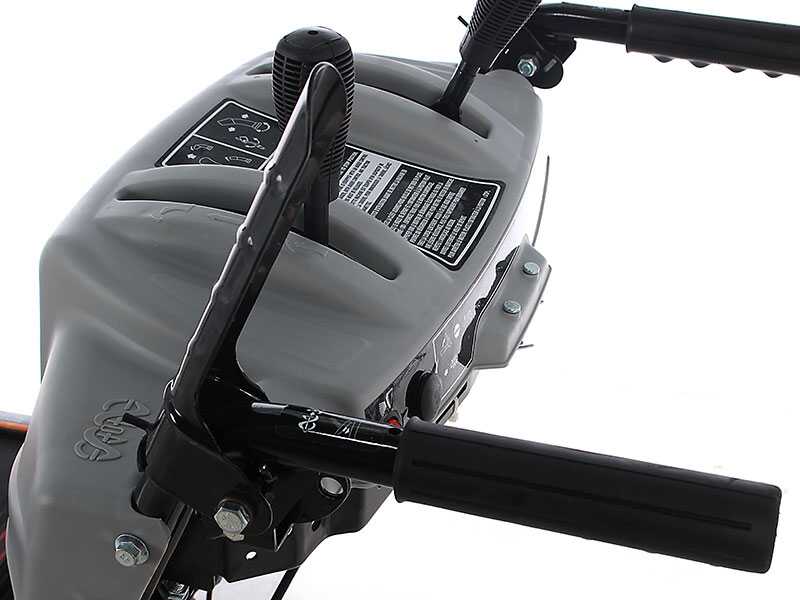

Controls

Panel is well-provided and easy to use. It includes the main functions of the machine.

Right gear shift lever:
6 forward speed
2 reverse speed

Left lever: adjusts the height of the chute.

Upper lever on the right side: it stops the forward and the reverse movement of the machine, independently from the selected speed. For safety reasons, the machine will stop automatically releasing the lever.

Upper lever on the left side: it controls the auger screw and the impeller fan (it controls both simultaneously).

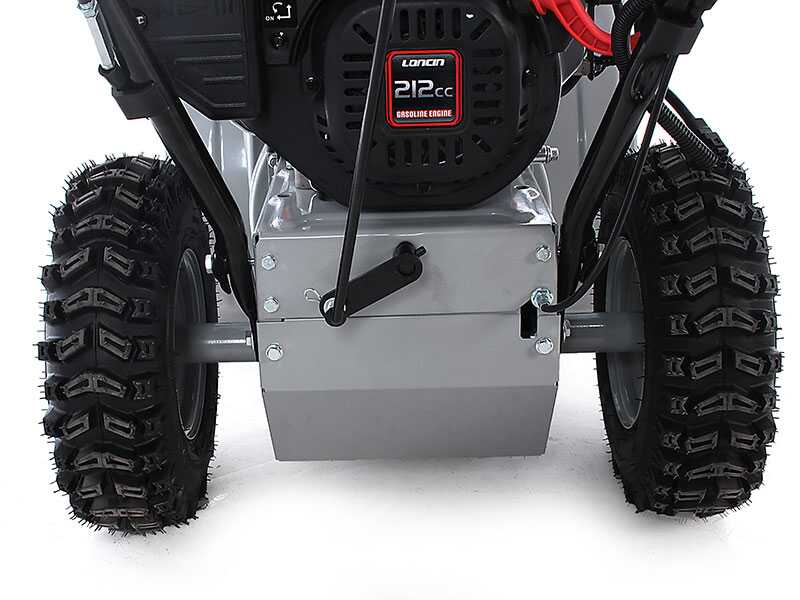

General features

Clean-out tool. If the discharge chute is clogged, use the clean-out tool.

Tractor wheels that enable an excellent grip by using the full power of the engine. Measurements: 33 CM / 13"

The handlebars are foldable so as to take up little space during stowing.

2 bottles of 600 ml oil each as free items. Excellent performances with a very good quality-price ratio.

Starter: manual and electric
Speed: 6 forward speed, 2 reverse speed
Working size: 56 cm width, 55 cm height
Discharge chute rotation: 180°
Weight: 130 kg

Pre-assembled machine in a shock-resistant packaging.
