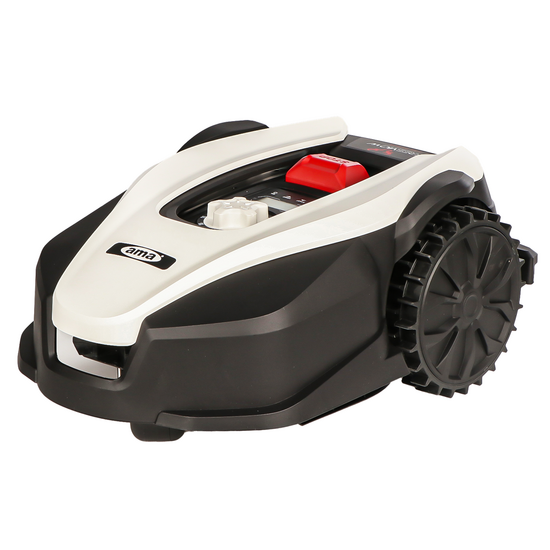

AMA FREEMOW RBA901 - Robot Lawn Mower

The AMA FREEMOW RBA901 robot lawn mower is designed to offer a highly efficient and customised lawn-mowing experience for areas up to 900 square metres, which can be divided into up to 4 zones.

This model is equipped with a 3-blade floating cutting deck that ensures bidirectional rotation, thus prolonging blade life and optimising the cutting process, with a width of 20 cm.

Safety is a priority, with an instant blade stop system in case of need.

Main features:

• Adjustable Cutting Height: The machine allows the cutting height to be adjusted between 20 and 60 mm, thus adapting to different lawn requirements.
• Brushless Digital Motors: Both the drive and blade motors are digital and brushless, offering greater efficiency and less maintenance.
• Smart Navigation: Thanks to the SMART navigation system, the robot can handle narrow passages and passageways, increasing the cutting output by up to 30% without unnecessary pressure on edges or trampling the lawn unnecessarily.

Advanced Features

• Cutting Modes: The robot has both automatic and programmed cutting modes, with the possibility of smart self-programming.
• Automatic Recharging: When the battery runs out, the robot automatically returns to the charging base and resumes work once charged.
• Connectivity: Equipped with Wi-Fi, Bluetooth and a dedicated App available for both Apple and Android, it allows complete control and management of the device.

Technical Specifications

• Battery: State-of-the-art 20V/5Ah lithium battery, allowing long work sessions with short charging times thanks to the rapid charger
• Noise level: The noise level is low at 62 dB(A), making it very quiet.
• Maximum Slope: It can work on slopes of up to 35%.
• Weather Resistance: Designed to withstand different weather conditions, it can also work in the rain (the function can be deactivated).

Safety and Maintenance

• Anti-theft: Equipped with an anti-theft PIN system to prevent unauthorised use.
• Rain Sensor: An adjustable sensor detects rain and returns the robot to its base, resuming work when the lawn has dried. This function can be disabled if necessary.
• LED: It provides clear and immediate information on the status and settings of the robot.
• Software Updates: The robot can be automatically updated via USB or App, always guaranteeing the best performance.

Design and Mobility

• Four-Wheel System: Equipped with two self-cleaning rear drive wheels and two pivoting front wheels for improved manoeuvrability.
• Weight and Dimensions: Designed to be compact and lightweight, it facilitates transportation and installation.

With all these advanced features, the AMA FREEMOW RBA901 robot lawn mower is an excellent choice for anyone looking for a reliable and highly efficient device for maintaining their lawn.

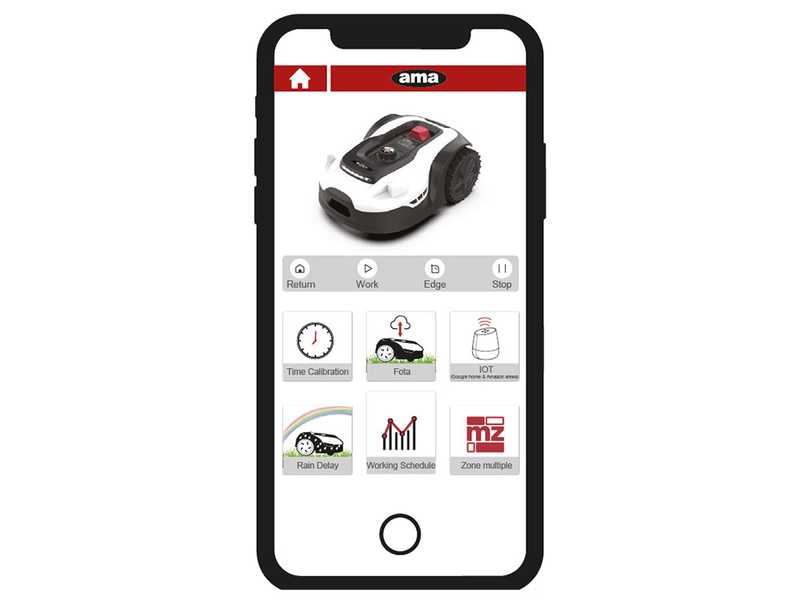

At hand. Created for a fast and easy use, it is possible to manage and switch all the machine settings. All the menu settings with the touch of a button.

All the machine settings are verifiable through the APP.

With a single account, you can manage more than one robot. Thanks to the APP you can rapidly check the robot status, you can decide to start or stop it remotely.

The weekly working schedule can be set automatically by the machine or, in case of specific needs, the user can decide days, hours and also when to do the edge cutting. Through a useful calendar, you can check the robot activities day by day. Furthermore, is it possible to share the machine management with other family members but also technical assistance, facilitating the service, which can be done also remotely.

An APP to check every setting, useful, functional and easy to use.

Menu:

In the main screen, you can start and stop the robot, check the charge status, the rain sensor data, the LAN or Bluetooth connection status and the daily working schedule.

Working record and Daily log:

In the working record you can explore the calendar, see the machine operations day by day and check whether there have been problems and what kind.
Should a more detailed analysis be necessary, it is possible to download logs with the working record. Logs are very comprehensive and provide a precise detail of every movement made by the machine.
To download the logs, simply switch on the device with a USB stick inserted.

Double schedule*:

In this screen we can set the week schedule, its working hours, day by day. It is possible to set up to two work breaks for all models except the RBA500, which has only one.
From this screen, by selecting the day of the week, it is possible to choose when and how often to cut the edge.

APP share:

You can open this page by swiping the machine icon on the right. Here, you can share the robot with other people without providing email and password.
If you share the machine, a QR code will be released and this can be acquired by another user (ex. the reseller for remote assistance).

*Available on L SERIES models.

As soon as the product is delivered, you can start it autonomously: even the less expert user, who has never had experience with a cutting device, will be immediately able to start the AMA Robot lawn mower according to the instructions detailed described in the instructions manual.

AMA RBA901 can be easily installed with very few simple steps:

1. Assemble and tighten the charging station;
2. Fix the perimeter wire with the proper fixing pegs around the working area;
3. Set the robot using the app or display.

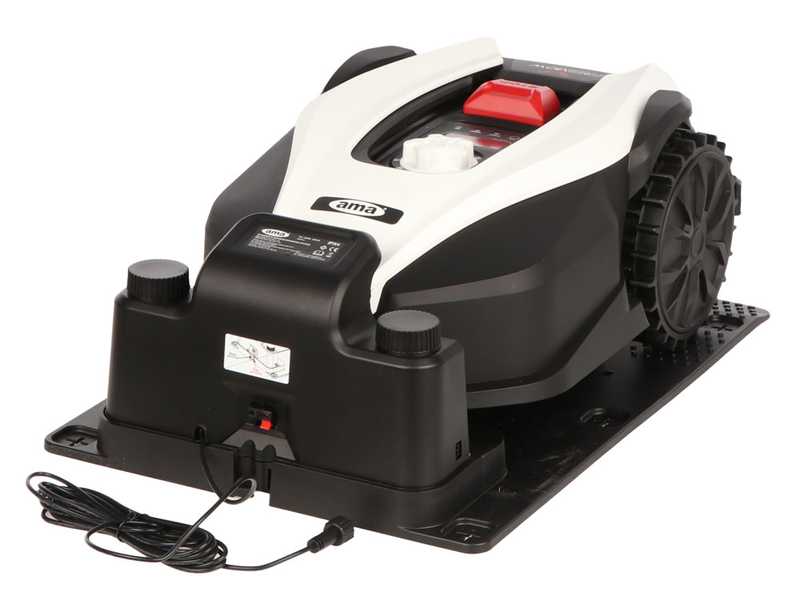

As soon as the charging station (provided with charger) has been mounted and the working area has been delimited (a very easy operation where you need to bury the supplied wire), the robot is ready to work.

This robot lawn mower is ideal for every user. From now on:

• You will be fully aware of the product you've purchased, having a thorough knowledge of its specifications and features; whereas the traditional selling of the robot is generally based on the user's lack of knowledge of the installed system
• You will be able to use your robot lawn mower independently, without the need of constant support from a technician, and ask for assistance even in case of small issues, which are very often subject to constant maintenance costs, year after year.
• Therefore, you will save money compared to other conventional robots, also thanks to minimal installation and maintenance costs

Main features:

• Cutting motor: Brushless
• Traction Motor: Brushless
• Battery voltage: 20 V
• Battery capacity: 5 Ah
• Noise level: 62 dB

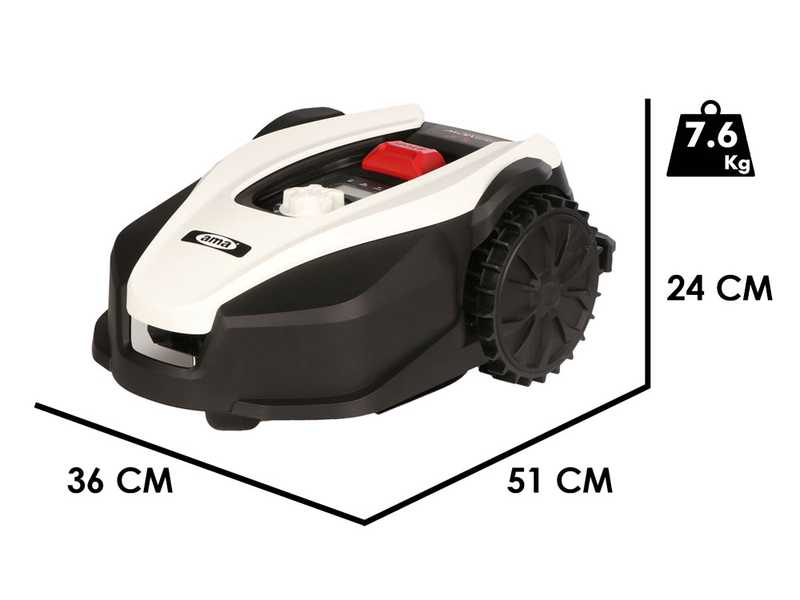

• Weight: 7.6 Kg

Some of the robot lawn mower controls are located in the user-friendly keyboard with LED, which is placed on the top of the machine.

Other important features:

• Quick stop control: By pressing the red STOP button at any time during operation, the robot mower and blade rotation will stop;
• Rain sensors: In case of heavy rain, the robot automatically returns to the station cover and will resume mowing in the next cycle.
• Shockproof sensors for detecting obstacles: The robot lawn mower is equipped with sensors which, in case of contact with obstacles, make it change the driving direction.
• Lifting sensor: If the robot is lifted during operation, the starting system is switched off and the blades stop immediately.
• Anti-theft device with PIN code
• Front LED Light;
• Large non-slip wheels and double front pivoting wheels.

MOWING SPECIFICATIONS:

• Mulching: 3 steel blades for mulching cutting. This system allows finely shredding the grass clippings without having to collect them in a grass collector.
• Grass decomposes naturally, water and nutritional substances returns to soil for a wonderful, healthy lawn!
  This cutting helps fertilisation and saves time by skipping the harvesting phase.
• Edges: Unique cutting system beyond the wheels. For a perfect lawn finishing.
• Max. cutting area 900 s.q. m.
• 20 cm cutting width
• Maximum slopes: 35%
• Adjustable cutting height from 20 to 60 mm

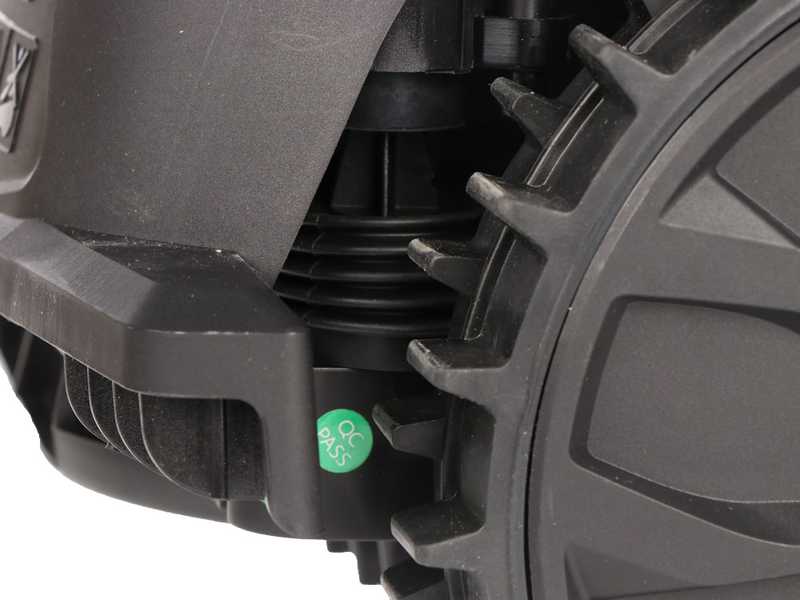

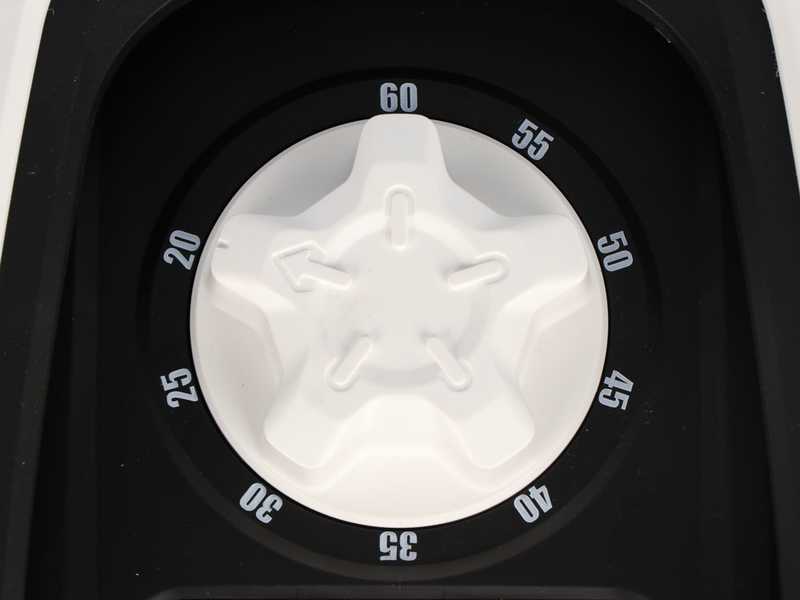

Possibility to adjust the height thanks to the handy knob which enables to move the floating cutting deck from 20 mm to 60 mm. In addition, the 220 mm high rear wheel grip and a front rotating wheel allow the robot to overcome slopes and tricky terrain.

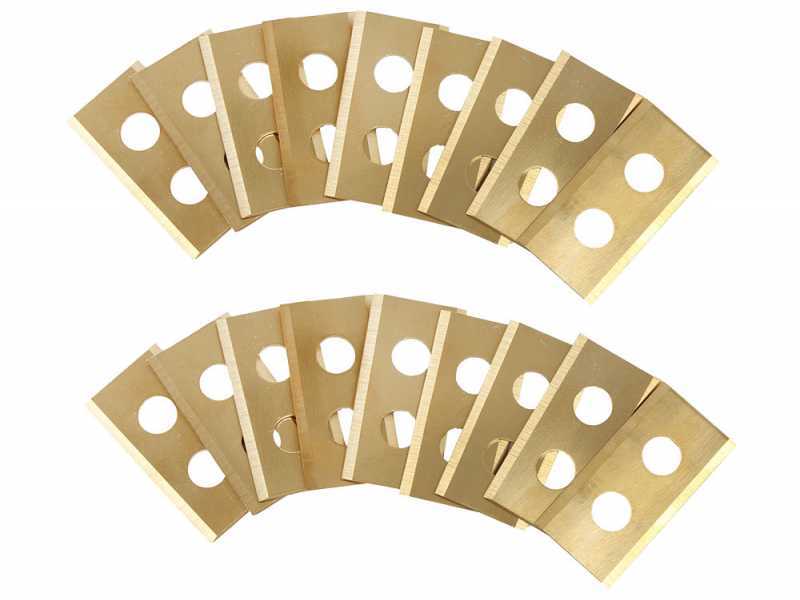

Freemow RBA robot lawn mower is equipped with a new 3-pivoting blades cutting system.

This special movement of the blades guarantees an exceptional service life and, more generally, greater protection of the entire machine, as they are better able to absorb possible impacts with foreign objects.
