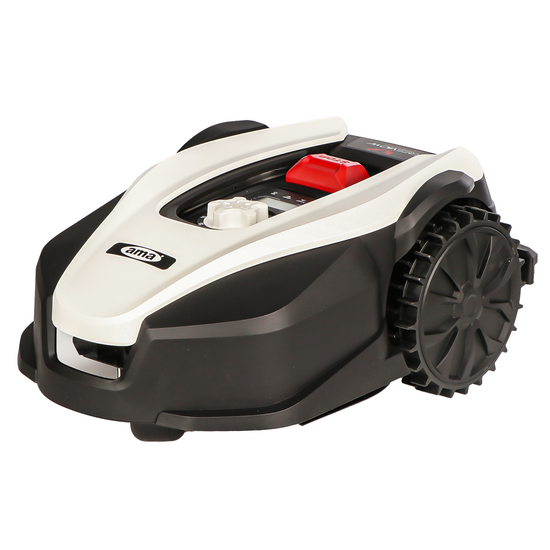

AMA FREEMOW RBA601 - Robot Lawn Mower

The AMA FREEMOW RBA601 robot lawn mower is designed to handle areas of up to 600 square metres, including multi-zone gardens (up to 4 zones).

This model features a number of advanced features which make it ideal for efficient and safe lawn mowing.

Main features:

• Plate with 3 floating blades: Bidirectionally rotating blades extend the service lifespan of the cutter.
• Cutting width of 20 cm: It allows large areas to be covered in less time.
• Adjustable cutting height: From 20 to 60 mm, to adapt to different lawn requirements.
• Brushless digital motors: They improve the efficiency and durability of the mower.
• Smart navigation system: It handles narrow passages and passageways, increasing mowing performance by up to 30 per cent.

Safety and Maintenance

• Instant blade stop: Ensures maximum safety during use.
• Rain sensor: It stops work and returns to base if it detects rain, resuming mowing when the lawn is dry.

Advanced Features

• Automatic and programmed mowing modes: With smart self-programming to optimise the work cycle.
• Automatic return to base for recharging: The machine returns to base when necessary and resumes mowing autonomously.
• Wi-Fi, Bluetooth and App: Compatible with Apple and Android devices for full management via App.
• 20V 5Ah lithium battery: State-of-the-art with rapid power supply.
• LED: For easy reading of machine settings and status.
• PIN anti-theft: For greater security against theft.
• Automatic updates: Manageable via USB or App.

Technical Specifications

• Noise level: 55 dB(A)
• Maximum slope: 35%
• Weather resistance: The machine can also operate in the rain, with a function that can be deactivated if necessary.
• Four-wheel system: Two rear self-cleaning traction and two front pivoting wheels.

The AMA FREEMOW RBA601 robot lawn mower is an advanced and reliable solution for those who want to keep their lawn in perfect condition with minimal effort. With its state-of-the-art technology and numerous features, it is an excellent investment for home and professional gardening.

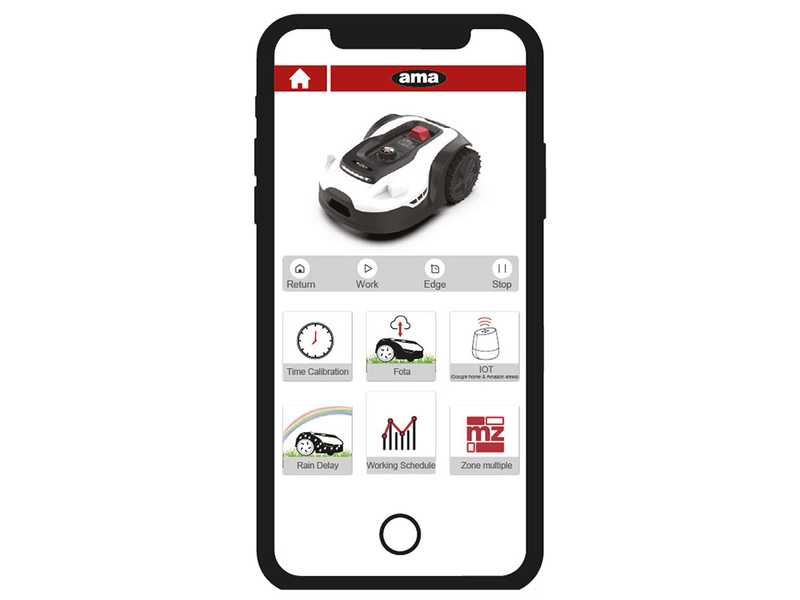

At hand. Created for a fast and easy use, it is possible to manage and switch all the machine settings. All the menu settings with the touch of a button.

All the machine settings are verifiable through the APP.

With a single account, you can manage more than one robot. Thanks to the APP you can rapidly check the robot status, you can decide to start or stop it remotely.

The weekly working schedule can be set automatically by the machine or, in case of specific needs, the user can decide days, hours and also when to do the edge cutting. Through a useful calendar, you can check the robot activities day by day. Furthermore, is it possible to share the machine management with other family members but also technical assistance, facilitating the service, which can be done also remotely.

An APP to check every setting, useful, functional and easy to use.

Menu:

In the main screen, you can start and stop the robot, check the charge status, the rain sensor data, the LAN or Bluetooth connection status and the daily working schedule.

Working record and Daily log:

In the working record you can explore the calendar, see the machine operations day by day and check whether there have been problems and what kind.
Should a more detailed analysis be necessary, it is possible to download logs with the working record. Logs are very comprehensive and provide a precise detail of every movement made by the machine.
To download the logs, simply switch on the device with a USB stick inserted.

Double schedule*:

In this screen we can set the week schedule, its working hours, day by day. It is possible to set up to two work breaks for all models except the RBA500, which has only one.
From this screen, by selecting the day of the week, it is possible to choose when and how often to cut the edge.

APP share:

You can open this page by swiping the machine icon on the right. Here, you can share the robot with other people without providing email and password.
If you share the machine, a QR code will be released and this can be acquired by another user (ex. the reseller for remote assistance).

*Available on L SERIES models.

As soon as the product is delivered, you can start it autonomously: even the less expert user, who has never had experience with a cutting device, will be immediately able to start the AMA Robot lawn mower according to the instructions detailed described in the instructions manual.

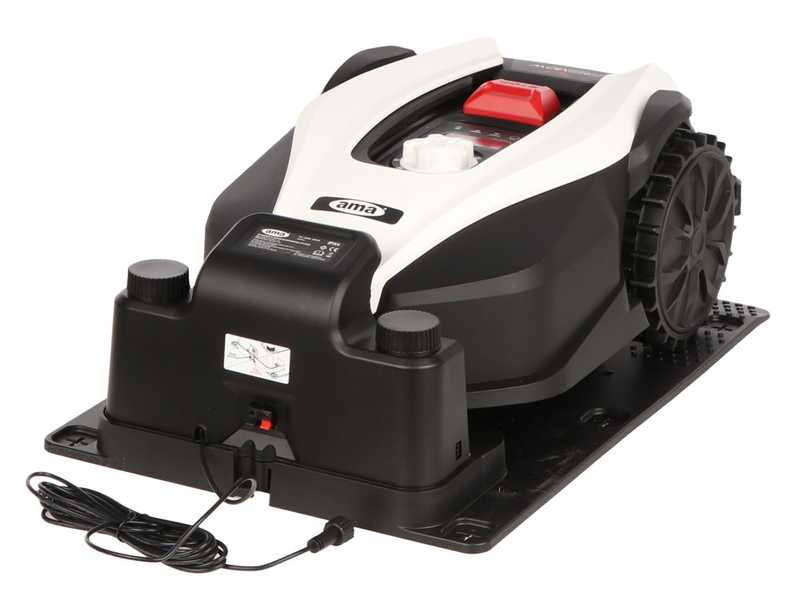

AMA RBA601 can be easily installed with very few simple steps:

1. Assemble and tighten the charging station;
2. Fix the perimeter wire with the proper fixing pegs around the working area;
3. Set the robot using the app or display.

As soon as the charging station (provided with charger) has been mounted and the working area has been delimited (a very easy operation where you need to bury the supplied wire), the robot is ready to work.

This robot lawn mower is ideal for every user. From now on:

• You will be fully aware of the product you've purchased, having a thorough knowledge of its specifications and features; whereas the traditional selling of the robot is generally based on the user's lack of knowledge of the installed system
• You will be able to use your robot lawn mower independently, without the need of constant support from a technician, and ask for assistance even in case of small issues, which are very often subject to constant maintenance costs, year after year.
• Therefore, you will save money compared to other conventional robots, also thanks to minimal installation and maintenance costs

Main features:

• Cutting motor: Brushless
• Traction Motor: Brushless
• Battery voltage: 20 V
• Battery capacity: 2.5 Ah
• Noise level: 62 dB

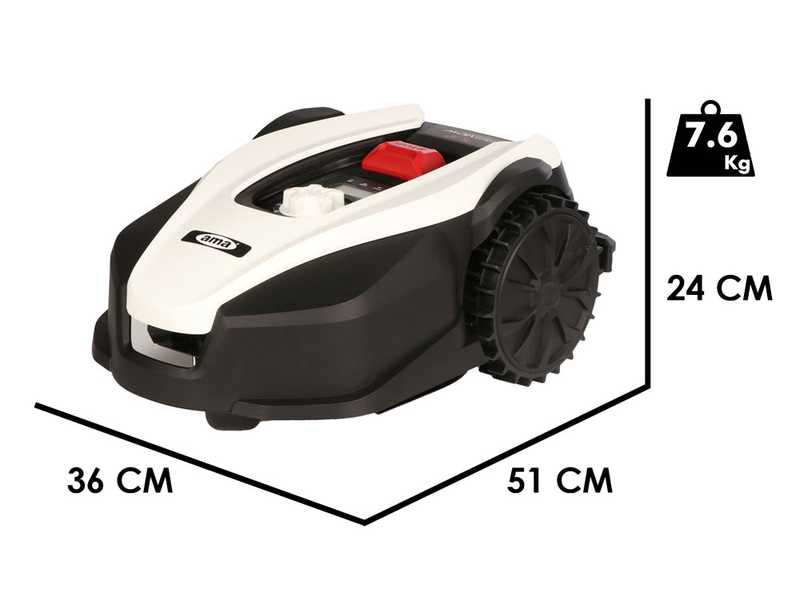

• Weight: 7.6 Kg

Some of the robot lawn mower controls are located in the user-friendly keyboard with LED, which is placed on the top of the machine.

Other important features:

• Quick stop control: By pressing the red STOP button at any time during operation, the robot mower and blade rotation will stop;
• Rain sensors: In case of heavy rain, the robot automatically returns to the station cover and will resume mowing in the next cycle.
• Shockproof sensors for detecting obstacles: The robot lawn mower is equipped with sensors which, in case of contact with obstacles, make it change the driving direction.
• Lifting sensor: If the robot is lifted during operation, the starting system is switched off and the blades stop immediately.
• Anti-theft device with PIN code
• Front LED Light;

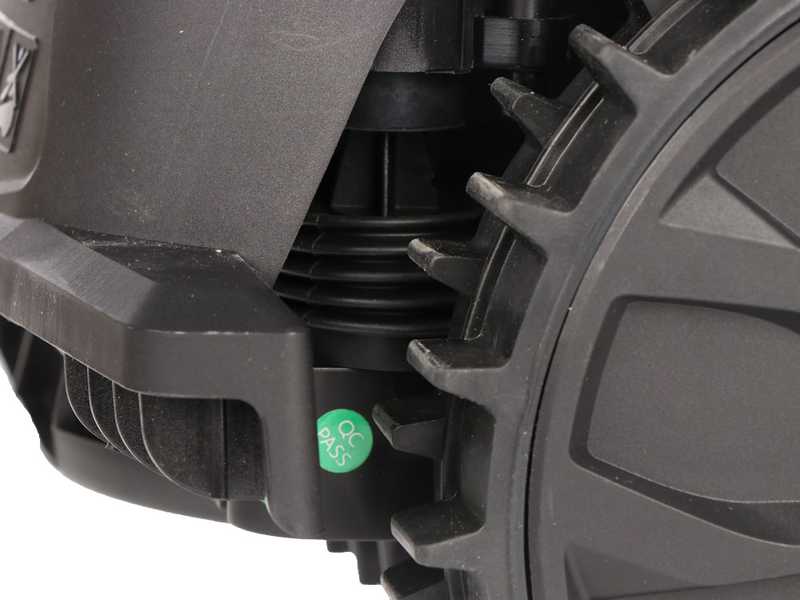

• Large non-slip wheels and double front pivoting wheels.

MOWING SPECIFICATIONS:

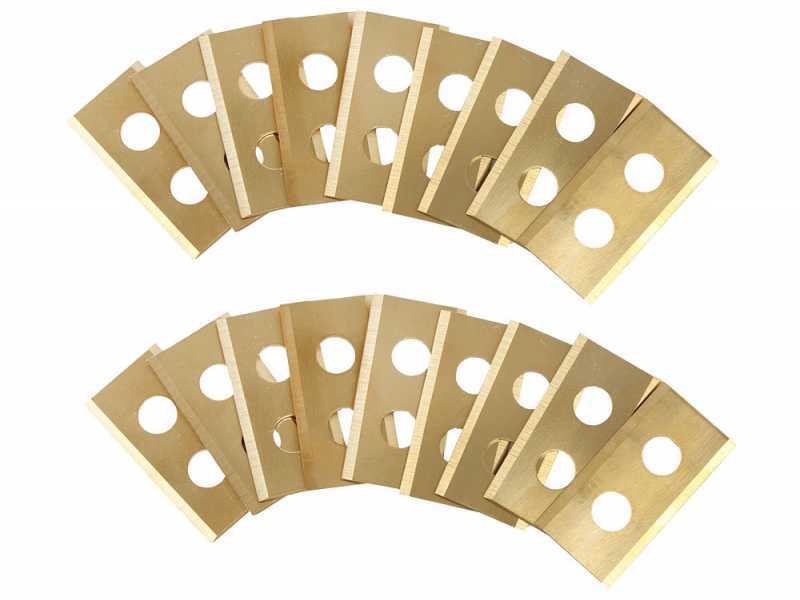

• Mulching: 3 steel blades for mulching cutting. This system allows finely shredding the grass clippings without having to collect them in a grass collector.
• Grass decomposes naturally, water and nutritional substances returns to soil for a wonderful, healthy lawn!
  This cutting helps fertilisation and saves time by skipping the harvesting phase.
• Edges: Unique cutting system beyond the wheels. For a perfect lawn finishing.
• Max. cutting area 600 s.q. m.
• 20 cm cutting width
• Maximum slopes: 35%
• Adjustable cutting height from 20 to 60 mm

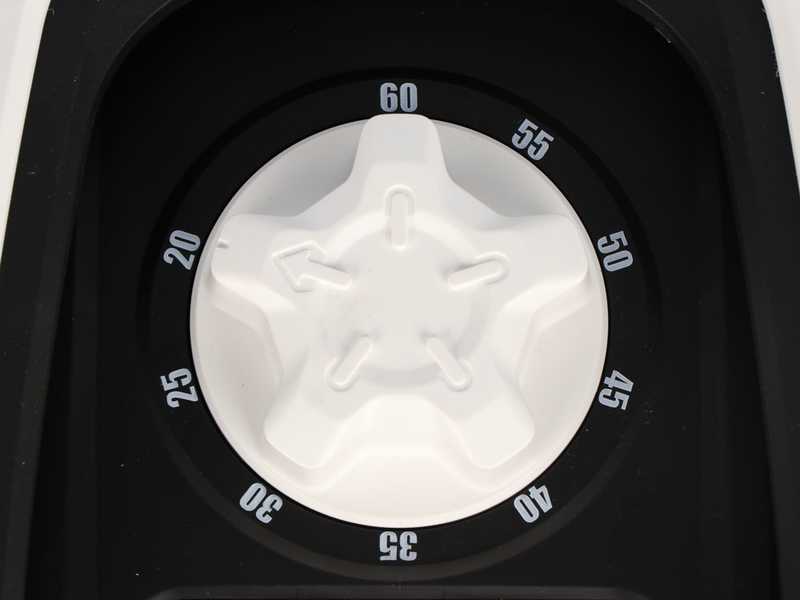

Possibility to adjust the height thanks to the handy knob which enables to move the floating cutting deck from 20 mm to 60 mm. In addition, the 220 mm high rear wheel grip and a front rotating wheel allow the robot to overcome slopes and tricky terrain.

Freemow RBA robot lawn mower is equipped with a new 3-pivoting blades cutting system. This special movement of the blades guarantees an exceptional service life and, more generally, greater protection of the entire machine, as they are better able to absorb possible impacts with foreign objects.
