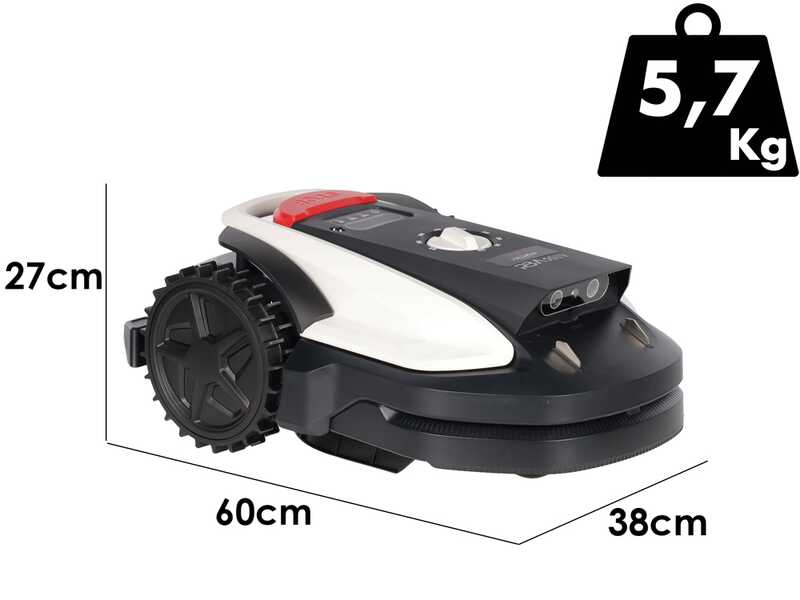

Ama Freemow RBA501V - Robotic Lawn Mower - Without Installation

The Ama Freemow RBA501V robotic lawn mower represents an advanced technological solution for lawn care up to 500 m², ideal for even multi-zone surfaces. This robotic mower stands out for its lack of perimeter wire, thanks to the VISUAL navigation system based on dual integrated 3D cameras and AI (artificial intelligence) technology.
The modern, compact, and functional design features a predominantly white structure with black and red details, providing robustness and ease of use.
The ABS chassis withstands weather conditions with IPX5 protection rating, while the oversized wheels with soft rubber tread ensure reliable traction even on terrains with slopes up to 42%.

The Freemow RBA501V uses brushless motors for traction and blade, ensuring high efficiency and long life.
The 18 cm floating deck is equipped with three bidirectional rotating floating blades that ensure precise and uniform cutting, manually adjustable from 20 to 60 mm.
The intelligent SMART navigation system, supported by VSLAM and AONavi technology, allows the robot to recognize and avoid obstacles through 3D cameras, thus avoiding unnecessary trampling of the lawn and improving cutting performance. The robot automatically returns to the charging base, reducing downtime, while the 20V 2.5 Ah lithium battery ensures extended work sessions and fast charging.
The device is also controllable via app through Wi-Fi and Bluetooth, with support for Alexa and Google Home.
VISUAL AI navigation system: navigates without perimeter wire with dual 3D camera and artificial intelligence for precise mapping and obstacle management.

Main features:

• Brushless motors for traction and blade: ensure greater energy efficiency and long life of mechanical components.

• 18 cm floating cutting deck: equipped with 3 bidirectional rotating blades, allows for uniform and precise cutting on uneven surfaces.

• 20V 2.5Ah lithium battery with fast charging: ensures long cutting sessions reducing the robot's downtime.

• App control and smart home integration: manageable via Wi-Fi, Bluetooth, with push notifications and compatibility with Alexa and Google Home.

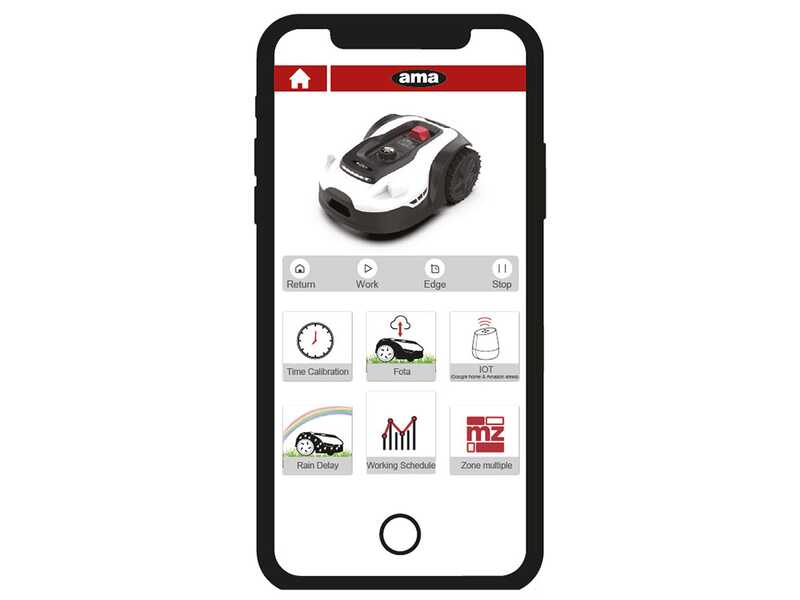

Everything at your fingertips. Designed for easy and quick use, all machine parameters can be controlled and changed. All menu items with the touch of a button.

Full control via APP. All functionalities are manageable directly from the APP, which allows monitoring and commanding multiple machines with a single account. The robot's status is always at your fingertips: it can be started or stopped even remotely, thanks to integrated Wi-Fi and Bluetooth control.

Alexa compatibility. The machine is also compatible with Alexa, for simple and intuitive voice control, allowing the robot to be managed without using a smartphone.

With a single account, multiple machines can be managed. With the APP, the robot's status can be quickly checked, and it can be decided to start or stop it even remotely.

The weekly work schedule can be automatically set by the machine or, in case of specific needs, the user can decide days, times, and even when to do the edge trimming. Through a practical calendar, the robot's activities can be checked day by day.

An APP to control them all, a useful, functional, and easy-to-use app.

Overview:

On the main screen, it is possible to start or stop the machine, check the charge status, the rain sensor detection, the status of LAN or Bluetooth connections, and the current day's program.

Event history and Daily log:

In the events screen, we can explore the calendar and see day by day what the machine has done and check if there have been any problems and of what type.
If a more in-depth analysis is needed, it is possible to download the logs with the history of all movements. The logs are very complete and provide a precise detail of every movement made by the machine.
To download the logs, simply turn on the machine with a USB stick inserted.

APP Sharing:

In this screen obtained by sliding the machine icon to the right, we can share the machine with other people without having to give our email and password.
If the machine is shared, a QR code will be released which can then be acquired by another user (for example the dealer for remote assistance).

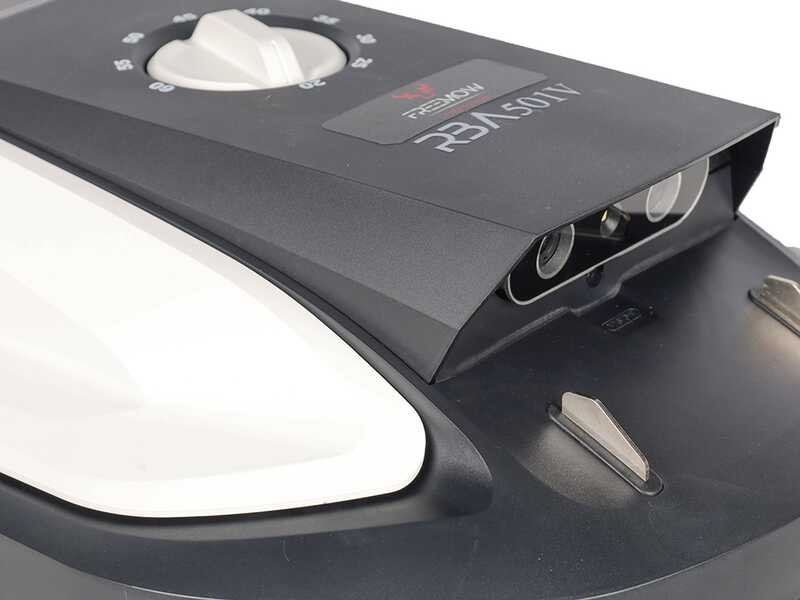

The robotic lawn mower is equipped with an advanced dual 3D camera system, the heart of the VISUAL navigation system based on artificial intelligence (AI).
This technological device allows a three-dimensional perception of the surrounding environment, essential for ensuring precise mapping and autonomous and intelligent lawn cutting management.

The two 3D cameras work in synergy by acquiring images of the work area, allowing the robot to create a detailed map of the garden without the need to install perimeter wires.

The AISS is an artificial intelligence system that allows robots to understand and semantically interpret the surrounding environment.

The VSLAM (Visual Simultaneous Localization and Mapping) technology allows the robot to locate itself and map the environment in real-time based on visual data acquired by the 3D cameras.

This combined technology allows the robot to move smoothly and safely even in complex areas, avoiding collisions and damage to both the robot and garden elements such as trees, benches, or toys.
The three-dimensional vision also allows effective management of narrow passages, corridors, and multi-zone areas, ensuring complete and optimized coverage.

The robotic lawn mower operates completely autonomously and can be fully configured via a mobile app, from which cutting settings, weekly scheduling, and operational areas are managed.
The charging station should be placed in an accessible point, preferably central, to allow the robot to reach it from all areas.

The navigation system can be expanded thanks to the optional use of RFID tags, also known as magnetic tags. These devices are fixed to the ground with adhesive support or slightly buried and allow the creation of virtual boundaries or the definition of multiple cutting zones (multi-zone function). When the robot passes over a tag, it recognizes its function as a passage point or limit not to be crossed.

The use of RFID tags is particularly useful in gardens with areas difficult to delimit exclusively with 3D vision. Management is entirely via app, where a role can be assigned to each tag and the robot's behaviour can be monitored.

When the robot passes near a tag, it is identified and interpreted as a virtual boundary or passage point to manage the division of cutting zones.

The use of RFID tags allows:

• Precisely defining multiple work zones (multi-zone), allowing the robot to move from one zone to another without getting confused or leaving the cutting area.

• Creating invisible boundaries or temporary exclusion areas without installing perimeter wires.

• Facilitating garden mapping, improving path efficiency, and reducing work time.

Main features:

• Cutting motor: Brushless
• Traction motor: Brushless
• Maximum covered area: 500m²
• Maximum slope: 42%
• Battery voltage: 20V
• Battery capacity: 2.5 Ah
• Noise level: 62 dB

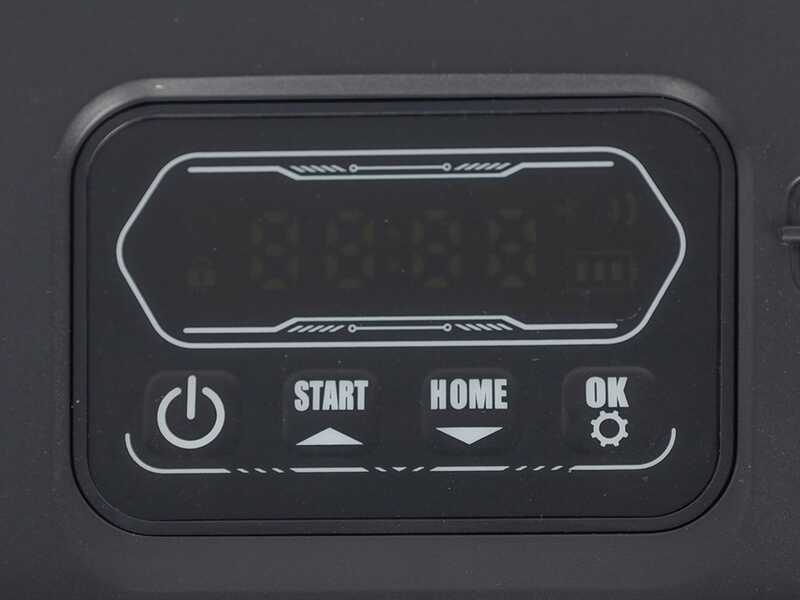

• Display

Other important features include:

• Quick stop command: Pressing the red STOP button at any time during operation will stop the robotic lawn mower and blade rotation;
• Rain sensors: In case of heavy rain, the robot will automatically return to the base and resume work in the next cycle;.
• Lifting sensor: If the device is lifted during operation, the drive system is disengaged and the blades are stopped;
• Anti-theft system with PIN code
• Front LED light;
• Large anti-slip wheels and front pivoting wheel

CUTTING FEATURES

• Mulching: 3 steel blades for Mulching cut. Cuts grass into small pieces and there is no need to collect clippings.
• The grass decomposes naturally, water and nutrients are returned to the soil for a beautiful and healthy lawn!
  This type of cut helps fertilization and saves time by skipping the collection phase.
• Maximum cutting area 500 m²
• Cutting width of 18 cm
• Maximum slope of 42%
• Adjustable cutting height from 20 to 60mm

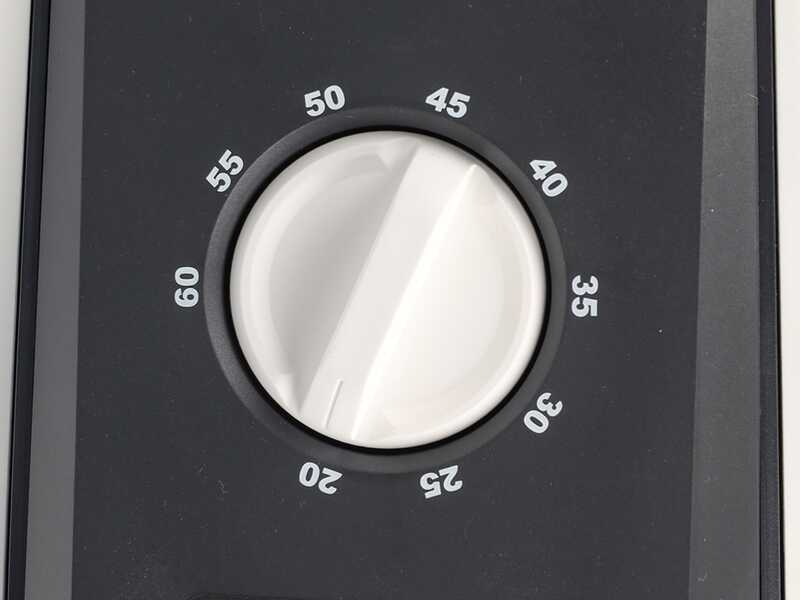

The height can be adjusted thanks to the practical knob that allows moving the floating cutting deck between 20 mm and 60 mm.

The Freemow RBA robotic lawn mower is equipped with a new 3 pivoting blade cutting system. This special blade mobility ensures exceptional durability and generally greater protection of the entire machine, as they can better absorb any impacts with foreign objects.
