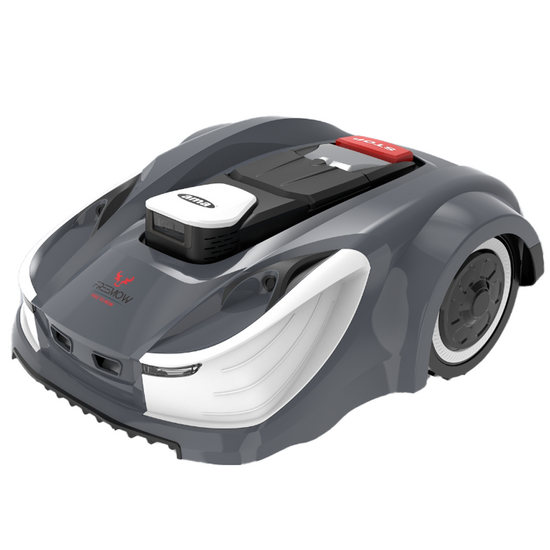

AMA Freemow RBA3010 - Robot Lawn Mower - Without Installation

The Ama Freemow RBA3010 robot lawn mower is a state-of-the-art model designed for completely autonomous lawn mowing without the need for perimeter wires.
Equipped with a satellite navigation platform RTK combined with advanced technologies such as PNT, GNSS, VSLAM, and AI, this robot can work precisely and reliably even on complex terrains or divided into multiple areas, up to a total area of 3000 m².
Thanks to the GPS mapping system and RTK technology, there is no need to install a physical boundary system, greatly simplifying the installation and management of the device.

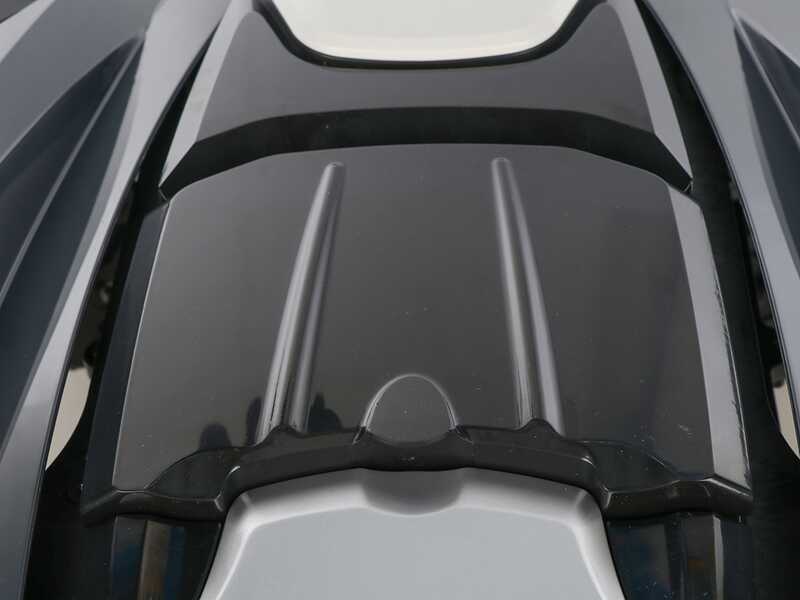

The compact and elegant design of the Ama Freemow RBA3010 in ABS makes it weather-resistant, while the IPX5 protection makes it ideal for use even in rainy conditions.
The four wheels with enhanced rubber tread ensure optimal stability even on slopes up to 40%, ensuring an even cut even on more uneven terrains.

The cutting system relies on a floating deck with three rotating blades offering a cutting width of 22 cm and an electronically adjustable height up to 76 mm, to suit different lawn maintenance needs.
The integrated high-resolution 3D camera, along with the AI Vision AISS system, allows the robot to detect and avoid obstacles in real-time, ensuring safe and precise navigation.

The robot is also equipped with advanced connectivity, including Wi-Fi, Bluetooth, and 4G, with compatibility with voice assistants like Alexa and Google Home.
The 28V 5.7Ah lithium battery ensures long autonomy, and the robot automatically returns to the base for recharging when necessary.

Distinctive Features:

• No perimeter wire: The RTK system and GPS mapping allow operation without the installation of a physical boundary system.

• AI + RTK Technology: Precise navigation with artificial vision and satellite coordinates, for perfect mowing even in difficult conditions.

• Multi-zone system: Management of up to 10 independent areas with intelligent logic to adapt to complex gardens.

• Advanced obstacle detection: 3D cameras and ultrasonic sensors to avoid impacts and ensure safe operation.

• Autonomy and waterproofing: Powerful 28V battery and IPX5 protection for long-lasting use even in adverse weather conditions.

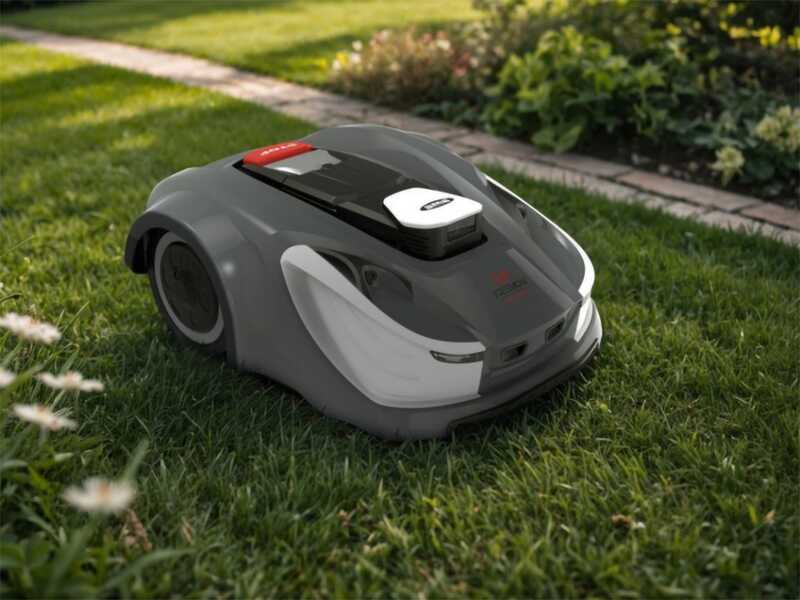

The RTK (Real Time Kinematic) navigation system applied to Ama Freemow robot lawn mowers represents one of the most significant innovations in the field of automated lawn care.
This real-time satellite positioning technology allows the machine to operate with centimetric precision.

Unlike traditional robots, which require the burial of a boundary cable, this system uses a network of GNSS satellites combined with an RTK reference base to provide extremely accurate position detection.

The Ama Freemow lawn mower uses a combination of GNSS modules, PNT (Positioning, Navigation and Timing) systems, and VSLAM (Visual Simultaneous Localization and Mapping) technology, supported by artificial intelligence.

This integrated architecture allows the machine to visually recognize the surrounding environment and digitally map the garden.
The processing of visual information, combined with satellite data, enables the robot to move along optimized trajectories without retracing already mowed areas.
The RTK system provides operational continuity even in the presence of obstacles, elevation changes, or narrow passages.

The initial setup of the machine does not require digging, electrical installations, or specialized tools.

The user can manually guide the robot along the edges of the area to be treated via an app, thus creating a permanent virtual map of the garden.
During operation, the RTK receiver constantly communicates with the base station, correcting real-time position variations and maintaining precise trajectory even on uneven surfaces.

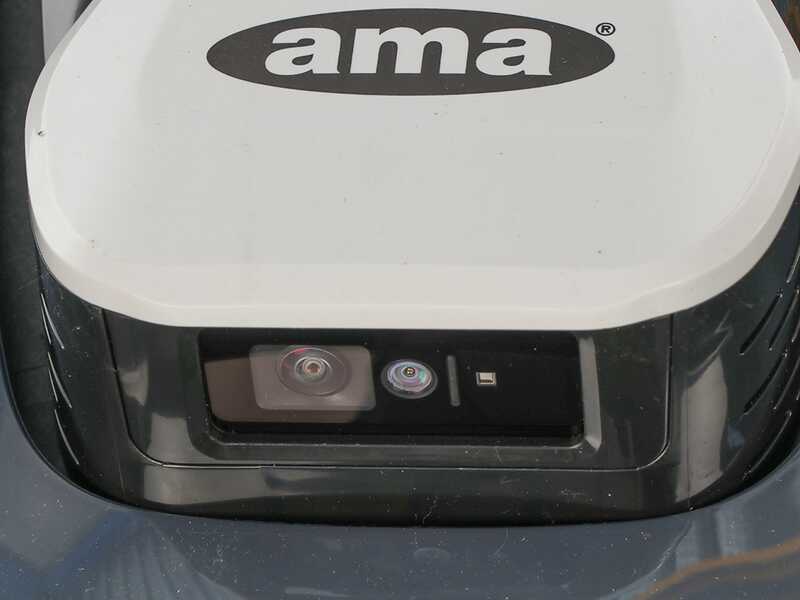

The Ama Freemow robot lawn mower integrates an advanced visual detection system based on a high-resolution three-dimensional camera.
This component works in combination with artificial intelligence to ensure autonomous navigation even in the presence of moving or fixed obstacles.
The system uses AI Vision AISS technology, designed to analyse the surrounding environment in real-time and avoid impacts during mowing.

The camera is capable of:

• Identifying objects, trees, and obstacles present on the lawn

• Distinguishing fixed elements from temporary elements

• Communicating with the internal electronics to deviate the path when necessary

This function is integrated into the assisted navigation system, which also includes ultrasonic sensors, bumpers, and satellite modules.

The camera also works in synergy with VSLAM (Visual Simultaneous Localization and Mapping), allowing the robot to visually locate itself in relation to the real context.

The entire system operates without the use of additional magnetic or mechanical sensors. The camera installation is integrated into the front shell and protected against dust and moisture. Thanks to this equipment, the robot can operate fully autonomously even in variable conditions, ensuring safety, movement precision, and respect for the surrounding environment.

Everything at your fingertips.
Designed for simple and functional use, the machine allows you to control the main operations in a few steps. Work parameters can be managed via APP, with an intuitive interface that allows quick access to available functions. All menu items are accessible remotely via smartphone.

The machine can self-program its work cycles based on the initial configuration.
Alternatively, the user can manually set the days and times for mowing.
The system also allows defining the time dedicated to edge trimming. An integrated calendar in the APP shows daily activities.

Overview:

In the main screen, the user can start or stop the robot, view the charge percentage, check the rain sensor status, active connections, and the day's schedule. The command layout is designed to simplify interaction and provide all essential information in a single screen.

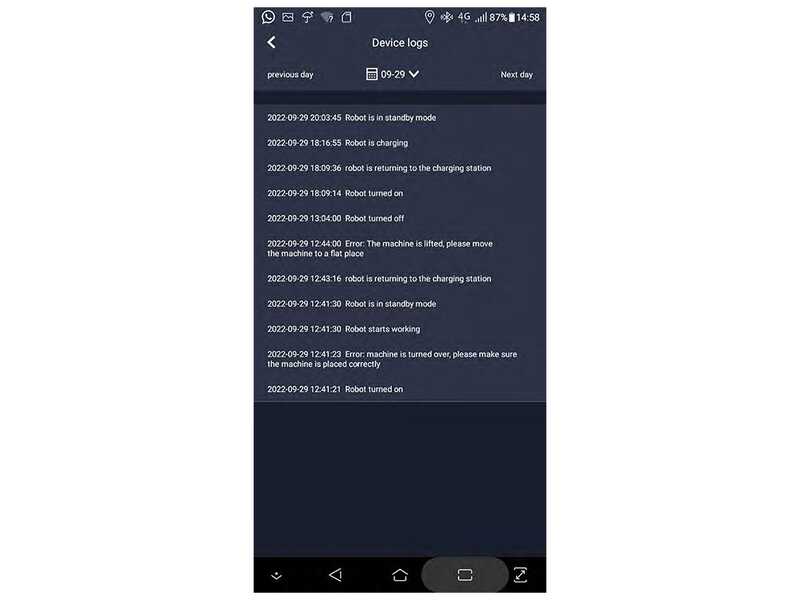

Event history and Daily log:

The system records the robot's daily activities, allowing a summary of movements performed and error messages to be viewed. The history function is useful for monitoring work efficiency over time.

APP Sharing:

The app allows sharing control of the robot with other users. This function allows more people (such as family members or technical assistance) to manage the machine. Sharing can be activated through a simplified system without needing to provide the main account credentials.

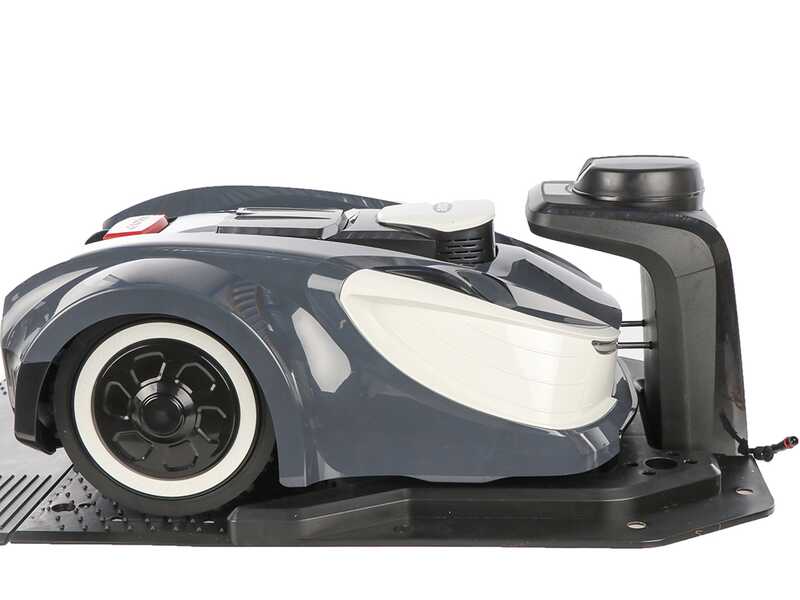

The Ama Freemow robot lawn mower does not require perimeter wire installations. The work area is virtually delimited via RTK satellite navigation, eliminating digging or buried cables. Installation is simple and can be done independently.

It is necessary

• Install the RTK antenna in a stable position.

• Connect the charging base to the power grid

• Use the app to guide the robot along the perimeter to be mapped

The antenna, provided, transmits corrective data to the robot, ensuring movement precision.
It must be mounted in an open spot, away from vertical obstacles.

The Ama Freemow RBA3010 robot lawn mower is designed for automatic mowing of areas up to 3000 m², including multi-zone, with advanced RTK navigation system and artificial intelligence.
Robust structure, advanced electronics, and precise cutting make it suitable for continuous and complex applications.

General data:

• Max manageable area: 3000 m²

• Manageable zones: up to 10 areas

• Minimum passage: 80cm

Cutting system:

• Cutting width: 22 cm

• Electrically adjustable height: up to 76 mm

• Edge cutting mode: programmable

• Maximum slope: 40%

Navigation and sensors:

• Cameras: dual 3D with object recognition

• VSLAM

Connectivity:

• Connections: Wi-Fi, Bluetooth, 4G

• Compatibility: Alexa and Google Home

• Display: Digital LED

• Weekly programming: double daily interval

CUTTING FEATURES

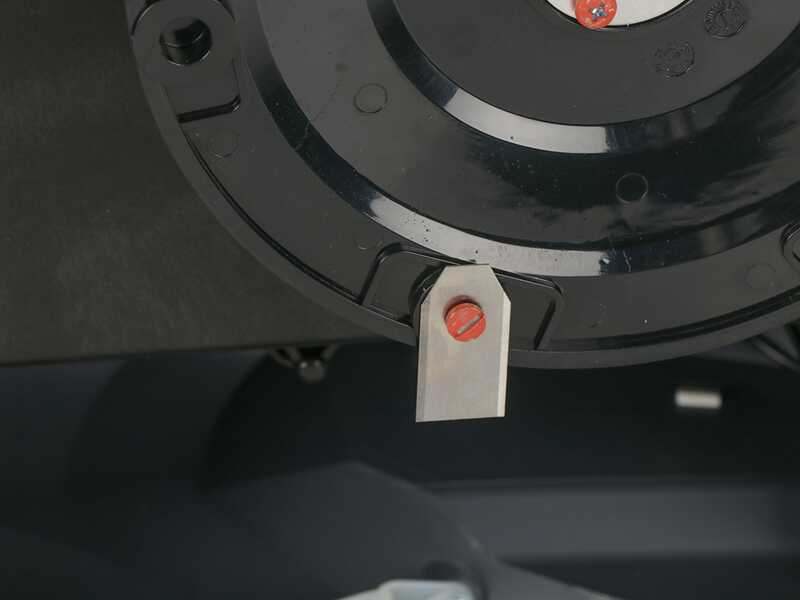

• Mulching: 3 steel blades for Mulching cut. Cuts grass into small pieces and there is no need to collect clippings.
• The grass decomposes naturally, water and nutrients are returned to the soil for a beautiful and healthy lawn!
  This type of cut helps fertilization and saves time by skipping the collection phase.
• Edges: Unique cutting system that cuts beyond the wheels. Designed for a perfect finish.
• Maximum cutting area 3000m²
• Cutting width of 22 cm
• Maximum slope of 40%
• Electronically adjustable cutting height up to 76mm
