AMA 6T GNU Horizontal Log Splitter with 2200 W Electric Motor - 6 T Splitting Force

Questions & Answers (1)
ID: 103525

EAN: 8033807196050

MPN: 92300

7,3/10
After-sales assistance & Spare parts
AMA 6T GNU Horizontal Log Splitter with 2200 W Electric Motor - 6 T Splitting Force
+200 sold
Max. trunk diameter
25 cm
Piston stroke
52 cm
Max. pressure
240 bar
Operating mode
Single-phase 230 V
Nominal power
2.95 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
6 t
Product Features
Model:
6T GNU
Type:
Horizontal
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
6 t
Piston stroke:
52 cm
Worktop log cutting:
No
Ground splitting system:
No
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
2.95 HP
Nominal power (W):
2200 W
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Max. pressure:
240 bar
Oil tank:
Yes
Manufacturing country:
China
Cutting data
Max. trunk length:
52 cm
Max. trunk diameter:
25 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
No
Retaining side arms:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
No
Tractor three-point hitch:
No
Replaceable wedge guides:
No
Cartridge oil filter :
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
20 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
116x42,5x61 cm
Net weight:
52 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
95x32,5x51 cm
Gross weight (packaging included) :
62 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
10 items in stock
Free Shipping
Estimated delivery: 31/10/2024 - 04/11/2024
€ 406,99
VAT Included
You're viewing:
Customers also viewed:
Description

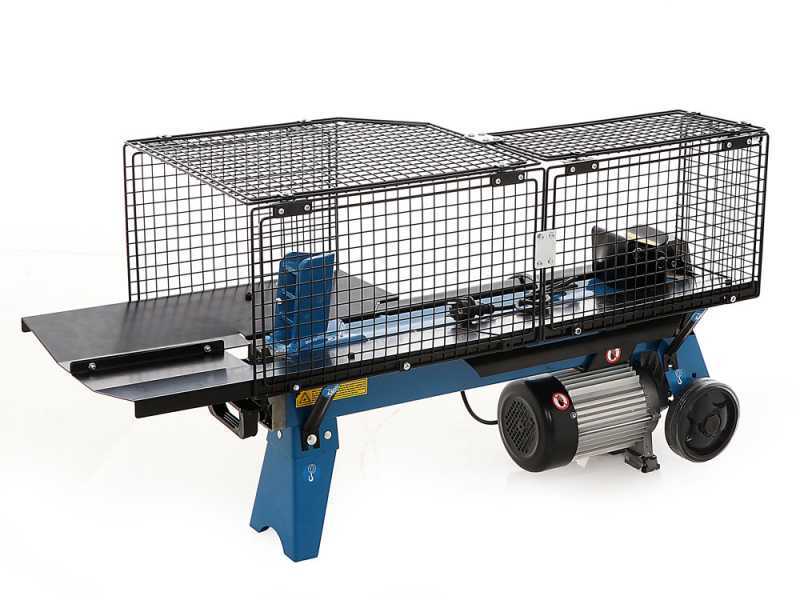

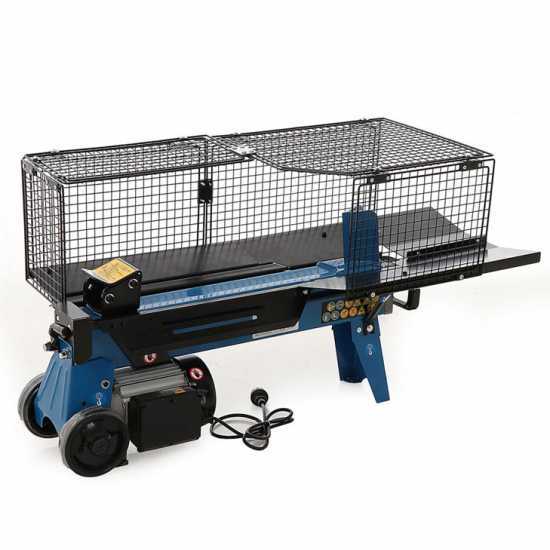

AMA 6T GNU horizontal log splitter

The AMA 6T GNU log splitter is powered by a single-phase 220V electric motor and features 6 tons splitting force.

It is a small-sized electric log splitter intended for a hobby, domestic use. Highly convenient and efficient machine. It combines high performances and manoeuvrability, great convenience of use and ease of transport thanks to the proper handle and wheels.

This machine allows you to split logs efficiently, effortlessly and safely. This log splitter is also equipped with safety grid for ensuring to the Operator a complete safety during use.

Powered by a powerful 2.95 HP single-phase electric motor (2200 Kw)

Splitting force: 6 tons

Log diameter: from 5 to 25 cm

Logs height: from 20 to 52 cm

Equipped with a handle and pneumatic wheels for easy transport.

Overall dimensions: 116 x 42.5 x 61 cm

Weight: 52 kg

It complies with CE safety standards


WARNING:

The log splitters included in this category are not suitable for processing wood with particularly twisted fibres such as poplar or pine, large-diameter logs and wood types with frequent knots in the wood. In this case it is advisable to use heavy-duty models intended for a professional use. Furthermore, the logs should only be split once dried, not green; when the wood is green, it has less tendency to split and open and is therefore less suitable to be split with the log splitter. Once dried, however, it can be split and becomes ready for use in fireplaces, stoves, ovens, etc.

2.95 Hp electric motor

This horizontal log splitter is powered by a single-phase electric motor.

Electric consumption: 2200W

Power: 2.95 Hp

Power supply: 230 V 50 Hz

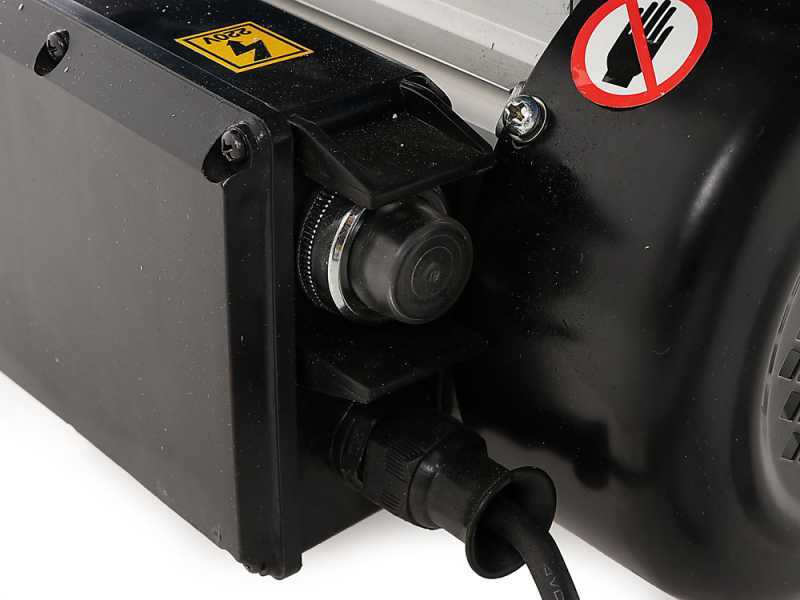

Focus on the switch

Support feet

Controls and other features

Two-hand operation:

1) The first hand must press the electric motor start button (which operates the pump).

2) The second hand pulls the piston drive lever to operate the splitting process.

Oil tank capacity: 3.5 L

Piston forward stroke: 8 sec (for splitting the log)

Piston return stroke: 6 sec

Piston head

Focus on the sturdy wedge

The heavy-duty multi-welded wedge ensures great performance and long-lasting durability. It can easily split even hardwood.

Safety grid that ensures to the Operator high safety while working.

The handle and transport wheels guarantee high ease of transport.

Support feet

Free items & Standard equipment

Standard equipment

The machine is shipped in its original packaging on pallet.

The maintenance and instructions manual with assembly screws are included in the packaging.
