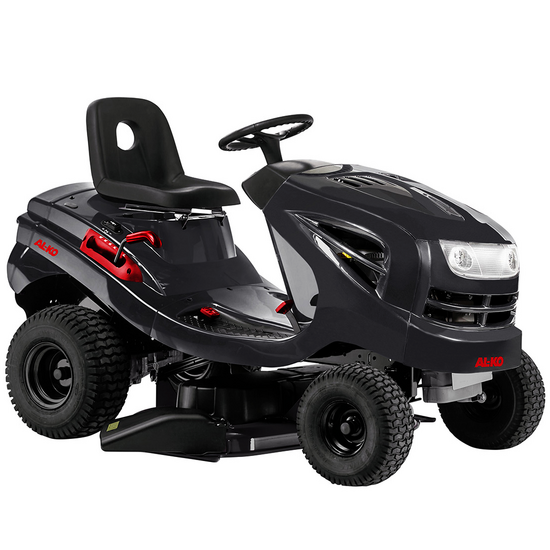

AL-KO T15 93.2 HDS-A Easy - Riding-on Mower with Side Discharge - 8.5 kW

The Al-KO T15 93.2 HDS-A riding-on mower belongs to the Easy series and it is ideal for working efficiently on medium-large gardens.

The side discharge allows cutting large amounts of grass eliminating the problem of grass disposal.

It is powered by a low-vibration 452 cc Al-Ko Pro 450 engine with gear oil pump for increased durability and reliability.

The riding-on mower is provided with 3 cutting systems:

• Side discharge (on standard equipment)
• Mowing
• Mulching cutting system (on standard equipment):

Mulching plug Supplied.

The 93 cm cutting deck with double steel blades allows you to work on areas up to 4500 s.q. m.

The cutting height can be adjusted in 6 positions, from 30 mm to 80 mm, allowing the Operator to adapt the height to the grass conditions.

Electromagnetic blade drive for greater maintenance and safety during work.

Comfortable and optimal Operator’s seat, with quick and easy access to the controls, ensuring great relax even during use.

The large 18" tyres allows a firm grip on any terrain.

Versatile lawn mower suitable for almost all situations, for semi-professional use.

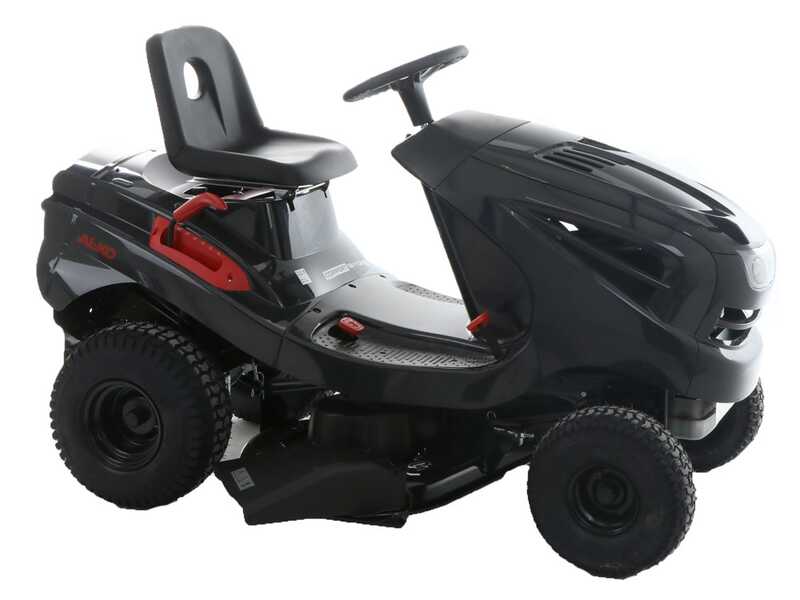

The riding-on mower is equipped with the following cutting systems:

1- Side discharge (on standard equipment):

The grass clippings are discharged directly from the side of the riding-on mower through a deflector on the cutting deck.

This cutting system allows mowing on large areas quickly, as discharging the grass clippings directly on the lawn it isn’t necessary to stop mowing for emptying the grass collector.

2- MULCHING CUTTING SYSTEM (on standard equipment):

With the mulching cutting system the grass is finely crushed inside the cutting deck and then released onto the ground. The grass clippings will be barely noticeable on the lawn so this system allows the Operator to save a fair amount of time.

Simply lock the cutting deck with the proper plug provided to operate with the mulching cutting system.

Please note that for the best possible results with this cutting system, the lawn should be cut and watered very often.

3 - MOWING

This is the most standard cutting system. The grass is mowed with the double steel blades and discharged directly on the ground.

• Converting between cutting systems is quick and easy, and requires no extra tools.

The 452 cc AL-KO Pro 450 is a high performing engine.

- Single cylinder 4-Stroke

- Power: 8.5 kW

- Max. forward speed: 8 Km/h

- Max. reverse speed: 3.5 Km/h

- Fuel tank capacity: 7 L.

- Vibration level: low

- Start system: electric start with key.

Rated power: 11.39 Hp (at 2900 rpm)
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

Nominal Power: 18 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

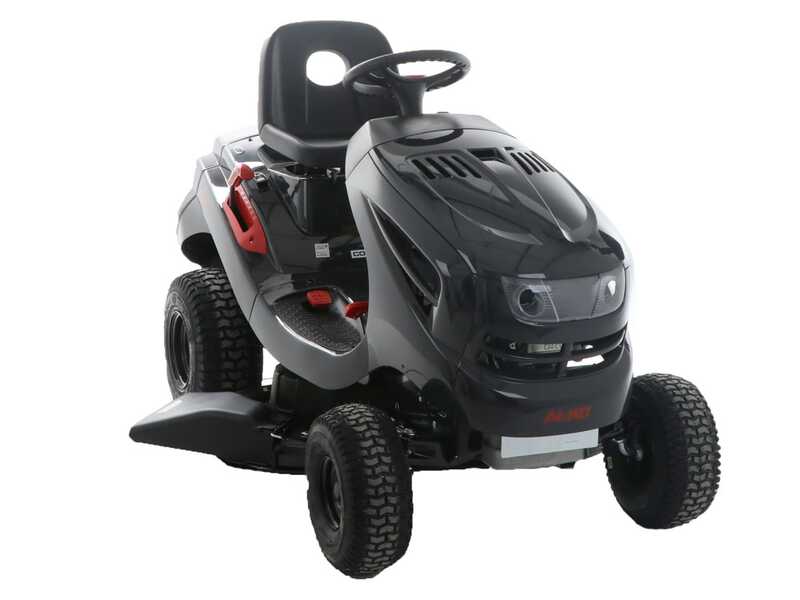

The 15-93.2 HDS-A riding-on mower is equipped with hydrostatic transmission with pedal, a feature increasingly sought after in riding-on mowers because of its great convenience of use. This transmission allows changing the driving speed, moving forward or moving in reverse comfortably from the Operator’s seat.

Operation: Simply press one of the two proper pedals to move forward or in reverse. The forward speed will change according to the pressure exerted on the pedal.

This will allow mowing quickly and more comfortably.

Ideal for the Operator who has to mow in large areas with many obstacles like trees or flowerbeds. Otherwise, with the standard manual transmission, the Operator has to stop mowing, change the gear, release the clutch and then start mowing again.

• Focus on the footstep
• Focus on the forward pedal
• Focus on the reverse pedal

The cutting deck, provided with two steel blades, features a 93 cm cutting width.

This riding-on mower is equipped with centralised cutting height adjustment system in 6 different positions by means of a lever. The cutting heights can vary from 30 mm to 80 mm, allowing the Operator to adapt the riding-on mower to the grass.

Simply mount the proper deflector supplied on the cutting deck to operate with the side discharge. You’ll only have to assemble it in their two housings on the cutting deck and lock it with a proper Allen wrench.

For operating with the mulching cutting system, just mount the proper mulching plug on the cutting deck.

Large 18” tyres for a firm grip to the ground ensuring high performance.

• Focus on the control panel

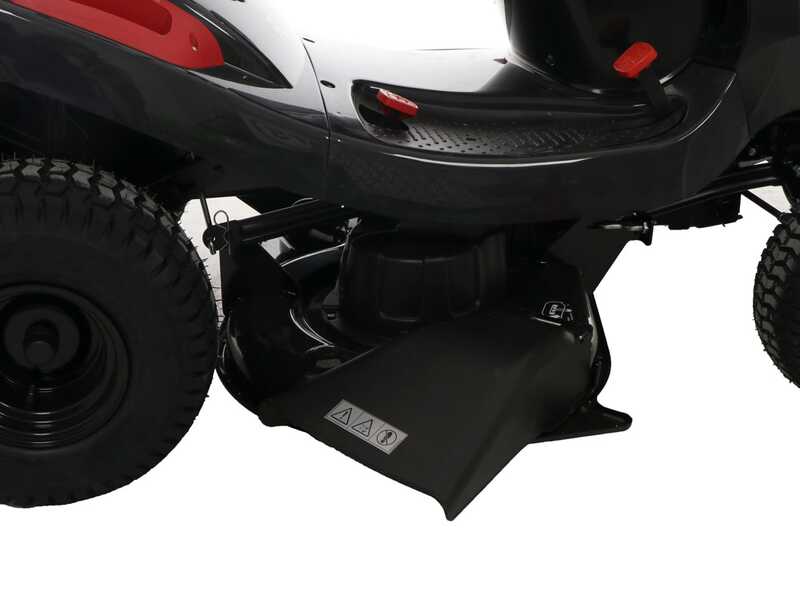

• Focus on the deflector for the side discharge
• Focus on the cutting deck withou the deflector

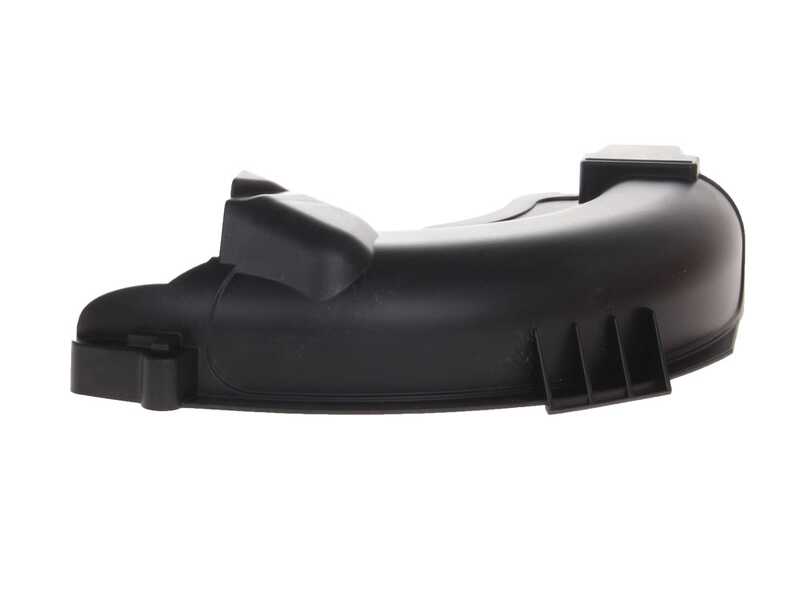

• Deflector for side discharge system
• Mulching plug

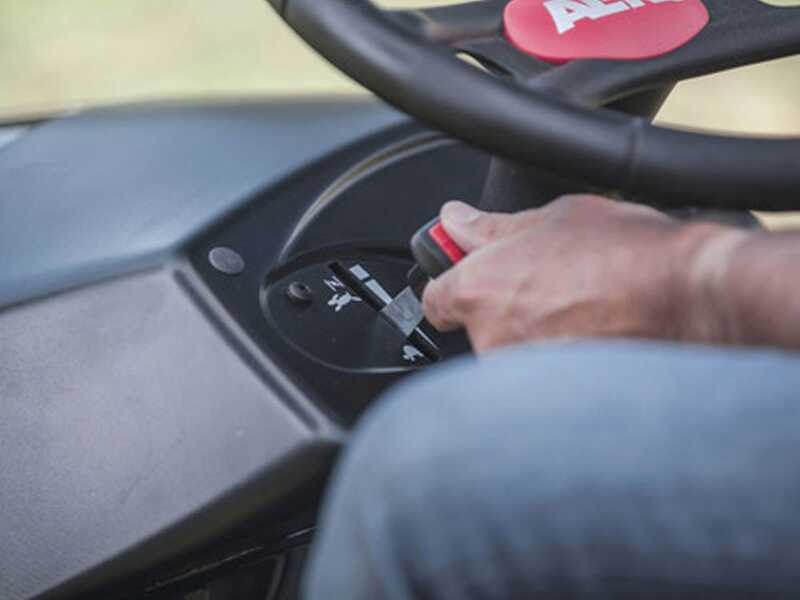

AL-KO 15-93.2 HDS-A riding-on mower controls:

• Ignition lock
• Speed regulator
• Parking brake
• Braking pedal
• Electromagnetic blade engagement
• Cutting height adjustment lever

- Focus on the control panel

- Focus on the ignition lock

AL-KO riding-on mower additional features:

• Openable engine cover for cleaning and maintenance operations
• Adjustable Operator’s seat
• Ergonomic steering wheel
• Rear wheels: 18x8.50-8.5
• Front wheels: 15x6.00-6

- Focus on the overturned Operator’s seat
