AL-KO LSV 550/6 - Electric Log Splitter - Vertical - 230V

Add a question
ID: K605796

EAN: 4003718060744

MPN: 113788

7,0/10
After-sales assistance & Spare parts

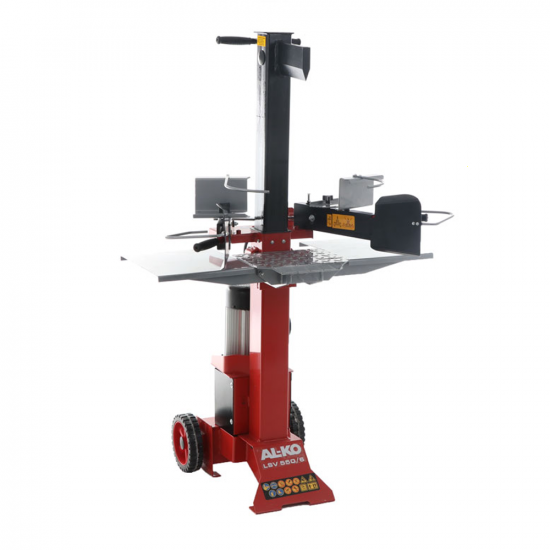

AL-KO LSV 550/6 - Electric Log Splitter - Vertical - 230V
Free gifts from AgriEuro
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
AgriEuro BandanaAgriEuro Bandana
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 06/07/2026 - 08/07/2026
€ 778,71
Vat included
Technical data
Max. trunk diameter
30 cm
Piston stroke
50 cm
Max. pressure
216 bar
Operating mode
Single-phase 230 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
3000 W
Nominal splitting force
6 t
Product Features
Model
LSV 550/6
Type
Vertical
Double speed
No
Operating mode
Single-phase 230 V
Nominal splitting force
6 t
Piston stroke
50 cm
Cutting plate positions
1
Ground splitting system
No
High position trunk length
50 cm
Manufacturing country
China
Motor data
Motor type
Electric single-phase
Engine
Induction
Nominal power
3 HP
Nominal power (W)
3000 W
Power supply
220 V electric
Manufacturing country
China
Pump data
Pump type
Hydraulic
Max. pressure
216 bar
Oil tank
Yes
Manufacturing country
China
Cutting data
Max. trunk length
50 cm
Max. trunk diameter
30 cm
Equipment
Frame
Standard
Pump
Standard
Retaining side supports
Yes
Trunk lifting system
No
Stump Support Shelf
Yes
CE-compliant safety switch
CE-compliant
Wheeled trolley for transport
Yes
Rear wheels size
20 cm
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics

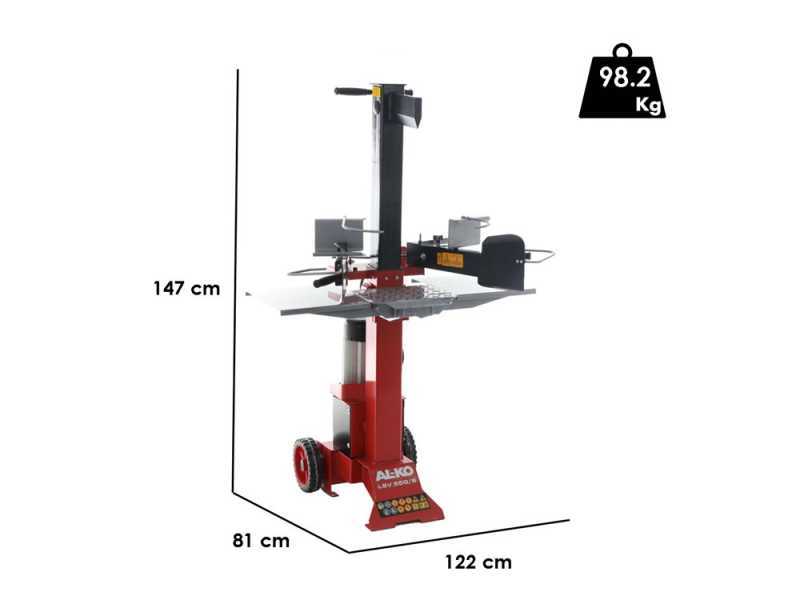

Product dimensions in cm (L x W x H)
121x81x147 cm
Net weight
98.2 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
54.4x34.8x116.3 cm
Weight including packaging
110 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
15 minutes
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

AL-KO LSV 550/6 LOG SPLITTER - 6 tons

With AL-KO vertical splitters, even larger timber can be easily split. Thanks to the professional two-handed drive with integrated safety handle, maximum precision is guaranteed, and even thin or cross-cut wood can be split precisely.

High-quality materials and multi-welded components ensure a long service life for the vertical log splitter.

Al-Ko log splitters are reliable, robust and safe machines.

The AL-KO LSV 550/6 vertical log splitter splits pieces of wood with a maximum length of 103 cm. It meets the needs of a wide range of users and can also split 55 and 80 cm long logs.

It is equipped with a strong and secure grip for moving on the ground.

It has a thrust power of 6 tons, and provides effortless and safe splitting of logs.

Equipped with a powerful 3 HP (3000 watts) electric motor

Splitting force: 6 tons

Log diameter: from 10 to 32 cm

Log length: 55-80 cm

Weight: 98.2 Kg

Highly convenient and efficient machine that combines ease of use and high performance.


ATTENTION:

The log splitters included in this category are not suitable for processing wood with particularly twisted fibres such as poplar or pine, large-diameter trunks and wood types with frequent knots in the wood. In this case, it is advisable to use heavy-duty models intended for a professional use. Furthermore, the trunks should only be split once dried, not green; when the wood is green, it has less tendency to split and open and is therefore less suitable to be split with the log splitter. Once dried, however, it can be split and becomes ready for use in fireplaces, stoves, ovens, etc.

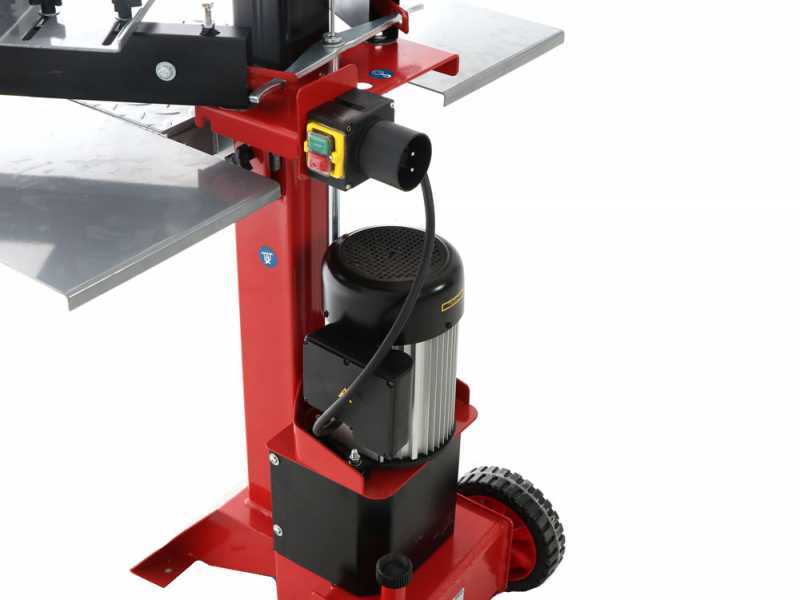

Electric Motor

3 HP (3000 watts) electric motor delivering a 6 tons splitting force.

The oil tank is housed at the base of the machine.

On/Off switches

Distinctive Features

Oil tank integrated at the base of the log splitter.

CE-compliant switch.

Schuko plug integrated in the switch box.

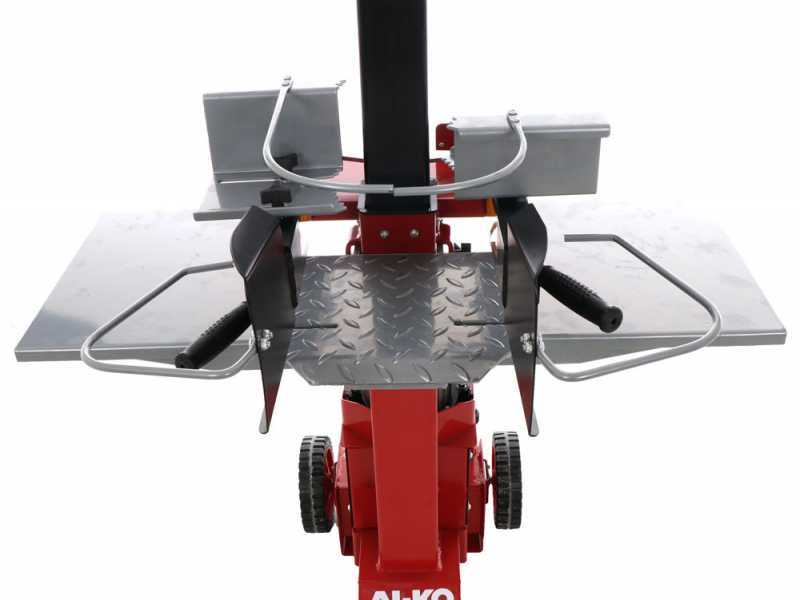

Detail of the pair of operating handles with their CE-compliant hand guards.

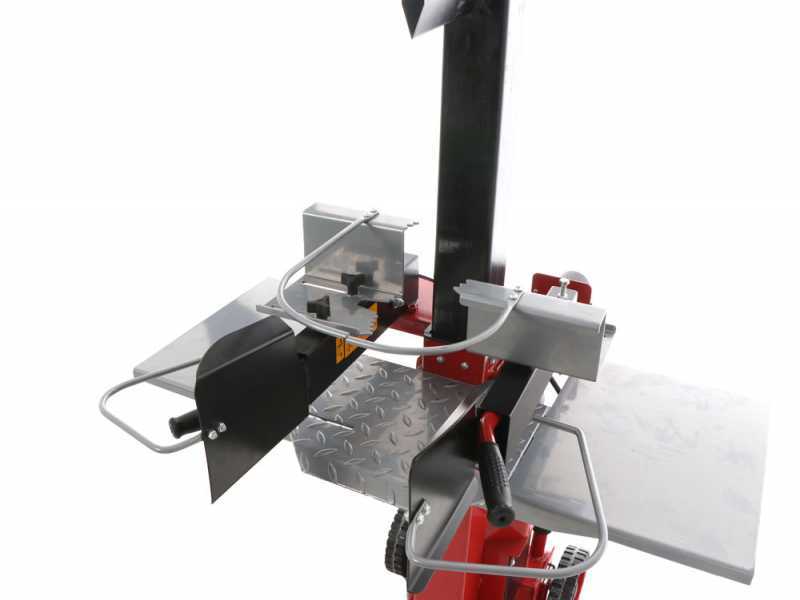

Side log holder integrated in the handle arms and adjustable laterally via the adjustment knob.

Detail of the wedge and rear handle used for tilting and transporting the log splitter, thanks to the lower wheels.

Detail of the wheels integrated at the base of the log splitter.

Other Features

Focus on the cutting plate

Focus on the operating levers

Millimetre-precision adjustment of the extension via the rear adjustable iron rod (can be reduced in the case of splitting shorter logs, further reducing working time)

Focus on the support base that can be fixed to the ground.

Free items & Standard equipment

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to reduce machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

Standard Equipment

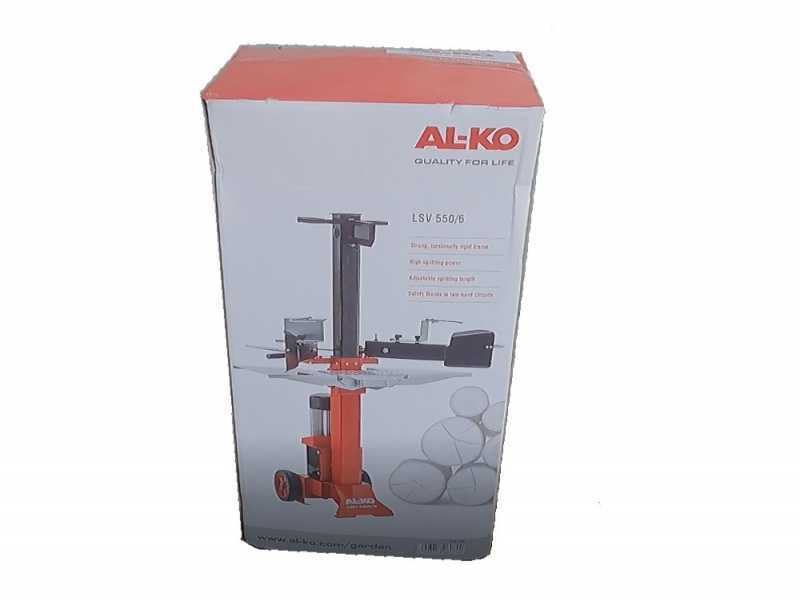

The log splitter is shipped in its original packaging.

Instructions manual included in the package.
