Description

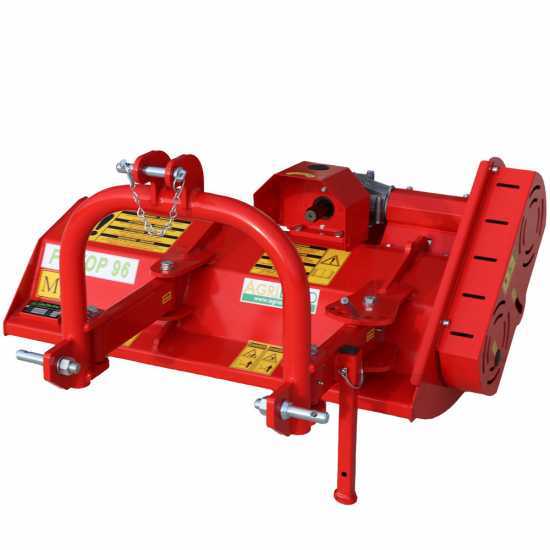

AgriEuro Fu TOP 96 M tractor-mounted flail mower

This AgriEuro Fu TOP 96 M small-sized flail mower is suitable for low-power tractors and for a semi-professional use; it stands out for its flexibility and lightness, together with the capacity of cutting grass and small shrubs. Easy to use, intuitive and with an attractive design.

Equipped with manual parallelogram movement.

TECHNICAL DATA (brief view):

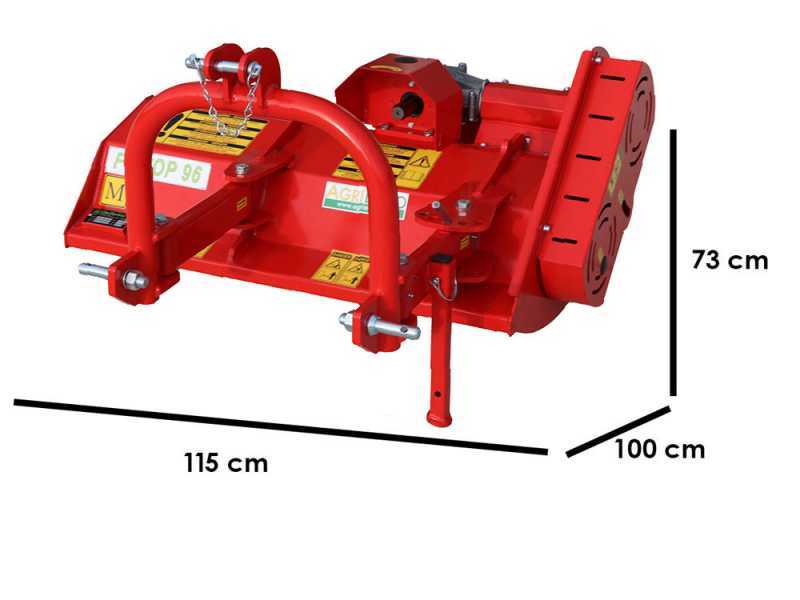

Real working width: 93 cm
Total width: 115 cm
Weight: 110 Kg
Manual side shift in 5 positions
Category I 3-point hitch
2-belt drive transmission

ON STANDARD EQUIPMENT:

Hammer blades
Adjustable rear roller
PTO

Attention: the machine is shipped ready for use Once mounted all the parts check the bolts tightening.
Please carefully read the instructions manual before starting the unit.

AgriEuro Fu TOP 96 M Tractor-mounted Flail Mower with Manual Shift - Light Series - 16 Hammer Flails

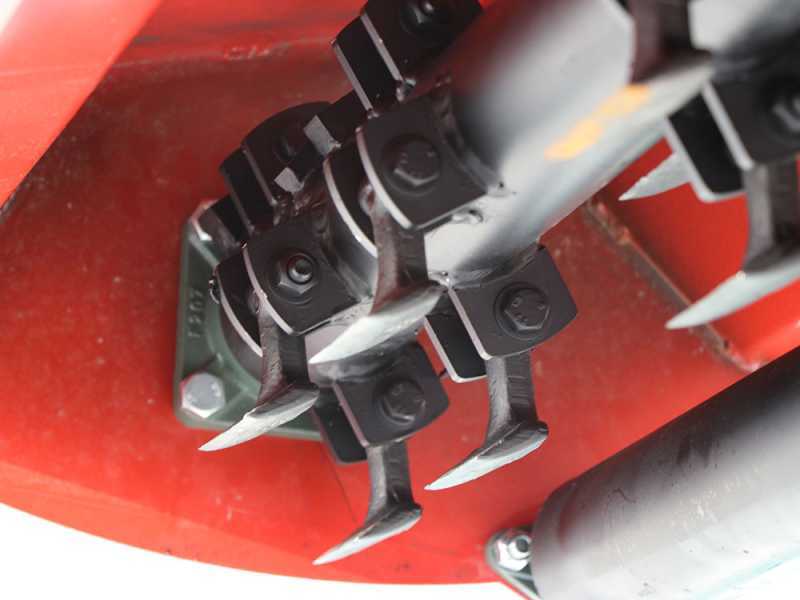

Cutting tools: hammer flails

No. of hammers fitted on standard equipment: 16

These hammers are mounted on a sturdy hardened steel bolt.

Focus on the cutting hammers, mounted on the rotating roller.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

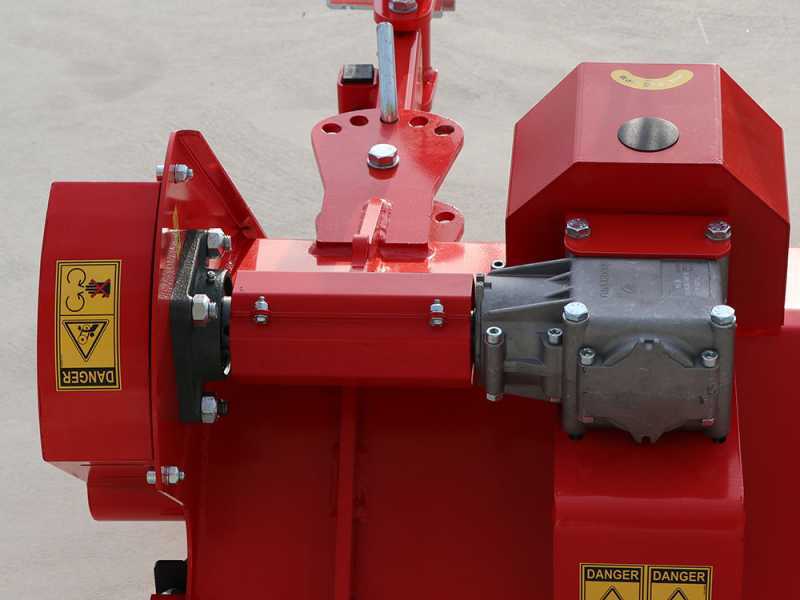

Side belt transmission and gearbox

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

2-belt side drive

Focus on the side belt protection cover.

The gearbox of this machine can contain no more than 1L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

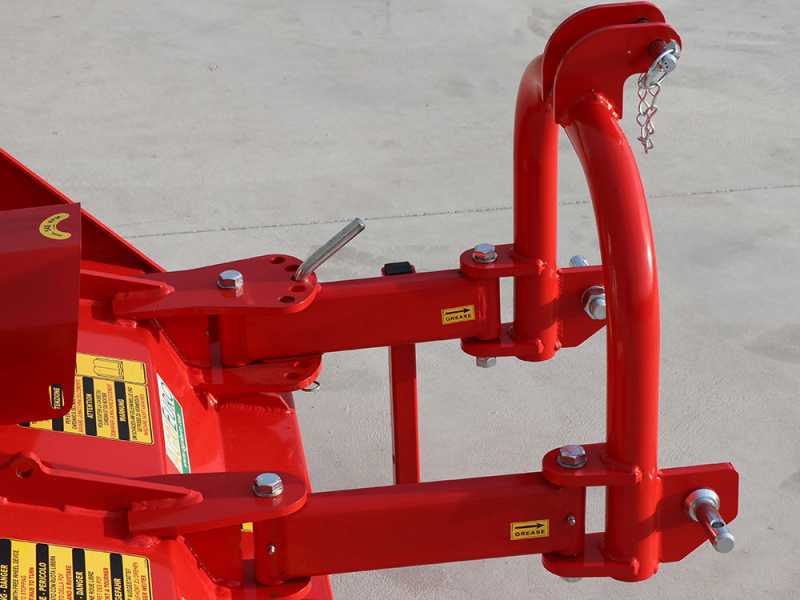

Manual side shift and 3-point hitch

The flail mower is equipped with a 5-position manual shift.

The 3-point hitch can be adjusted by means an easy trapezoidal motion.

Focus on the positioning holes.

Universal standard PTO ( 1 3/8" Z6 )

Universal joints suitable for all tractors on the market.

Focus on the sturdy 1° category 3-point hitch.

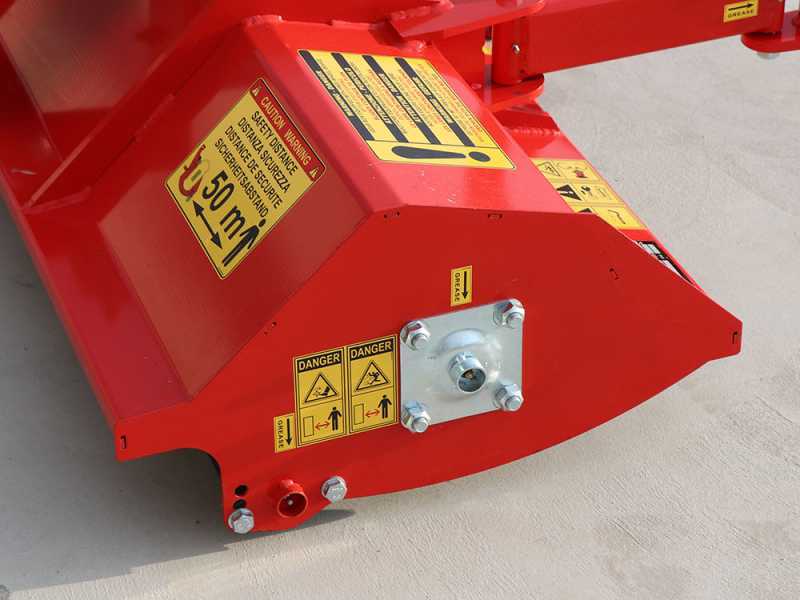

Rotor and side bearings

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor, with central opening provided with greaser.

The hammers ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.
