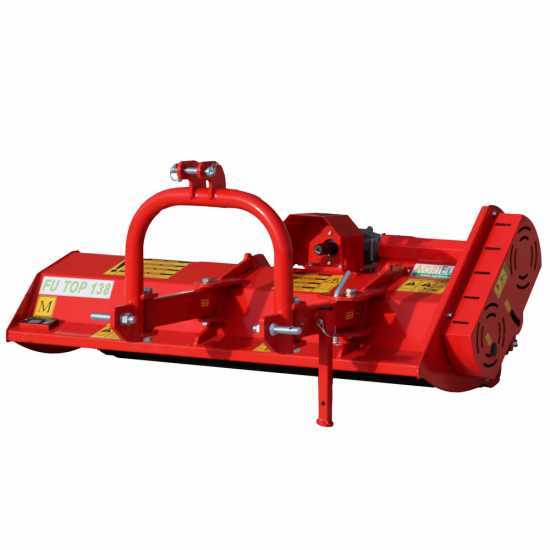

AgriEuro Fu TOP 138 M Tractor-mounted Flail Mower with Manual Shift - Light Series - 20 Hammer Flails

Questions & Answers (4)
ID: 105348

EAN: 8033424491644

AgriEuro Fu TOP 138 M Tractor-mounted Flail Mower with Manual Shift - Light Series - 20 Hammer Flails
+30 sold
Tractor power
From 25 to 30 HP
153 Kg
Cutting width
132 cm
Pantograph motion
Standard cutting tools
Hammer flails
Hammer flail weight
0.4 Kg
Cardan shaft
Manufacturing country
Product Features
Fu TOP 138 M
Tractor power:
From 25 to 30 HP
Manual shift:
Manual shift:
Hydraulic shift:
Pantograph motion:
Operating mode:
Fixed 3-point hitch:
Cardan shaft rotation:
Manufacturing country:
Transmission data
Integrated free wheel device:
Cutting data
Cutting width:
132 cm
Wood diameter:
Up to 30 mm
No. of blades:
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.4 Kg
Hammer flails:
Max. cutting height:
100 mm
Min. cutting height:
30 mm
Cutting width:
132 cm
Collection bag:
Single row
Side drive belts:
Rear support roller:
Free gifts/extra features
Side skids:
Cardan included:
Cardan shaft:
Instructions manual:
Dimensions and logistics
Product dimensions in cm (L x W x H):
150x100x73 cm
Net weight:
153 Kg
On pallet
Original packaging/s dimensions in cm (L x W x H):
150x65x60 cm
Gross weight (packaging included) :
160 Kg
Unloading with hydraulic tail lift:
Assembly time:
15 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 05/06/2024 - 07/06/2024
€ 2.084,36
VAT Included
Available versions
You're viewing:
Customers also viewed:

AgriEuro Fu TOP 138 M tractor-mounted flail mower

This AgriEuro Fu TOP 138 M small-sized flail mower is suitable for low-power tractors and for a semi-professional use; it stands out for its flexibility and lightness, together with the capacity of cutting grass and small shrubs. Easy to use, intuitive and with an attractive design.

Equipped with manual parallelogram movement.

TECHNICAL DATA (brief view):

  • Real working width: 132 cm
  • Total width: 155 cm
  • Weight: 153 Kg
  • Manual side shift in 5 positions
  • Category I 3-point hitch
  • 2-belt drive transmission


  • Hammer blades
  • Adjustable rear roller
  • PTO

Attention: the machine is shipped ready for use Once mounted all the parts check the bolts tightening.
Please carefully read the instructions manual before starting the unit.

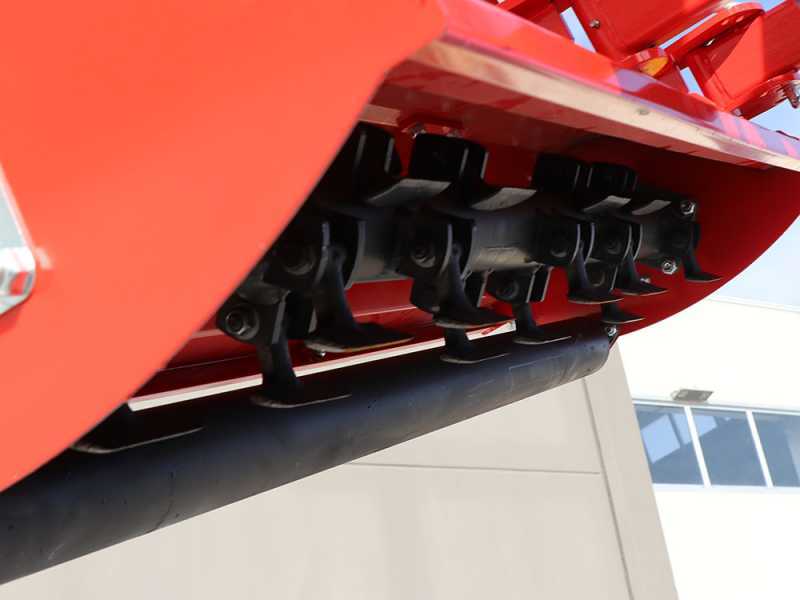

Cutting tools: hammer flails

No. of hammers fitted on standard equipment: 20

These hammers are mounted on a sturdy hardened steel bolt.

Focus on the cutting hammers, mounted on the rotating roller.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

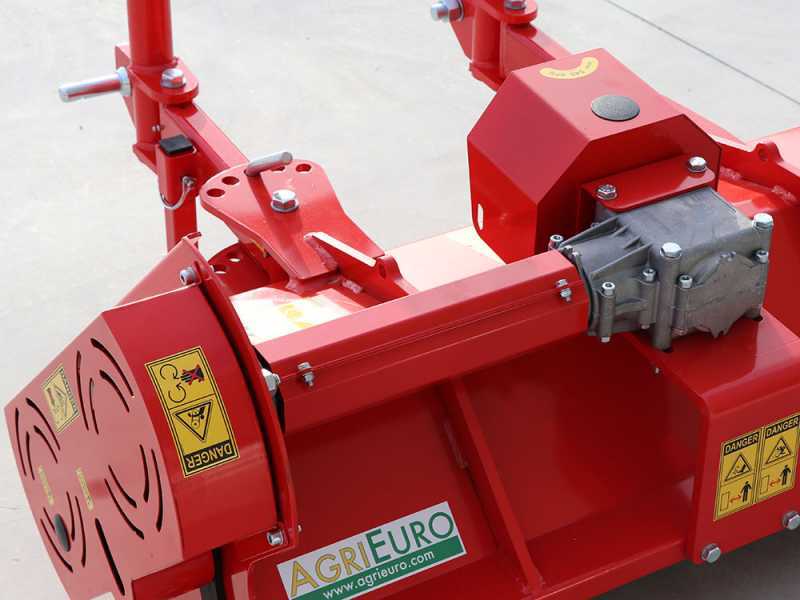

Side belt transmission and gearbox

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

2-belt side drive

Focus on the side belt protection cover.

The gearbox of this machine can contain no more than 1L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

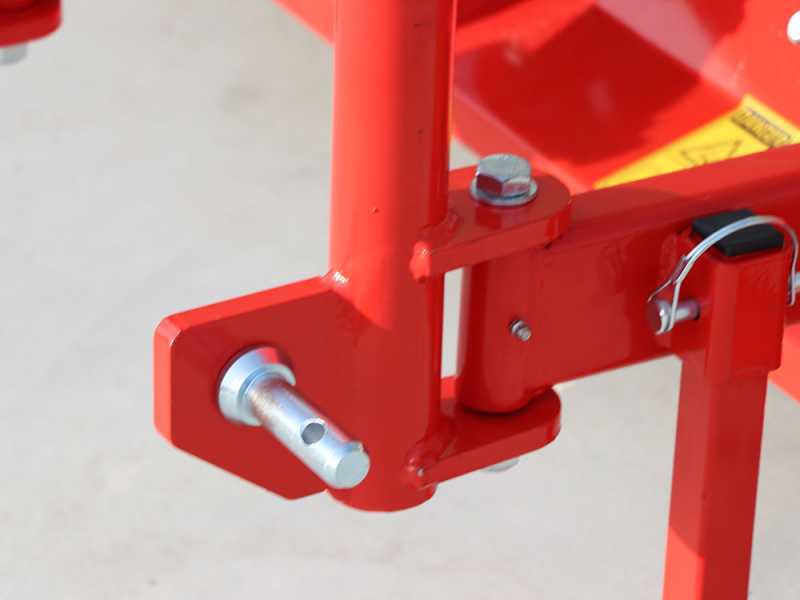

Manual side shift and 3-point hitch

The flail mower is equipped with a 5-position manual shift.

The 3-point hitch can be adjusted by means an easy trapezoidal motion.

Focus on the positioning holes.

Universal standard PTO ( 1 3/8" Z6 )

Universal joints suitable for all tractors on the market.

Focus on the sturdy 1° category 3-point hitch.

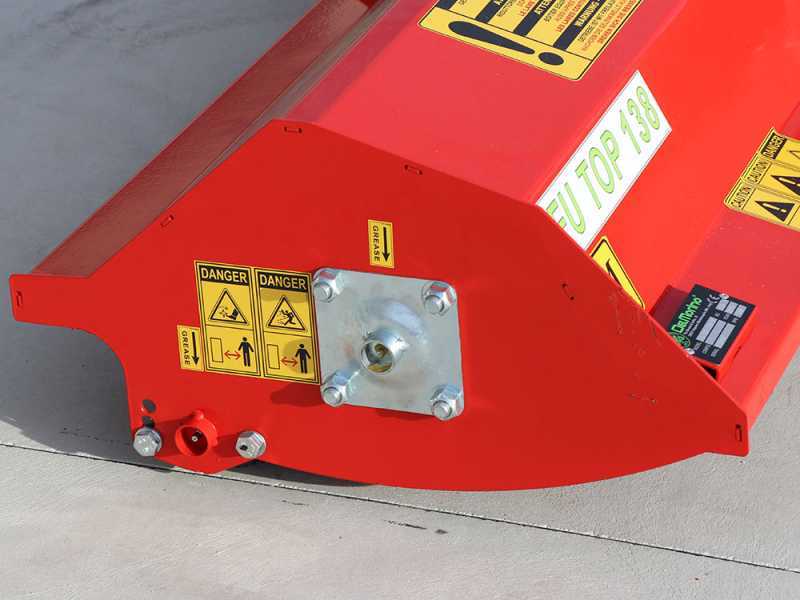

Rotor and side bearings

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor, with central opening provided with greaser.

The hammers ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

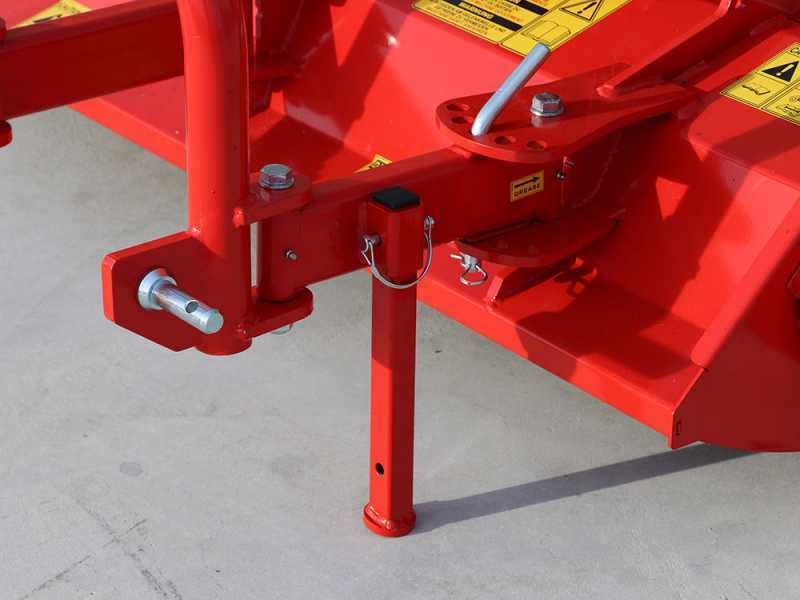

Stabilisers - Rear roller and side skids

Height-adjustable rear supporting roller provided on standard equipment (focus on the fixing bearing).

Sturdy adjustable support foot for storage.

Free items & Standard equipment

Free items included

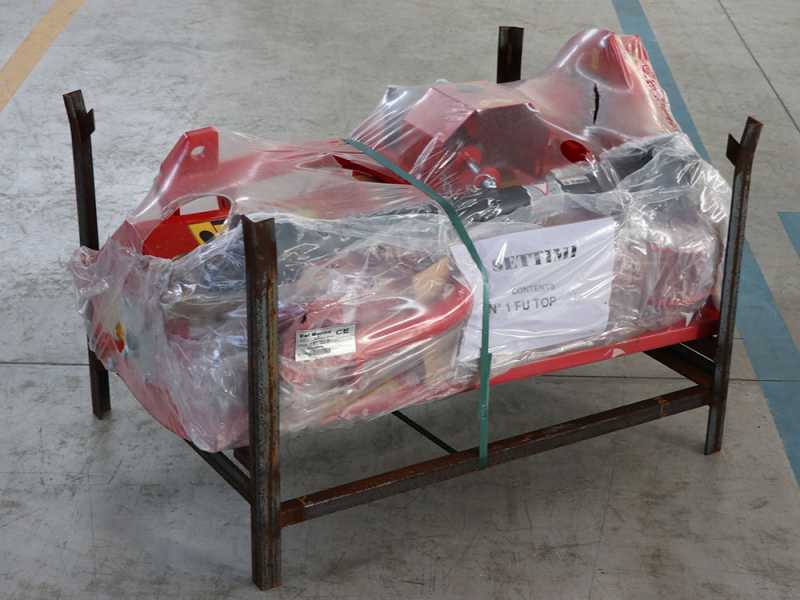

The flail mower is shipped partially assembled on pallet (you’ll only have to assemble the 3-point hitch and a few other small components)

Cardan shaft included in the package.

Instructions and assembly manual included in the package.
