AgriEuro FU 96 Tractor-mounted Flail Mower - Light Series

Questions & Answers (2)
ID: 100361

EAN: 8033424491095

MPN: 100361

AgriEuro FU 96 Tractor-mounted Flail Mower - Light Series
Tractor power
Up to 20 HP
Sturdiness/Series
Light
Weight
120 Kg
Cutting width
96 cm
Standard cutting tools
Knives
Hammer flail weight
0.15 Kg
Cardan shaft
Yes
Fixed hitch
Manufacturing country
Italy
Product Features
Model:
FU 96
Tractor power:
Up to 20 HP
Sturdiness/Series:
Light
Shift:
Fixed hitch
Fixed hitch:
Manual shift:
No
Hydraulic shift:
No
Fixed 3-point hitch:
Yes
Reversible three-point-hitch:
No
Cardan shaft rotation:
Standard
Manufacturing country:
Italy
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
96 cm
Wood diameter:
Up to 20 mm
No. of blades:
16+16
Standard cutting tools:
Knives
Hammer flail weight:
0.15 Kg
Knives blades:
Blades bolt diameter:
14 mm
Max. cutting height:
90 mm
Min. cutting height:
20 mm
Cutting width:
96 cm
Equipment
Collection bag:
No
Counter-blade:
Single row
Side drive belts:
2
Hydraulic Piston for moving:
No
Rear support roller:
Yes
Free gifts/extra features
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
110x65x70 cm
Net weight:
120 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
120x80x80 cm
Gross weight (packaging included) :
135 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 30/05/2024 - 03/06/2024
€ 1.617,31
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

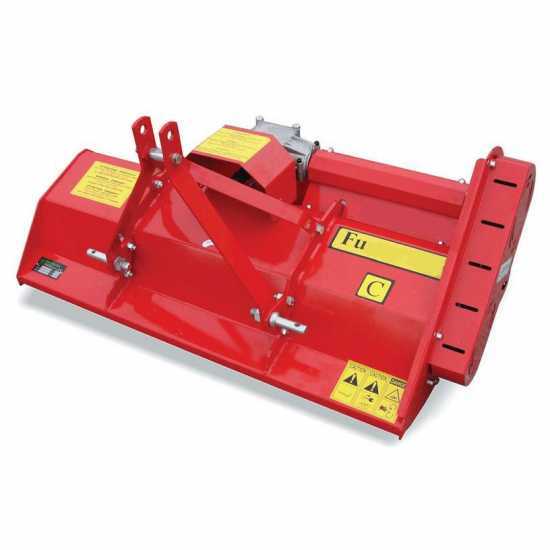

AgriEuro FU 96 tractor-mounted flail mower

The tractor-mounted horizontal axis flail mower series FU 96 features a light and elastic body and is used for shredding twigs, grass and small shrubs.

This machine is intended to finely shred grass and clippings, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of flail blades, it allows reducing the wave impact of the grass cover and performing excellent shredding operations. Thanks to the sharpened “Y” shaped flail blades it ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Standard features:

- Flail mower with flail blades;
- Electronic rotor balancing;
- Category I 3-point hitch;
- Sturdy aluminium gearbox with built-in freewheel;
- 2-belt drive with turnbuckle;
- Adjustable rear roller;
- CE-compliant safety guards;
- Standard PTO shaft included.

Technical features:

Total width: 110 cm

Operating width: 96 cm

Weight: 120 Kg

Working height: 2/9 cm

“Y” shaped flail blades: no. 16 pairs (32 flail blades in total)

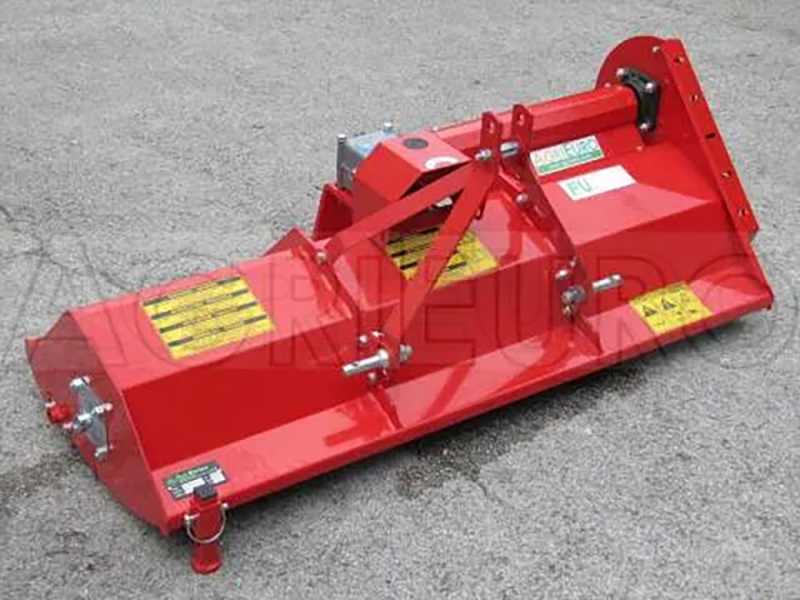

Fixed 3-point hitch

Category I 3-point hitch.

The flail mower is connected to the 3-point hitch on the rear part of the tractor.

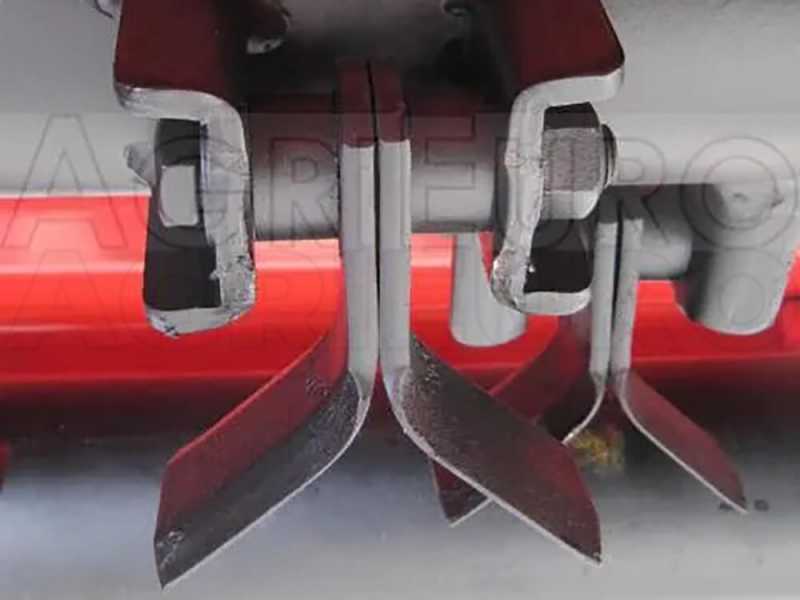

Cutting tools: flail blades

The flail mower is equipped with flail blades rotor.

The number of flail blade pairs is 16 with a total of 32 blades.

Focus on the flail blades mounted on particularly sturdy supports welded on the rotor.

Thanks to the sharpened “Y” shaped flail blades, it ensures high-quality results in gardens, lawns and urban areas.

Support roller and other details

The support roller is adjustable in 3 different positions.

Focus on the plate bearing on which the rear support roller is fixed.

2-Belt side drive.

Easy tensioning system for the side drive belts by means of a special screw: simply tighten the screw a few turns to tension the belts.

Focus on the gearbox in oil bath with side arm to run the belts.

Standard 1 2/8” z6 PTO (suitable for all current and recently manufactured tractors). Whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

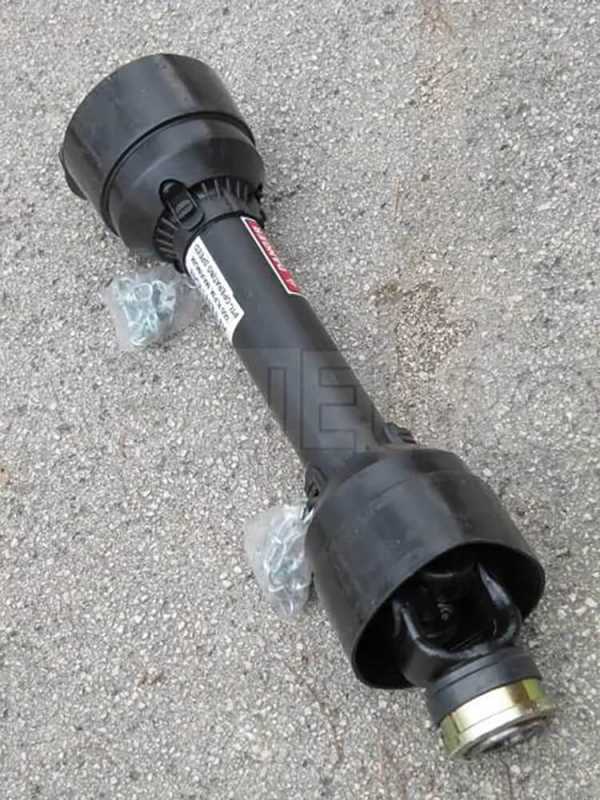

Free items & Standard equipment

Free items included

Standard PTO for connecting the flail mower machine to the tractor included with the tractor-mounted flail mower.
