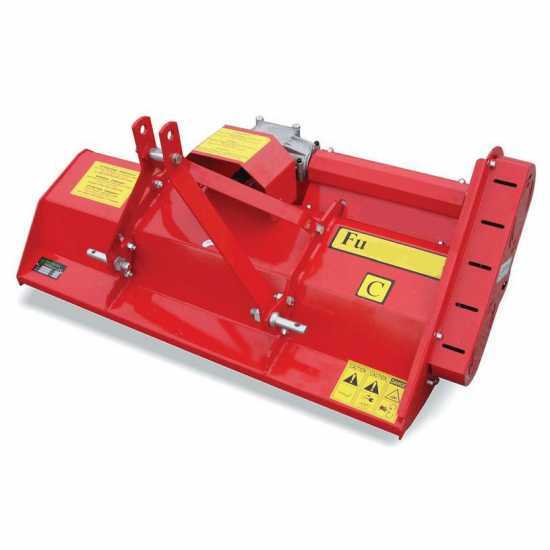

AgriEuro FU 96 Tractor-mounted Flail Mower - Light Series - Counterclockwise PTO (left-hand rotation)

Description

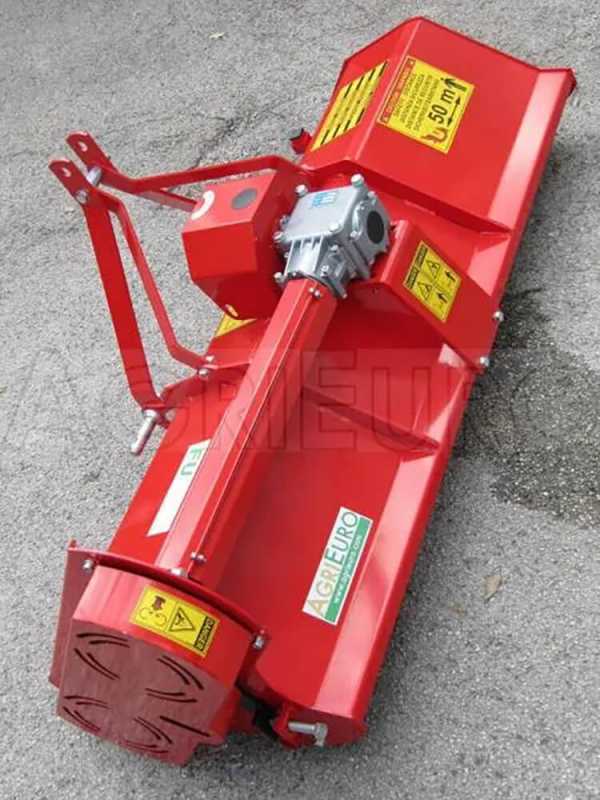

AgriEuro FU 96 tractor-mounted flail mower

CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).

The tractor-mounted horizontal axis flail mower series FU 96 features a light and elastic body and is used for shredding twigs, grass and small shrubs.

This machine is intended to finely shred grass and clippings, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of flail blades, it allows reducing the wave impact of the grass cover and performing excellent shredding operations. Thanks to the sharpened “Y” shaped flail blades it ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Standard features:

- Flail mower with flail blades;
- Electronic rotor balancing;
- Category I 3-point hitch;
- Sturdy aluminium gearbox with built-in freewheel;
- 2-belt drive with turnbuckle;
- Adjustable rear roller;
- CE-compliant safety guards;
- Standard PTO shaft included.

Technical features:

Total width: 110 cm

Operating width: 96 cm

Weight: 120 Kg

Working height: 2/9 cm

“Y” shaped flail blades: no. 16 pairs (32 flail blades in total)

AgriEuro FU 96 Tractor-mounted Flail Mower - Light Series - Counterclockwise PTO (left-hand rotation)

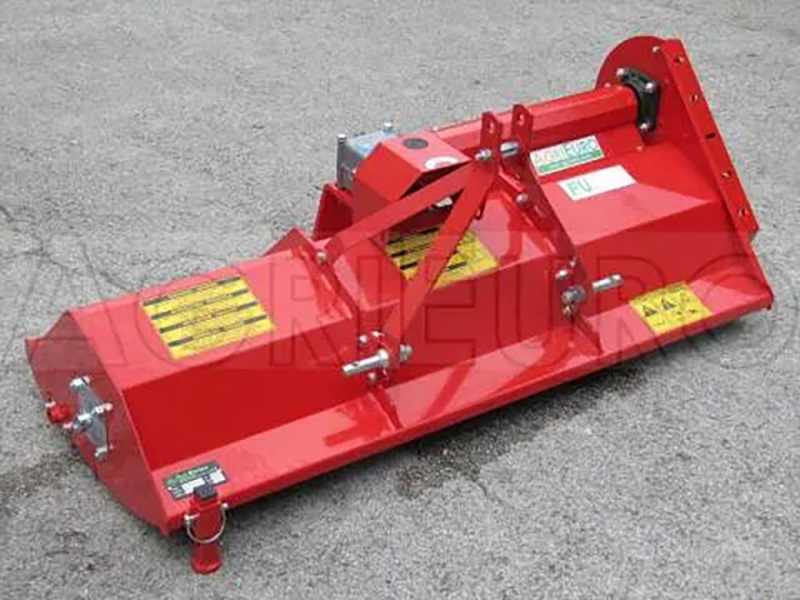

Fixed 3-point hitch

Category I 3-point hitch.

The flail mower is connected to the 3-point hitch on the rear part of the tractor.

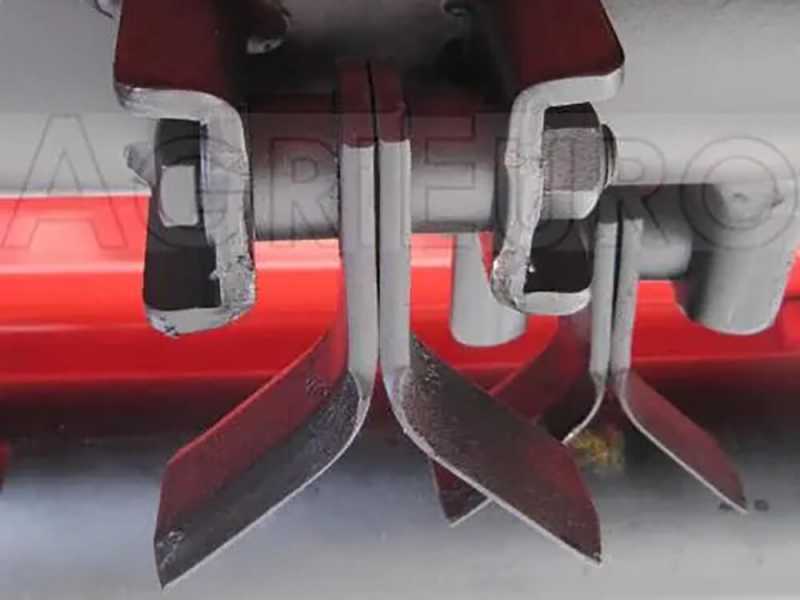

Cutting tools: flail blades

The flail mower is equipped with flail blades rotor.

The number of flail blade pairs is 16 with a total of 32 blades.

Focus on the flail blades mounted on particularly sturdy supports welded on the rotor.

Thanks to the sharpened “Y” shaped flail blades, it ensures high-quality results in gardens, lawns and urban areas.

Support roller and other details

The support roller is adjustable in 3 different positions.

Focus on the plate bearing on which the rear support roller is fixed.

2-Belt side drive.

Easy tensioning system for the side drive belts by means of a special screw: simply tighten the screw a few turns to tension the belts.

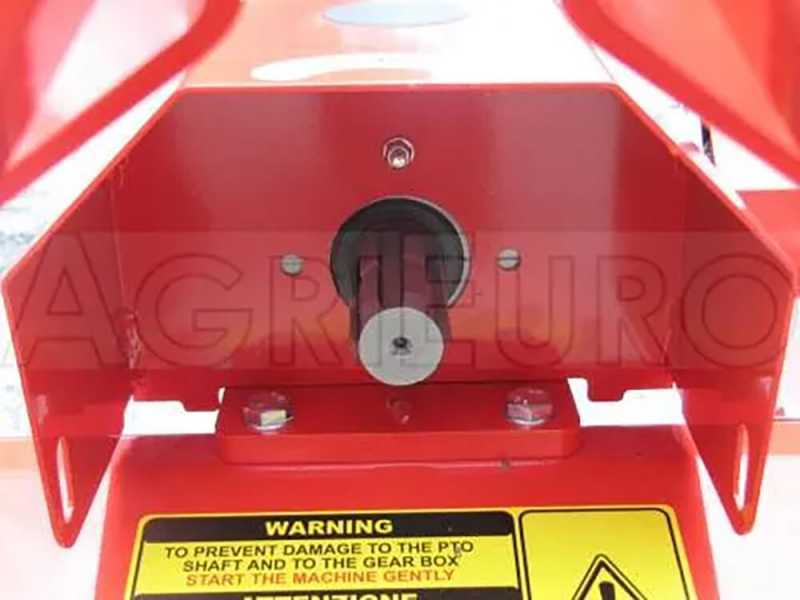

Focus on the gearbox in oil bath with side arm to run the belts.

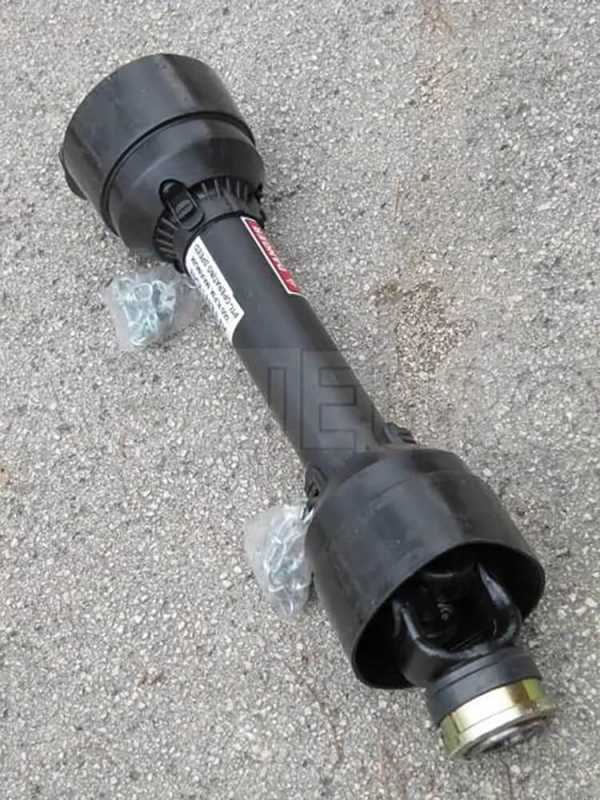

Standard 1 2/8” z6 PTO (suitable for all current and recently manufactured tractors). Whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).
