AgriEuro FU 164 Tractor-mounted Flail Mower - Light Series - Counterclockwise PTO (left-hand rotation)

Questions & Answers (5)
ID: 113076

EAN: 8000002836234

MPN: FU164CSX

9,1/10
After-sales assistance & Spare parts
AgriEuro FU 164 Tractor-mounted Flail Mower - Light Series - Counterclockwise PTO (left-hand rotation)
+100 sold
Tractor power
from 30 to 35 HP
Sturdiness/Series
Light
Weight
170 Kg
Cutting width
164 cm
Max. Branch Diameter
mm
Standard cutting tools
Knives
Hammer flail weight
0.15 Kg
Cardan shaft
Yes
Fixed hitch
Manufacturing country
Italy
Product Features
Model:
FU 164
Mulcher type:
Standard rear mulcher
Tractor power:
from 30 to 35 HP
Sturdiness/Series:
Light
Shift:
Fixed hitch
Fixed hitch:
Manual shift:
No
Hydraulic shift:
No
Fixed 3-point hitch:
Yes
Reversible three-point-hitch:
No
Cardan shaft rotation:
Manufacturing country:
Italy
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
164 cm
Max. Branch Diameter:
mm
Wood diameter:
Up to 20 mm
No. of blades:
48 + 48
Standard cutting tools:
Knives
Hammer flail weight:
0.15 Kg
Knives blades:
Blades bolt diameter:
14 mm
Max. cutting height:
90 mm
Min. cutting height:
20 mm
Cutting width:
164 cm
Equipment
Collection bag:
No
Counter-blade:
Single row
Side drive belts:
2
Hydraulic Piston for moving:
No
Rear crampons (collecting rods):
No
Rear support roller:
Yes
Free gifts/extra features
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
Width: 176 cm
Net weight:
170 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
60x180x67 cm
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
10 - 12 days from purchase
Free Shipping
€ 1.898,75
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

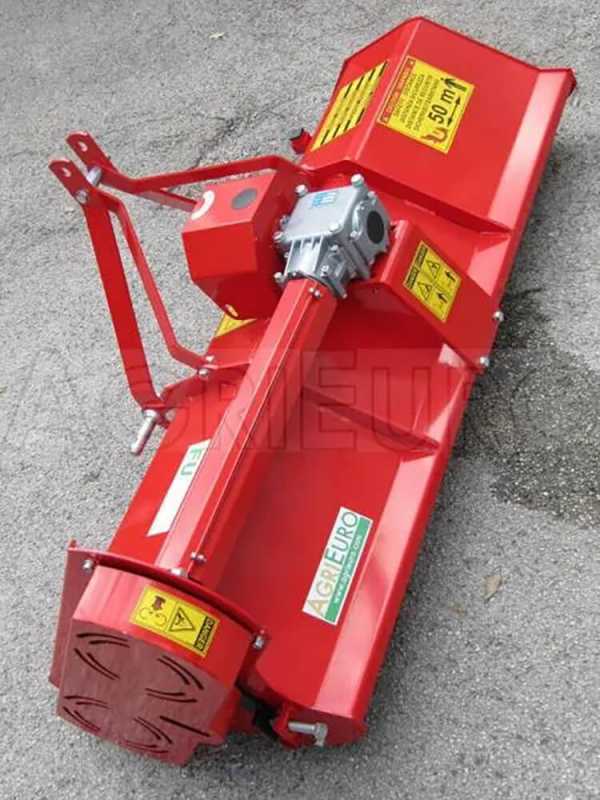

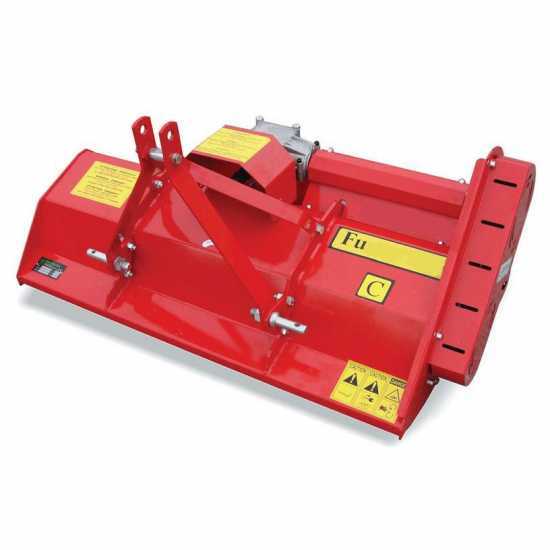

AgriEuro FU 164 tractor-mounted flail mower

CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).

The tractor-mounted horizontal axis flail mower series FU 164 features a light and elastic body and is used for shredding twigs, grass and small shrubs.

This machine is intended to finely shred grass and clippings, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of flail blades, it allows reducing the wave impact of the grass cover and performing excellent shredding operations. Thanks to the sharpened “Y” shaped flail blades it ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Standard features:

- Flail mower with flail blades;
- Electronic rotor balancing;
- Category I 3-point hitch;
- Sturdy aluminium gearbox with built-in freewheel;
- 2-belt drive with turnbuckle;
- Adjustable rear roller;
- CE-compliant safety guards;
- Standard PTO shaft included.

Technical features:

Total width: 176 cm

Operating width: 164 cm

Weight: 170 Kg

Working height: 2/9 cm

“Y” shaped flail blades: no. 48 pairs(96 flail blades in total)


Attention: this product is not available for prompt delivery but will be custom-made according to the order. Therefore, it is excluded from the Right of Withdrawal and the 30-day Return policy, as per Legislative Decree no. 206/2005, Article 59, paragraph 1, letter c.

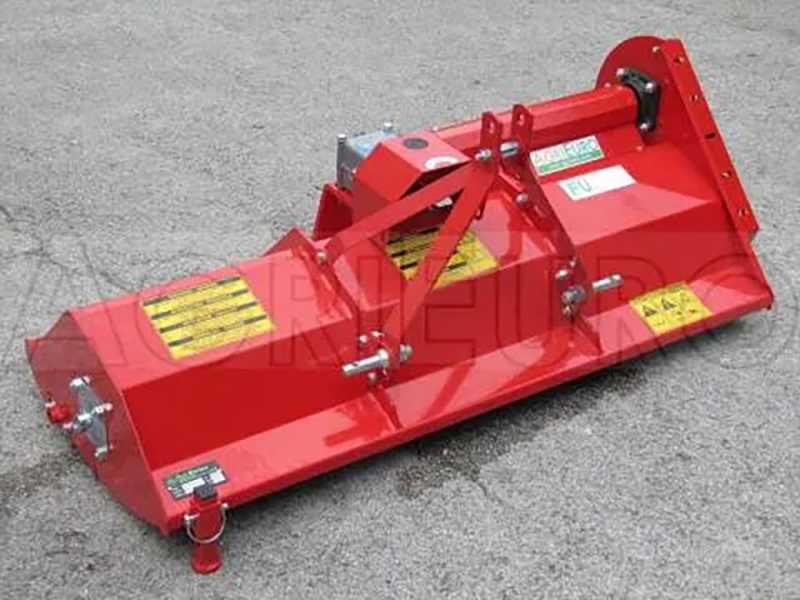

Fixed 3-point hitch

Category I 3-point hitch.

The flail mower is connected to the 3-point hitch on the rear part of the tractor.

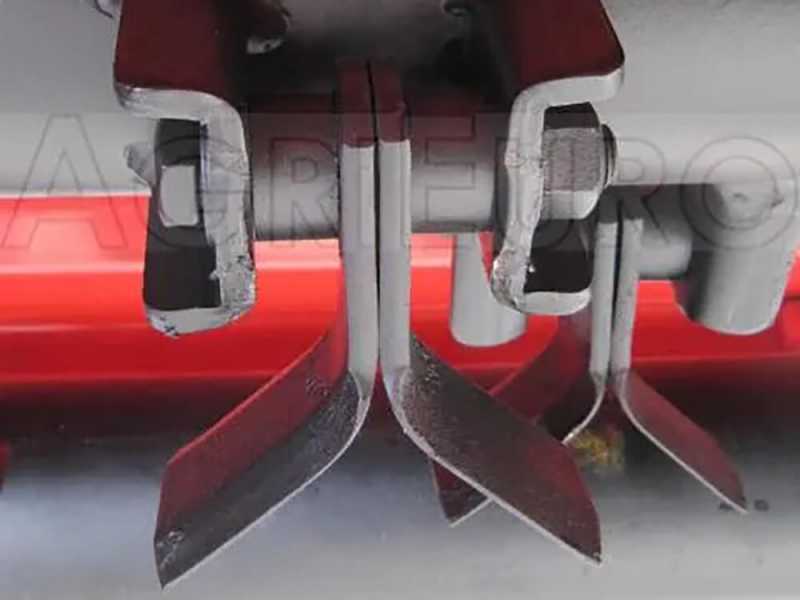

Cutting tools: flail blades

The flail mower is equipped with flail blades rotor.

The number of flail blade pairs is 48 with a total of 96 blades.

Focus on the flail blades mounted on particularly sturdy supports welded on the rotor.

Thanks to the sharpened “Y” shaped flail blades it ensures high-quality results in gardens, lawns and urban areas.

Support roller and other details

The support roller is adjustable in 3 different positions.

Focus on the plate bearing on which the rear support roller is fixed.

2-Belt side drive.

Easy tensioning system for the side drive belts by means of a special screw: simply tighten the screw a few turns to tension the belts.

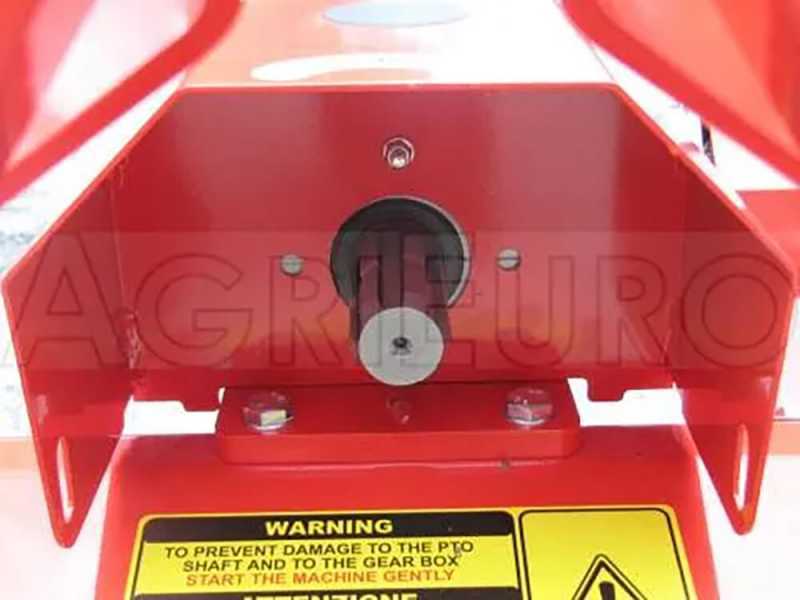

Focus on the gearbox in oil bath with side arm to run the belts.

Standard 1 2/8” z6 PTO (suitable for all current and recently manufactured tractors). Whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

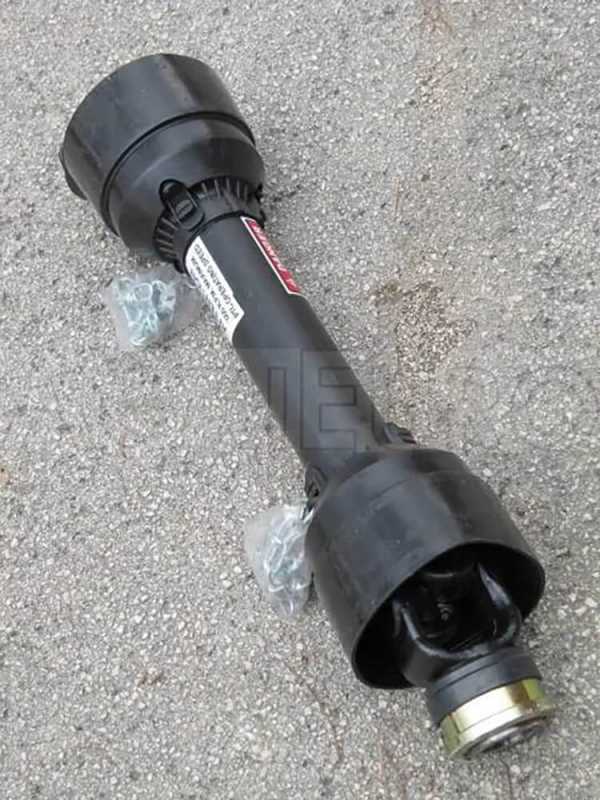

Free items & Standard equipment

Free items included

Standard PTO for connecting the flail mower machine to the tractor included with the tractor-mounted flail mower.
