AgriEuro FU 138 Tractor-mounted Flail Mower - Light Series - Counterclockwise PTO (left-hand rotation)

Questions & Answers (4)
ID: 113075

EAN: 8000002835756

MPN: FU138CSX

AgriEuro FU 138 Tractor-mounted Flail Mower - Light Series - Counterclockwise PTO (left-hand rotation)
+100 sold
Tractor power
From 25 to 30 HP
Sturdiness/Series
Light
Weight
148 Kg
Cutting width
138 cm
Standard cutting tools
Knives
Hammer flail weight
0.15 Kg
Cardan shaft
Yes
Fixed hitch
Manufacturing country
Italy
Product Features
Model:
FU 138
Tractor power:
From 25 to 30 HP
Sturdiness/Series:
Light
Shift:
Fixed hitch
Fixed hitch:
Manual shift:
No
Hydraulic shift:
No
Fixed 3-point hitch:
Yes
Reversible three-point-hitch:
No
Cardan shaft rotation:
Manufacturing country:
Italy
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
138 cm
Wood diameter:
Up to 20 mm
No. of blades:
20+20
Standard cutting tools:
Knives
Hammer flail weight:
0.15 Kg
Knives blades:
Blades bolt diameter:
14 mm
Max. cutting height:
90 mm
Min. cutting height:
20 mm
Cutting width:
138 cm
Equipment
Collection bag:
No
Counter-blade:
Single row
Side drive belts:
2
Hydraulic Piston for moving:
No
Rear support roller:
Yes
Free gifts/extra features
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
Width: 138 cm
Net weight:
148 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
60x155x67 cm
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
10 - 12 days from purchase
Free Shipping
€ 1.724,77
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

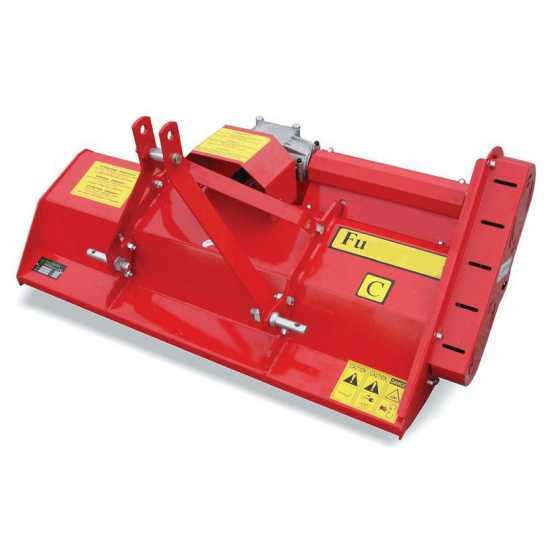

AgriEuro FU 138 tractor-mounted flail mower

CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).

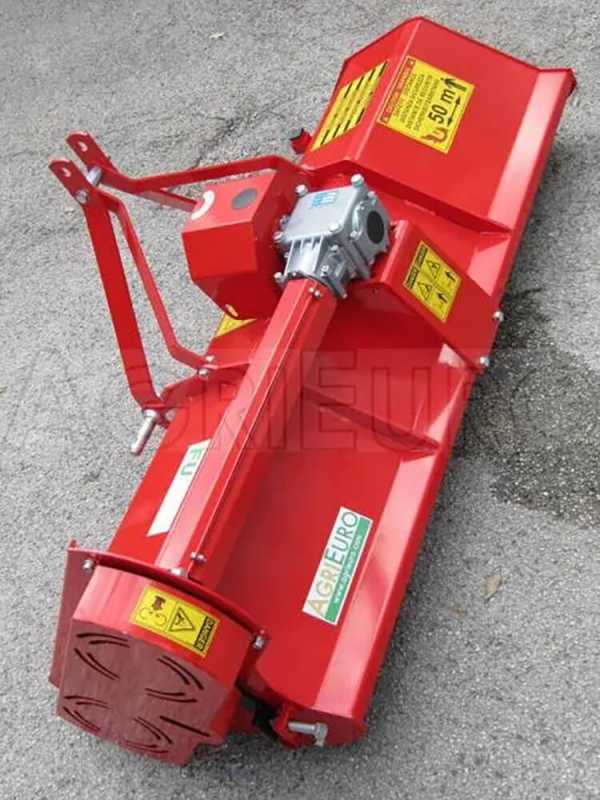

The tractor-mounted horizontal axis flail mower series FU 138 features a light and elastic body and is used for shredding twigs, grass and small shrubs.

This machine is intended to finely shred grass and clippings, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of flail blades, it allows reducing the wave impact of the grass cover and performing excellent shredding operations. Thanks to the sharpened “Y” shaped flail blades it ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Standard features:

- Flail mower with flail blades;
- Electronic rotor balancing;
- Category I 3-point hitch;
- Sturdy aluminium gearbox with built-in freewheel;
- 2-belt drive with turnbuckle;
- Adjustable rear roller;
- CE-compliant safety guards;
- Standard PTO shaft included.

Technical features:

Total width: 150 cm

Operating width: 138 cm

Weight: 148 Kg

Working height: 2/9 cm

“Y” shaped flail blades: no. 20 pairs (40 flail blades in total)

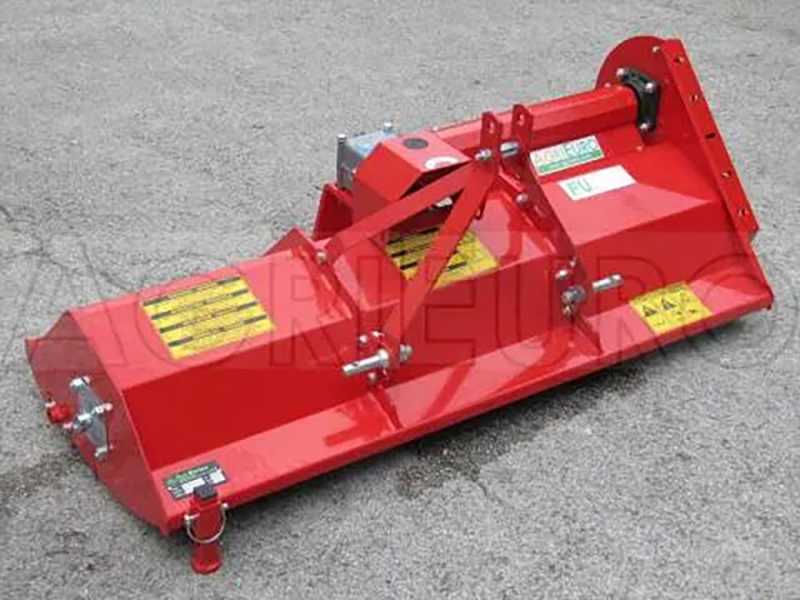

Fixed 3-point hitch

Category I 3-point hitch.

The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Cutting tools: flail blades

The flail mower is equipped with flail blades rotor.

The number of flail blade pairs is 20 with a total of 40 blades.

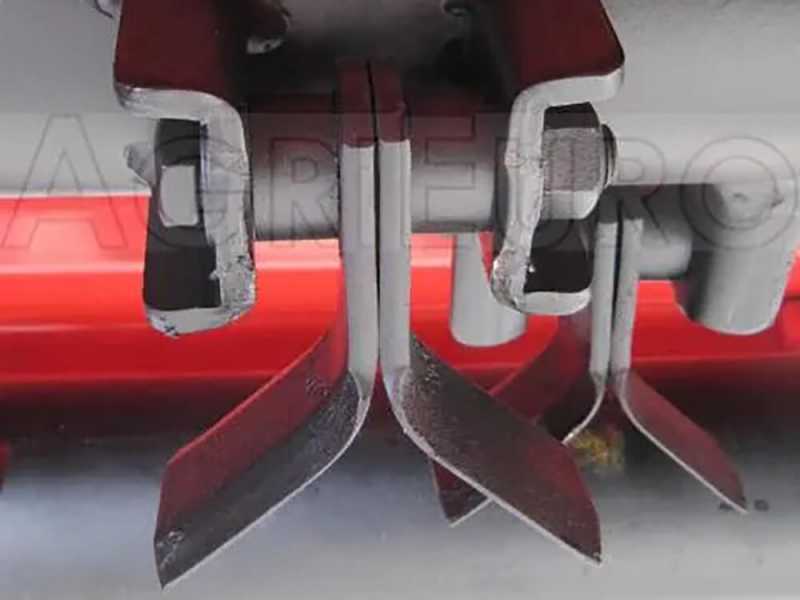

Focus on the flail blades mounted on particularly sturdy supports welded on the rotor.

Thanks to the sharpened “Y” shaped flail blades it ensures high-quality results in gardens, lawns and urban areas.

Support roller and other details

The support roller is adjustable in 3 different positions.

Focus on the plate bearing on which the rear support roller is fixed.

2-Belt side drive.

Easy tensioning system for the side drive belts by means of a special screw: simply tighten the screw a few turns to tension the belts.

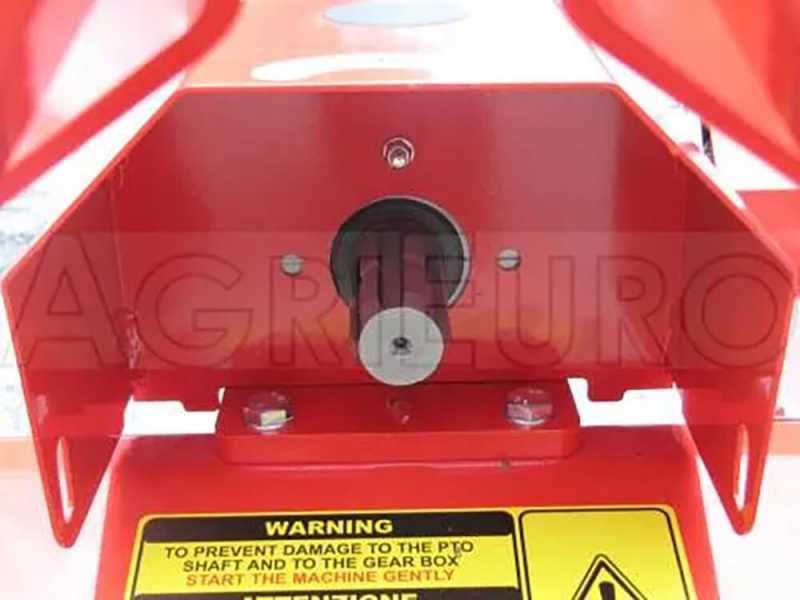

Focus on the gearbox in oil bath with side arm to run the belts.

Standard 1 2/8” z6 PTO (suitable for all current and recently manufactured tractors). Whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

Free items & Standard equipment

Free items included

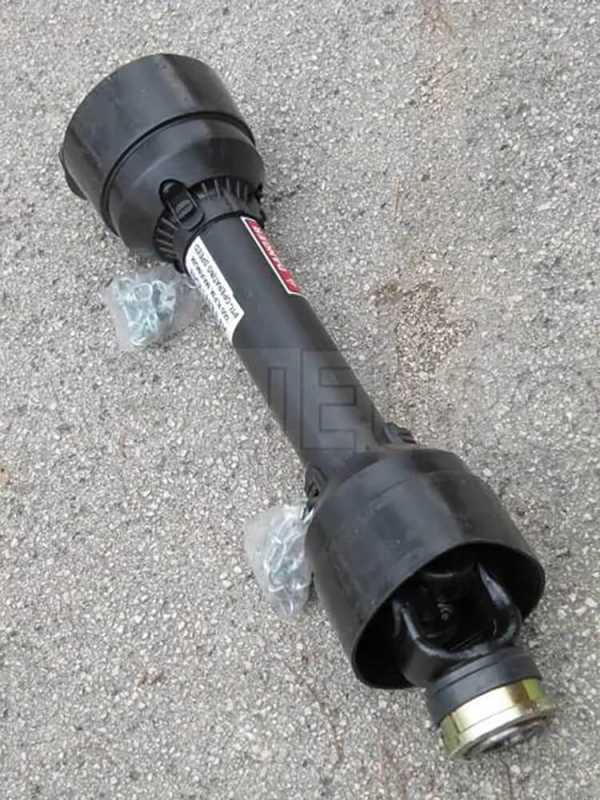

Standard PTO for connecting the flail mower machine to the tractor included with the tractor-mounted flail mower.
