Agrieuro DISCO 125 GM Tractor-mounted Flail Mower Light Series - Counterclockwise PTO (left-hand rotation)

Questions & Answers (2)
ID: 113085

MPN: GM20MSX

Agrieuro DISCO 125 GM Tractor-mounted Flail Mower Light Series - Counterclockwise PTO (left-hand rotation)
Tractor power
From 20 to 25 HP
Sturdiness/Series
Light
Weight
175 Kg
Cutting width
119 cm
Standard cutting tools
Hammer flails
Hammer flail weight
0.4 Kg
Cardan shaft
Yes
Fixed hitch
Manufacturing country
Italy
Product Features
Model:
DISCO 125 GM
Tractor power:
From 20 to 25 HP
Sturdiness/Series:
Light
Shift:
Fixed hitch
Fixed hitch:
Manual shift:
No
Hydraulic shift:
No
Fixed 3-point hitch:
Yes
Reversible three-point-hitch:
No
Cardan shaft rotation:
Manufacturing country:
Italy
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
119 cm
Wood diameter:
Up to 20 mm
No. of blades:
20
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.4 Kg
Hammer flails:
Blades bolt diameter:
18 mm
Hammer width:
8.2 cm
Max. cutting height:
100 mm
Min. cutting height:
30 mm
Cutting width:
119 cm
Equipment
Collection bag:
No
Counter-blade:
Single row
Side drive belts:
2
Hydraulic Piston for moving:
No
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
60x146x60 cm
Net weight:
175 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
94x146x65 cm
Gross weight (packaging included) :
175 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
10 - 12 days from purchase
Free Shipping
€ 1.854,45
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

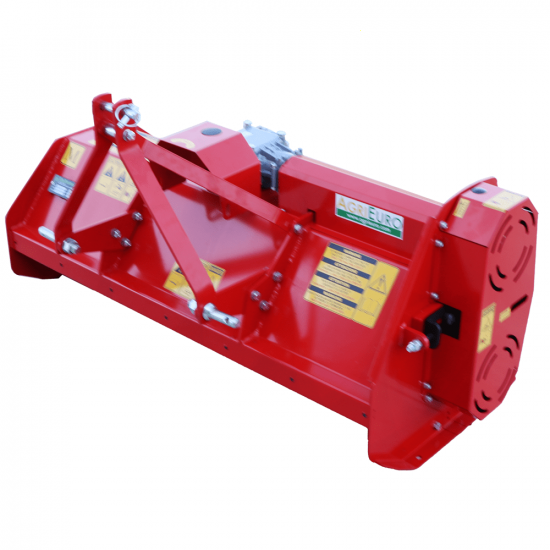

AGRIEURO DISCO 125 GM Tractor-mounted flail mower

CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).

The AGRIEURO DISCO 125 GM flail mower is an innovative machinery, specifically designed to exceed all the expectations.

Provided with a wider side, which is intended to protect and allow quickly discharging of the shredded material, thus resulting in faster operations.

The three-point hitch is tightly fixed and the components are strictly Made in Italy with an aluminium gearbox.

The barrel roller bearings are 10 times stronger than standard ball bearings.

This flail mower is suitable for low-power tractors. The large shredding system enables professional shredding operations.

The machine, thanks to the three-point hitch and depending on the mounted tools can perform different functions such as grass cutting, shredding stalks, pruning shredding, and so on.

The design ensures high performance, reliability and durability, improving and optimising the power-consumption ratio of the tractor thanks to the sturdiness of the machine, the shape of the tools, the perfect dynamic balancing of the rotor and many other original technical solutions.

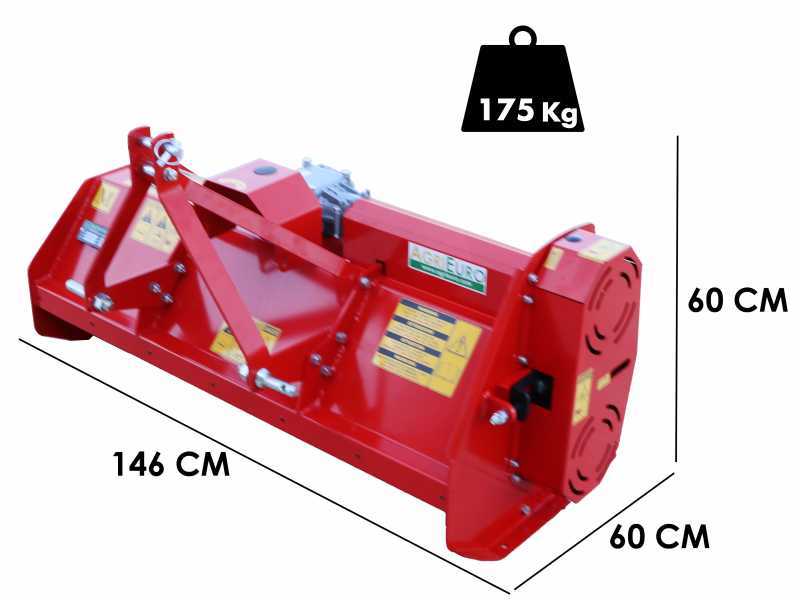

TECHNICAL DATA (brief view):

  • Real working width: 119 cm
  • Total width: 146 cm
  • Weight: 175 Kg
  • Rear supporting roller

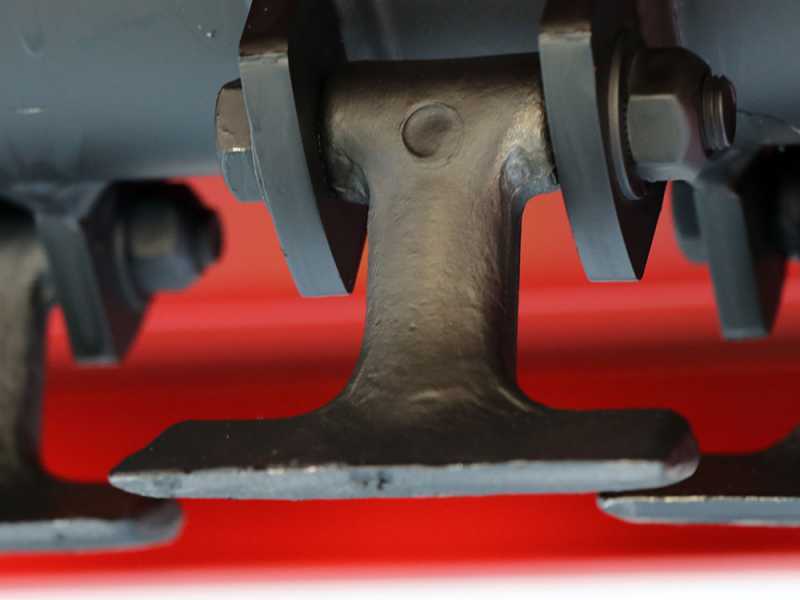

Cutting tools

No. of standard-supplied hammer flails: 20

Rotor with toothed hammer flails for uncultivated terrains, brambles and pruning waste. It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammer flails, it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

The cutting height can be adjusted.

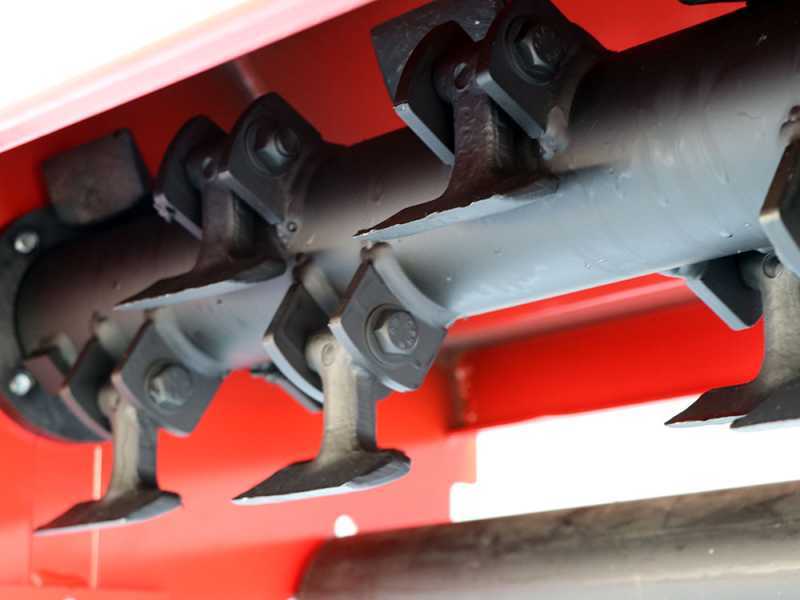

Rotor, hammer flails supports, side bearings

The highly-tick rotor features a 12 cm diameter. This makes it suitable to withstand long years of working operations, keeping its sturdiness against the accidental impacts that may occur.

Furthermore, the rotor is mounted on steel side supports equipped with bearings.

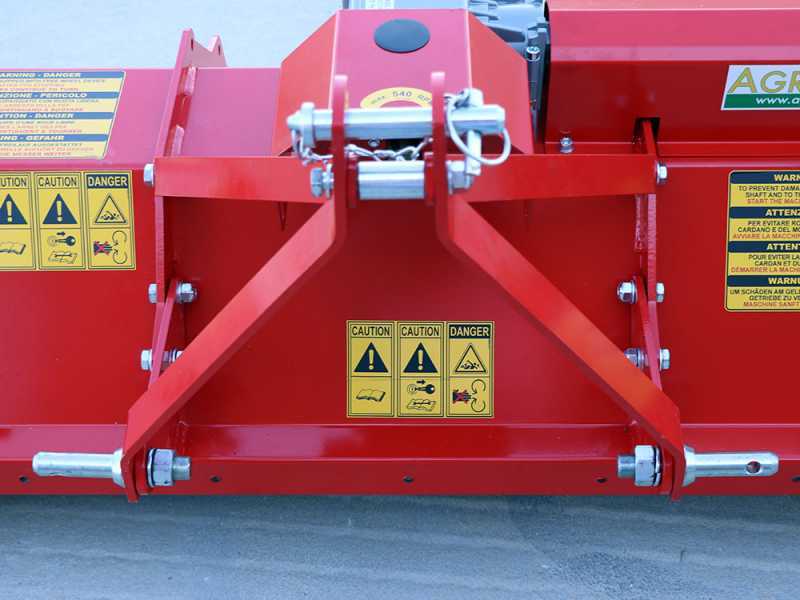

Fixed 3-point hitch

Equipped with standard fixed 3-point hitch. Thus, all the components are strictly Made in Italy.

Focus on the couplings that are closely placed to the machine body, meaning that they are not protruding.

This allows the flail mower to be positioned very close to the tractor, eliminating the risk of stones being thrown at the Operator, but above all eliminating any problems with lifting the machine, because in this way its weight is very close to the tractor, thus placing a much lower burden on it than other products of the same type.

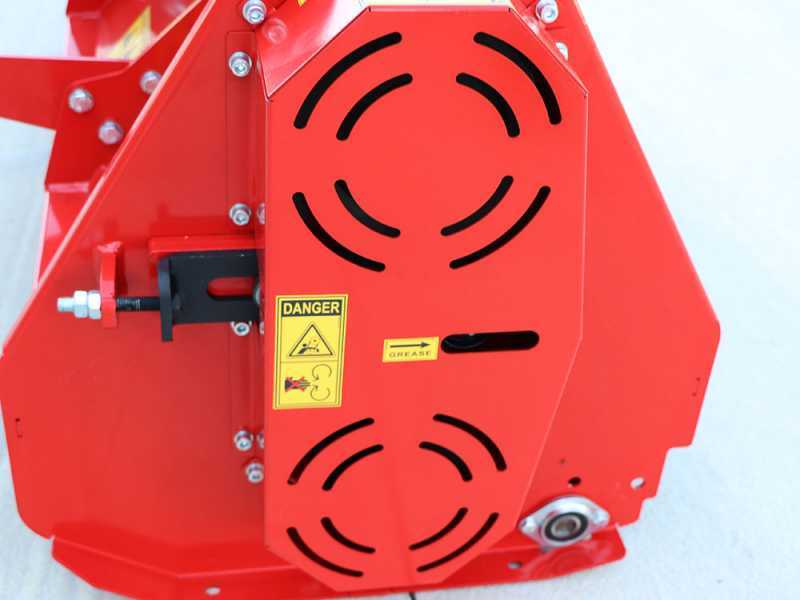

Side belt transmission and gearbox

Large-sized gearbox in oil bath.

The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

2-belt side drive with large-section belt.

Space-saving side belt protection cover: This specific feature allows the flail mower to require an incredibly reduced space.

Focus on the side transmission greaser, which is comfortably placed in an easy-access position.

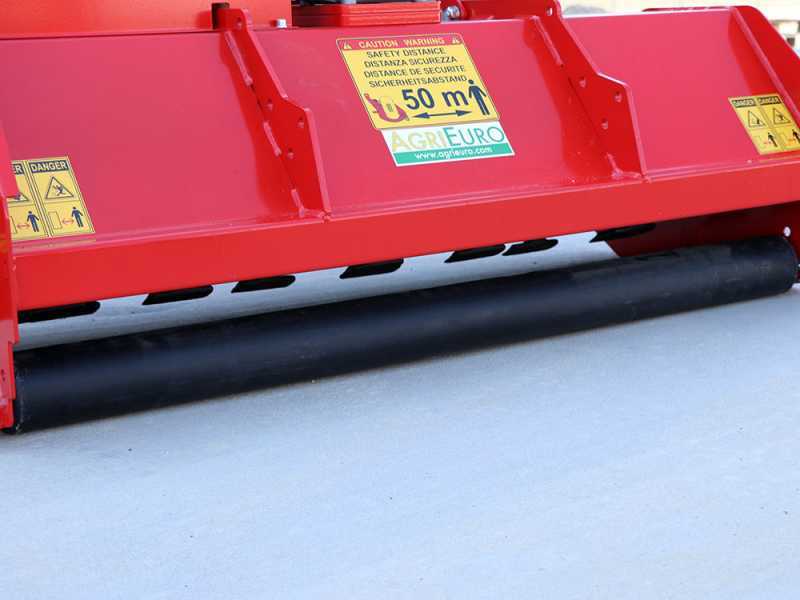

Stabilisers - Rear roller and side skids

Height-adjustable rear supporting roller with a large diameter of 86 mm.

Adjustable side skids

Free items & Standard equipment

Free items included

The product will be shipped safely on a pallet.

Instructions manual included.

Standard-supplied cardan shaft.
