Description

AGRIEURO DISCO 115 GM Tractor-mounted flail mower

CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).

The AGRIEURO DISCO 115 GM flail mower is an innovative machinery, specifically designed to exceed all the expectations.

Provided with a wider side, which is intended to protect and allow quickly discharging of the shredded material, thus resulting in faster operations.

The three-point hitch is tightly fixed and the components are strictly Made in Italy with an aluminium gearbox.

The barrel roller bearings are 10 times stronger than standard ball bearings.

This flail mower is suitable for low-power tractors. The large shredding system enables professional shredding operations.

The machine, thanks to the three-point hitch and depending on the mounted tools can perform different functions such as grass cutting, shredding stalks, pruning shredding, and so on.

The design ensures high performance, reliability and durability, improving and optimising the power-consumption ratio of the tractor thanks to the sturdiness of the machine, the shape of the tools, the perfect dynamic balancing of the rotor and many other original technical solutions.

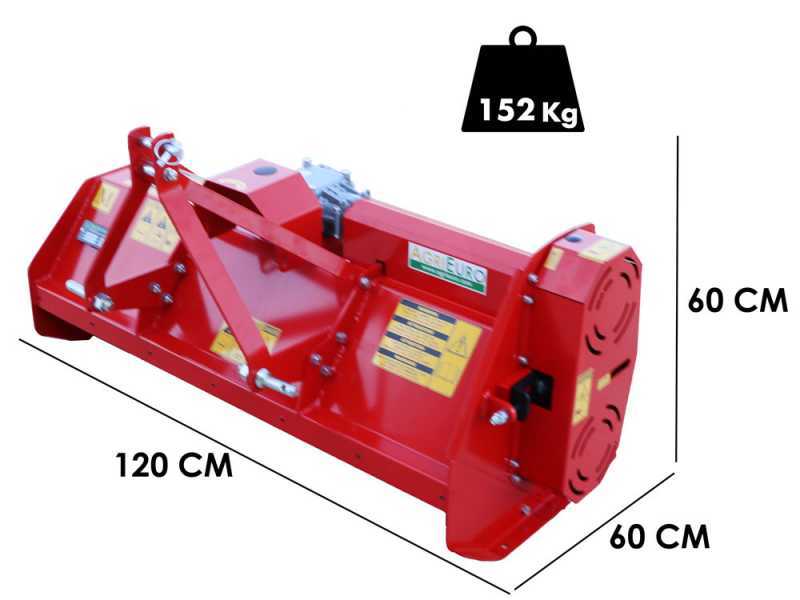

TECHNICAL DATA (brief view):

Real working width: 106 cm
Total width: 120 cm
Weight: 152 Kg

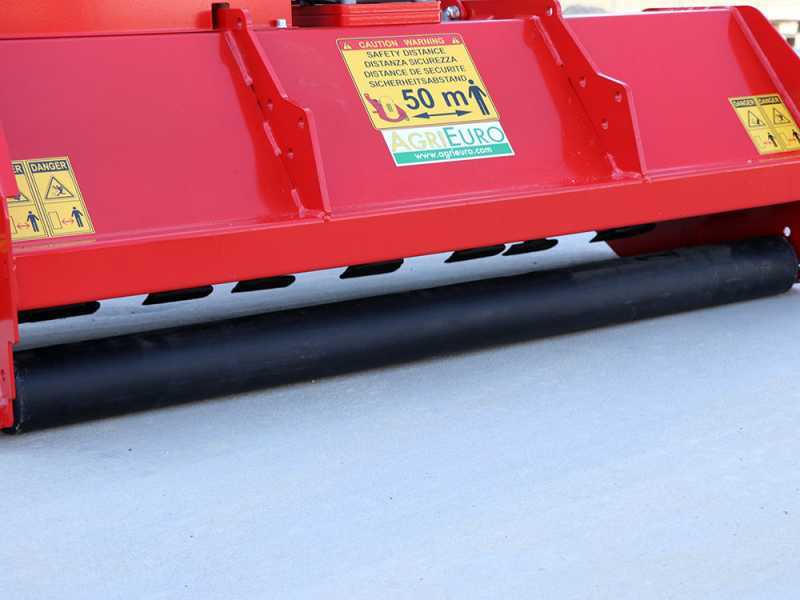

Rear supporting roller

Agrieuro DISCO 115 GM Tractor-mounted Flail Mower Light Series - Counterclockwise PTO (left-hand rotation)

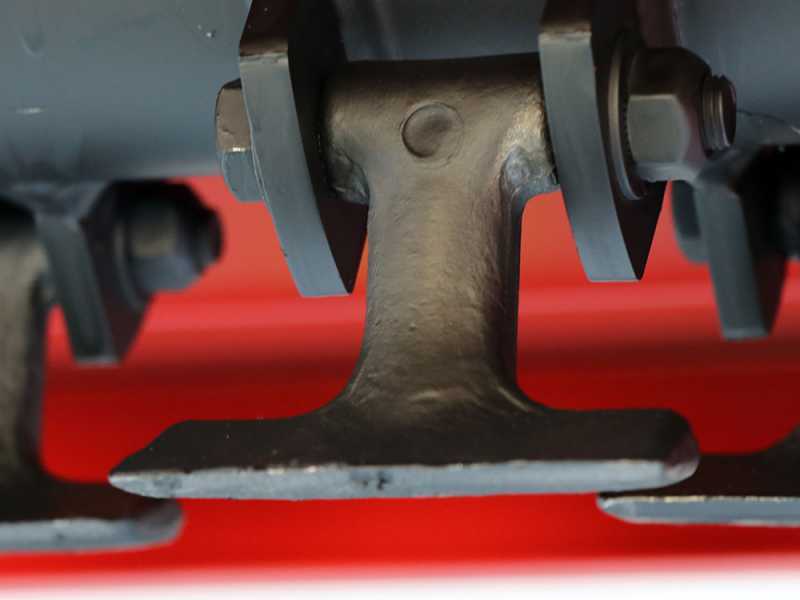

Cutting tools

No. of standard-supplied hammer flails: 16

Rotor with toothed hammer flails for uncultivated terrains, brambles and pruning waste. It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammer flails, it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

The cutting height can be adjusted.

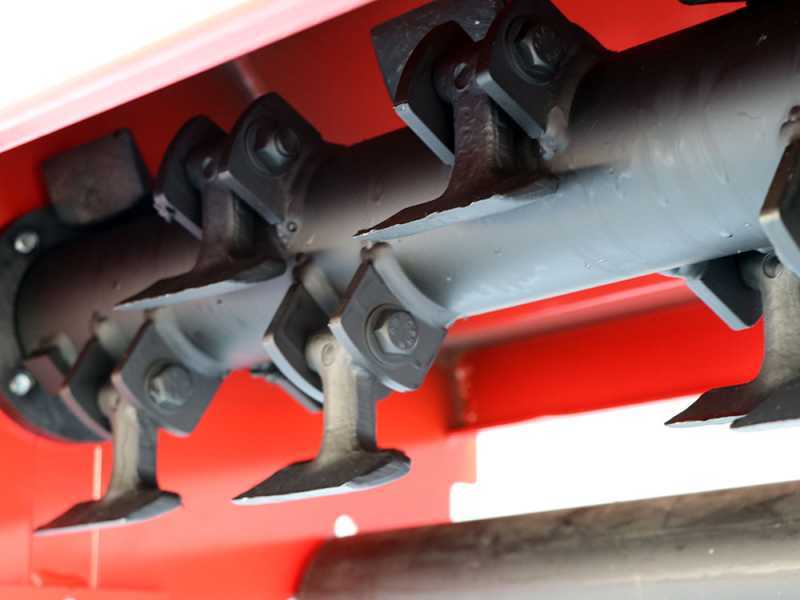

Rotor, hammer flails supports, side bearings

The highly-tick rotor features a 12 cm diameter. This makes it suitable to withstand long years of working operations, keeping its sturdiness against the accidental impacts that may occur.

Furthermore, the rotor is mounted on steel side supports equipped with bearings.

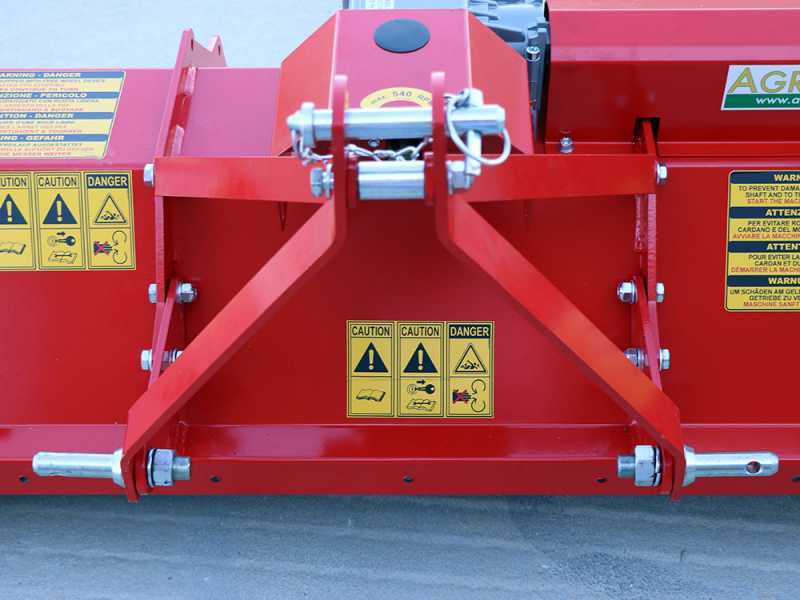

Fixed 3-point hitch

Equipped with standard fixed 3-point hitch. Thus, all the components are strictly Made in Italy.

Focus on the couplings that are closely placed to the machine body, meaning that they are not protruding.

This allows the flail mower to be positioned very close to the tractor, eliminating the risk of stones being thrown at the Operator, but above all eliminating any problems with lifting the machine, because in this way its weight is very close to the tractor, thus placing a much lower burden on it than other products of the same type.

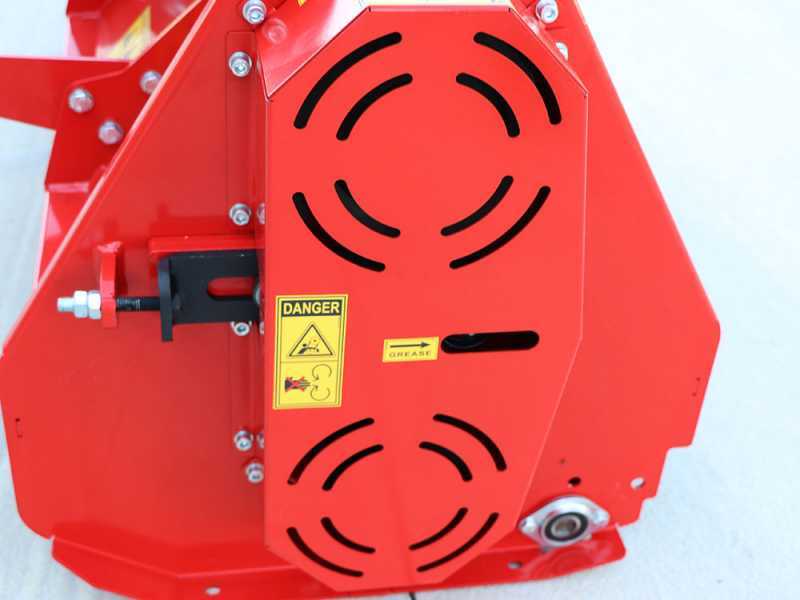

Side belt transmission and gearbox

Large-sized gearbox in oil bath.

The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

2-belt side drive with large-section belt.

Space-saving side belt protection cover: This specific feature allows the flail mower to require an incredibly reduced space.

Focus on the side transmission greaser, which is comfortably placed in an easy-access position.
