Description

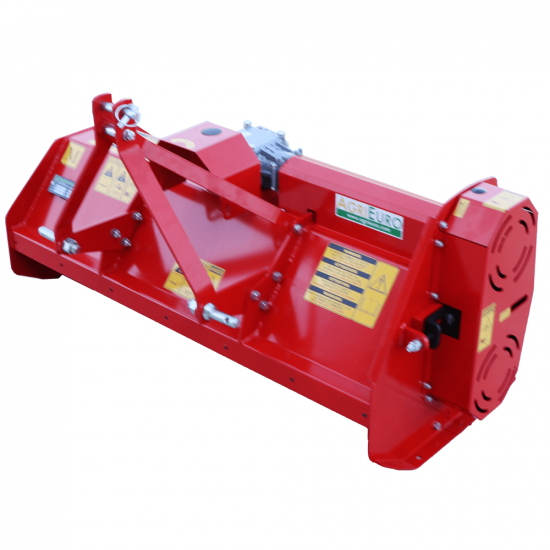

AGRIEURO DISCO 115 GM Tractor-mounted flail mower

The AGRIEURO DISCO 115 GM flail mower is an innovative machinery, specifically designed to exceed all the expectations.

Provided with a wider side, which is intended to protect and allow quickly discharging of the shredded material, thus resulting in faster operations.

The three-point hitch is tightly fixed and the components are strictly Made in Italy with an aluminium gearbox.

The barrel roller bearings are 10 times stronger than standard ball bearings.

This flail mower is suitable for low-power tractors. The large shredding system enables professional shredding operations.

The machine, thanks to the three-point hitch and depending on the mounted tools can perform different functions such as grass cutting, shredding stalks, pruning shredding, and so on.

The design ensures high performance, reliability and durability, improving and optimising the power-consumption ratio of the tractor thanks to the sturdiness of the machine, the shape of the tools, the perfect dynamic balancing of the rotor and many other original technical solutions.

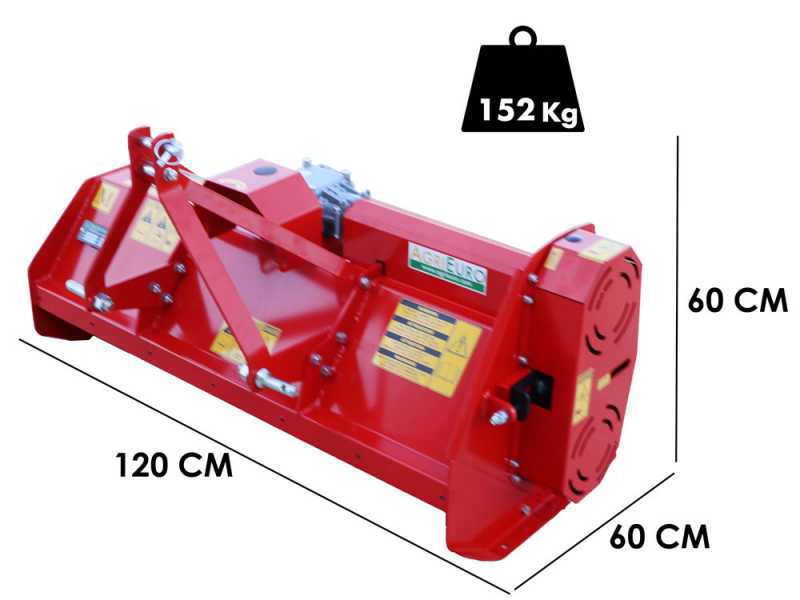

TECHNICAL DATA (brief view):

Real working width: 106 cm
Total width: 120 cm
Weight: 152 Kg
Rear supporting roller

Agrieuro DISCO 115 GM Tractor-mounted Flail Mower Light Series

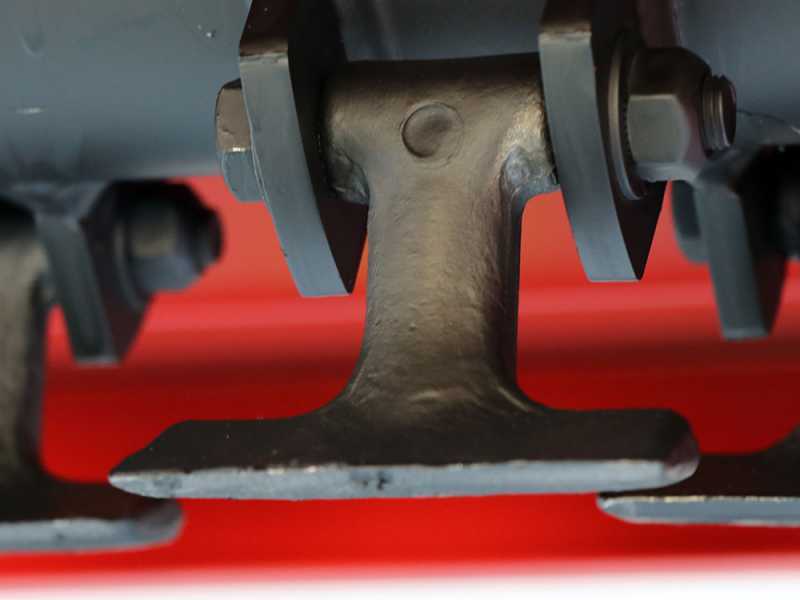

Cutting tools

No. of standard-supplied hammer flails: 16

Rotor with toothed hammer flails for uncultivated terrains, brambles and pruning waste. It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammer flails, it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

The cutting height can be adjusted.

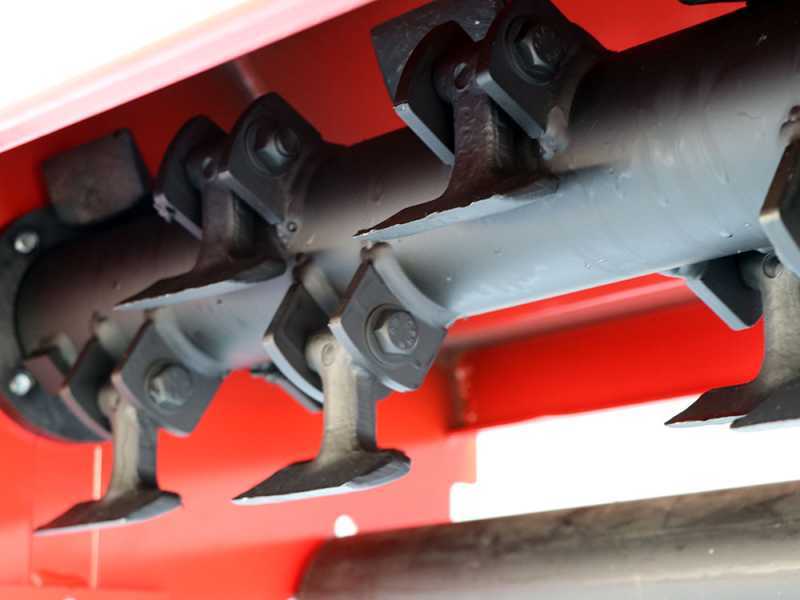

Rotor, hammer flails supports, side bearings

The highly-tick rotor features a 12 cm diameter. This makes it suitable to withstand long years of working operations, keeping its sturdiness against the accidental impacts that may occur.

Furthermore, the rotor is mounted on steel side supports equipped with bearings.

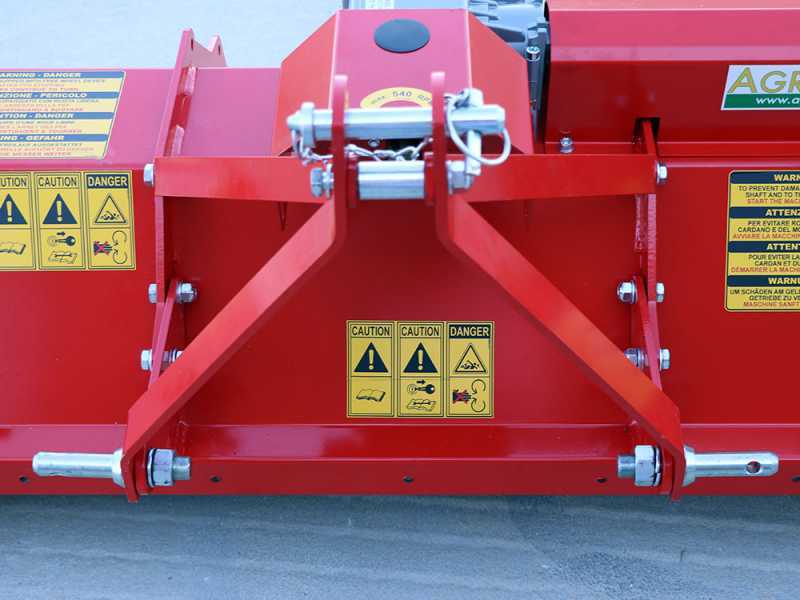

Fixed 3-point hitch

Equipped with standard fixed 3-point hitch. Thus, all the components are strictly Made in Italy.

Focus on the couplings that are closely placed to the machine body, meaning that they are not protruding.

This allows the flail mower to be positioned very close to the tractor, eliminating the risk of stones being thrown at the Operator, but above all eliminating any problems with lifting the machine, because in this way its weight is very close to the tractor, thus placing a much lower burden on it than other products of the same type.

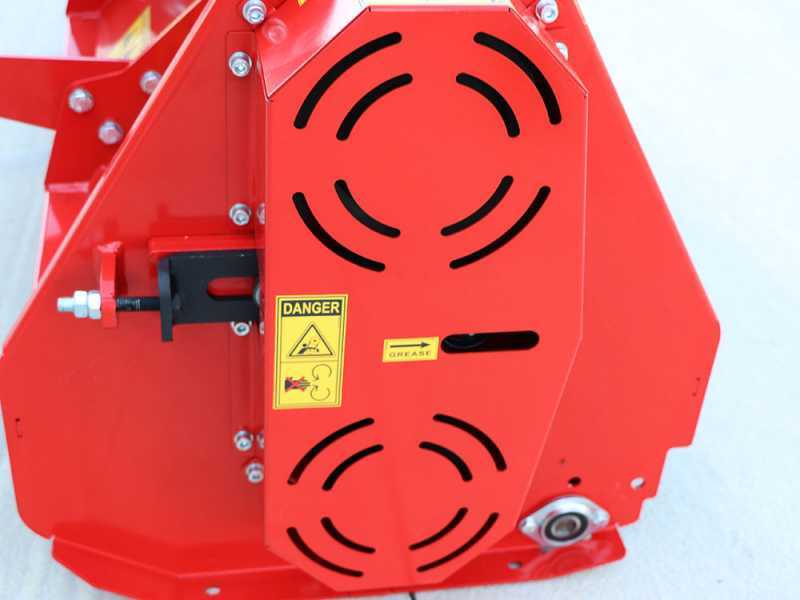

Side belt transmission and gearbox

Large-sized gearbox in oil bath.

The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

2-belt side drive with large-section belt.

Space-saving side belt protection cover: This specific feature allows the flail mower to require an incredibly reduced space.

Focus on the side transmission greaser, which is comfortably placed in an easy-access position.

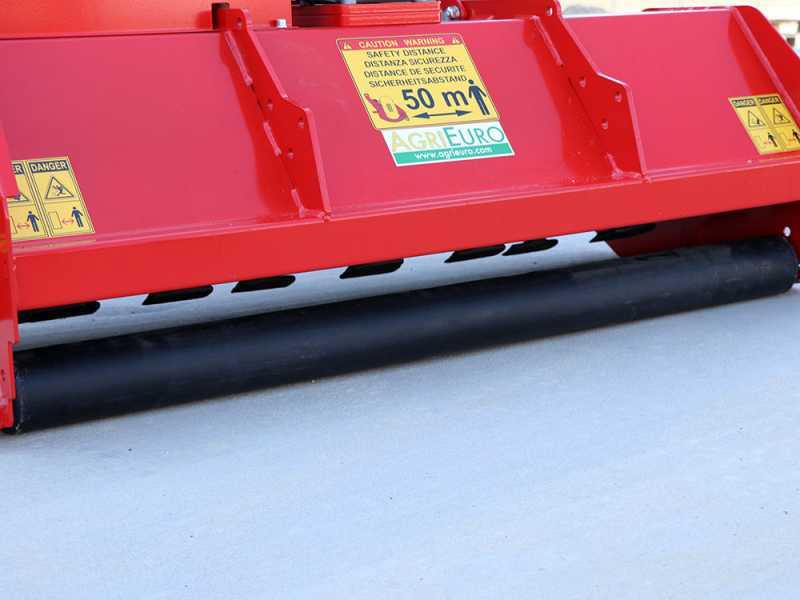

Stabilisers - Rear roller and side skids

Height-adjustable rear supporting roller with a large diameter of 86 mm.

Adjustable side skids

Recommendations for Use - Tractor-mounted Fixed Flail Mowers

To ensure correct operation, a longer service life and safe working conditions, it is essential to use the tractor-mounted flail mower in accordance with the instructions set out in the user manual and the machine’s technical specifications. Incorrect use may result in premature wear of components, reduced performance or damage not covered by the warranty.

Before starting work, always check that the tractor is compatible with the flail mower by verifying the required power, hitch type and intended operating conditions. Correct matching of the machine and the tractor ensures optimum performance and prevents the transmission from being overloaded.

Use the flail mower exclusively on suitable surfaces: the machine is designed for grass shredding, wild vegetation, plant residues and materials compatible with the machine’s category. Avoid contact with unintended objects such as stones, metal, plastic or other foreign bodies.
Adjust the working height correctly: maintaining an adequate distance from the ground reduces the impact on the cutting units and limits excessive stress on the machine’s structure.
Do not operate the machine where there are hidden obstacles or unsuitable ground conditions: ditches, stumps, exposed roots, loose stones or uneven ground can cause sudden impacts and damage to the cutting parts or transmission components.
Do not use the flail mower for operations other than shredding: the machine must not be used for earthmoving, ground levelling or other applications not specified by the manufacturer.
Always adjust the forward speed to suit the working conditions: excessive speed can reduce the quality of the shredding, increase vibrations and subject the machine to stresses greater than those for which it was designed.
Avoid using the machine on excessively damp material: wet grass or particularly damp vegetation can cause material to build up inside the machine, reducing its efficiency.
Do not force the tractor forward: if the rotor slows down, vibrations increase or cutting capacity decreases, speed must be reduced and the work adapted to the conditions of the ground and vegetation.
Check the condition of the cutting components regularly: worn, damaged or missing blades, hammers or other cutting elements can compromise the machine’s operation and increase vibrations during use.
Carry out periodic checks and routine maintenance: check that components are correctly tightened, inspect the condition of the transmission components and ensure the machine is generally clean to maintain its efficiency and safety.

Use of the power take-off (PTO):

The tractor’s power take-off (PTO ) must be used in accordance with the rotational speed specified by the flail mower manufacturer. An incorrect rotational speed may compromise the machine’s operation, causing overheating, accelerated wear or excessive stress on mechanical components.

When attaching and detaching the flail mower, the power take-off must always be disengaged and the tractor switched off. It is also necessary to check that the PTO shaft is correctly installed and has sufficient clearance to move freely while working.
