Zanon Diamant 9" Pneumatic Pruner - Compressed air Pruner

Questions & Answers (1)
ID: K601875

EAN: 1040030010661

MPN: H1040030

Zanon Diamant 9" Pneumatic Pruner - Compressed air Pruner
+100 sold
FREE
Chainsaw kitChainsaw kit
Chain sharpening kitChain sharpening kit
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
AgriEuro BandanaAgriEuro Bandana
Motor type
Pneumatic
Pruner configuration
On pole / Manual
Body material
ABS
Blade length
22 cm
Carving bar
Chain pitch
1/4''
Cutting unit lubrication
Separated, with tank
Air consumption
450 L/min
Weight
1.9 Kg
Manufacturing country
Italy
Product Features
Model:
Diamant 9
Body material:
ABS
Operating mode:
Compressed air
Pruner configuration:
On pole / Manual
Air consumption:
450 L/min
Adjustable head:
no
Manufacturing country:
Italy
Motor data
Motor type:
Pneumatic
Cutting data
Blade length:
22 cm
Carving bar:
Blade type:
Carving
Chain pitch:
1/4''
Cutting unit lubrication:
Separated, with tank
Equipment
Chain pruner attachment:
standard equipment
Chain tensioner:
yes
Free gifts/extra features
Maintenance tool kit:
Yes
Bar guard:
yes
Instructions manual:
Yes
Dimensions and logistics
Net weight:
1.9 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
30x30x20 cm
Gross weight (packaging included) :
3 Kg
Assembly time:
5 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 23/04/2024 - 25/04/2024
€ 400,00
VAT Included
You're viewing:
Customers also viewed:
Description

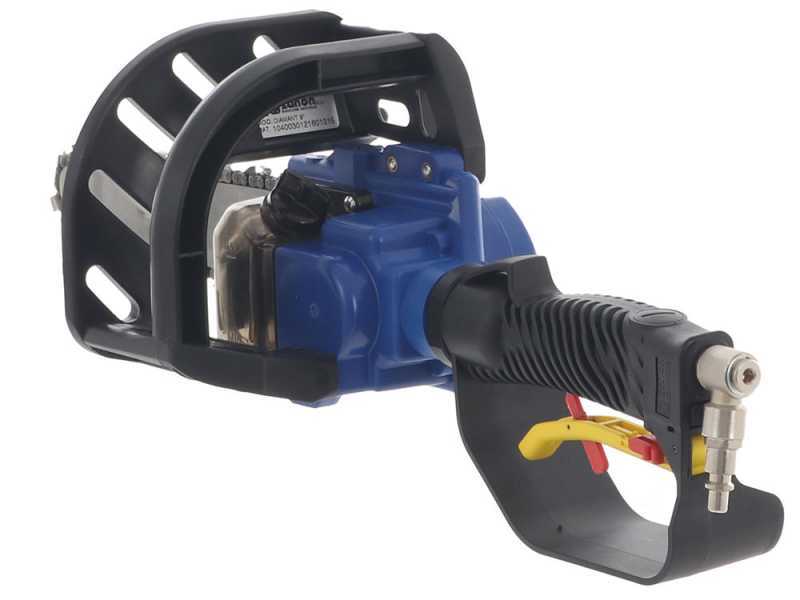

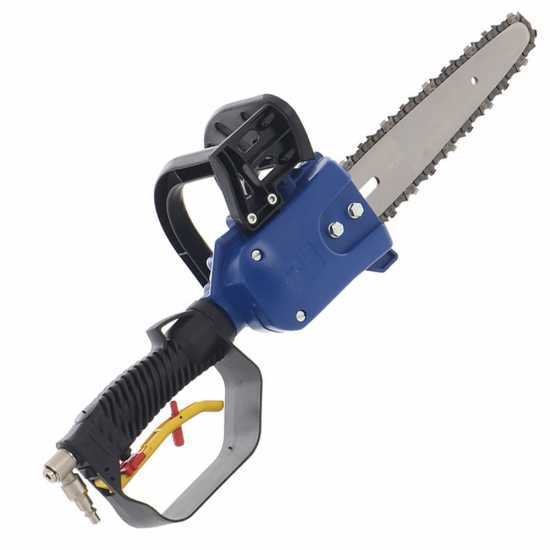

Zanon Diamant 9" Heavy-duty Pneumatic Pruner

Zanon Diamant 9" pneumatic chain pruner has two modes of use, on extension pole or handheld. It is an user-friendly and very compact machine. It has a 22 cm carving bar that allows you to make much more precise cuts than with a standard bar.

Thanks to the possibility of using an extension pole, you can easily reach 5 m in height without using ladders.

The product has an ergonomic handle, similar to that of a chainsaw, which provides you with a high level of comfort and control over the machine.

It has a sturdy structure in high-strength technopolymer, in addition it is equipped with a power adjustment device,which allows you to increase or reduce it according to the needs and difficulties of the work to be done.

It weighs 1.9 kg, so that the operator can easily work for a long time, even for difficult cutting operations.

Zanon Diamanto 9" pneumatic chain pruner is entirely manufactured in Italy, guaranteeing quality and reliability.

Technical Specifications

The carving bar with which this pruner is equipped allows you to slip in and cut even in the least accessible and most difficult spots with extreme simplicity, eliminating the risk of damaging other branches. It is also much more durable than a standard bar thanks to the special steel and the hardened tip.

High-strength technopolymer structure.

The advantages of this material are strength combined with great lightness. This material also promotes heat exchange avoiding the formation of ice at low temperatures.

This pruner is equipped with a power adjustment device, which allows you to adjust it according to the type of cutting operations.

The ergonomic handle is equipped with a safety device which immediately stops the chain in case of danger.

It has a large transparent tank that allows you to check the lubricant level.

Bar length: 9" (22 cm)

  • Air consumption 400 L/min
  • Working pressure: 10 bar
  • 1/4 chain pitch

Bar guard included

WARNING: use low viscosity oil, that is, very fluid; the standard oil for pneumatic equipment is also fine, the same one used to lubricate the motor

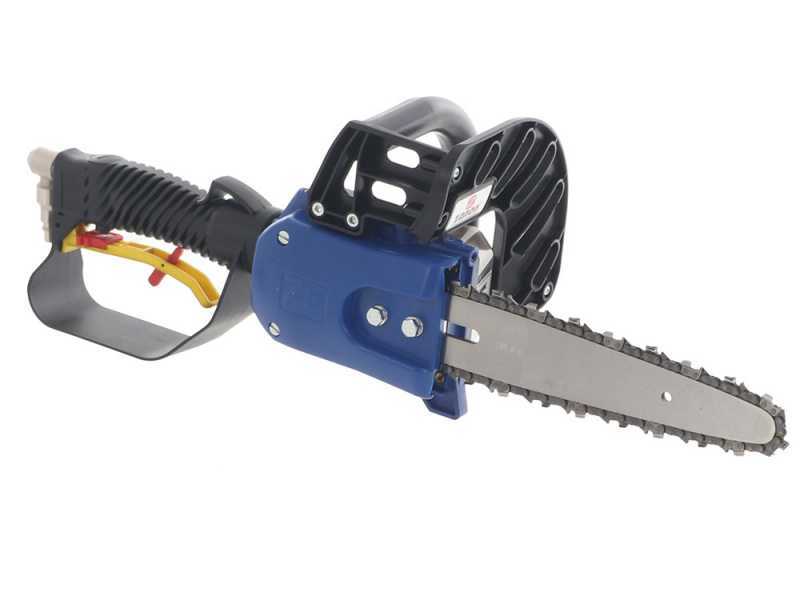

Double Operating Mode

The pruner can be used in two different modes, handheld or on extension pole.

The handle is very convenient for manual work, it has a safety device that immediately stops the chain. In the front part there is an additional protection for the left hand.

Handheld configuration

Very simple to transform, just unscrew the two handles.

The upper handle is fixed with four Allen screws, which can be easily unscrewed with the supplied tool.

The rear handle can be unscrewed manually with a simple gesture.

Configuration on extension pole

The configuration on pole allows you to reach up to 5 meters in height without using ladders.

ATTENTION: the extension pole is not included, it must be purchased separately.

Weight: 1.9 kg

Free items & Standard equipment

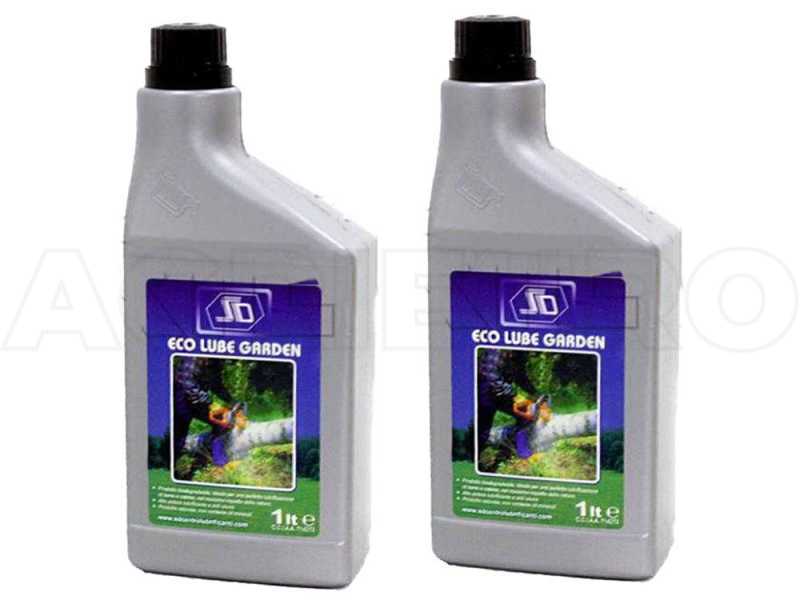

1st FREE ITEM: Electric Chainsaw Kit

The electric saw set includes:

  • Chain sharpening set
  • 2x Biodegradable chain protective oil 1lt

2nd FREE ITEM: Protection Kit

PROTECTION KIT:

Noise-canceling headphones for working in absolute comfort.
Hearing protection should be the correct one for any situation. In our case, these supplied headphones are specifically designed to cut down the noise of the brush cutter

Protective goggles that can be used as an alternative to the visor.
It is a CE-certified polycarbonate goggle equipped with a panoramic anti-fog and scratch-resistant screen.
Ventilation is provided through holes directly made on the structure of the goggle to prevent fogging and increase wearing comfort.

Agrieuro 100% cotton bandana

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Free Items Included

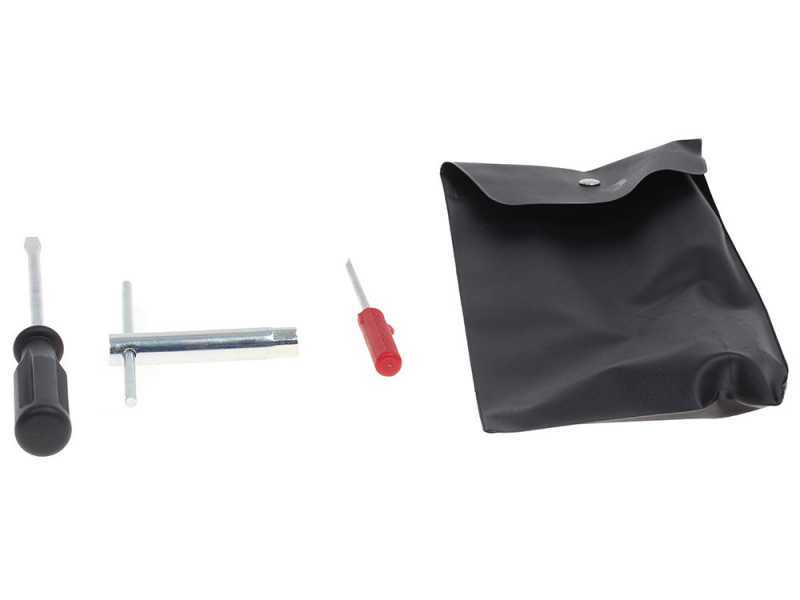

The pruner is shipped in its original packaging, together with:

  • Instructions
  • Bar guard
  • Tool kit
