Zanon Diamant 10" pneumatic chain pruner - compressed air chain pruner

Pruner configuration
On pole / Manual
Blade length
25 cm
Chain pitch
1/4''
Air consumption
450 l/min
Manufacturing Country
Italy
FREE:
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Free items: electric chainsaw kit
Free chain sharpening kit
FREE:
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Free items: electric chainsaw kit
Free chain sharpening kit
€ 328,28
VAT Included
Prompt Delivery
3 items in stock
|
Free Shipping
You should receive it by 24/05/2021
ID: K601876

EAN: 9900000002329

MPN: H1040003

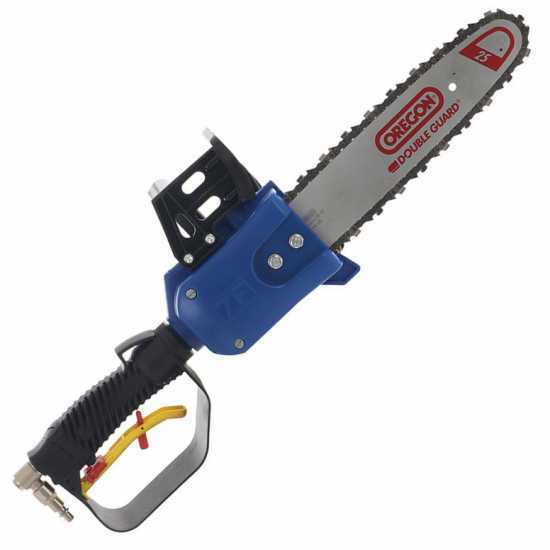

Zanon Diamant 10" professional pneumatic chain pruner

The Zanon Diamant 10" pneumatic chain pruner is a product of very high quality, very versatile, with two modes of use, both hand-operated and with extension pole.

With the use of a pole, it succeeds in reaching up to 5 m height with no need to take a ladder.

It is fitted with ergonomic handle grip for the best comfort during use.

It is provided with a sturdy, highly resistant technopolymer structure. Moreover, it is equipped with power regulation device that enable to increase or decrease it depending on the operator's needs and the difficulty of the cutting operation.

Its reduced weight of only 1.9 kg enables long cutting sessions and to easiily cut even the hardest-to-reach branches.

The Zanon Diamant 10" pneumatic chain pruner is entirely made in Italy, a synonym of efficiency and reliability.

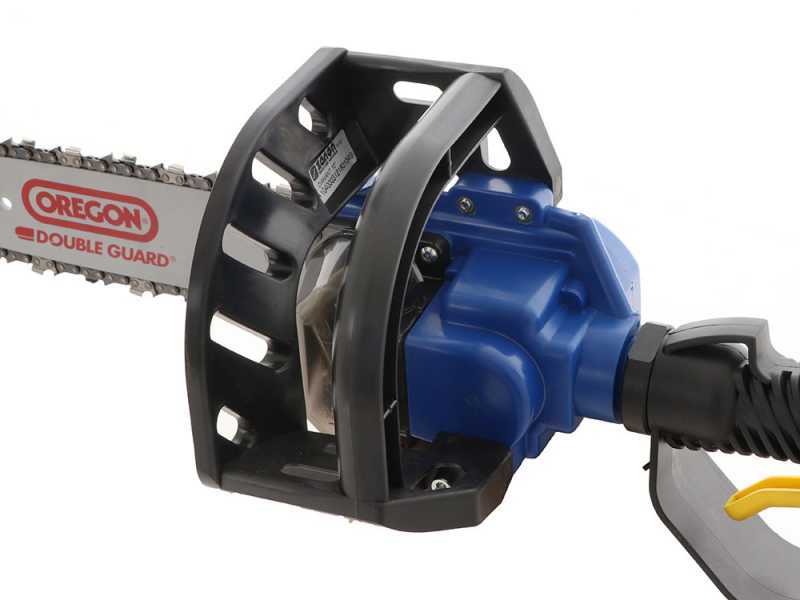

Technical features

Highly resistant technopolymer structure.

The advantages of this material are the big sturdiness and lightness. Peculiarity of this material is to favorite the thermal exchange avoiding freezing at low temperatures.

This chain pruner is equipped with power regulator that enables it to adjust it depending on the cut to make.

The ergonomic handle grip is provided with a safety device that immediately locks the chain in case of danger.

It is equipped with a roomy transparent tank to see the lubricant level.

Chain bar is 10" (25 cm) long.

  • Air consumption 450 lt/min
  • Operating pressure: 10 bar
  • Chain pitch 1/4

Blade cover is provided on standard kit

ATTENTION: add very fluid, low viscosity oil; also the oil for pneumatic equipment is good, the one used to lubricate engines

Double operating mode

The pruner can be used in two different modes, hand-operated or on extension pole.

The handle grip is very comfortable for hand-operated mode, it features a safety device that immediately locks the chain. While in the upper part, there is an additional protection for the left hand.

Hand-operated operating mode

Very easy switch, it is enough to unscrew the handle grip.

The upper handle grip is fixed with 4 screws that can be removed using the supplied wrench.

The lower handle grip can be manually removed.

On-pole operating mode

It enables to reach 5 meter height with no need to take a ladder.

ATTENTION: the extension pole is not included in the price and must be purchased separately.

Weight: 1.9 kg

Product Features
Model:
Diamant 10"
Body material:
Thermoplastic
Activation:
Compressed air
Pruner configuration:
On pole / Manual
Air consumption:
450 l/min
Adjustable head:
no
Manufacturing Country:
Italy
Pump data
Pump type:
automatic
Oil tank:
Yes
Cutting data
Blade length:
25 cm
Blade type:
standard
Chain pitch:
1/4''
Blade security brake:
No
Cutting unit lubrication:
Separated, with tank
Cutter bar net length:
25 cm
Tipping pruner head:
no
Equipment
Chain pruner attachment:
standard equipment
Chain tensioner:
yes
Bar/Chain fast release knob:
no
Rubber-coated soft grip:
No
Tank level indicator:
no
Free gifts/extra features
Maintenance tool kit:
Yes
Bar cover:
yes
Instructions manual:
yes
Dimensions and logistics
Net weight:
1.9 Kg
Packaging:
Original packaging
Packaging dimensions cm (LxWxH):
50x20x20 cm
Gross weight (packaging incuded) :
3 Kg
Assembly time:
5 minutes

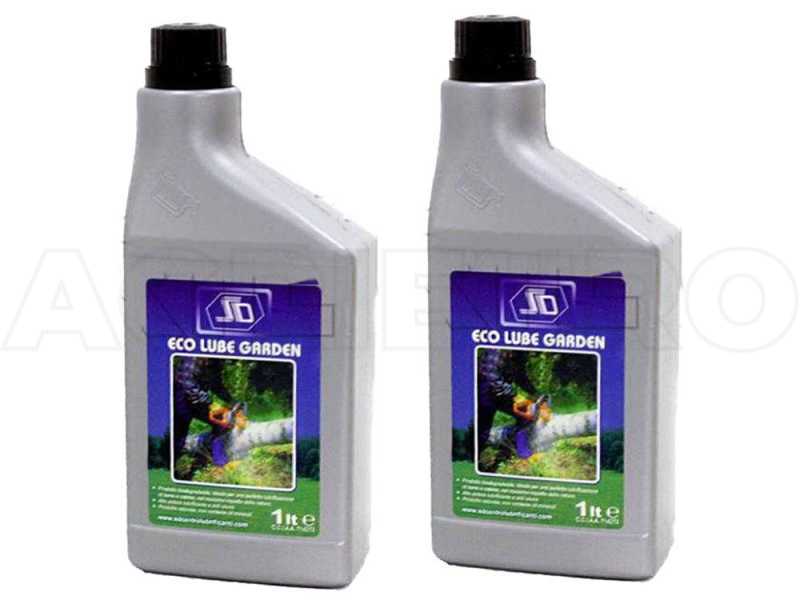

FREE ITEMS: Electric chainsaw Kit and safety equipment

The electric chainsaw kit includes:

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask. Protective mask goggles in polycarbonate equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton Gloves

- - -

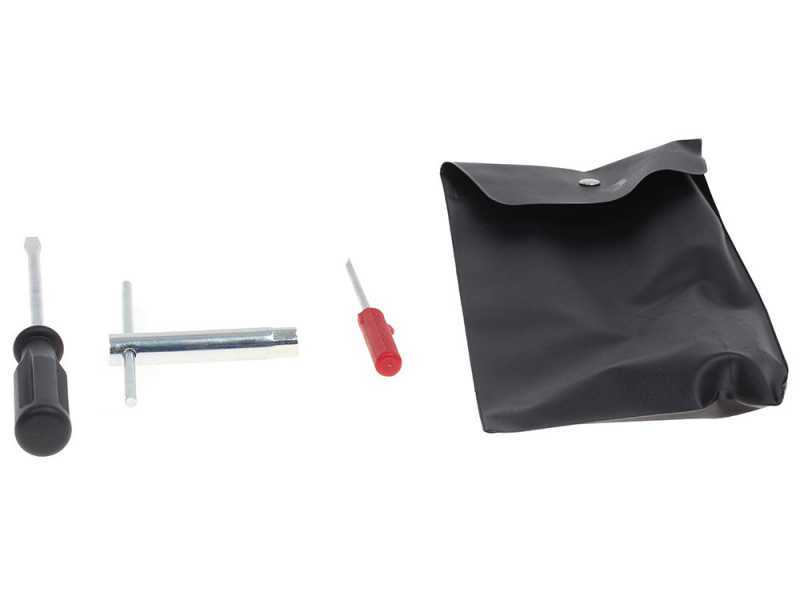

Free gifts & standard equipment

The chain pruner is shipped with the original packaging

  • Instructions
  • Cutter bar cover
  • Tool kit
