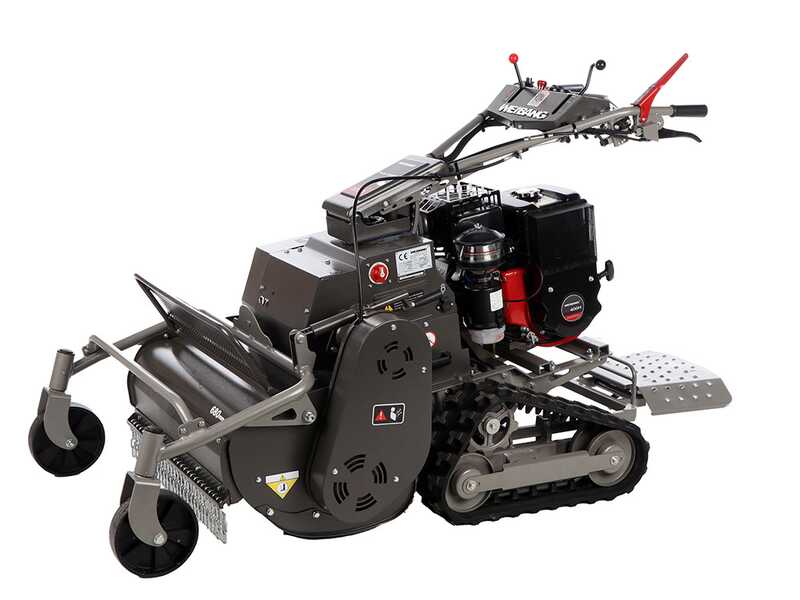

Weibang WBGT6813-TE - Professional Remote-controlled Hammer Rough Cut Mower - Tracked - Hybrid

The Weibang WBGT6813-TE professional lawn mower is an advanced machine designed to deliver excellent performance on difficult terrain and large areas.

Main features:

• 392 cc internal combustion engine
• Cutting Capacity 680 mm
• 38 Y-hammers
• Adjustable cutting height from 10 to 90 mm
• CVT transmission
• Radio remote control

Equipped with a powerful 392 cc internal combustion engine , which powers the electric motor, recharging the batteries, and drives the roller via a direct belt drive.

Thanks to theremote control, the machine can be controlled remotely, another significant innovation, allowing the operator to operate the machine remotely.

This increases safety and convenience, especially in situations where direct access to the machine could be complicated.

This flail mower provides a cutting capacity of 680 mm, making it ideal for dealing with brushwood and tall grass. The roller is equipped with no less than 38 Y-hammers, which ensure effective chopping of plant material.

In addition, the WBGT6813-TE is equipped with tracks, which improve stability and traction on difficult terrain, allowing work on slopes and uneven surfaces without problems.

This allows the machine to be adapted to different working conditions, always ensuring an optimal result.

The CVT (Continuous Variable Transmission) offers greater versatility and control during use.

One of the distinctive features of this model is the hybrid engine, which combines the power of an internal combustion engine with the efficiency of an electric system.

This not only reduces fuel consumption but also lowers the environmental impact.

The Weibang WBGT6813-TE tracked mulcher is particularly suitable for rough terrain due to its adjustable cutting height from 10 to 90 mm.

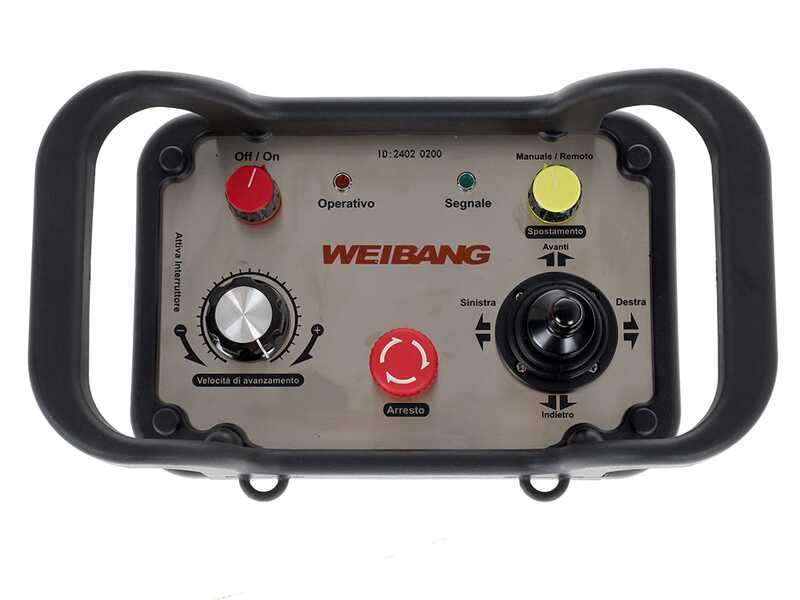

RADIO CONTROL INCLUDED

The radio control for Weibang's WBGT6813TE offers precise and reliable control of the machine even from a distance.

It is equipped with a movement lever that allows the operator to handle the mulcher with ease, ensuring safe and efficient operations in all conditions.

The remote control kit allows the operator to control the machine remotely, which is ideal for working in areas where conditions do not allow safe working.

The radio control of the Weibang WBGT6813TE ensures accurate control of the machine.

Thanks to the movement lever, the operator can precisely adjust the direction and speed of the mulcher.

This level of control is essential for operations in rough terrain or in situations where visibility is reduced.

The Weibang WBGT6813TE radio control stick is designed to be intuitive and easy to use. With a simple movement of the stick, the operator can control the mulcher with millimetre precision.

From the remote control you can manage all functions of the machine:

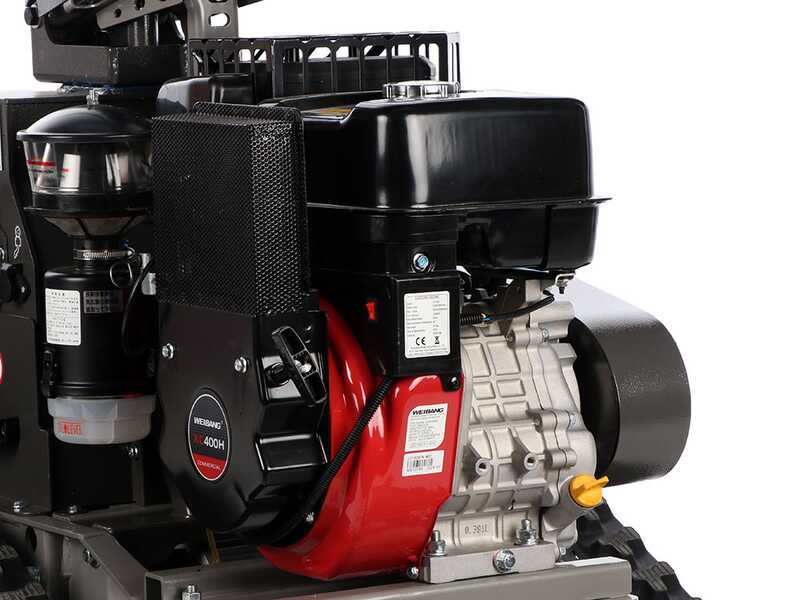

This lawn mower features a hybrid power supply, combining the power of the Loncin 224 engine with the efficiency and torque generated by electric motors.

The motor is connected to the roller and an alternator via a belt drive, recharging the four 48V/48ah batteries that power the electric motor.

Features:

WARNING
MACHINE SHIPPED WITH NO OIL INSIDE THE ENGINE, read the instruction manual carefully before starting it.

Nominal Power: 9 HP

* The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 6.6 HP

* It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

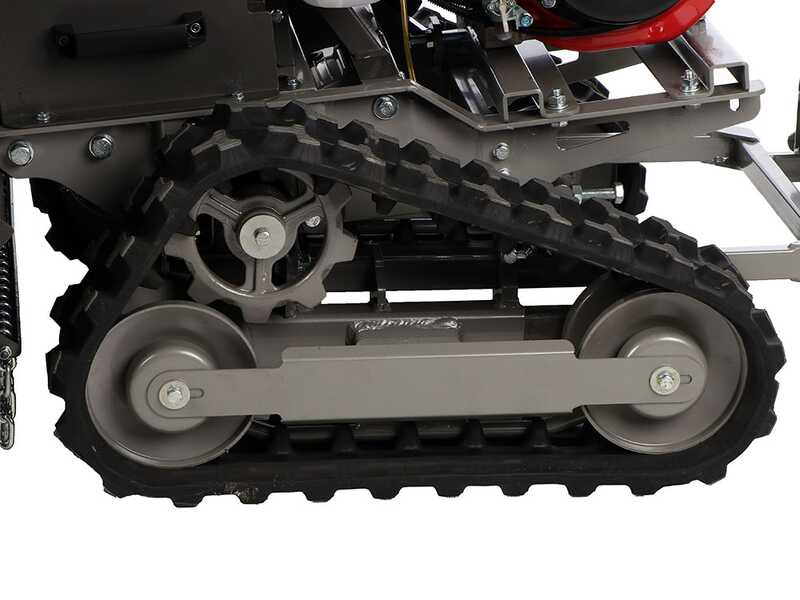

Track structure: sturdy and over sized. Better than the average rough cut mower available on the market of the same size The perfect balance ensures the distribution of loads and a perfect adherence to the ground.

Trucks: these machines are equipped with high-quality trucks. The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they can tackle any type of surface or step.

TRUCK DRIVE

With independent release devices and built-in brake

The head of the rough cut mower is made of high-strength steel.

Sturdy rotor in steel composed by 38 Y-shaped blades.

They give this machine unrivalled effectiveness on any type of material (grass but also brushwood, brambles, pruning, up to 2.5 cm in diameter)

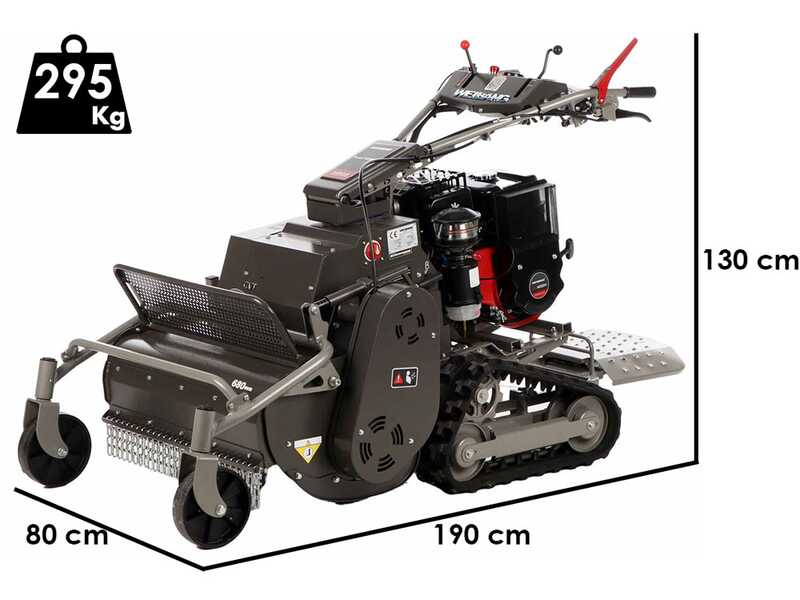

Working width: 68 cm

Focus on the blades and their particularly sturdy supports

Cutting height adjustment from 10 to 90 mm through central crank handle (1-2-3-4)

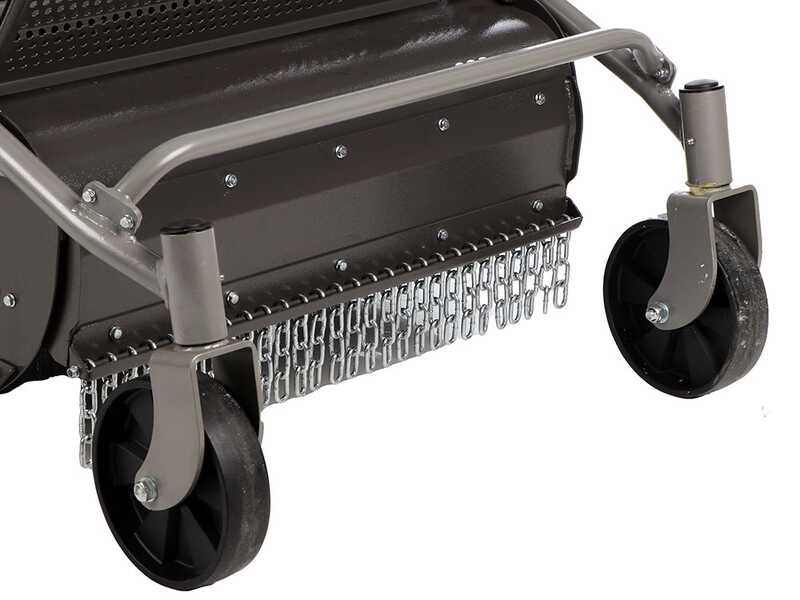

Detail of the front and rear protective chains.

The head of the rough cut mower is equipped with a further user protection, installed on the top of the head. This accident-prevention protective grating ensures maximum safety during use.

Toothed-like detail on counter-shear for greater cutting effect.

Equipped with a spirit level, which warns the operator of the machine's side slope and permitted working level.

The Weibang WBGT6813-TE professional hammer flail mower is equipped with an advanced transmission system that ensures optimum performance even in the most demanding conditions.

The CVT (Continuous Variable Transmission) transmission allows continuous speed variation without interruption, offering precise control and adaptability in various terrains.

Main features of the gearbox and transmission:

• CVT transmission: allows continuous speed variation.
• Precise control: adaptability on various terrains.
• Robustness: designed to withstand harsh conditions.

The CVT system allows the speed of the flail mower to be adjusted according to operational needs, thus improving efficiency and productivity.

This technology is particularly useful on rough terrain and slopes, where speed control is essential to maintain stability and safety.

This is a significant advantage for professionals who need reliable and durable equipment.

Other advantages of the CVT transmission include:

• Reduced engine wear: the engine runs at optimum speed.
• Fuel efficiency: reduces fuel consumption through optimal engine performance management.
• Reduced maintenance: fewer mechanical components subject to wear and tear than conventional transmission systems.

The transmission system of the Weibang WBGT6813-TE represents a significant improvement over conventional models, combining advanced technology with a robust design.

Final drive to the rough cut mower rotor through a drive belt protected by a sturdy casing.

Detail of the speed variator lever,

Detail of roller drive engagement

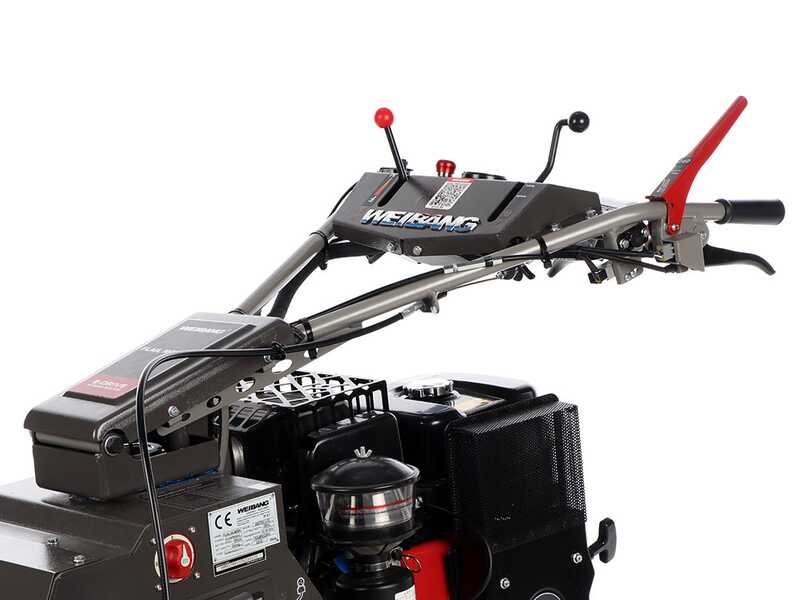

The Weibang WBGT6813-TE professional hammer mulcher offers a control and adjustment system designed to maximise efficiency and operator comfort.

The possibility to control remotely is one of the most innovative features of this model, allowing the machine to be operated remotely with ease and precision.

The control interface is intuitive and easy to use, reducing the time needed to familiarise with the machine.

Operators can quickly adjust the cutting height, which ranges from 10 to 90 mm, adapting the mulcher to the different requirements of the terrain and plant material to be cut.

Further features of the controls:

• Ergonomic control panel: designed for fatigue-free prolonged use.
• Digital display: provides real-time information on machine status.
• Programmable functions: customisation of work settings.

Roller drive coupling

Detail of the clutch engagement, which must be depressed before selecting the desired speed.

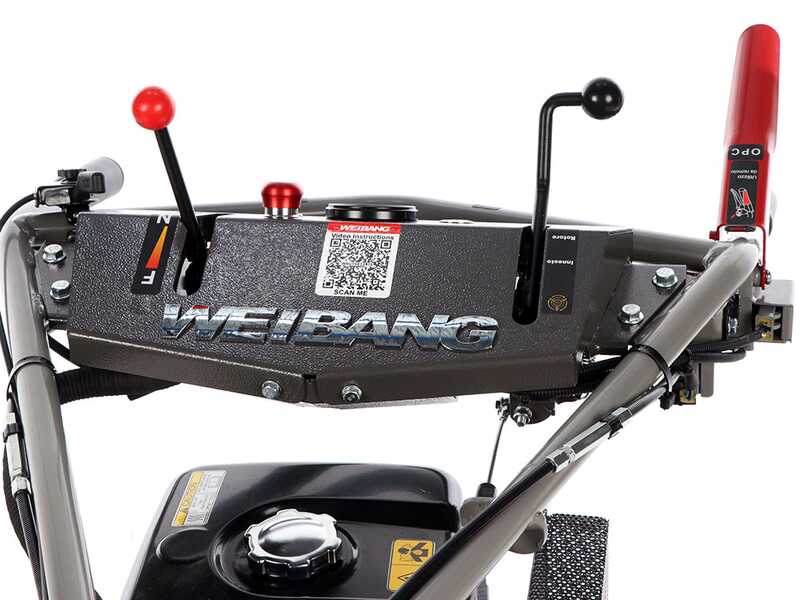

Detail of the speed variatorlever, used to select the desired feed speed.

The black levers under the knobs are used to turn the machine, even at radius 0, and act by braking the tracks independently.

The levers in the centre of the handlebars are used to adjust the stems of the machine respectively

Right: in height, 1 - 2 - 3

Left: sideways 1 - 2 - 3

Pivoting, anti-puncture, extremely durable front wheels

Bracket that allows the flail mower head to be locked in a raised position, so that inspection and maintenance can be carried out in complete safety and comfort.

Spirit Level, which allows the operator to control the level of the mulcher's inclination

Front drawer, where the machine's control centre is located, and where the remote control receiver will be placed (SEPARATELY PURCHASED)

Operator platform, which allows the operator to manoeuvre the machine without having to walk behind it, so that large areas can be worked comfortably.

Sponge air filter door for alternator cooling
