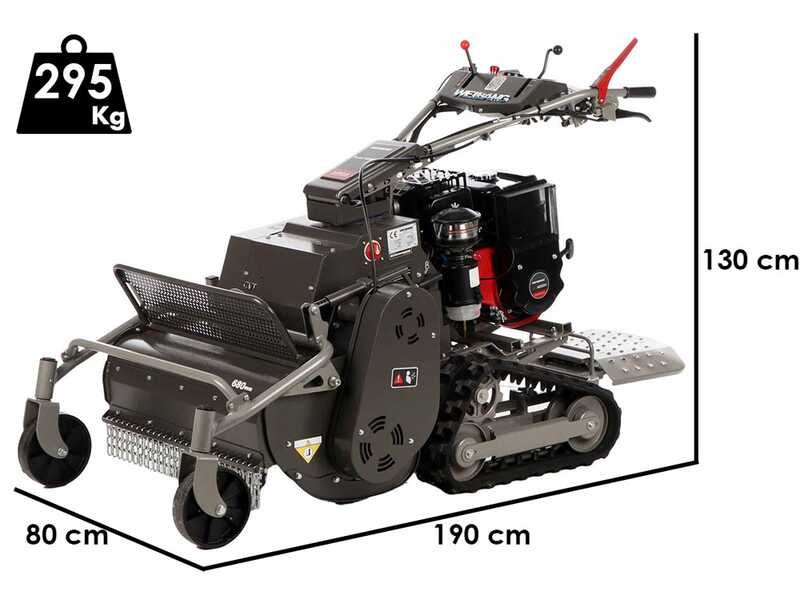

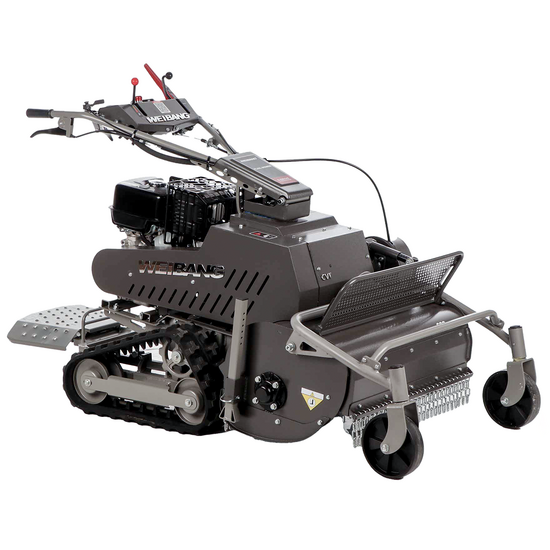

Weibang WBGT6813 - Professional Hammer Rough Cut Mower - Tracked - Hybrid

The Weibang WBGT6813-TE professional hammer flail mower is an advanced machine designed to deliver excellent performance on difficult soils and large areas.

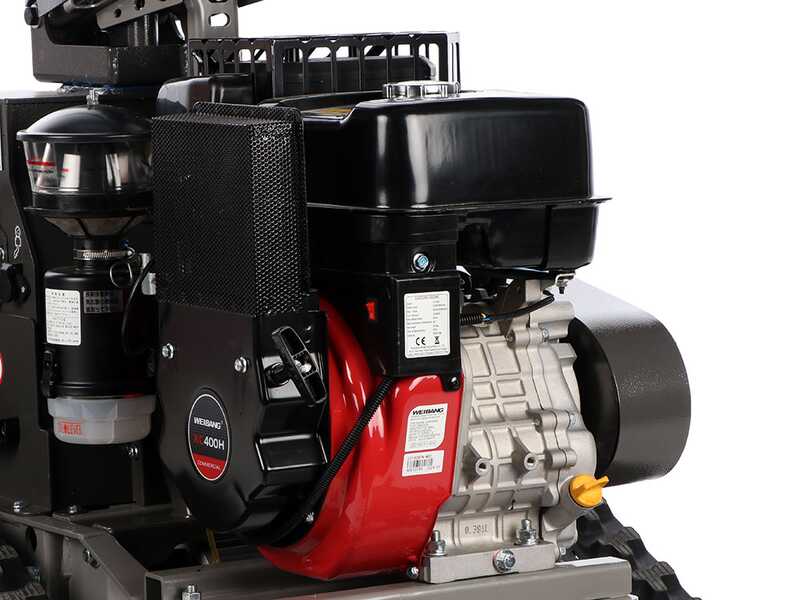

Equipped with a powerful 392 cc internal combustion engine, which powers the electric motor, recharging the batteries, and drives the roller via a direct belt drive.

This flail mower guarantees a cutting capacity of 680 mm, making it ideal for dealing with brushwood and tall grass. The roller is equipped with no less than 38 Y-hammers, ensuring effective shredding of plant material.

The Weibang WBGT6813-TE tracked flail mower is especially suitable for rough soils due to its adjustable cutting height from 10 to 90 mm.

This allows the machine to be adapted to different working conditions, always ensuring an optimal result.

The CVT (Continuous Variable Transmission) offers greater versatility and control during use.

Main features:

• 392 cc internal combustion engine
• Cutting capacity of 680 mm
• 38 Y-hammers
• Cutting height adjustable from 10 to 90 mm
• CVT transmission

One of the distinctive features of this model is the hybrid engine, which combines the power of an internal combustion engine with the efficiency of an electric system.

This not only reduces fuel consumption but also lowers the environmental impact.

Additionally, the WBGT6813-TE is tracked, improving stability and traction on difficult soils, allowing work on slopes and uneven surfaces without problems.

Thanks to the remote control that can be purchased separately, the machine can be controlled remotely, another significant innovation that allows the operator to operate the machine from a distance.

This increases safety and convenience, especially in situations where accessing the machine directly could be challenging.

Thanks to these advanced features, the WBGT6813-TE is an excellent choice for professionals who need a sturdy and versatile machine for greenery management.

This flail mower features hybrid power, combining engine power with the efficiency and torque generated by electric motors.

The motor is connected to the roller and an alternator via a belt drive, recharging the four 48V/48ah batteries that power the electric motor.

Features:

WARNING
THE MACHINE IS SHIPPED WITH NO OIL IN THE ENGINE, read the instruction manual carefully before starting it.

Nominal Power: 9 HP

* Also known as 'Commercial' Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This figure is the one that is most widely used and publicised in the main sales channels.

Actual power: 6.6 HP

* It refers to the real power of the engine. This is the figure listed as official in the engine manufacturer's instruction manual or technical data.

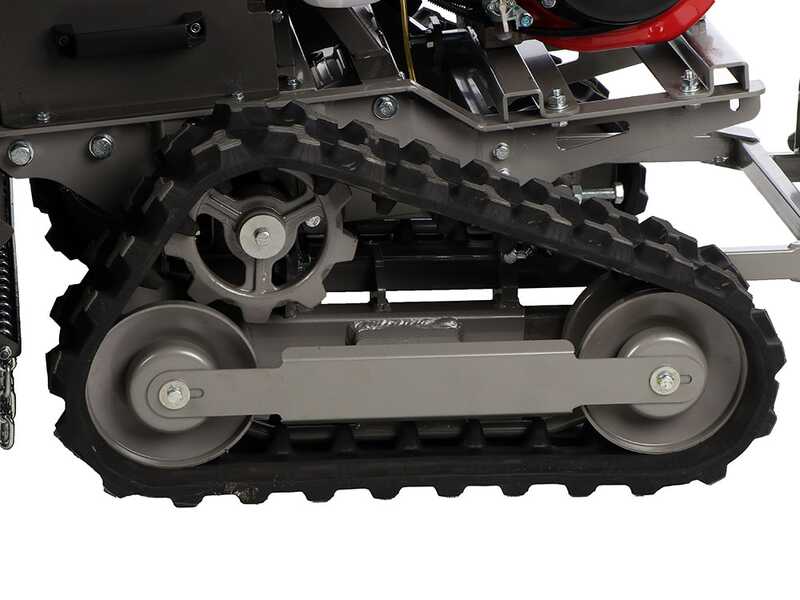

Track unit: sturdy and large. Better than the average flail mower of the same size on the market. The perfect balance ensures the distribution of loads and a perfect grip on the ground.

Tracks: top-quality tracks are used. Thanks to their tread width and profile, they guarantee perfect grip and stability on all types of soil. Made of special reinforced rubber with high grip, they are able to cope with all kinds of surfaces.

TRACK DRIVE

With separate releases and integrated brake

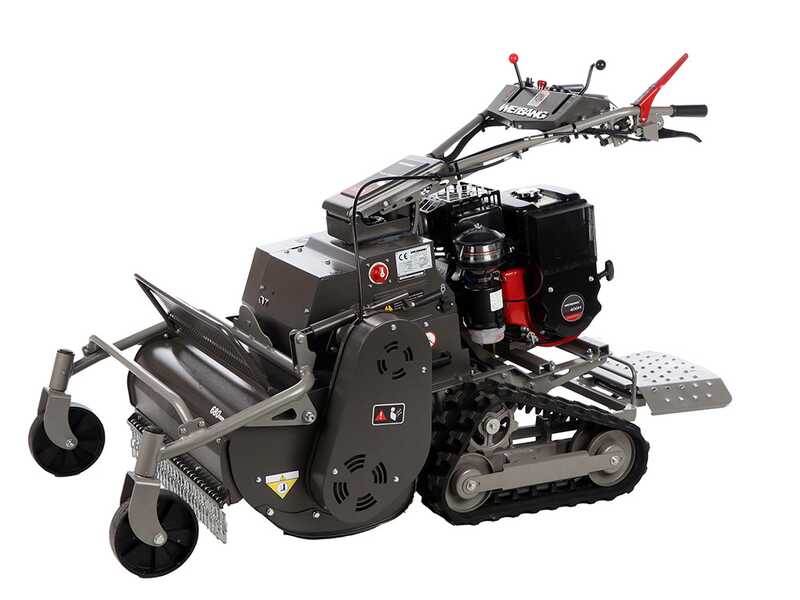

Flail head made of high-strength steel

Sturdy steel rotor with 38 Y-shaped knives.

They give this machine unrivalled effectiveness on all types of tasks (grass but also brushwood, thorn bushes, pruning, up to 2.5 cm in diameter)

Working width: 68 cm

Detail of the knives and their sturdy supports

Cutting height adjustment from 10/90 mm via central crank handle (1-2-3)

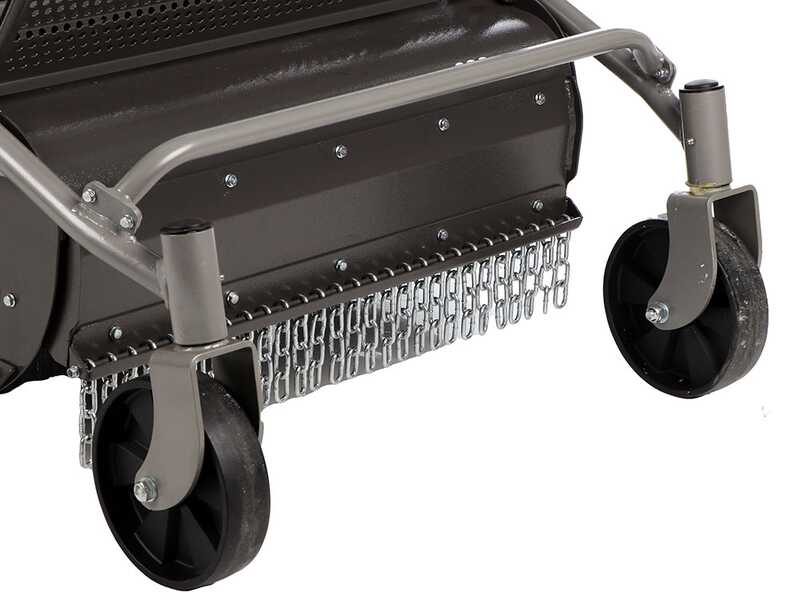

Detail of the front and rear protective chains.

The flail head is also equipped with an additional operator protection fitted to the top of the flail head. This safety guard ensures maximum safety in use.

Detail of toothed counter-shears for greater shredding efficiency.

Equipped with a spirit level, alerting the operator when the machine is tilted to the side and the allowed working level.

The Weibang WBGT6813-TE professional hammer flail mower is equipped with an advanced transmission system that ensures optimal performance even in the most demanding conditions.

The CVT (Continuous Variable Transmission) transmission allows continuous speed variation without interruption, offering precise control and adaptability in various soils.

Main features of the gearbox and transmission:

• CVT transmission: allows continuous speed variation.
• Precise control: adaptability to various soils.
• Robustness: designed to withstand harsh conditions.

The CVT system allows the speed of the flail mower to be adjusted according to operational needs, thus improving efficiency and productivity.

This technology is particularly useful on rough soils and slopes, where speed control is essential to maintain stability and safety.

This is a significant advantage for professionals who need reliable and durable equipment.

Other advantages of the CVT transmission include:

• Reduced engine wear: the engine runs at optimum speed.
• Fuel efficiency: reduces fuel consumption through optimal engine performance management.
• Reduced maintenance: fewer mechanical components prone to wear and tear than conventional transmission systems.

The transmission system of the Weibang WBGT6813-TE is a significant improvement over conventional models, combining advanced technology with a sturdy design.

End transmission to the flail mower rotor, whose movement is forwarded via a drive belt protected by a robust casing.

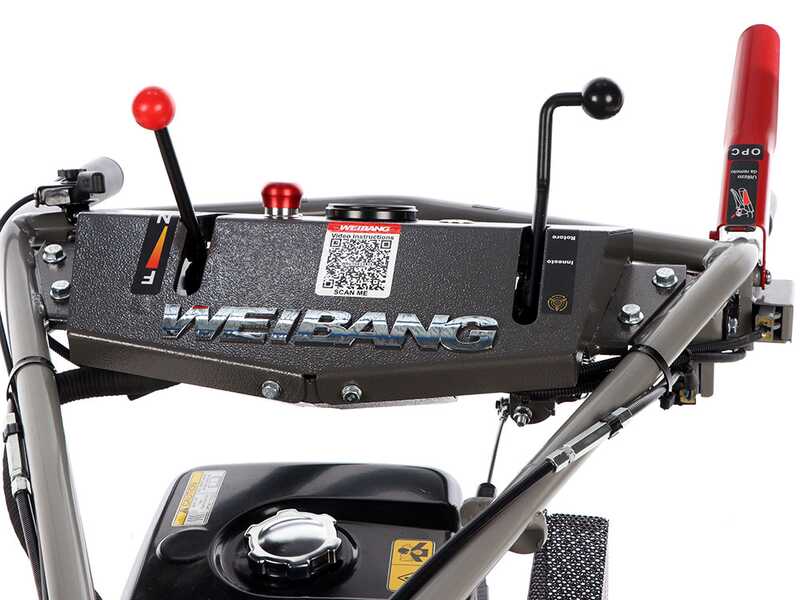

Detail of the speed variator lever,

Detail of roller drive engagement

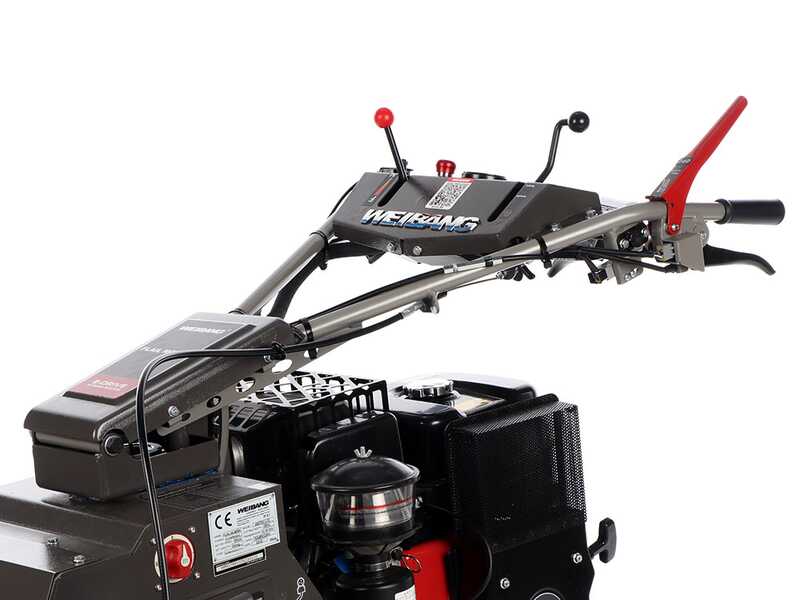

The Weibang WBGT6813-TE professional hammer flail mower offers a control and adjustment system designed to maximise efficiency and operator comfort.

The possibility of remote control is one of the most innovative features of this model, allowing the machine to be operated at a distance with ease and precision.

The control interface is intuitive and easy to use, reducing the time needed to familiarise with the machine.

Operators can quickly adjust the cutting height, which ranges from 10 to 90 mm, adapting the flail mower to the different requirements of the soil and plant material to be cut.

Further features of the controls:

• Ergonomic control panel: designed for fatigue-free prolonged use.
• Digital display: provides real-time information on machine status.
• Programmable functions: customisation of work settings.

Roller drive coupling

Detail of the clutch engagement, which must be pressed before selecting the desired speed.

Detail of the speed variator lever, used to select the desired feed speed.

The black levers under the knobs are used to turn the machine, even at 0 radius, and act by braking the tracks independently.

The levers in the middle of the handlebars are used to adjust the stems of the machine respectively

Right: in height, 1–2–3

Left: sideways 1–2–3

Pivoting, anti-puncture, extremely durable front wheels

Clamp that allows the flail mower head to be locked in a raised position, so that inspection and maintenance can be carried out in complete safety and comfort.

Spirit level, which allows the operator to control the level of the flail mower's inclination

Front drawer, containing the machine's control centre, where the remote control receiver is to be placed (SEPARATELY PURCHASED)

Operator platform, allowing the operator to manoeuvre the machine without having to walk behind it, so that large areas can be worked comfortably.

Foam air filter flap for alternator cooling
