Weibang WBGT6813 - Professional Hammer Rough Cut Mower - GT1300 Engine

The Weibang WBGT6813 professional petrol hammer flail mower is a high-performance machine designed for the maintenance of large areas with tall grass and brushwood.

This model is stands out for its robustness and operational efficiency, making it ideal for professional use.

Equipped with a powerful, state-of-the-art internal combustion engine, the Weibang WBGT6813 guarantees high performance even in the most demanding conditions.

The CVT (continuously variable transmission) allows optimal speed management, adapting to different cutting requirements.

The swivelling handlebar is another distinctive feature, offering greater user comfort and facilitating manoeuvring in tight spaces.

A key element of the WBGT6813 flail mower is the 38 Y-blade roller, which ensures a clean and precise cut on both tall grass and branches.

The cutting height is adjustable from 10 to 90 mm, allowing the machine to be adapted to different ground conditions and specific work requirements.

This flexibility of adjustment is particularly useful for maintenance operations on uneven surfaces or with varying degrees of vegetation.

Distinctive features of the Weibang WBGT6813:

• Powerful, state-of-the-art internal combustion engine
• Swivelling handlebar for user-friendliness
• CVT transmission for optimal speed management
• Roller with 38 Y-blades for precise cutting
• Cutting height adjustable from 10 to 90 mm

The Weibang WBGT6813 is an excellent solution for professionals needing a reliable and versatile flail mower.

Its advanced technical specifications and ergonomic features make it an essential tool for the efficient management of large green areas.

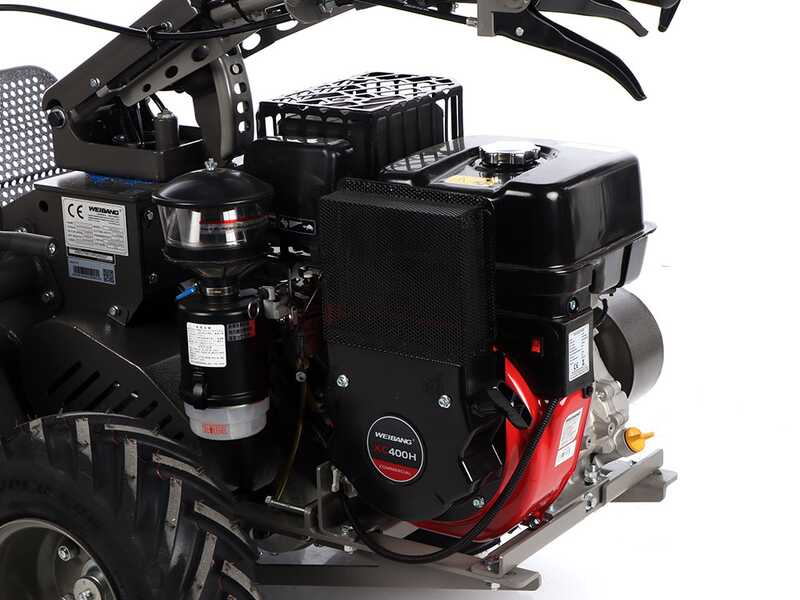

The high-performance GT1300 engine is suitable for work where good power is required thanks to its large 392 cc displacement.

Features:

WARNING
THE MACHINE IS SHIPPED WITH NO OIL IN THE ENGINE, read the instruction manual carefully before starting it.

Nominal Power: 9 HP

* Also known as 'Commercial' Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This figure is the one that is most widely used and publicised in the main sales channels.

Actual power: 6.6 HP

* It refers to the real power of the engine. This is the figure listed as official in the engine manufacturer's instruction manual or technical data.

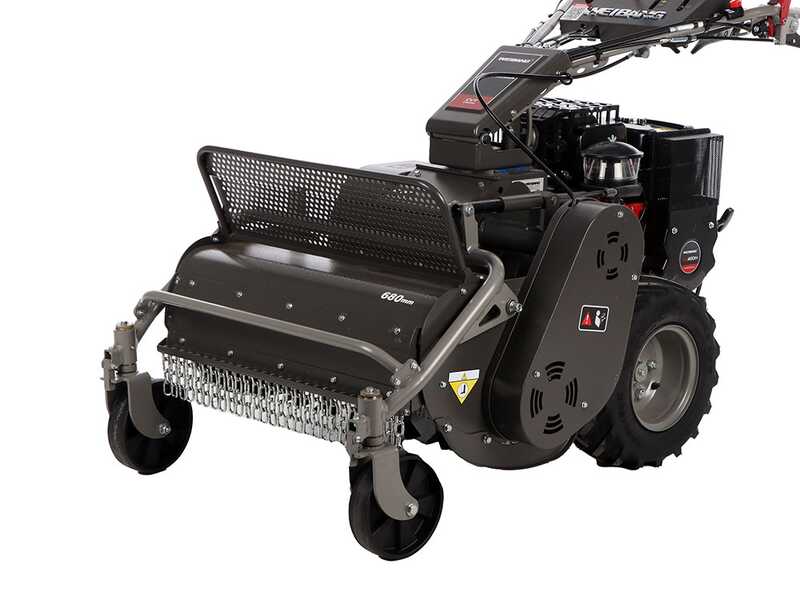

Flail head made of high-strength steel

Sturdy steel rotor with 38 Y-shaped knives.

They give this machine unrivalled effectiveness on all types of tasks (grass but also brushwood, thorn bushes, pruning, up to 2.5 cm in diameter)

Working width: 68 cm

Detail of the knives and their sturdy supports

Cutting height adjustment from 10/90 mm via central crank handle (1-2-3)

Detail of the front and rear protective chains.

The flail head is also equipped with an additional operator protection fitted to the top of the flail head. This safety guard ensures maximum safety in use.

Detail of toothed counter-shears for greater shredding efficiency.

Equipped with a spirit level, alerting the operator when the machine is tilted to the side and the allowed working level.

The Weibang WBGT6813 professional hammer flail mower is equipped with an advanced transmission system that ensures optimal performance even in the most demanding conditions.

The CVT (Continuous Variable Transmission) transmission allows continuous speed variation without interruption, offering precise control and adaptability in various soils.

Main features of the gearbox and transmission:

• CVT transmission: allows continuous speed variation.
• Precise control: adaptability to various soils.
• Robustness: designed to withstand harsh conditions.

The CVT system allows the speed of the flail mower to be adjusted according to operational needs, thus improving efficiency and productivity.

This technology is particularly useful on rough soils and slopes, where speed control is essential to maintain stability and safety.

This is a significant advantage for professionals who need reliable and durable equipment.

Other advantages of the CVT transmission include:

• Reduced engine wear: the engine runs at optimum speed.
• Fuel efficiency: reduces fuel consumption through optimal engine performance management.
• Reduced maintenance: fewer mechanical components prone to wear and tear than conventional transmission systems.

The transmission system of the Weibang WBGT6813 is a significant improvement over conventional models, combining advanced technology with a sturdy design.

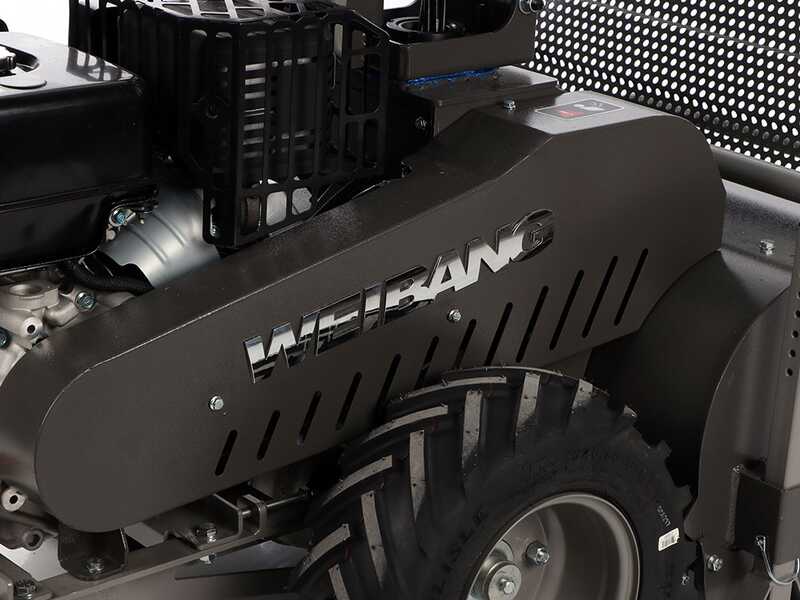

End transmission to the flail mower rotor, whose movement is forwarded via a drive belt protected by a robust casing.

Detail of the speed variator lever,

Detail of roller drive engagement

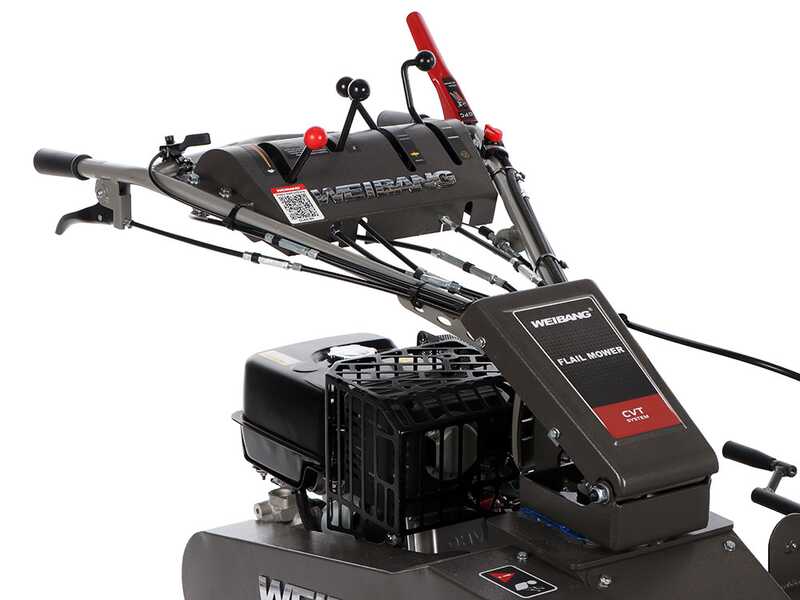

The Weibang WBGT6813 professional hammer flail mower offers a control and adjustment system designed to maximise efficiency and operator comfort.

The control interface is intuitive and easy to use, reducing the time needed to familiarise with the machine.

Operators can quickly adjust the cutting height, which ranges from 10 to 90 mm, adapting the flail mower to the different requirements of the soils and plant material to be cut.

Further features of the controls:

• Ergonomic control panel: designed for fatigue-free prolonged use.

Roller drive coupling

Detail of the clutch engagement, which must be pressed before selecting the desired speed.

Detail of the speed variator lever, used to select the desired feed speed.

The black levers under the knobs are used to turn the machine, even at 0 radius, and act by braking the tracks independently.

The levers in the middle of the handlebars are used to adjust the stems of the machine respectively

Right: in height, 1–2

Left: sideways 1–2

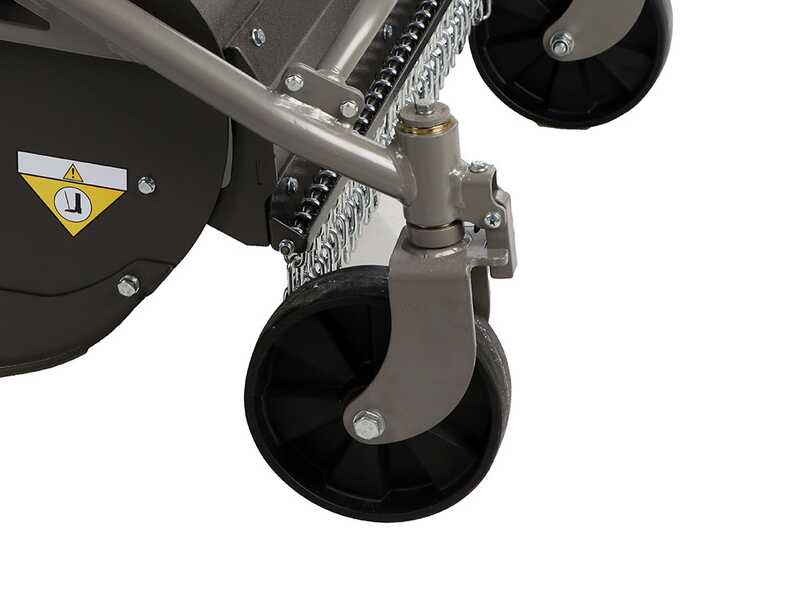

Pivoting, anti-puncture, extremely sturdy, locking front wheels

Clamp that allows the flail mower head to be locked in a raised position, so that inspection and maintenance can be carried out in complete safety and comfort.

Spirit level, which allows the operator to control the level of the flail mower's inclination

Front and rear chains to prevent flying debris

Tracktor wheels for maximum grip at all times

Counter-knife to optimise grass shredding
