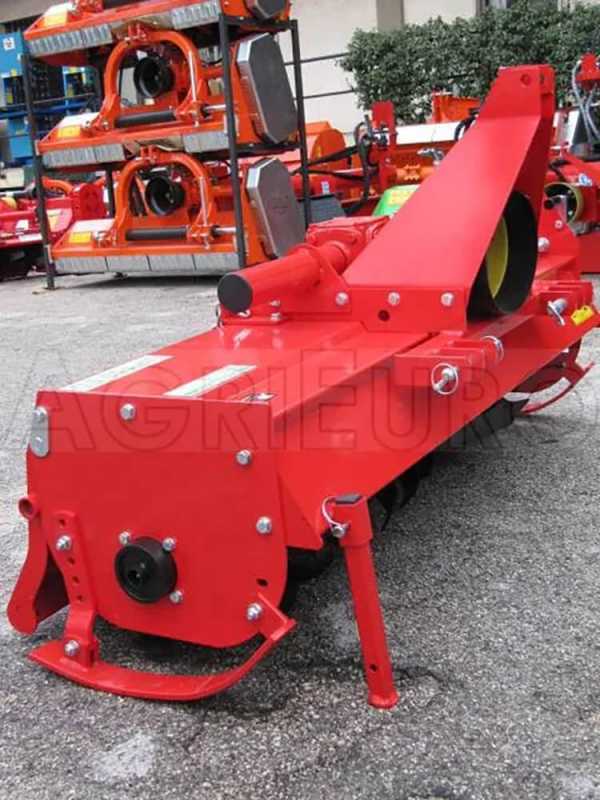

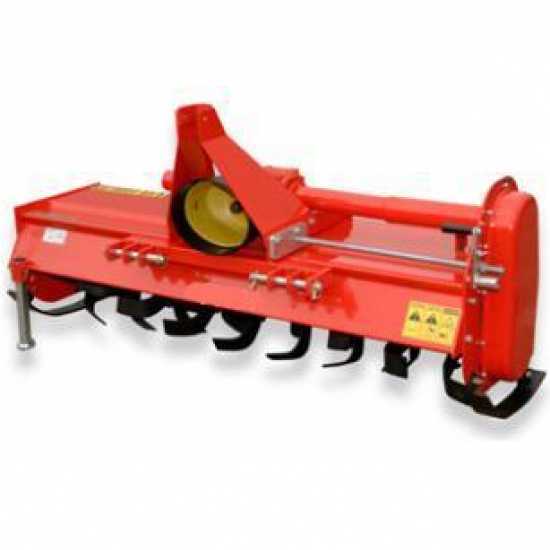

The AgriEuro UR 168 rotary tiller is a medium-heavy, sturdy, semi-professional level machine designed to be attached to medium and small tractors.
The special feature that makes it standing out among other models is the mechanical shift system that allows the machine sliding on a sort of track made on the frame structure of the machine.
The possibility of moving the connection by means of the screw-type shifting system makes the machine suitable for any operation near crops (fruit trees, vines, etc.).
Focus on the side support with inner fixing bearing of the rotor with blades, heavy-duty type
View of the side support from the outside, where it is possible to see its sturdiness and solidity.
Height-adjustable side support skids.
Mechanical shifting as standard.

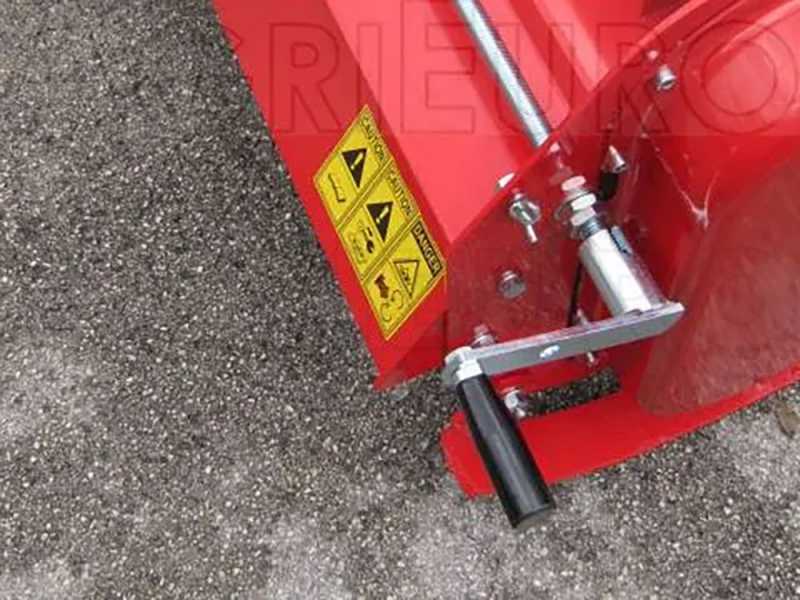

This is controlled by a heavy-duty screw system, operated by a manual rotating lever that can be removed from the machine and mounted with a simple gesture.
In the pic. aside, focus on the long telescopic transmission shaft that passes through the gearbox unit and allows the latter to be moved and slid on it.
To move the entire three-point hitch of this tractor-mounted rotary tiller, simply loosen the cranks.
Then assemble the crank on he screw and turn it, that will allows you to move the machine immediately, without any effort, and above all without the need of any additional tool.
Once the hitch has been moved, simply tighten the two cranks again to secure it.
Finally, slip off the side handle and place it in its resting position
Movable rear cover which levels the milled soil
It can be adjusted in different positions by means of the proper chain.
A medium series rotary tiller, suitable for semi-professional tillage.
Thanks to the exceptional number of hoes (as many as 6 per flange) it grinds the soil very finely, with simultaneous soil levelling. Thanks to the high rotor speed, it performs an excellent tilling action.
The hoe is attached to the rear part of the tractor 3-point hitch.
Side drive with sturdy large oil-bath chain (ASA 80)
Focus on the sturdy cast iron gearbox with oil-bath gears.
Universal standard power take-off
( 1 3/8" Z6 )
Universal lifter coupling pins.
Complimentary standard size universal joint.
