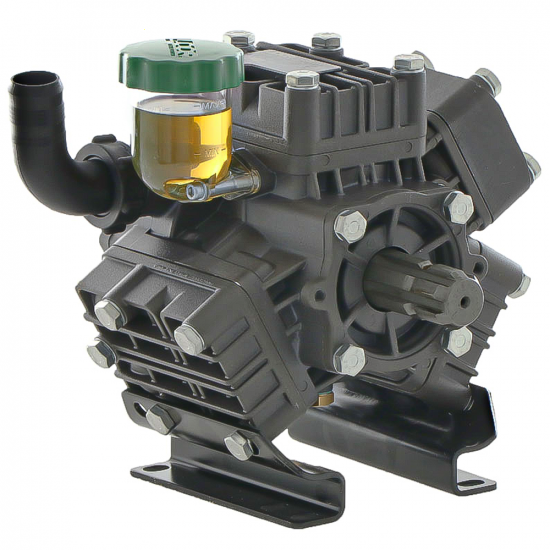

KAPPA 65 1C pump is a MADE IN ITALY product equipped with 3 diaphragms and a flow rate of 67 L/min.
This pump is available with single or double splined/cylindrical shaft power take-off and can reach a working pressure of 40 bar.
It is a semi-hydraulic diaphragm pump with anodised aluminium heads, specially designed to be compatible with plant protection products.
The casing is made of corrosion-resistant anodised die-cast aluminium, ensuring product durability.
The pump's inspectable valves are designed with a spherical profile to improve volumetric efficiency.
This design allows for optimal performance during use.
Furthermore, the pump is equipped with the new GREENTECH diaphragm. This diaphragm is made of an innovative material that reduces deformation caused by use and increases mechanical and chemical resistance.
Technical data:
- Configuration 3 GREENTECH diaphragms
- Pump flow rate: 67.0 l/min
- Maximum pressure: 40bar
- Power: 6.5hp
- RPM: Max. 550

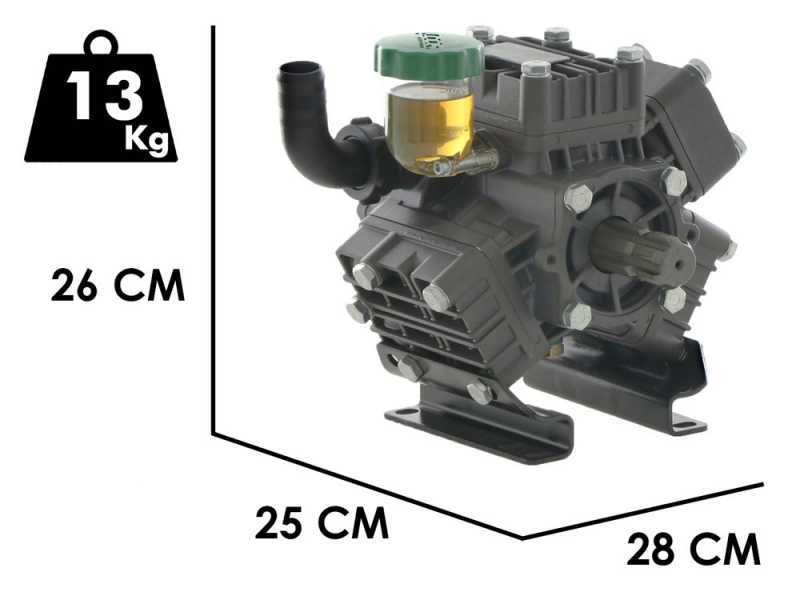

- Weight: 13 kg
- Splined shaft: 1"3/8
The oil level is easily visible through the compensator on the pump.
The UDOR KAPPA 43 1C total weight is 13 Kg, which allows moving it without any fatigue.
Equipped with fixing brackets.
