UDOR kappa 43 1C - Tractor-Mounted Sprayer Pump

Add a question
ID: 111828

EAN: 8053435095433

MPN: 841100

UDOR kappa 43 1C - Tractor-Mounted Sprayer Pump
Pump only
Water pump type
Number of diaphragms
Flow rate
46 L/min
Max. operating pressure
40 bar
Motor type
Tractor-driven PTO
Nominal power
4.3 HP
Manufacturing country
Product Features
a 3 membrane GREENTECH
Pump only
Motor type:
Tractor PTO
Operating mode:
Tractor-driven PTO
Pump only
Flow rate:
46 L/min
Max. operating pressure:
40 bar
Manufacturing country:
Motor data
Motor type:
Tractor-driven PTO
Nominal power:
4.3 HP
Pump data
Pump brand:
Number of diaphragms:
Water pump type:
Manufacturing country:
Free gifts/extra features
Instructions manual:
Dimensions and logistics

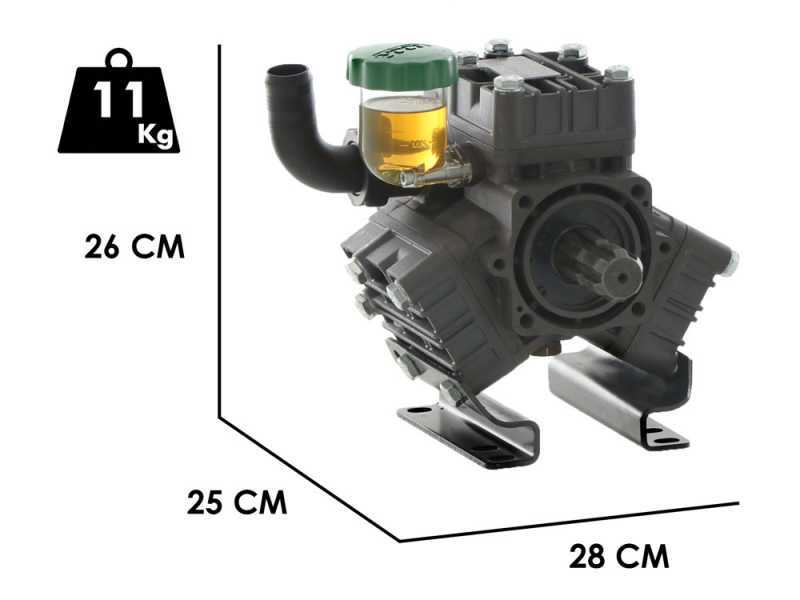

Product dimensions in cm (L x W x H):
Net weight:
11 Kg
Original packaging
Original packaging/s dimensions in cm (L x W x H):
Gross weight (packaging included) :
11.7 Kg
Assembly time:
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 05/06/2024 - 07/06/2024
€ 369,27
VAT Included

You're viewing:
Customers also viewed:

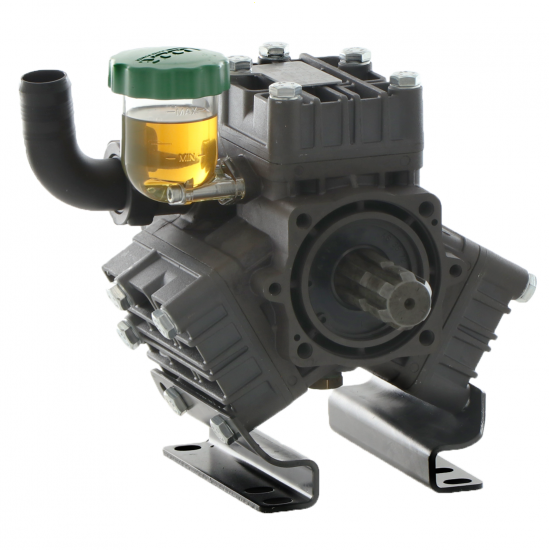

UDOR kappa 43 1C - Tractor-Mounted Pump

KAPPA 43 1C pump is a MADE IN ITALY product equipped with 3 diaphragms and a flow rate of 46 L/min.

This pump is available with single or double splined/cylindrical shaft power take-off and can reach a working pressure of 40 bar.

It is a semi-hydraulic diaphragm pump with anodised aluminium heads, specially designed to be compatible with plant protection products.

The casing is made of corrosion-resistant anodised die-cast aluminium, ensuring product durability.

The pump's inspectable valves are designed with a spherical profile to improve volumetric efficiency.

This design allows for optimal performance during use.

Furthermore, the pump is equipped with the new GREENTECH diaphragm. This diaphragm is made of an innovative material that reduces deformation caused by use and increases mechanical and chemical resistance.

Technical data:

  • Configuration 3 GREENTECH diaphragms
  • Pump flow rate: 46.0 l/min
  • Maximum pressure: 40bar
  • Power: 4.3hp
  • RPM: Max. 550
  • Weight: 11 kg
  • Splined shaft: 1"3/8

The oil level is easily visible through the compensator on the pump.

The UDOR KAPPA 43 1C total weight is 11 Kg, which allows moving it without any fatigue.

Equipped with fixing brackets.


If products containing minerals such as kaolin, zeolite, basalt, etc. are used, washing should be carried out at the end of each treatment and at the end of each season to avoid long-term damage to the internal components of the pump. It is advisable to disassemble several parts of the pump, such as valves, heads and diaphragms, in order to clean out any agglomerated residues sedimented by the minerals.
These procedures will ensure a long life of the pump even if the above minerals are used.

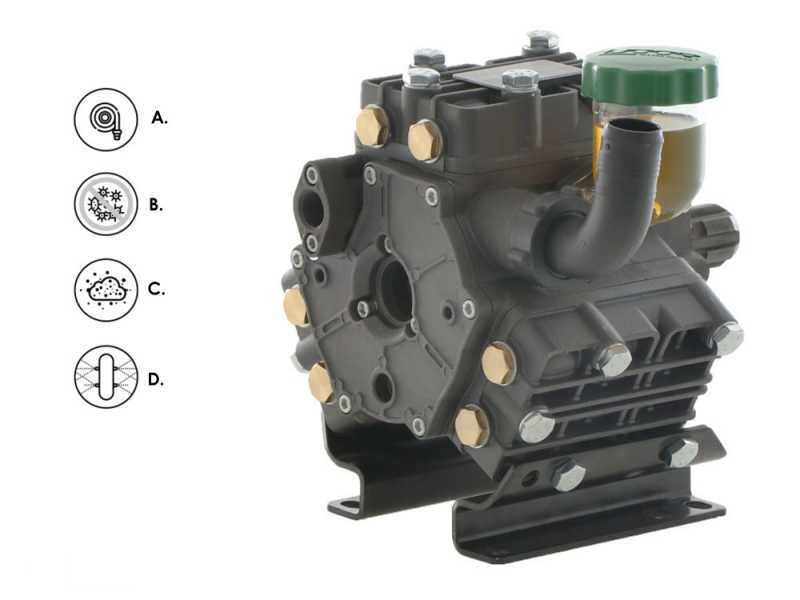

This pump is designed for a variety of uses:

A) For water mist fire-fighting systems, fire-fighting vehicles and modules.

B) To be employed on equipment for disinfection and chemical treatments.

C) For use in spraying systems.

D) For use on agricultural sprayers.

Configuration 3 GREENTECH diaphragms

Pump flow rate: 46.0 l/min

Maximum pressure: 40bar

Power: 4.3hp

RPM: Max. 550

Weight: 11 kg


Splined shaft: 1"3/8

Fixing brackets included

Delivery adapter

Inlet adapter

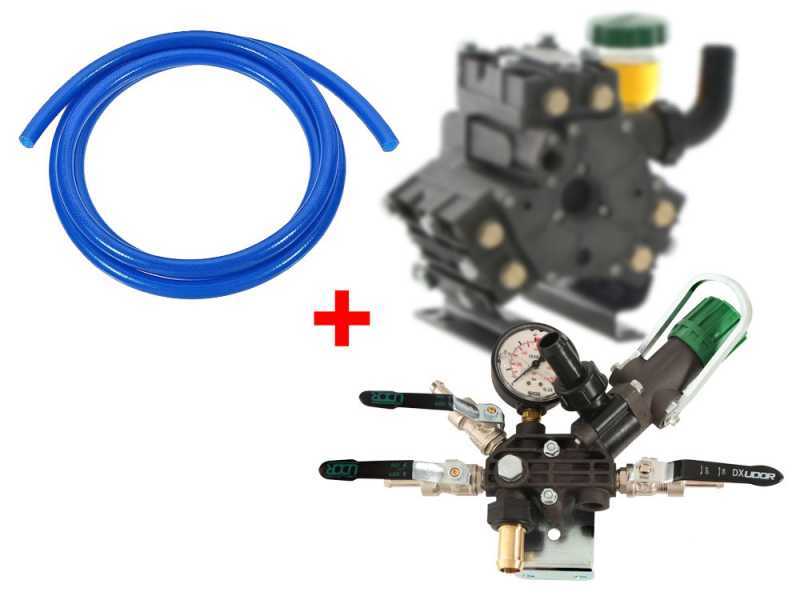

Configurations Available

Two main examples on how to complete your pump with the accessories you find in the "RELATED PRODUCTS" tab:

Pump configuration for distance connection to the tractor, through the cardan shaft:

  • Distance pressure regulation unit to mount on frames, equipped with fittings
  • high pressure hose to connect the pump to the pressure regulation unit
  • * the pump is complete and ready to use
Free items & Standard equipment

Free items included

Original packaging

Instructions manual

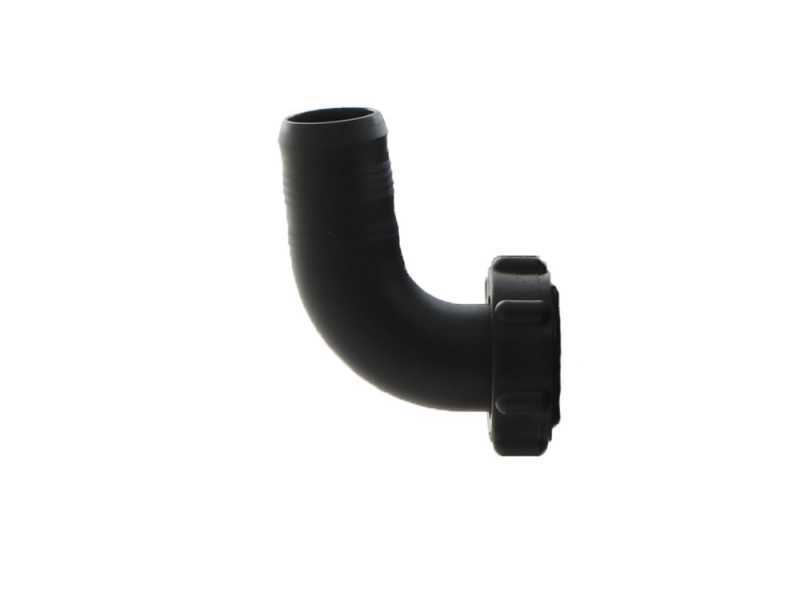

Rubber fitting
