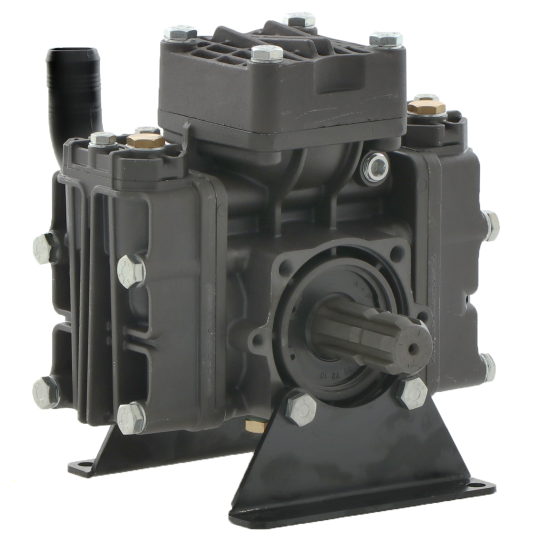

UDOR delta 40 1C - Tractor-Mounted Sprayer Pump

Questions & Answers (2)
ID: 111827

EAN: 8053435095440

MPN: 812200

UDOR delta 40 1C - Tractor-Mounted Sprayer Pump
Configuration
Pump only
Water pump type
Diaphragm
Number of diaphragms
2
Flow rate
49 L/min
Max. operating pressure
40 bar
Motor type
Tractor-driven PTO
Nominal power
3.7 HP
Manufacturing country
Italy
Product Features
Model:
DELTA 40 1C
Type:
a 2 membrane GREENTECH
Configuration:
Pump only
Motor type:
Tractor PTO
Operating mode:
Tractor-driven PTO
Configuration:
Pump only
Flow rate:
49 L/min
Max. operating pressure:
40 bar
Manufacturing country:
Italy
Motor data
Motor type:
Tractor-driven PTO
Nominal power:
3.7 HP
Pump data
Pump brand:
UDOR
Number of diaphragms:
2
Water pump type:
Diaphragm
Manufacturing country:
Italy
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

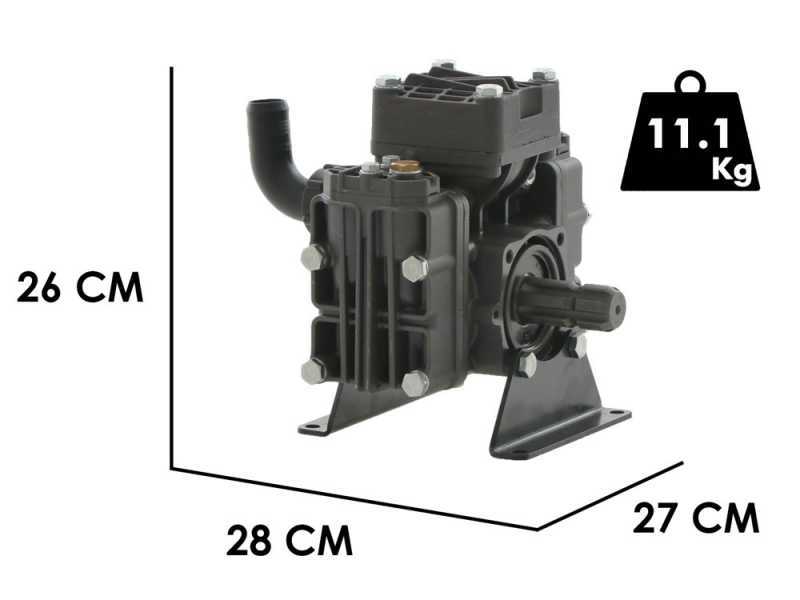

Product dimensions in cm (L x W x H):
26x27x28
Net weight:
11.1 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
27.5x27.5x31
Gross weight (packaging included) :
11.8 Kg
Assembly time:
Assembled
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 23/05/2024 - 27/05/2024
€ 324,20
VAT Included

You're viewing:
Customers also viewed:
Description

UDOR delta 40 1C - Tractor-Mounted Pump

DELTA 40 1C pump is a MADE IN ITALY product equipped with 2 diaphragms and a flow rate of 49 L/min.

This pump is available with single or double splined/cylindrical shaft power take-off and can reach a working pressure of 40 bar.

It is a semi-hydraulic diaphragm pump with anodised aluminium heads, specially designed to be compatible with plant protection products.

The casing is made of corrosion-resistant anodised die-cast aluminium, ensuring product durability.

The pump's inspectable valves are designed with a spherical profile to improve volumetric efficiency.

This design allows for optimal performance during use.

Furthermore, the pump is equipped with the new GREENTECH diaphragm. This diaphragm is made of an innovative material that reduces deformation caused by use and increases mechanical and chemical resistance.

Technical data:

  • Configuration 2 GREENTECH diaphragms
  • Pump flow rate: 49.0 l/min
  • Maximum pressure: 40bar
  • Power: 3.7hp
  • RPM: Max. 550
  • Weight: 11.1 kg
  • Splined shaft: 1"3/8

The oil level is easily visible through a porthole on the pump.

The UDOR DELTA 40 1C total weight is 11.1 Kg, which allows moving it without any fatigue.

Equipped with fixing brackets.

NOTE:

If products containing minerals such as kaolin, zeolite, basalt, etc. are used, washing should be carried out at the end of each treatment and at the end of each season to avoid long-term damage to the internal components of the pump. It is advisable to disassemble several parts of the pump, such as valves, heads and diaphragms, in order to clean out any agglomerated residues sedimented by the minerals.
These procedures will ensure a long life of the pump even if the above minerals are used.

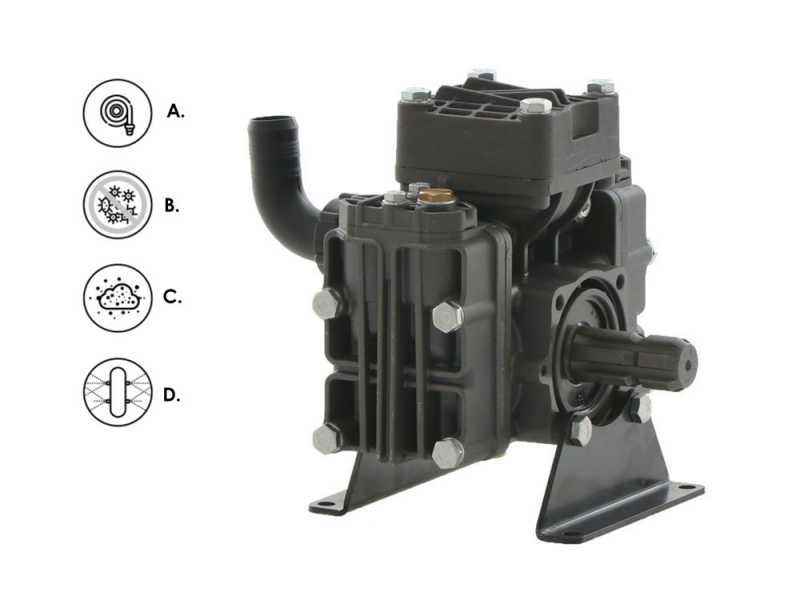

Features

This pump is designed for a variety of uses:

A) For water mist fire-fighting systems, fire-fighting vehicles and modules.

B) To be employed on equipment for disinfection and chemical treatments.

C) For use in spraying systems.

D) For use on agricultural sprayers.

MAIN FEATURES:

Configuration 2 GREENTECH diaphragms

Pump flow rate: 49.0 l/min

Maximum pressure: 40bar

Power: 3.7hp

RPM: Max. 550

Weight: 11.1 kg

Splined shaft: 1"3/8

Fixing brackets included

Delivery adapter

Inlet adapter

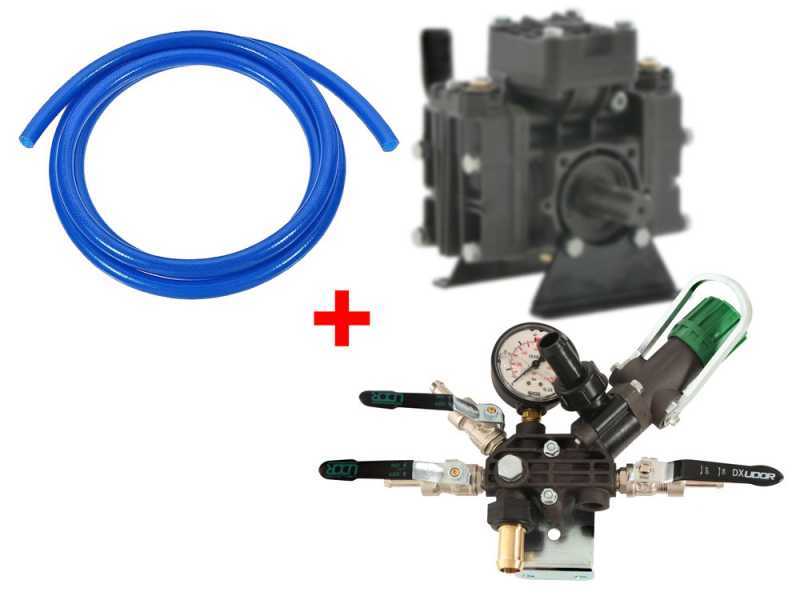

Configurations Available

Two main examples on how to complete your pump with the accessories you find in the "RELATED PRODUCTS" tab:

Pump configuration for distance connection to the tractor, through the cardan shaft:

  • Distance pressure regulation unit to mount on frames, equipped with fittings
  • high pressure hose to connect the pump to the pressure regulation unit
  • * the pump is complete and ready to use
Free items & Standard equipment

Free items included

Original packaging

Instructions manual

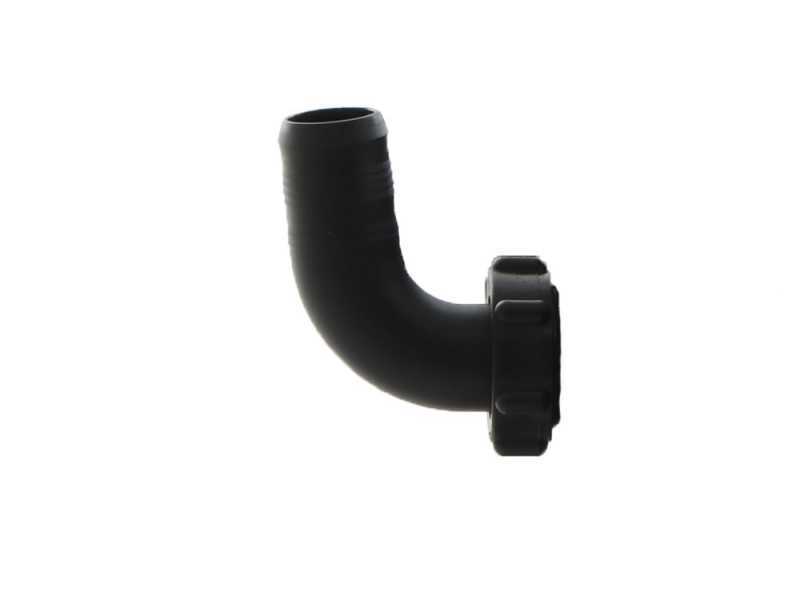

Rubber fitting
