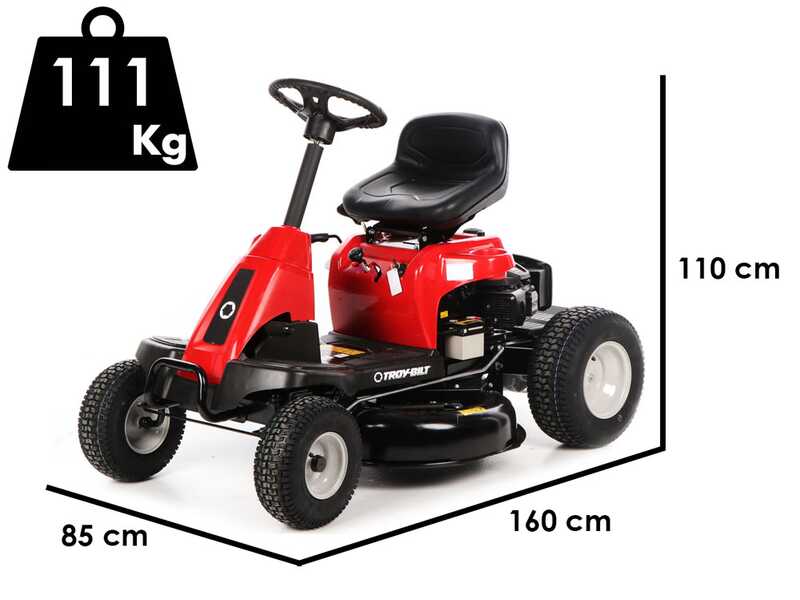

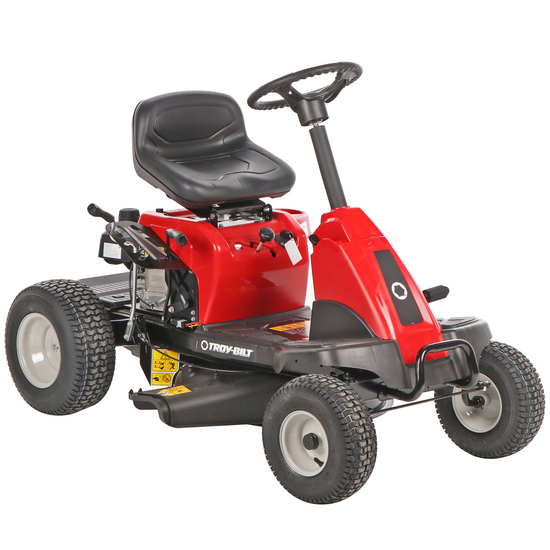

Troy-Bilt TB 60T-S SELECT - Riding-on Mower - with Side Discharge - 196cc Engine - Electric Start

The Troy-Bilt TB 60T-S SELECT lawn tractor is a cutting-edge solution for maintaining your garden, combining power, advanced technology and innovative design to deliver a superior grass cutting experience.

Designed to excel in tight spaces, this model stands out for its exceptional manoeuvrability and light weight, allowing efficient and fast cutting even in the most complex areas of your green space.

Equipped with a side discharge function and a single-blade deck capable of covering a cutting area of 60 cm, the Troy-Bilt TB 60T-S SELECT presents itself as a compact, yet extremely effective appliance, designed to make access to controls simple and intuitive, significantly enhancing the user experience.

With a recommended cutting capacity of up to 1,000 m² per hour, this lawn tractor is equipped with a powerful 196 cc MTD Troy-Bilt engine, which ensures high performance with maximum ease of maintenance, thanks also to the electric start which guarantees ease of use from the very first use.

With a transmatic transmission offering six gears in both forward and reverse, along with blade engagement via a dedicated lever, the Troy-Bilt TB 60T-S SELECT lawn mower tractor promises unprecedented manoeuvrability, combining agility, power and a comfortable, fast ride for a superior mowing experience.

This product is perfect for users who favour compactness without sacrificing performance.

The ergonomic lever for adjusting the cutting height to 5 different positions, from 38 to 95 mm, and the engagement of the blades by means of a lever, further amplify the versatility and effectiveness of this model.

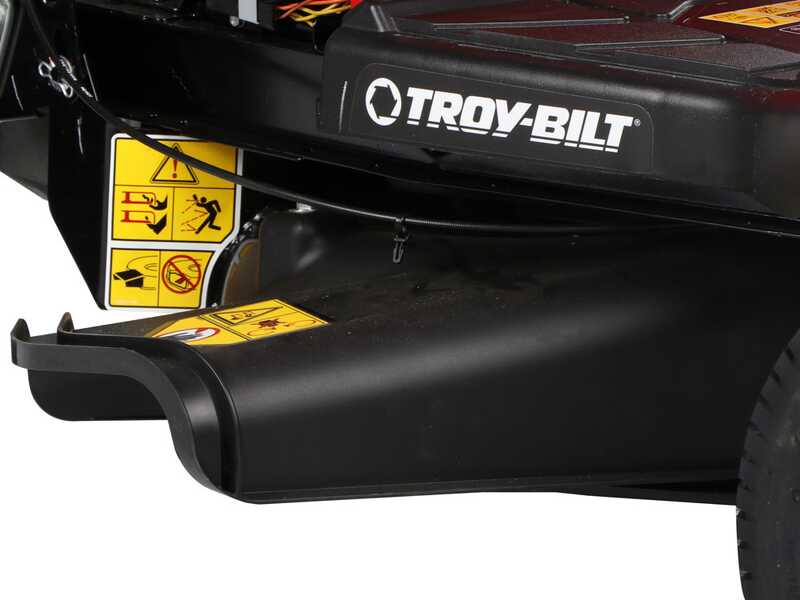

SIDE DISCHARGE (on standard equipment):

For cutting grass without collecting it into the grass collector (suitable for maximising cutting performance in the shortest time; with this system it is possible to cut grass even slightly higher than normal)

The cutting height can be adjusted in 5 different positions.

MULCHING CUTTING SYSTEM (optional)

This system allows cutting grass without catching it inside the collector and crushing the clippings into a fine powder before dropping them on the lawn. Replace the side deflector with the optional accessory for operating with the mulching cutting system.

This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

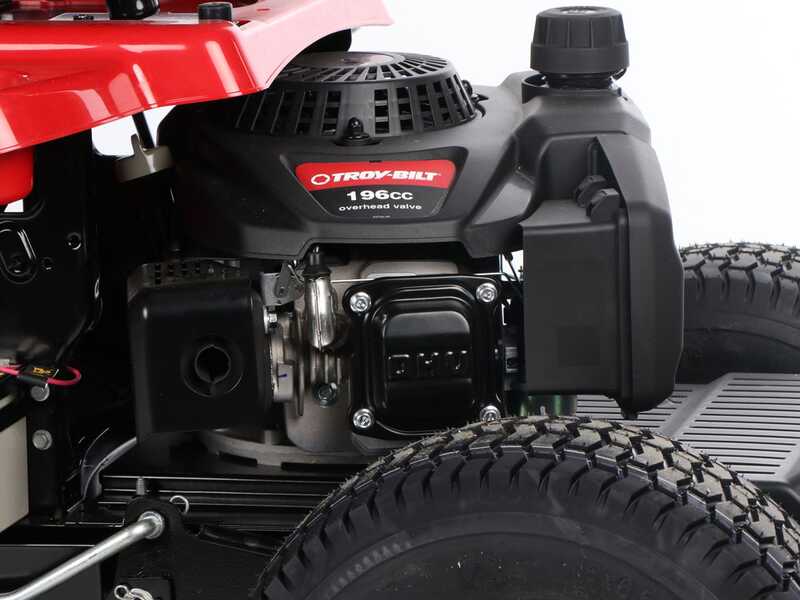

The MTD Troy-Bilt 196cc is a high-performing engine, suitable for demanding operations that require high reliability and long durability over time.

Features:

Nominal Power: 7 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.4HP (at a speed of 3000 rpm)
Corresponds to the real power expressed at the crankshaft. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

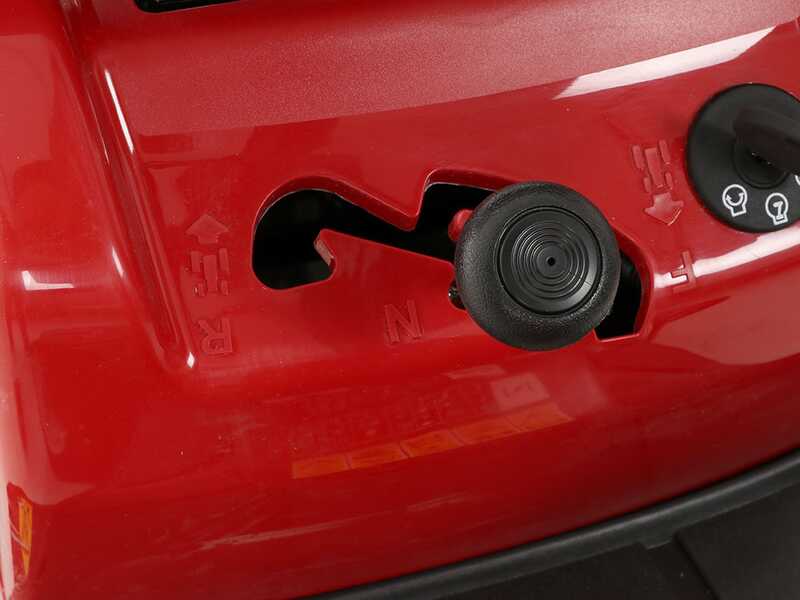

The Troy-Bilt TB 60T-S SELECT rider has a selector switch that allows you to set between:

• forward motion
• Neutral
• Reverse speed

Focus on the adjustment speed lever with 6 positions (6 gears):

Depending on how it is set up the first gear switch, it features 6 forward speeds and 6 reverse speeds.

Once selected one of the 6 gears, you’ll get the possibility to adjust the speed (reducing it) by simply adjusting the pressure on the braking pedal (decelerating in the brake circuit).

Releasing the brake pedal, the riding-on mower will automatically return to the gear that has been previously selected.

Focus on the gear transmatic transmission

Focus on the belt transmission system that transfers motion from the MTD engine to both the blade and the machine.

Cutting equipment features of the Troy-Bilt TB 60T-S SELECT

Sturdy single-blade cutting deck: 60 cm real cutting width.

The machine is equipped with a universal blade suitable both for side discharge and mulching cutting system.

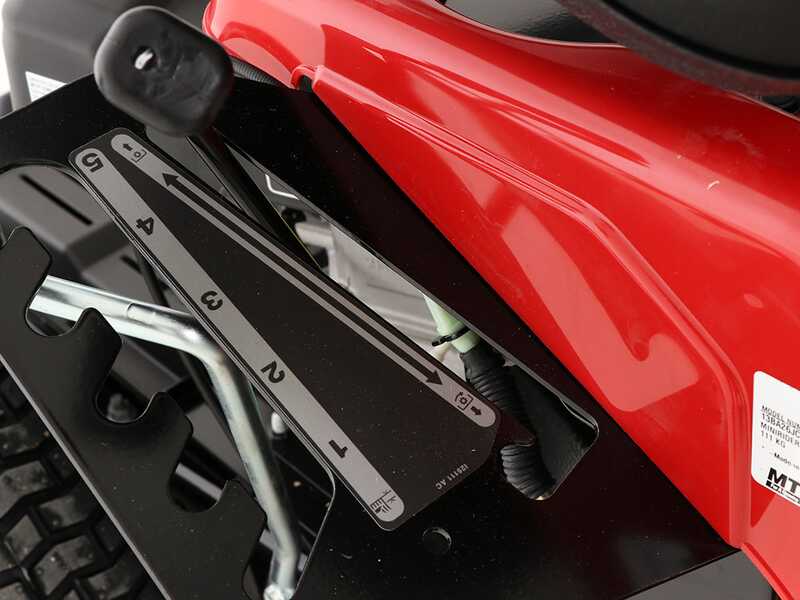

Adjustable cutting height in 5 different positions from 38 mm to 95 mm by means the proper lever.

The blade is operated by means the proper blade engagement lever.

Easy and user-friendly controls.

Once started engine, it is possible to easily select the gear, the forward speed under the steering wheel, operate the machine brake and adjust the blade height and rotation, all directly from the Operator's seat.

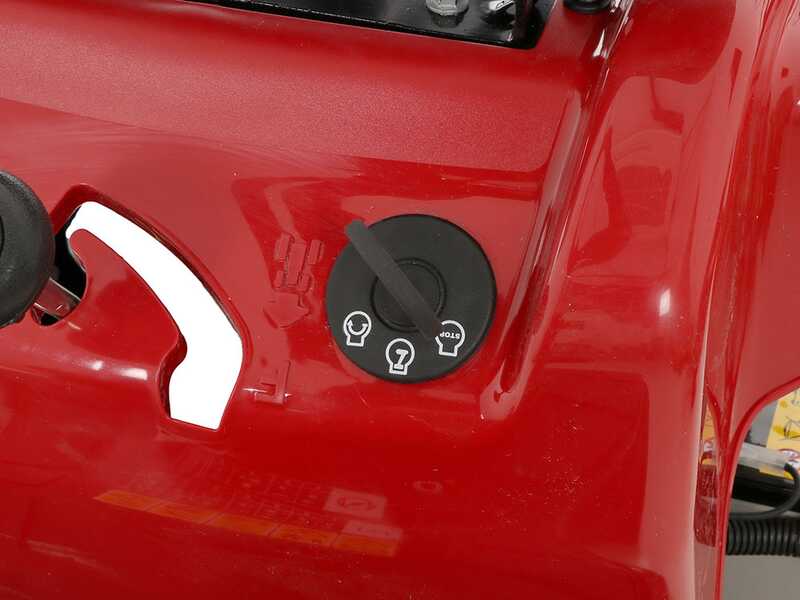

Ignition lock with key: electric starting

Blade engagement lever

Braking pedal

Cutting height adjustment lever in 5 different positions from 30 to 95 mm.

Parking brake and gears engagement lever.

Forward, reverse and neutral gear speed selection lever.

Other features of the Minirider Troy-Bilt TB 60T-S lawn tractor SELECT:

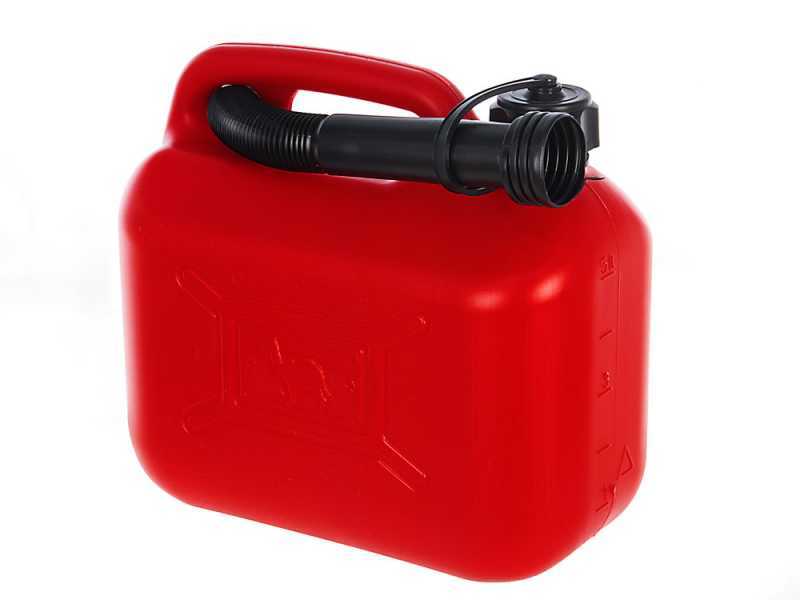

• Canister housing
• Large-sized tyres: they ensure higher care of the lawn and great adherence to the ground and traction on a riding-on mower.

Rear wheels: 16x6.5

Front wheels: 13x5

• Excellent turning radius: the best of its category. It allows very easy manoeuvres even in tight spaces.

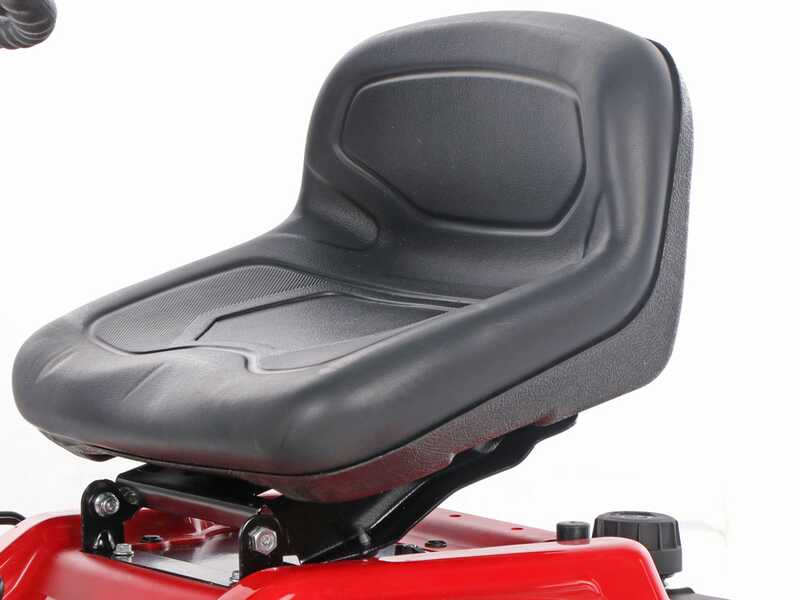

• Large-sized comfortable Operator's seat that lies on large springs which act as shock absorber while working on slopes on the ground.
• Ergonomic steering wheel
