Tornado TOSCANA TO200/51 - Tractor-mounted sprayer unit - 200 litres

Questions & Answers (3)
ID: 3466

EAN: 9993089176999

MPN: TO200/51

After-sales assistance & Spare parts
Tornado TOSCANA TO200/51 - Tractor-mounted sprayer unit - 200 litres
+50 sold
Tank capacity
200 l
Pressure regulator
Pump brand
Flow rate
51 L/min
Max. operating pressure
40 bar
Tool boom
In steel - universal connection
Circuit washing tank
Hand washing tank
Manufacturing country
Product Features
For spraying treatments
Operating mode:
tractor mounted
Frame type:
Hot-dip galvanised steel
Flow rate:
51 L/min
Max. operating pressure:
40 bar
Tank capacity:
200 l
Tank capacity:
200 L
Manufacturing country:
Pump data
Pump brand:
Pump brand:
APS 51
Pump type:
three membranes
Flow rate:
51 lt/min
Operating pressure:
40 bar
Pressure regulator:
No. of cylinder heads:
Manufacturing country:
Optional accessories
Tool boom:
In steel - universal connection
Internal hydraulic shaker:
Circuit washing tank:
Hand washing tank:
Removable cartridge filter:
Free gifts/extra features
High-pressure hose for spray gun:
5 mt.
Kit for bracket assembly:
Instructions manual:
Dimensions and logistics
Product dimensions in cm (L x W x H):
800x700x1150 mm
Net weight:
100 Kg
Thermoplastic packaging
Gross weight (packaging included) :
100 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 24/07/2024 - 26/07/2024
€ 1.613,03
VAT Included
You're viewing:
Customers also viewed:

TORNADO Mounted Sprayer for Irrigation - Toscana TO200/51

Mounted sprayer for irrigation for medium and large crops.

Polyethylene full-emptying tank, with a capacity of 200

HEAVY PROFILE hot galvanised steel frame

Comet APS 51 Pump

For spraying treatments in medium and large crops.

The parts directly touching the liquid are made of anodized aluminium, resistant to corrosion.

New three-membrane configuration

Flow rate: 51.0 l/min
Pressure: 40.0 bar

Pressure Regulation Unit

Original Comet production, 3-way standard GCP series.

It consists of 3 outlets, all available, all equipped with a valve, suitable for many uses.

Usually, the two horizontal outlets are used to connect, for example, a pair of spray guns for orchards/olive groves, or stainless steel booms for vineyards and so on...

Instead, the central upward valve is most often used to connect a hose reel or simply a hose with a lance, or spray guns for spraying directly by hand.

The left valve is already connected to a high-pressure hose, which feeds the internal hydraulic agitator system.

It is also possible to move the entire pressure regulation unit directly into the tractor cabin by purchasing the special kit (which extends the length of the the hoses)

Galvanised Steel Frame

HEAVY PROFILE hot galvanised steel frame + three-point tractor linkage complete with pins.

This weeding tank is equipped with two special vertical bars specifically designed for the application of any spraying device on the market, also allowing height adjustment in the desired position.

The universal multi-tool plate is supplied with this tank.

It is equipped with two supports to house any tool on the market. The bars can be placed in two positions: completely open and closed, to be suitable for any tool available.

They are also equipped with many holes to house the tools, so you do not have to make new ones.

To make the plate even more versatile, it can be adjusted in height by loosening the bolts and sliding it over the dedicated bars.

General Features

Polyethylene full-emptying tank, capacity (L) 200.

Additional tank for hand washing

Circuit-washing tank (to wash the inside of the tank, hoses and all the equipment at the end of the treatment, before storage). To activate it, simply open the tap in the cartridge filter.

Focus on the external level with graduated scale.

Hydraulic agitator, to constantly mix the solution within the tank. It has a high-pressure jet in the centre of the tank.

External suction filter equipped with self-filling system (the hose to fill the tank must be purchased separately, you can find it in the related accessories section).

Internal filter to clean the liquid from any possible residue or dirt during the tank filling phase.

Valve to completely empty the tank.

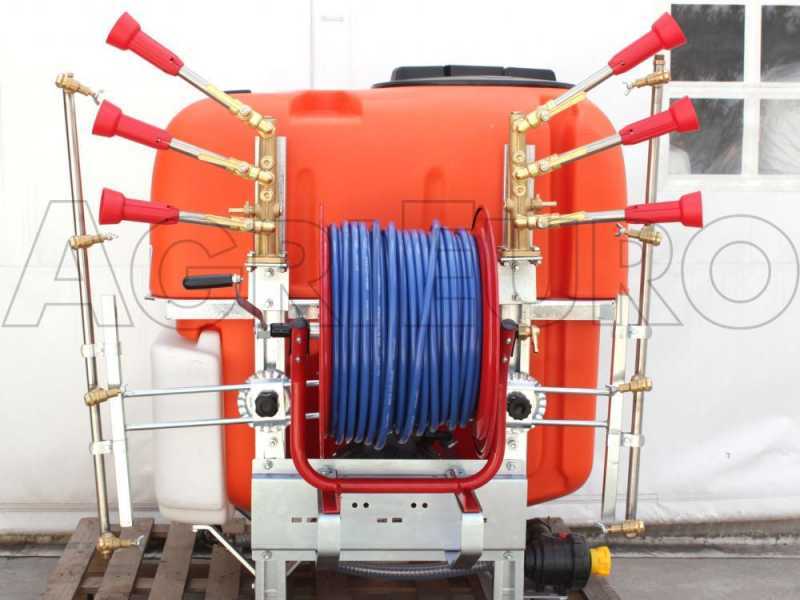

Tank Accessories Sold Separately

Here are some accessories that can be mounted on these tanks.

Here are some examples of single mounting of accessories:

  • Mechanical inter-row 2-nozzle weeding boom with medium cover
  • Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and brass lever lance It is also possible to pair the "mitra" lance or the spray gun for tall trees with the steel hose reel.
  • Stainless steel spray guns with 4+4 brass butterfly nozzles
  • Spray guns
  • Stainless steel spray booms with 4+4 brass butterfly nozzles directly mounted on the accessory bar.

Many customization options:

  • Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and spray guns
  • Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and stainless steel spray booms with 4+4 brass nozzles
  • Pair of stainless steel spray booms with 4+4 brass butterfly nozzles and spray guns
  • There is enough space in the bars to mount all the accessories available, so they are always handy

All the accessories are available in the RELATED PRODUCTS section.

Free items & Standard equipment

Free Items Included

Large metal filter

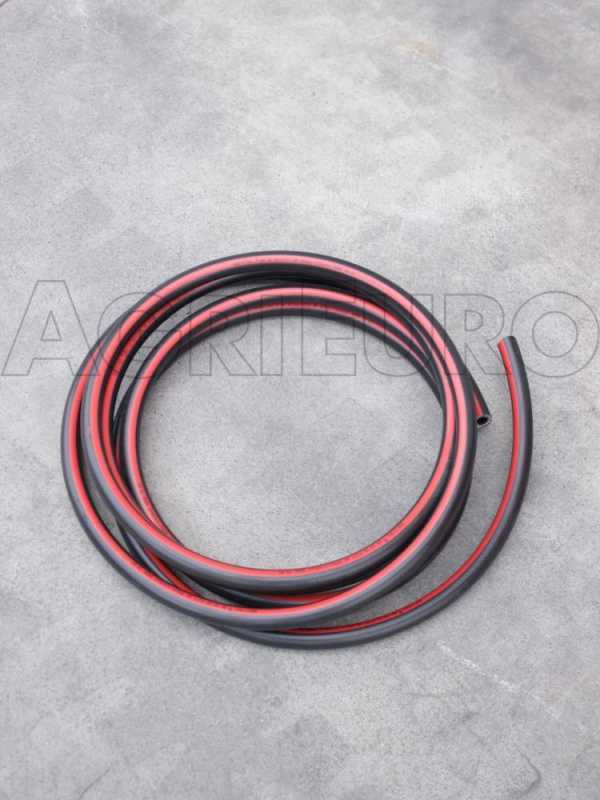

5 m rubber hose, long enough to connect any additional accessory (hose reels, bars, spray guns, etc.). It connects the pressure regulation unit outlets to the tools; it can be divided into several parts according to the number of tools you need to connect.

Accessories: black fitting to be applied on the lower external filter to activate the self-filling function + various fittings for the pressure regulation unit + valve for the hand washing tank.
