Tornado EMILIA 800/135 - Tractor-mounted weed control unit - 800 l tank

Questions & Answers (2)
ID: 3475

EAN: 9993089177088

MPN: EM800/125

8,1/10
After-sales assistance & Spare parts
Tornado EMILIA 800/135 - Tractor-mounted weed control unit - 800 l tank
Special offer
+20 sold
Tank capacity
800 l
Pressure regulator
Yes
Pump brand
Comet
Flow rate
132 L/min
Max. operating pressure
20 bar
Distributor
Volumetric
Tool boom
In steel
Circuit washing tank
Yes
Hand washing tank
Yes
Manufacturing country
Italy
Product Features
Model:
EM800/135
Type:
For weeding
Operating mode:
tractor mounted
Flow rate:
132 L/min
Max. operating pressure:
20 bar
Tank capacity:
800 l
Tank capacity:
800 L
Manufacturing country:
Italy
Pump data
Pump brand:
Comet
Pump brand:
Comet
Model:
BP135K
Pump type:
three membranes
Flow rate:
132 lt/min
Operating pressure:
20 bar
Pressure regulator:
Yes
No. of cylinder heads:
2
Manufacturing country:
Italy
Equipment
Equipment:
Optional accessories
Tool boom:
In steel
Internal hydraulic shaker:
Yes
Distributor:
Volumetric
Circuit washing tank:
Yes
Hand washing tank:
Yes
Removable cartridge filter:
Yes
Free gifts/extra features
High-pressure hose for spray gun:
5 mt.
Kit for bracket assembly:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
800 x 1300 x 1700 mm
Net weight:
190 Kg
Packaging:
Thermoplastic packaging
Gross weight (packaging included) :
190 Kg
Assembly time:
5 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 26/06/2024 - 28/06/2024
Suggested price:
€ 3.257,44
-5 %
€ 3.094,57
VAT Included
You're viewing:
Customers also viewed:
Description

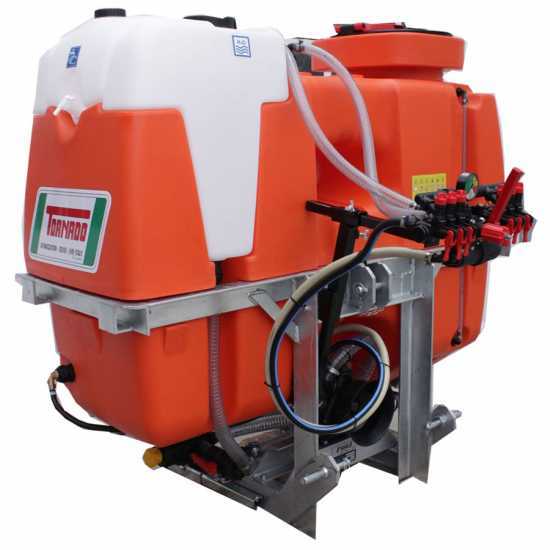

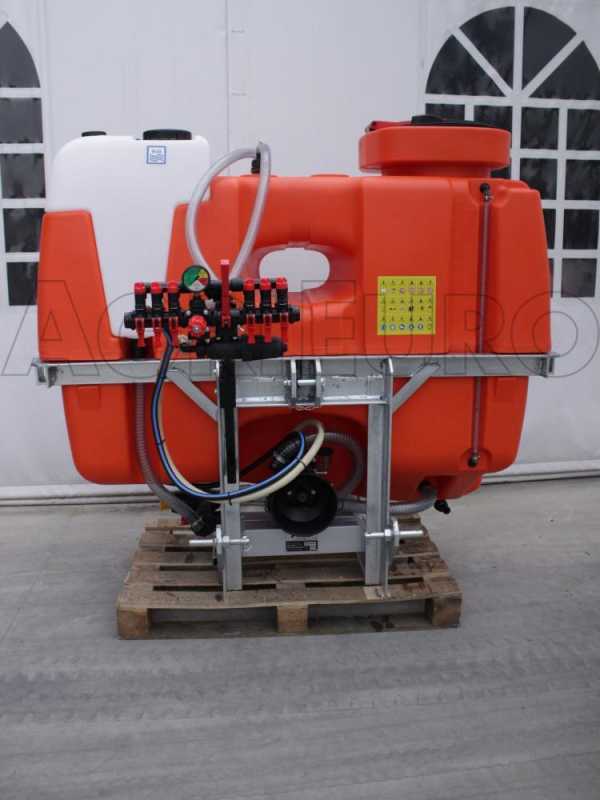

Mounted Weed Sprayer TORNADO Emilia EM 800/135

Mounted weed sprayer for medium and large crops.

Equipped with a modern low pressure BP 135 COMET pump, specific for weeding treatments.

Polyethylene full-emptying tank, with a capacity of 800L capacity

HEAVY PROFILE hot galvanised steel frame.

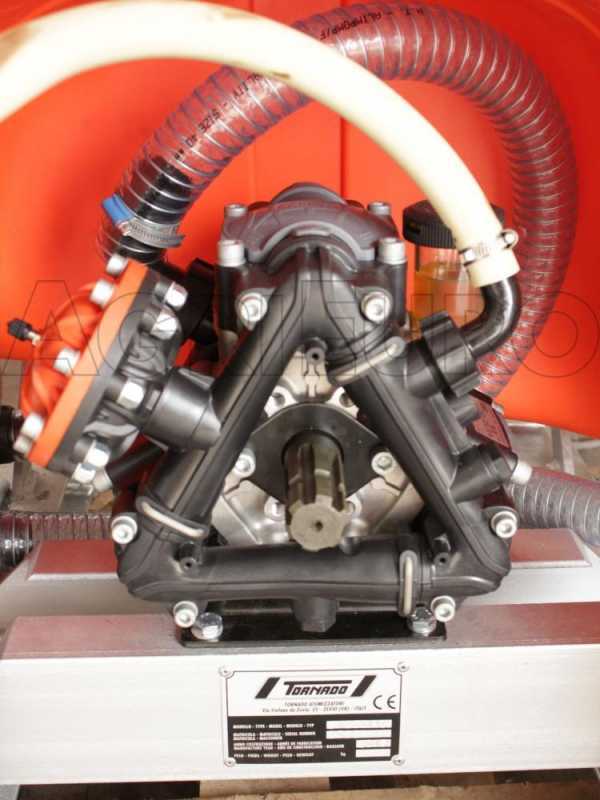

Comet BP135 Pump

For weeding treatments and liquid fertilization with solutions.

The parts directly touching the liquid are made of plastic and plastic-coated aluminium, resistant to chemicals used in agriculture.

3-membrane Desmopan® configuration

Heads and manifolds made of cast aluminium.

Flow rate: 132.0 l/min
Pressure: 20.0 bar

Pressure Regulation Unit

This mounted weed sprayer unit has a 6-way constant pressure volumetric distributor.

VOLUMETRIC = maintains a perfectly constant liquid supply for each nozzle even when the pump speed varies or when the speed changes.

CONSTANT PRESSURE = maintains a perfectly constant pressure on each of the 6 outlets, so that every nozzle will deliver the same amount of liquid.

These two systems provide a distribution of the treatment as even and regular as possible, without waste, minimizing costs and reducing the damage on the environment.

Focus on the adjustable compensators (through a special upper wheel) with which each of the six outlets is equipped.

Pressure adjustment knob and Bypass lever that opens and closes the inflow of liquid to the boom.

Filter system fitted as standard which prevents the nozzles from becoming dirty or clogged.

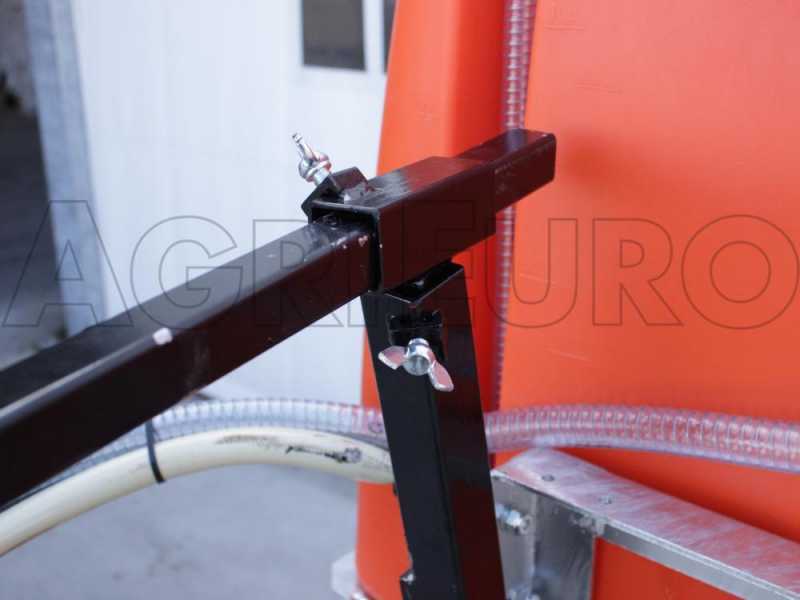

Equipped with a special telescope arm with double adjustment, both horizontally and vertically.

This makes it possible to bring the unit closer to the tractor cab, so that you can operate the various controls directly from the driver's seat by simply turning around, without getting off the tractor.

- Vertical telescope regulator to adjust the height.
- Horizontal telescope regulator to approach the operator.

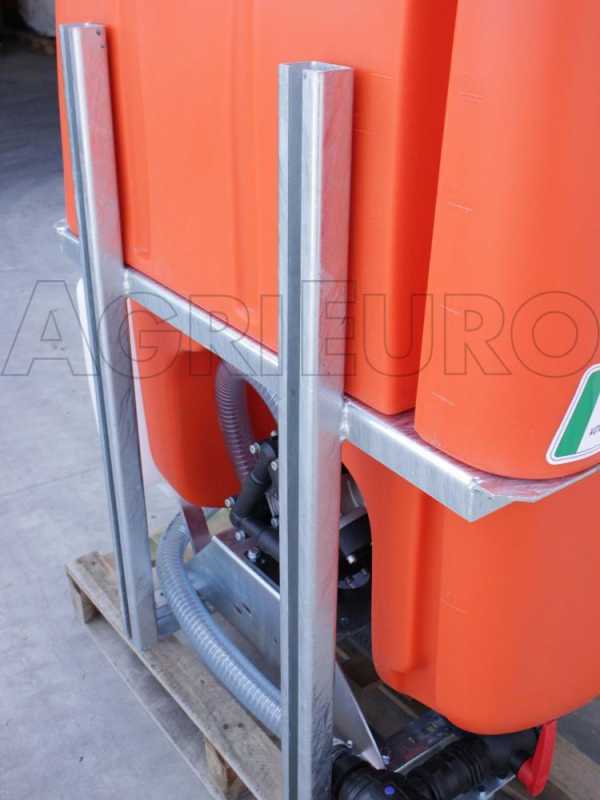

Galvanised Steel Frame

HEAVY PROFILE hot galvanised steel frame + three-point linkage to the tractor complete with pins.

This mounted weed sprayer is equipped with two special vertical bars specifically designed to mount any spraying device on the market, also allowing height adjustment in the desired position.

Perfect for applying any bar with hydraulic closure on the market by making two simple holes on it, or any bar lifting system, self-leveling device and so on...

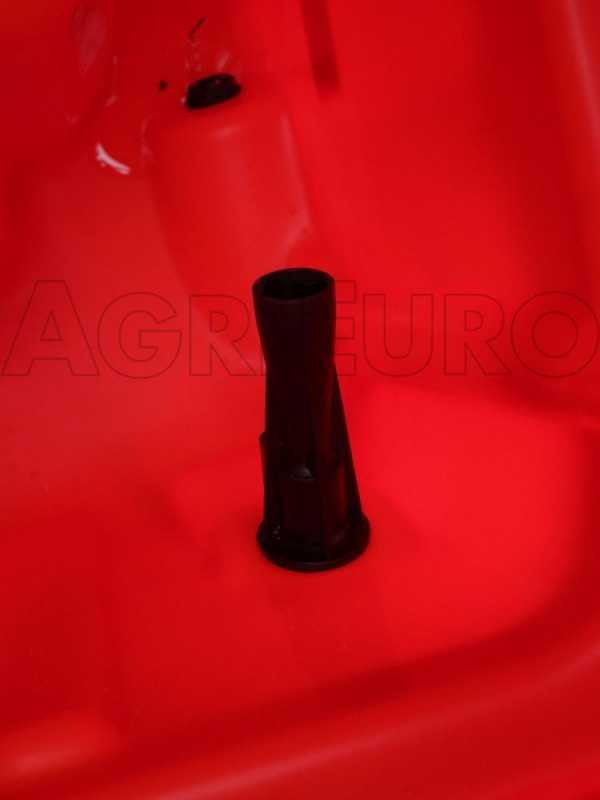

General Features

Polyethylene full-emptying tank, capacity (L) 800.

Additional tank for hand washing

Circuit-washing tank (to wash the inside of the tank, hoses and all the equipment at the end of the treatment, before storage). To activate it, simply open the tap in the cartridge filter.

Focus on the external level with graduated scale.

Hydraulic agitator, to constantly mix the solution within the tank. It has a high-pressure jet in the centre of the tank.

External suction filter equipped with self-filling system (the hose to fill the tank must be purchased separately, you can find it in the related accessories section).

Free items & Standard equipment

Free Items Included

Large metal filter

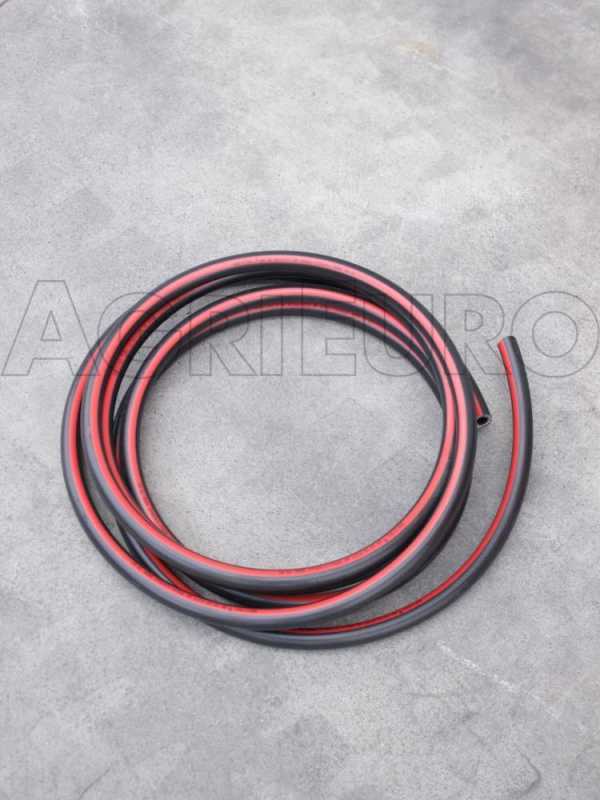

5 m rubber hose, largely sufficient to connect any additional accessory (hose reel, bars, etc.). It must connect the outlets of the pressure regulation unit and the tools; it can be divided into several parts according to the number of tools you need to connect.

Accessories: black fitting to be applied on the lower external filter to activate the self-filling function + various fittings for the pressure regulation unit + valve for the hand washing tank.
