Tornado EMILIA 600/135 - Tractor-mounted weed-killing unit - 600 l tank

Questions & Answers (1)
ID: 3474

EAN: 9993089177071

MPN: EM600/135

8,1/10
After-sales assistance & Spare parts
Tornado EMILIA 600/135 - Tractor-mounted weed-killing unit - 600 l tank
+30 sold
Tank capacity
600 l
Pressure regulator
Yes
Pump brand
Comet
Flow rate
132 L/min
Max. operating pressure
20 bar
Distributor
Constant pressure
Tool boom
In steel
Circuit washing tank
Yes
Hand washing tank
Yes
Manufacturing country
Italy
Product Features
Model:
EM600/135
Type:
For weeding
Operating mode:
tractor mounted
Flow rate:
132 L/min
Max. operating pressure:
20 bar
Tank capacity:
600 l
Tank capacity:
600 L
Manufacturing country:
Italy
Pump data
Pump brand:
Comet
Pump brand:
Comet
Model:
BP135
Pump type:
three membranes
Flow rate:
132 lt/min
Operating pressure:
20 bar
Pressure regulator:
Yes
No. of cylinder heads:
2
Manufacturing country:
Italy
Equipment
Equipment:
Optional accessories
Tool boom:
In steel
Internal hydraulic shaker:
Yes
Distributor:
Constant pressure
Circuit washing tank:
Yes
Hand washing tank:
Yes
Removable cartridge filter:
Yes
Free gifts/extra features
High-pressure hose for spray gun:
5 mt
Kit for bracket assembly:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
1300x680x1600 mm
Net weight:
140 Kg
Packaging:
Thermoplastic packaging
Gross weight (packaging included) :
140 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 15/10/2024 - 17/10/2024
€ 2.727,02
VAT Included
You're viewing:
Customers also viewed:
Description

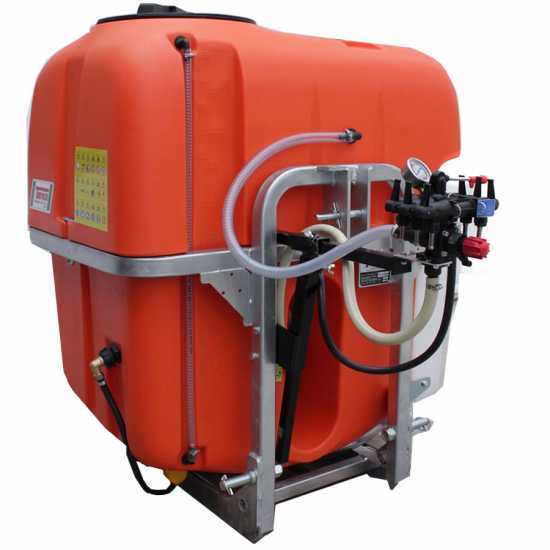

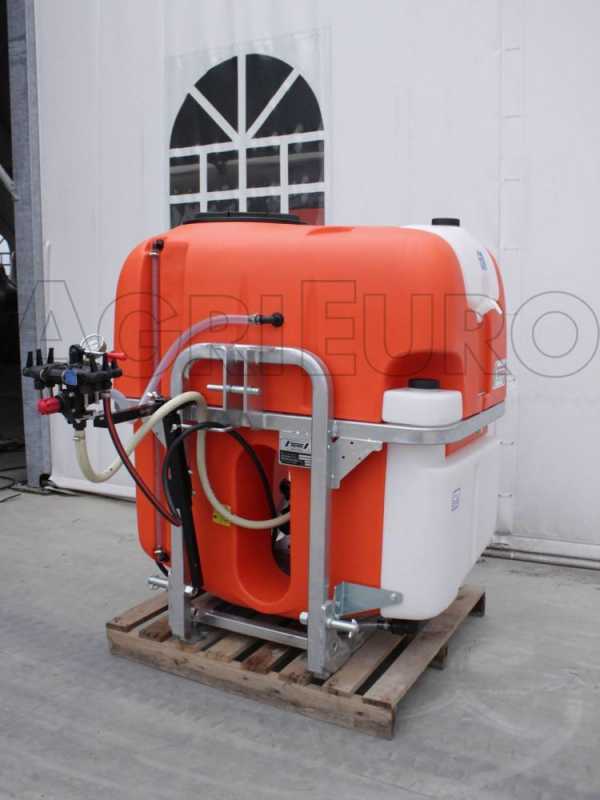

TORNADO Mounted Weed Sprayer - Emilia EM600/135

Mounted weed sprayer for medium and large crops.

Equipped with a modern low pressure BP 135 COMET pump, specific for weeding treatments.

Polyethylene full-emptying tank, with a capacity of 600

HEAVY PROFILE hot galvanised steel frame.

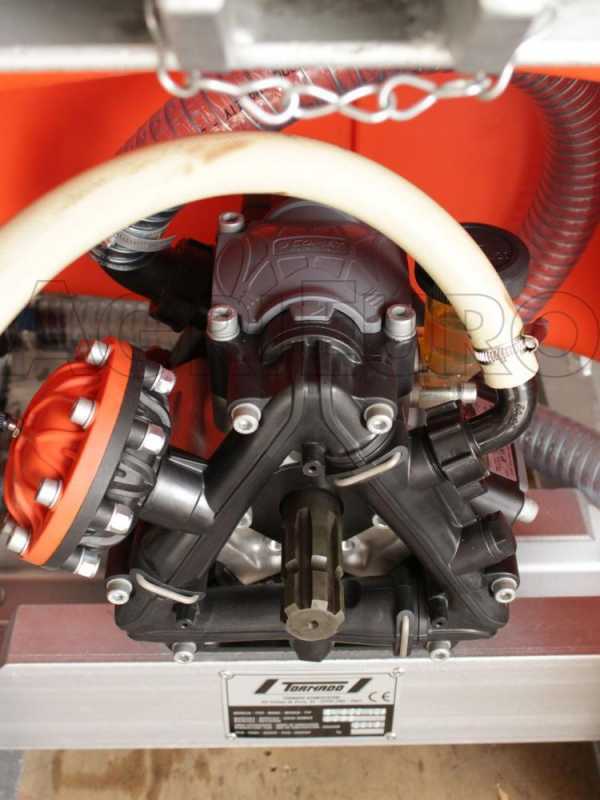

Comet BP135 Pump

For weeding treatments and liquid fertilization with solutions.

The parts directly touching the liquid are made of plastic and plastic-coated aluminium, resistant to chemicals used in agriculture.

3-membrane Desmopan® configuration

Plastic heads and manifolds (Nylon)

Flow rate: 132.0 l/min
Pressure: 20.0 bar

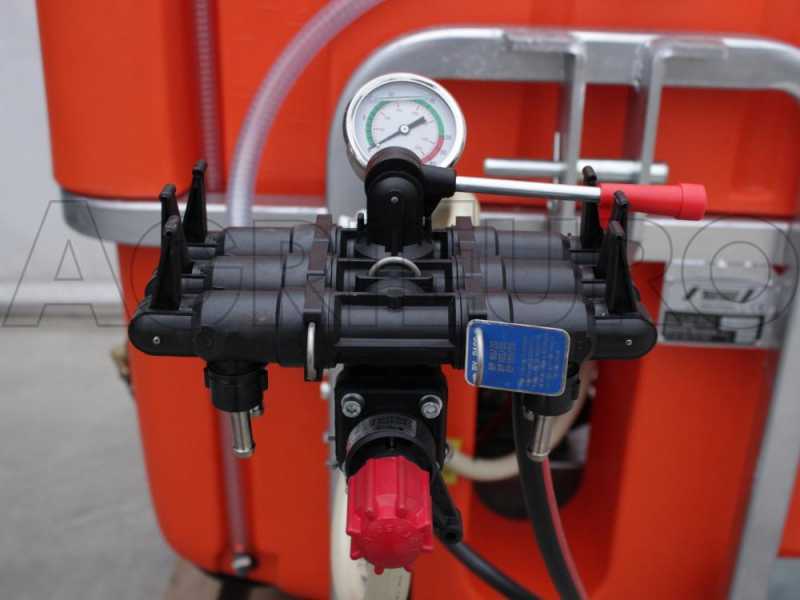

Pressure Regulation Unit

This mounted weed sprayer has a six-way constant pressure volumetric distributor.

CONSTANT PRESSURE = maintains a perfectly constant pressure on each of the 6 outlets, so that every nozzle will deliver the same amount of liquid.

Equipped with pressure control knob and Bypass lever that opens and closes the inflow of liquid to the bar.

Equipped with a special telescope arm with double adjustment, both horizontally and vertically.

This makes it possible to bring the unit closer to the tractor cabin, so you can operate the various controls directly from the driver's seat by simply turning around, without getting off the tractor.

-Vertical telescope regulator to adjust the height
-Horizontal telescope regulator to adjust the distance from the operator

Galvanised Steel Frame

HEAVY PROFILE hot galvanised steel frame + three-point tractor linkage complete with pins.

This weeding tank is equipped with two special vertical bars specifically designed for the application of any spraying device on the market, also allowing height adjustment in the desired position.

General Features

Polyethylene full-emptying tank, capacity (L) 600.

Additional tank for hand washing

Circuit-washing tank (to wash the inside of the tank, hoses and all the equipment at the end of the treatment, before storage). To activate it, simply open the tap in the cartridge filter.

Focus on the external level with graduated scale.

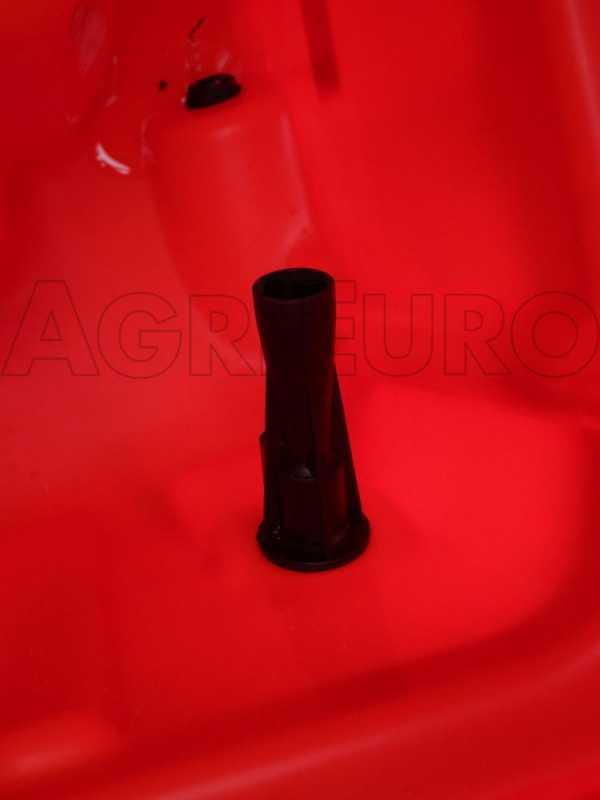

Hydraulic agitator, to constantly mix the solution within the tank. It has a high-pressure jet in the centre of the tank.

External suction filter equipped with self-filling system (the hose to fill the tank must be purchased separately, you can find it in the related accessories section).

Free items & Standard equipment

Free Items Included

Large metal filter

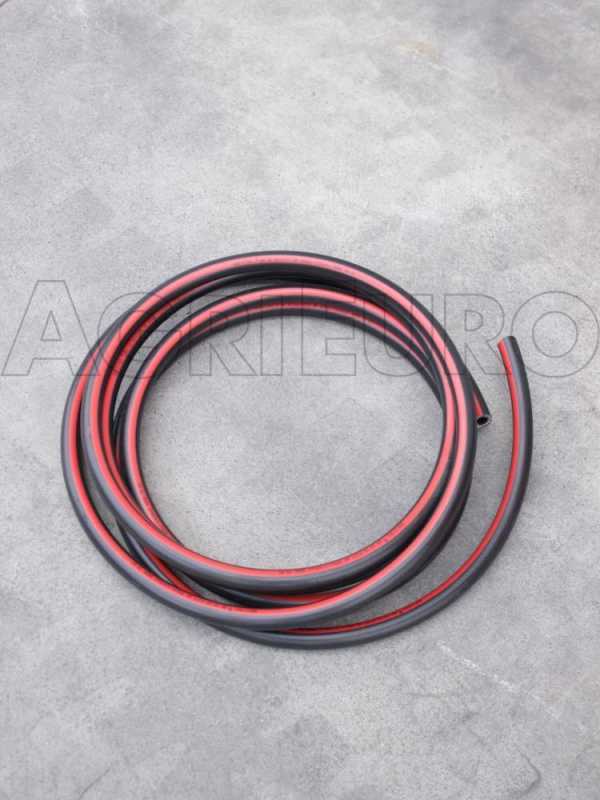

5 m rubber hose, largely sufficient to connect any additional accessory (hose reel, bars, etc.). It must connect the outlets of the pressure regulation unit and the tools; it can be divided into several parts according to the number of tools you need to connect.

Accessories: black fitting to be applied on the lower external filter to activate the self-filling function + various fittings for the pressure regulation unit + valve for the hand washing tank.
