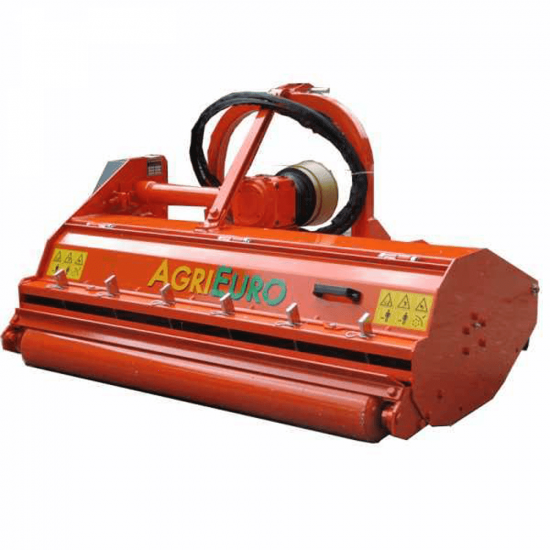

Top Line MS 100 - Tractor-mounted Flail Mower - Medium Series - Hydraulic Shift

Add a question
ID: 107697

EAN: 8054141543263

MPN: 107697

9,0/10
After-sales assistance & Spare parts
Top Line MS 100  - Tractor-mounted Flail Mower - Medium Series - Hydraulic Shift
Tractor power
From 25 to 30 HP
Sturdiness/Series
Medium
Weight
263 Kg
Cutting width
100 cm
Shift
Hydraulic
Standard cutting tools
Toothed hammer flails
Rear brush rakes
Opening rear flap
Hammer flail weight
1.8 Kg
Cardan shaft
Yes
Manufacturing country
Italy
Product Features
Model:
MS 100
Mulcher type:
Standard rear mulcher
Tractor power:
From 25 to 30 HP
Sturdiness/Series:
Medium
Shift:
Hydraulic
Manual shift:
No
Hydraulic shift:
Yes
Hydraulic shift:
Fixed 3-point hitch:
No
Reversible three-point-hitch:
No
Cardan shaft rotation:
Standard
Manufacturing country:
Italy
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
100 cm
Wood diameter:
Up to 50 mm
No. of blades:
8
Standard cutting tools:
Toothed hammer flails
Hammer flail weight:
1.8 Kg
Toothed hammer flails:
Blades bolt diameter:
20 mm
Hammer width:
15.5 cm
Cutting width:
100 cm
Equipment
Collection bag:
No
Counter-blade:
Double row
Side drive belts:
2
Hydraulic Piston for moving:
Yes
Opening rear flap:
Pantograph arm:
No
Rear crampons (collecting rods):
Yes
Rear brush rakes :
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Accessory on request
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Net weight:
263 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
122x120x85 cm
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 21/11/2024 - 25/11/2024
€ 2.747,98
VAT Included
You're viewing:
Customers also viewed:
Description

Product overview

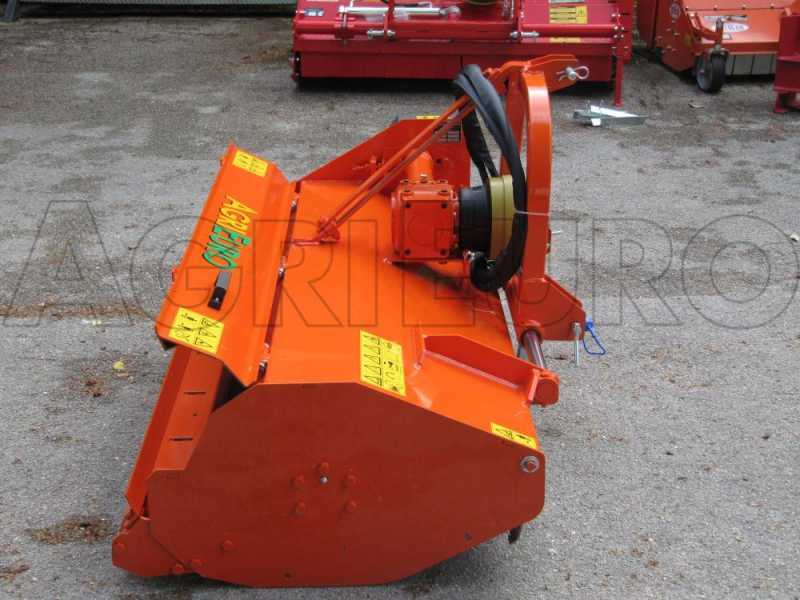

The medium series flail mower with excellent quality and components, outstanding equipment and a great value for money.

Medium series flail mower suitable for different types of works (grass, pruning, straw, etc ...). Equipped with hydraulic side shift on chromed C45 guide, rear door that can be opened for checks, 3-belt drive, swivelling c roller bearings with double sealing lip double rings, rear roller, and Comer gearbox with lubricated extension.

TECHNICAL SPECIFICATIONS (brief overview):

  • Real working width: 100 cm
  • Real width (side skids already assembled): 133 cm
  • Weight: 263 kg

FREE ITEMS PROVIDED ON STANDARD EQUIPMENT (short overview):

  • Hydraulic side shift (max 13 cm)
  • Hammer blades
  • Lower counter knife bar
  • Rear clamps series (collection rods)
  • Rear door flap
  • Rear supporting roller
  • Drive shaft

Cutting tools: toothed hammer flails

No. of standard-supplied toothed hammers: 8

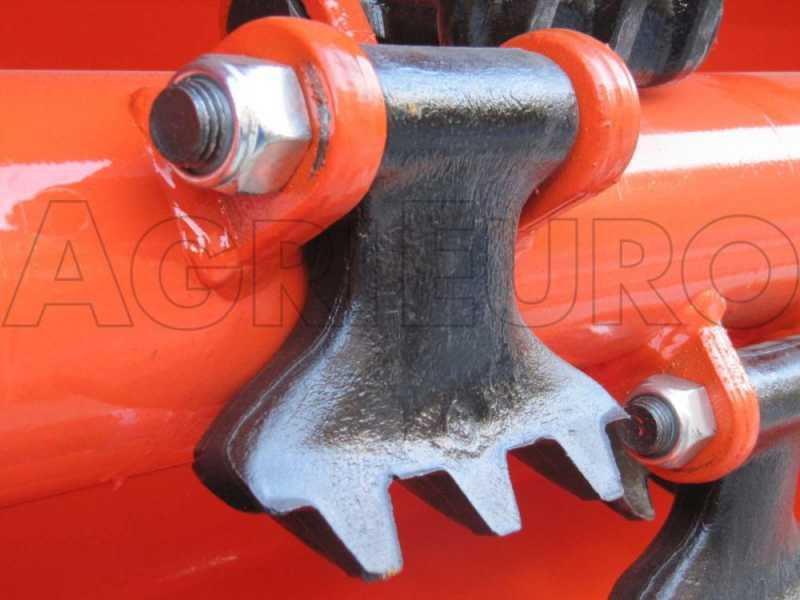

Innovative toothed hammer flails

These are the strongest and heaviest hammers on the market (other standard smooth hammers on the market weight max. 1.6 kg).

The toothed hammer flails mounted on this model, besides being considerably stronger and more efficient compared to classic smooth hammers, they are also able to work effectively on grass, straw and more, where there are solid bodies, such as wood and stones, thanks to the three sturdy "chisels" which tend to "break" and bore material more easily. In addition, these hammers are mounted on a sturdy hardened steel bolt with a diameter of 20 mm (150 mm of length), which make it impossible to break it off in the event of a collision (90% of shredders on the market feature hammers with 16 mm diameter bolts). The width of the hammer linkage is 90 mm.

Equipped with double counter-knife cross bar. They counteract the rotation of the hammers, creating a counter-blade effect to all the material to be ground, which results effectively refined.

Detail of the hammer flails with extremely close trajectory at the cutting angle of the two counter-knives

Rotor, reinforced hammer flails supports, side bearings

High thickness rotor. This makes it suitable to withstand long years of working operations.
It is also electronically balanced.

Sturdy hammers supports made of cast steel: together with the rotor, they contribute to the overall strength of the flail mower shredding system.

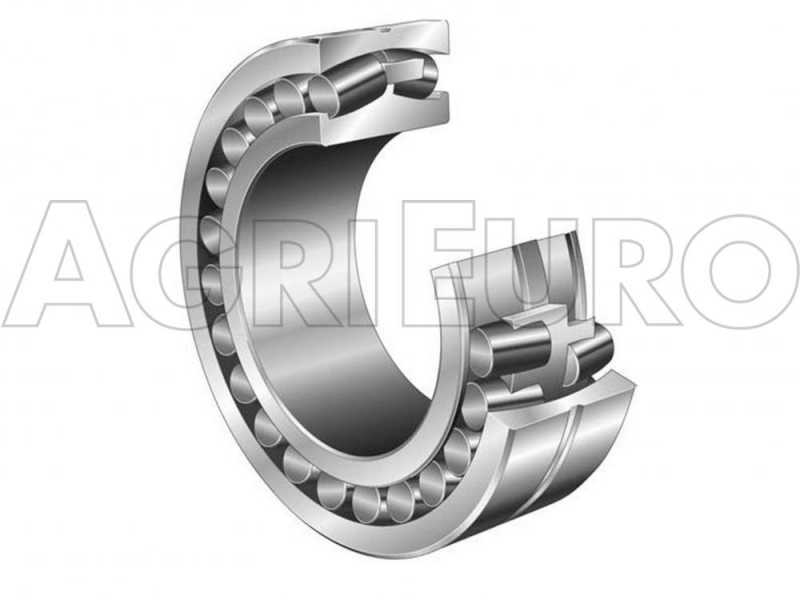

In addition, the rotor is mounted on side steel supporting bars that are provided with highly professional swivelling c roller bearings with double sealing lip double rings.
Roller bearings represent by far the most professional and reliable technology in the field of flail mowers.

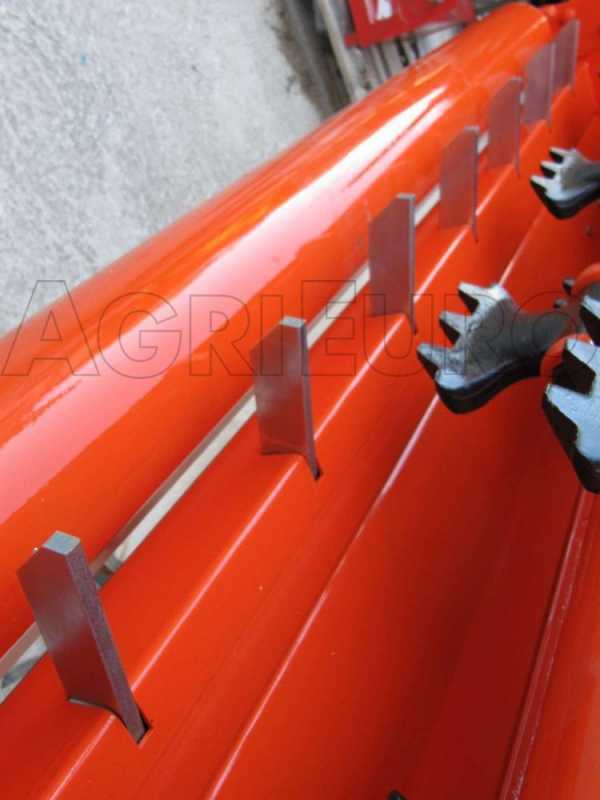

Series of rear brush rakes - collecting rods

Rear collecting rods series (rakes). Specific for shredding pruning or any other crop residues. It's a very important tool, as there is not a single shredder on the market that is truly capable of effectively grinding pruning without leaving medium to large fragments. Any shredder is set at a working height of about 3/4 cm from the ground. This means that the flail mower tends to leave intact all the branches and residues lying on the ground, as the hammers often does not work close enough to the ground to be able to "grasp" them. Also, the tractor's wheels tend to crush or even bury these residues on the ground. The clamps perform a real 'raking' action, extracting from the ground and lifting even those residues buried by the wheels, dragging them along. In this way, no branches or residue will remain on the ground. Each hammer flail rotates at a very close distance to a single brush rake, so, it picks up the branch lifted by the rakes and take it to the grinder; after that, the branch passes through the action of the counter-knives that shred it completely. At the end of the process, there will be hardly any pruning residue still intact throughout the area subjected to the work of this flail mower!

ASSEMBLY: the brush rakes must be adjusted to a height that allows them to work very close to the ground, placed in a "free" position. This means that they must be able to swing vertically, thus adapting to any roughness and unevenness of the ground, thanks to their inclination towards the rear of the machine.
If the rake encounters an obstacle along the way, such as a root or a large stone sticking out of the ground, it can recede and lift itself, thus avoiding bending.

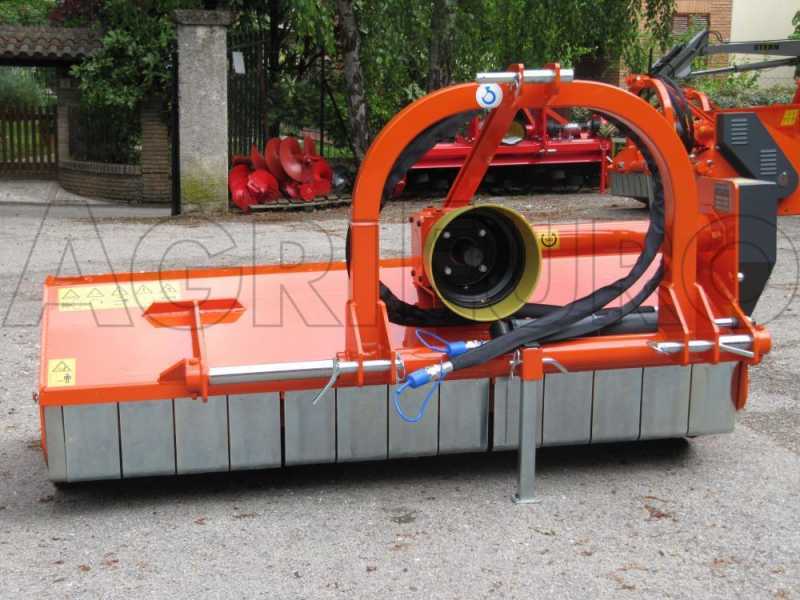

Hydraulic side shift and fixed 3 point-hitch

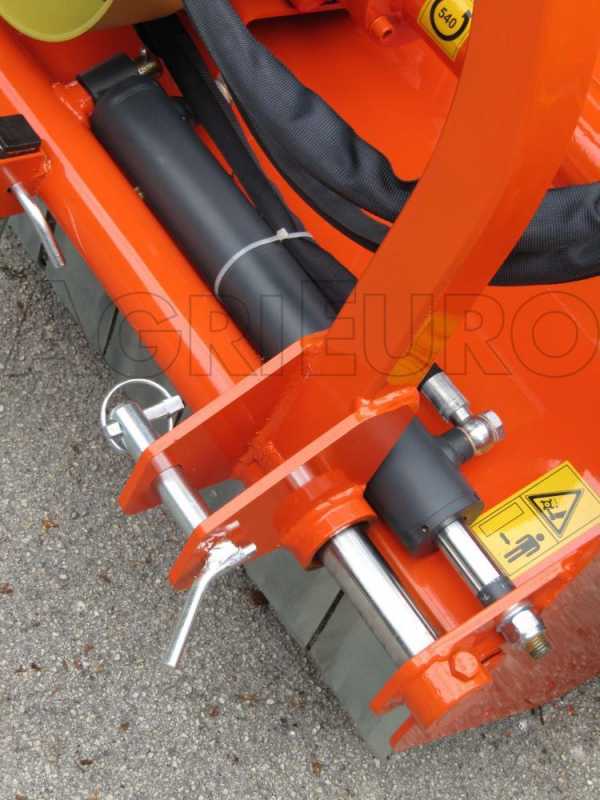

Hydraulic side shift operated by piston. Equipped with two tubes with quick couplings to be connected to the tractor’s hydraulic joints. The shift obtained is 13 cm.

It is a very solid shift system. Structured on a FULL chromed C45 steel tube which protects the hydraulic shift in the event of small accidental bumps.

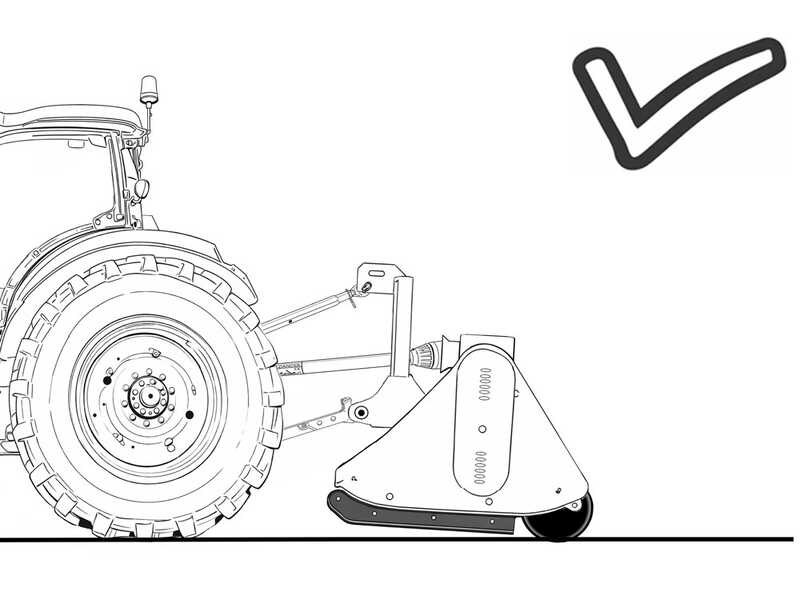

The joints are placed very close to the machine body and slightly protruding. This allows that the flail mower is positioned in a closer position to the tractor resulting in eliminating the risk of unintentionally launch of direct stones towards the Operator. Additionally and above all, it prevents any issues linked to the possible mower tilting or raising as in this way its weight is balanced with the tractor resting on a much lesser extent on the tractor. This feature makes possible to also fit the equipment with smaller-sized tractors, despite its high weight.

The pins of the 3-point hitch measure: 22 mm the two lower ones at the base, while the third, the one at the top measures 19/25 mm respectively.

Side belt transmission and reduction gearbox group

COMER original production reduction gearbox group in oil bath. The external housing is made in fusion material while the internal gears are in hardened steel. Also equipped with lubricated extension.

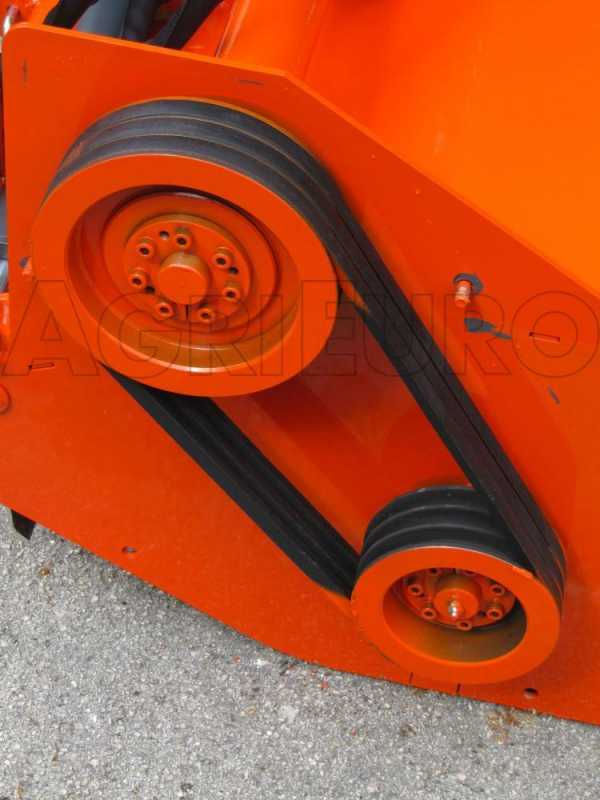

3-belt side transmission with large-sized belt (the majority of tractor shredders in this weight category are equipped with a normal 2-belt drive)

Belt protection side shield with optimized dimensions: only 9 cm thick. The transmission features 3 large section belts. This detail makes this shredder the smallest model on the market, considering the effective working width. Considering the overall dimensions of this carter and of the support skid on the opposite side, which protrudes by a few CM from the side of the machine, the overall size of this shredder is only 13 cm greater than the actual cutting width!!

Detail of the transmission side greaser, easy to access from a dedicated opening

Detail of the belts tension adjusting plate

Standard PTO 1 3/8” z6 (suitable to all tractors of the actual and recent production): Whether you own a particularly dated tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

Rear door flap

This tractor flail mower is equipped with rear cover (it can be opened), which is mounted on 3 sturdy hinges. Easy opening by simply unscrewing two bolts Provided with lifting handle. Extremely comfortable and user-friendly for maintenance and cleaning operations of the internal component, as well as for replacing tools, and so on.

Stabilisation accessories - rear roller

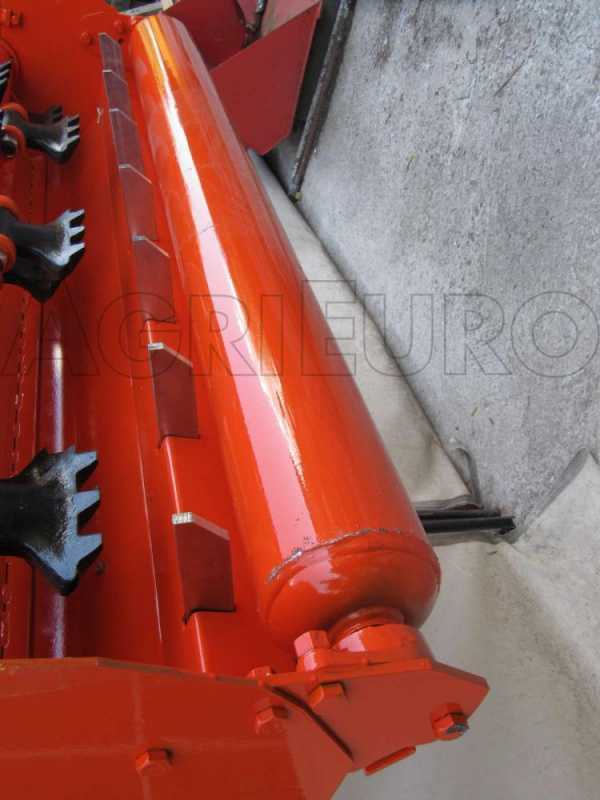

Adjustable rear support roller provided on standard. Equipped with self cleaning roller.

Detail of thelarge bearing with cast iron plate for the roller fixing

Detail of the steel side roller supporting plate, with holes for height adjustment

Side supporting skids supplied on request as an accessory (not strictly necessary for this machine, the roller itself performs the function of stabilizing the shredder)


Series of sturdy front protection slaps made of shaped steel.

Supporting foot

Free items & Standard equipment

Free items included

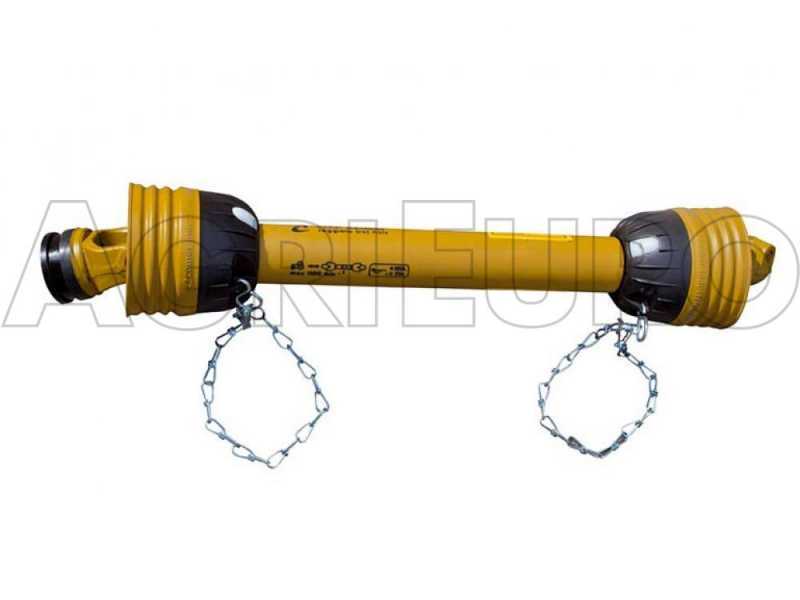

Drive shaft
