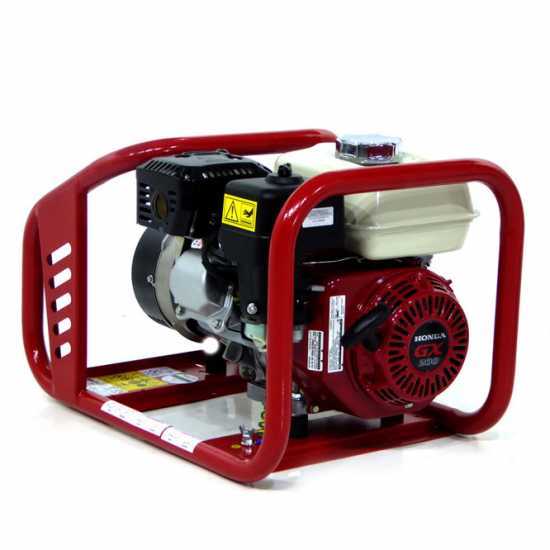

TecnoGen H3500 - 2.8 kW Power Generator - DC 2.5 kW Single-phase

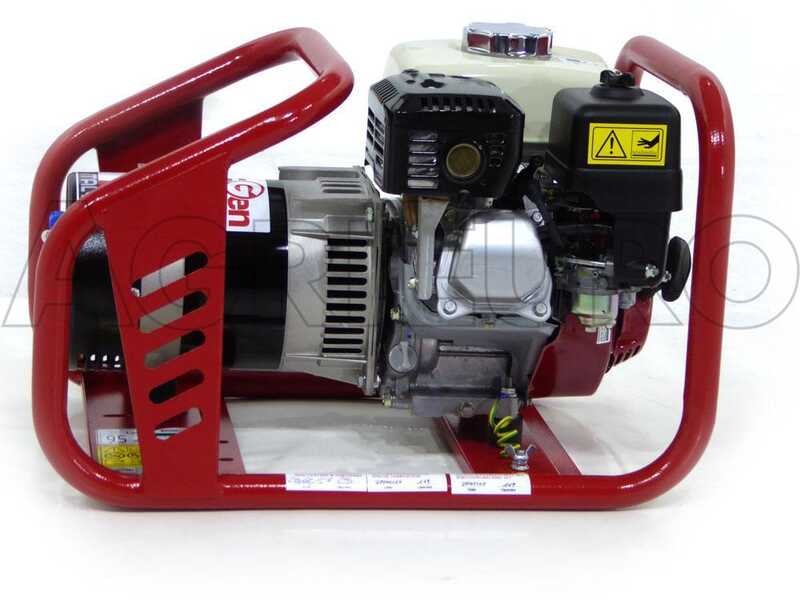

The TecnoGen H3500 single-phase petrol generator is a professional unit, designed for the production of electric power wherever needed.

The generator stands out for two important components as the engine and the alternator, which are renowned for their high quality, placed on top their own category.

The Honda GX 200 represents the top-quality engine of the category, known for its high reliability and performance.

As regards the alternator, it has been manufactured by Mecc Alte, the historical Italian manufacturer of high-quality alternators.

Both the Italian alternator and the Honda engine make the Tecnogen H3500 generator different from the other 90% models available on the market, which are not provided with the same high-branded components and allow considering this unit as a top-range product.

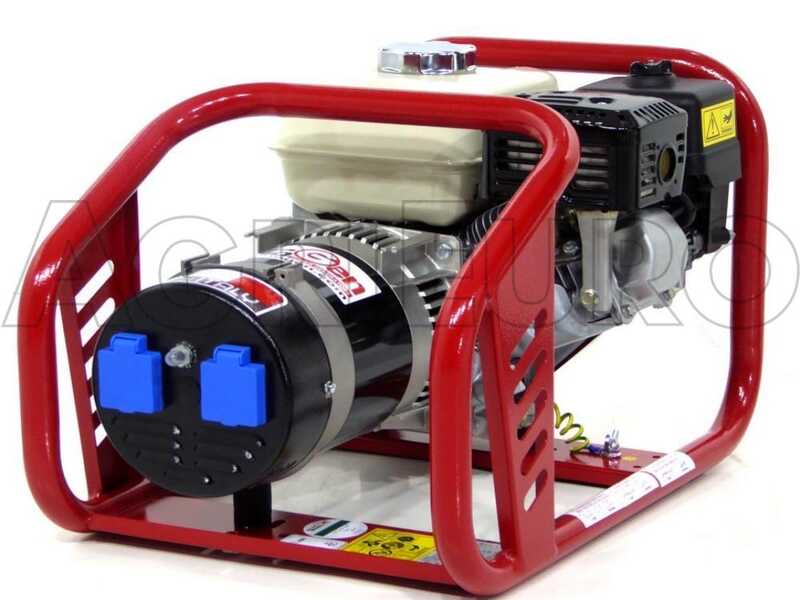

Max single-phase power output: 2.8 KW

Single-phase rated power output in continuous running (COP): 2.5 KW

This last feature represents the technical data to take into account as effective according to the generator capacity of generating electric power (since it allows the generator running for a long period of time).

Voltage: 230 V

Operating frequency: 50 Hz

Rated amperage: 30.4

Petrol tank capacity: 3.6 L

Dimensions: 59X39X38 (LxWxH)

Weight: 40 kg

Noise emissions: 96 dB

The Honda engines are certainly the best products available on market.
They represent the top of their line: they have been specifically designed for hard works in the construction and agriculture fields as well as their specificity for generators, soldering machines and agricultural machinery.

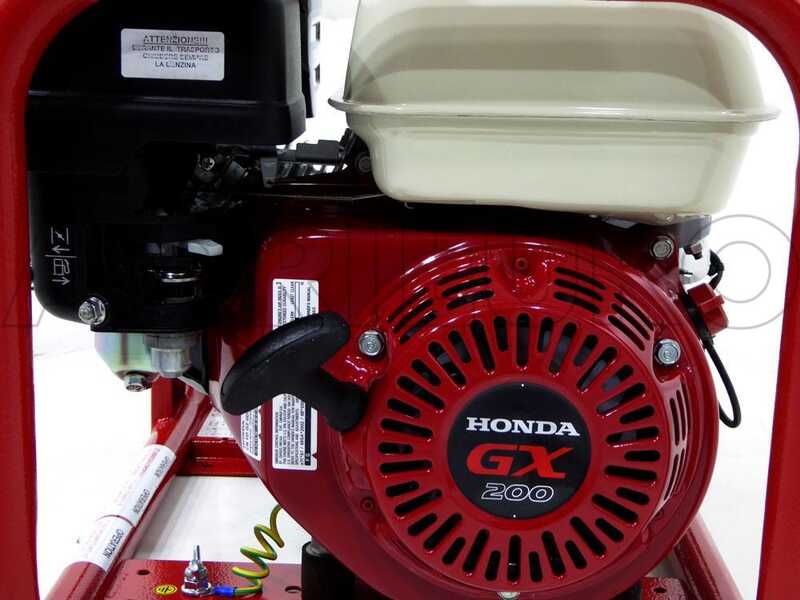

Honda GX 200 engine is known to be top of the range thanks to the high reliability and great performance it features.

Last-generation Honda GX 200 is a heavy-duty professional engine with overhead valve technology.

Technical specifications:

Engine type: single-cylinder 4 stroke

Cylinder type: aluminium

Cubic capacity: 196 cc

Compressio ratio: 8.5 : 1

Max revolutions: 3600 rpm

Torque value: 12.4 Nm / 1.26 kgfm / 2500 rpm

Consumptions: 1.7 lt/h a 3600 rpm

Rated power: 6,5 hp

Fuel tank capacity: 3.6 L

Noise emissions: 96 dB

Start type: Manual start

WARNING: Engine provided without oil

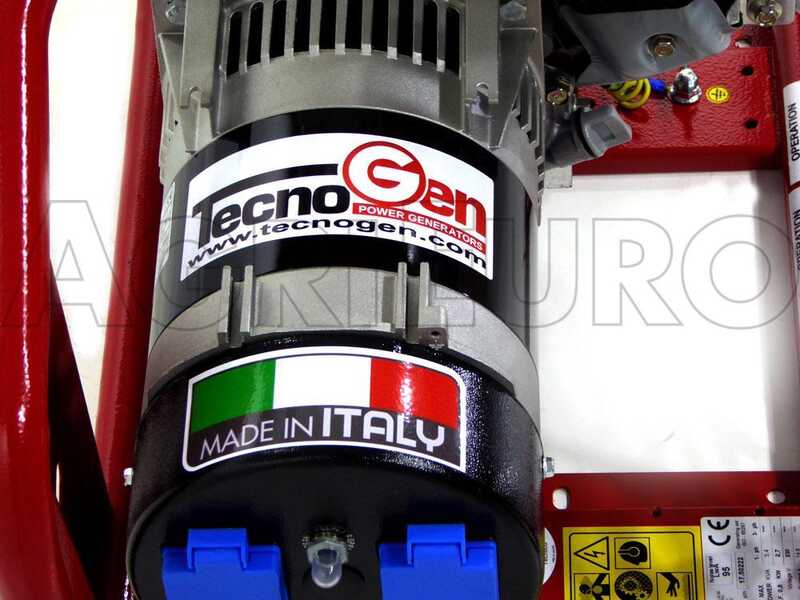

Alternator model: MECCALTE S16W-90

MECCALTE is an world leading producer and supplier of high quality and reliable alternators.

This alternator model is a high quality product offering great performance. It consists of a copper casing.

3000 rpm

Voltage: 230 V

Operating frequency: 50Hz

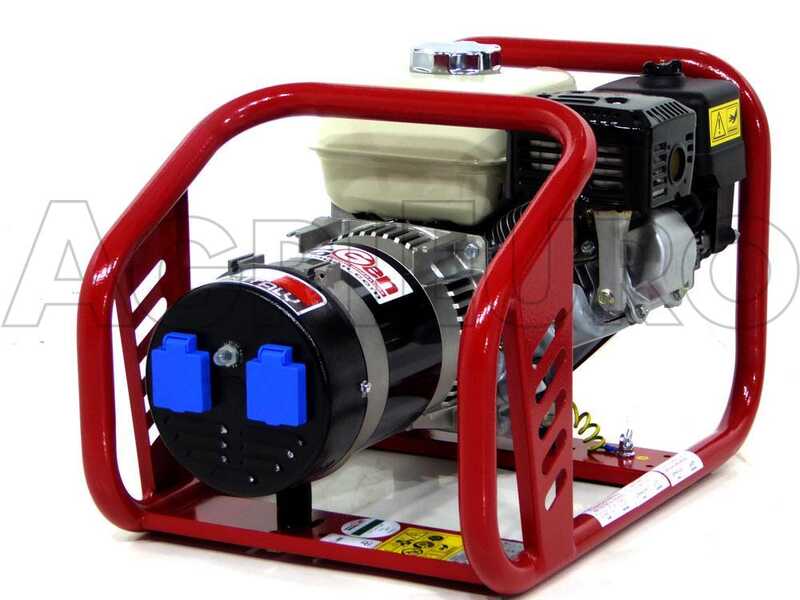

QM114 Electric control panel

Power outlets:

1 Schuko power outlet 16 A 250 V

2 Schuko power outlets 16 A 250 V

Reset power switch

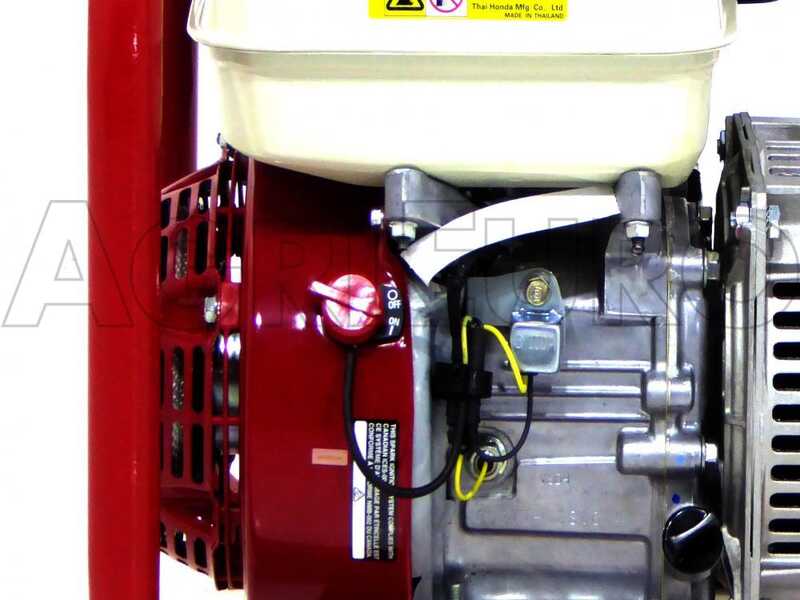

Focus on the start push button

Focus on the recoil start

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs. We remind you that to operate electric equipment (computers, TVs and all the other electric appliances provided with electronic card) you need to focus the attention on inverter generators (which allows stabilizing the electric current supplied).
