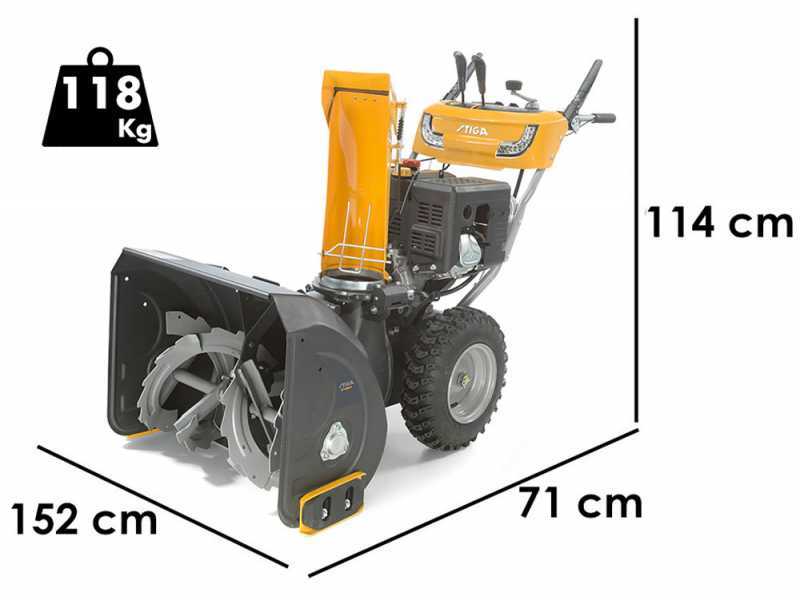

Stiga ST 5266 P - Petrol Snowplough - WS300

THE STIGA ST 5266 P is a reliable, high performance dual stage snow thrower with a 302cc petrol engine and a 66 cm gear turbine. The ST 5266 P snow thrower is capable of tackling virtually all types of snow and can work with a jet of up to 12 m. With adjustable skids and 16" snow hog tires, this snow thrower offers high traction at 6 different speeds.

Suitable for removing snow from medium to large areas

The new transmission enhanced by technology Easy turn for automatic release of the differential lock makes the ST 5266 P extremely manoeuvrable. This device is designed to work in complete comfort even in the most difficult conditions thanks to the special LED headlights, the heated handle and the electric start at 230 V. All controls are conveniently placed on the panel.

The large front auger in the 66 x 55 cm housing is professionally designed and provided with an optimised steel spiral profile and serrated edge. This cutter shreds the snow and discharges it many metres away via the discharge chute, which can be swivelled and adjusted via appropriate controls on the control panel.

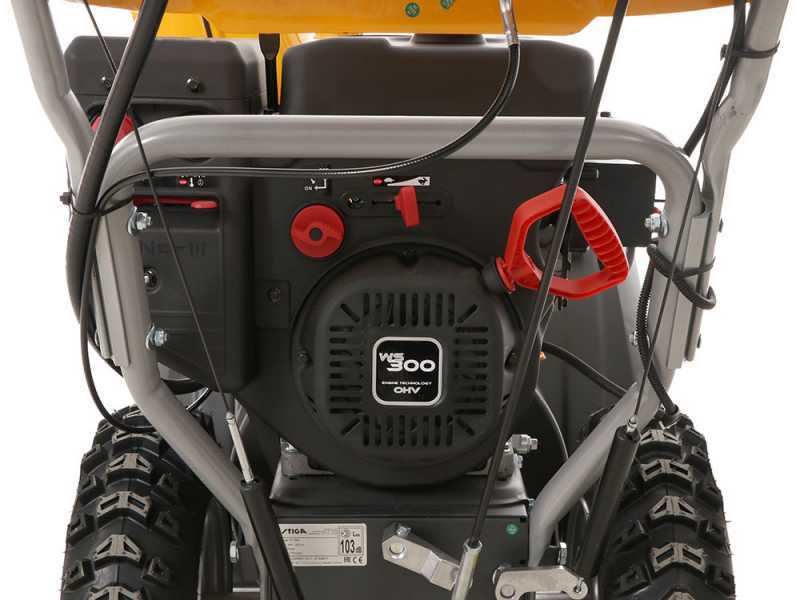

The WS300 engine delivers 6.2 kW at 3600 and a 66 cm auger means that this device is also capable of tackling snow with impact and launching it with a simple crank that directly drives the chute.

Features:

The engine of this snow blower is equipped with electric start. This system is provided with battery. Indeed, this allows starting the snow thrower directly connecting it to the electrical socket. This solution was devised because batteries, subjected to sudden changes in temperature, tend not to retain their charge, in fact, to take it completely. And more, they can hardly stand sporadic use. Winterised engines such as this one are not provided with air filter because working at low temperatures and with snow could create moisture that would then freeze, ruining the filter and creating problems for the operation of the machine.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Read the instruction manual carefully before start-up.

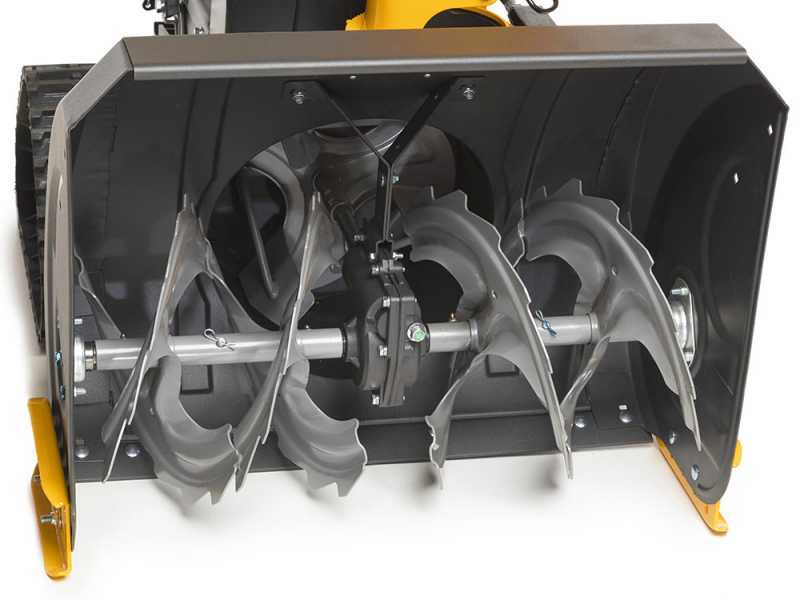

The tiller compartment is 66 cm wide and 55 cm high.

The snow plough cutter is a professional type with a steel spiral with a serrated edge.
This, together with its optimised profile, guarantees the crumbling and shaping of even the hardest snow.

Two-stage system

The snow is efficiently conveyed into the machine by means of the auger, and then thrown away through the discharging chute by means of an internal high-speed centrifugal fan.

The safety bolts protect the integrity of the gearbox. They are designed to give way if the blade runs into a stone or obstacle, thus preventing damage to the blade.

Metal/HDPE side skids.
They enable this snowplough to work on all types of terrain, from the smoothest to the not-so-smooth, without scratching it.

The snow ejection chimney is adjustable and via the controls located on the dashboard and by the worm screw at its base.

The deflector, snow ejection distance control, is controlled by a lever on the control panel.

The rotation angle of the chute is 190°: in relation to the direction of travel, the chute rotates 95° on both sides.

Detail of the chute oriented completely to the left

Detail of the chute, completely oriented to the right

Deflector placed fully up for maximum ejection distance.

Deflector placed completely at the bottom.

The fireplace is also equipped with an anti-intruder safety grid.

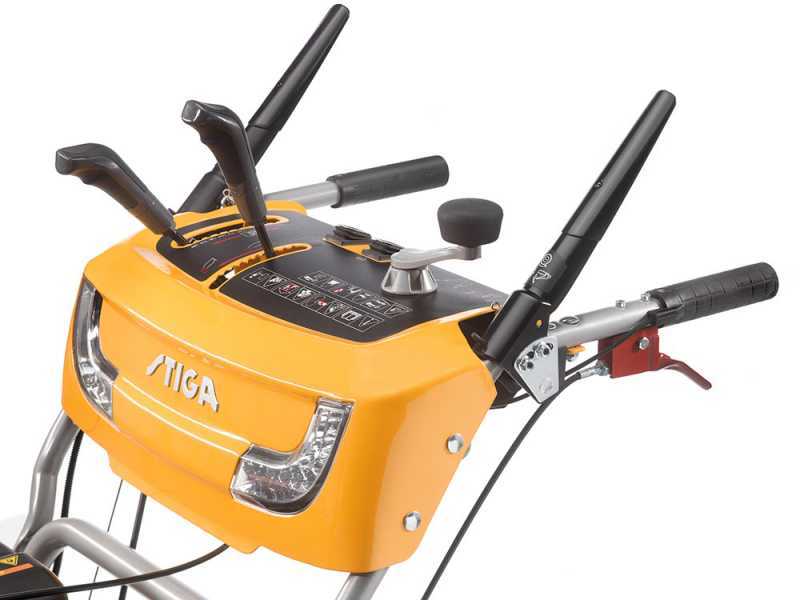

The control panel is user-friendly, complete and intuitive.

Gear lever: 6 forward plus 2 reverse gears

Switches for the LED headlamp and heated handles

Lever on top of the right handle: activates and deactivates the feed (whatever speed is selected on the gearbox, either forwards or backwards). Releasing this lever stops the machine instantly, for safety reasons.

Assisted Steer
It allows the traction of one of the 2 tracks to be unlocked by means of the lever at the bottom.

It makes manoeuvring or reversing considerably easier. It is operated via the small red lever below the handle.

Lever on top of the left handle: activates and deactivates both the milling cutter and the high-speed chimney expulsion fan (activates and deactivates both stages simultaneously).

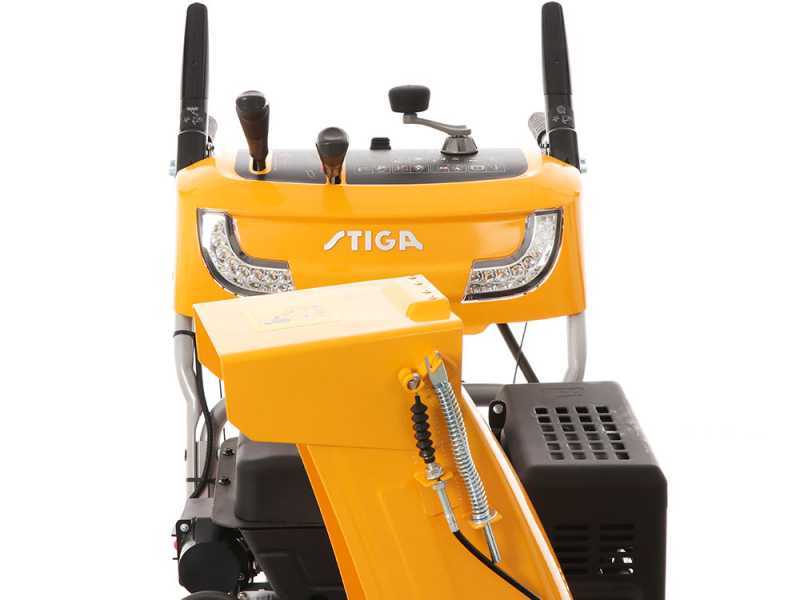

Discharge chute deflector direction: it can be adjusted via the control on the dashboard.

Expulsion chimney orientation knob.

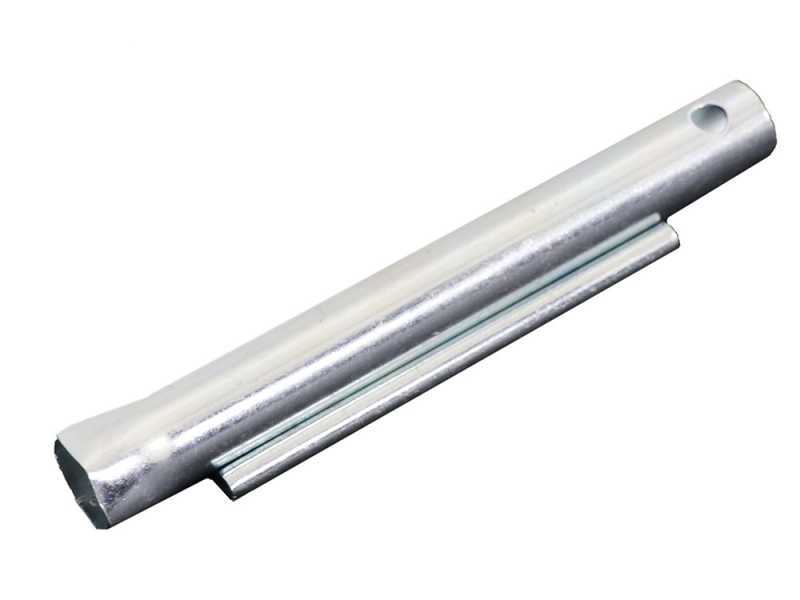

Tool for unclogging.
If the exhaust chute becomes clogged, it is easy to clear it with the clog removal rod.

Powerful and precise lighting thanks to LED spotlights in front of the control panel.

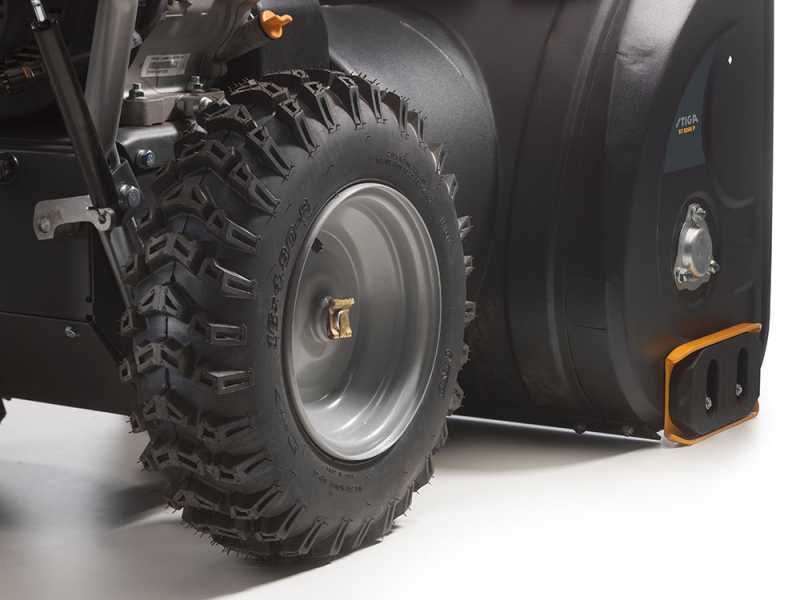

Traktor model wheels with 16-inch Snow Hog tyres that provide enormous grip on the ground, making the most of the engine's power.
